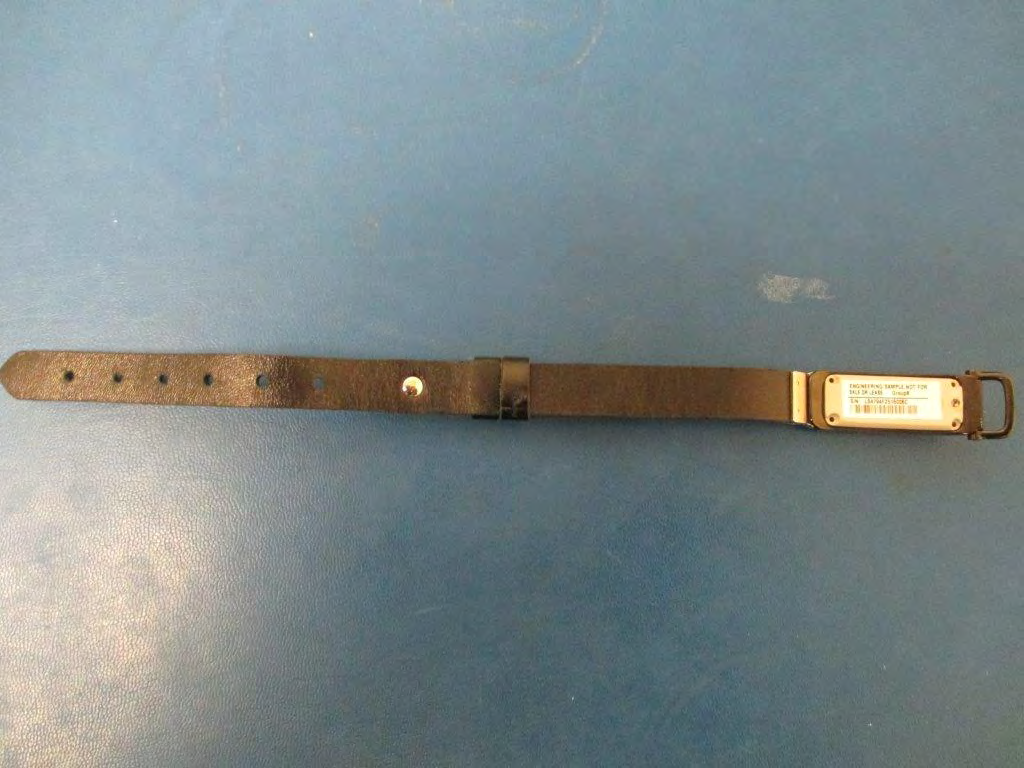

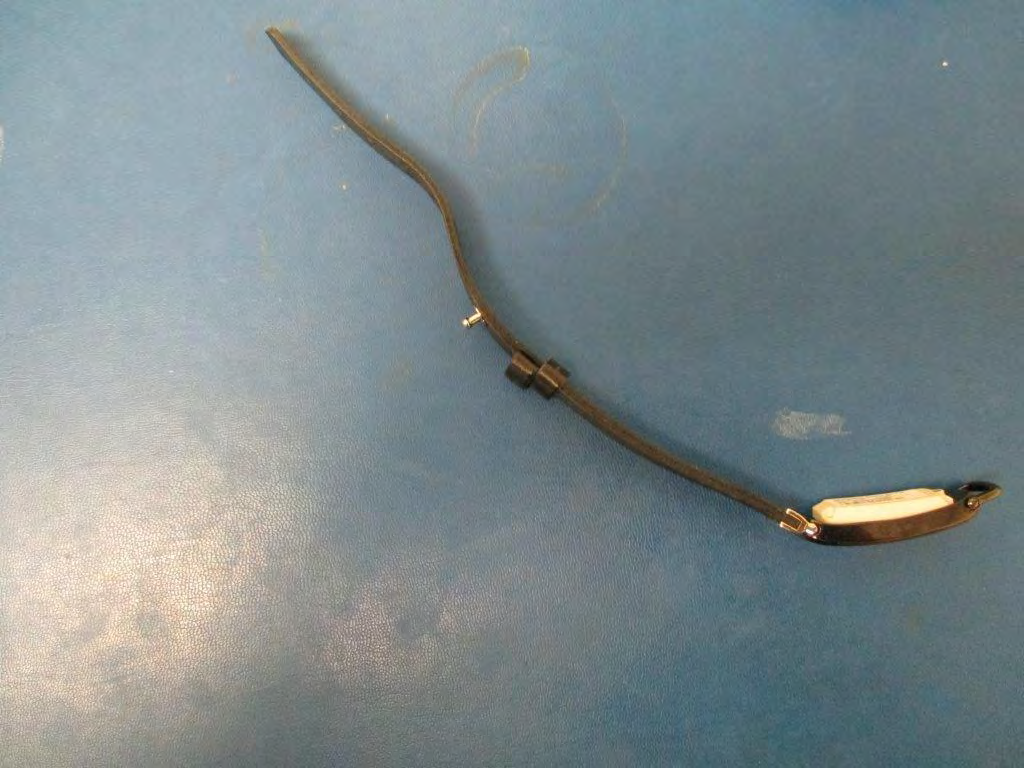

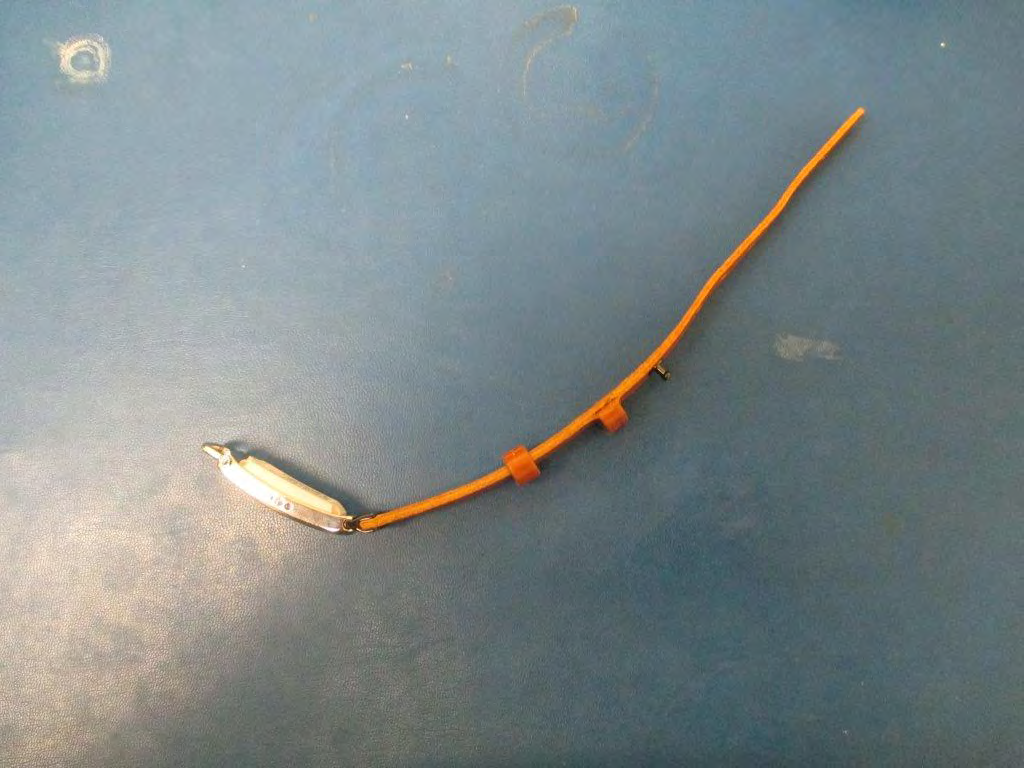

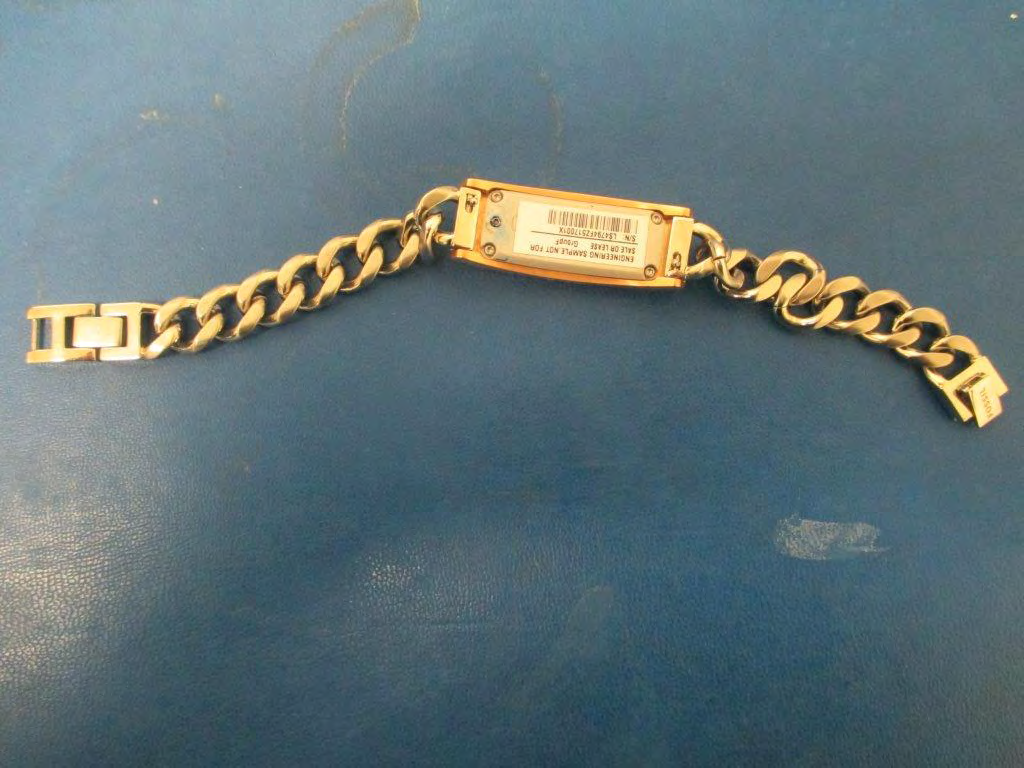

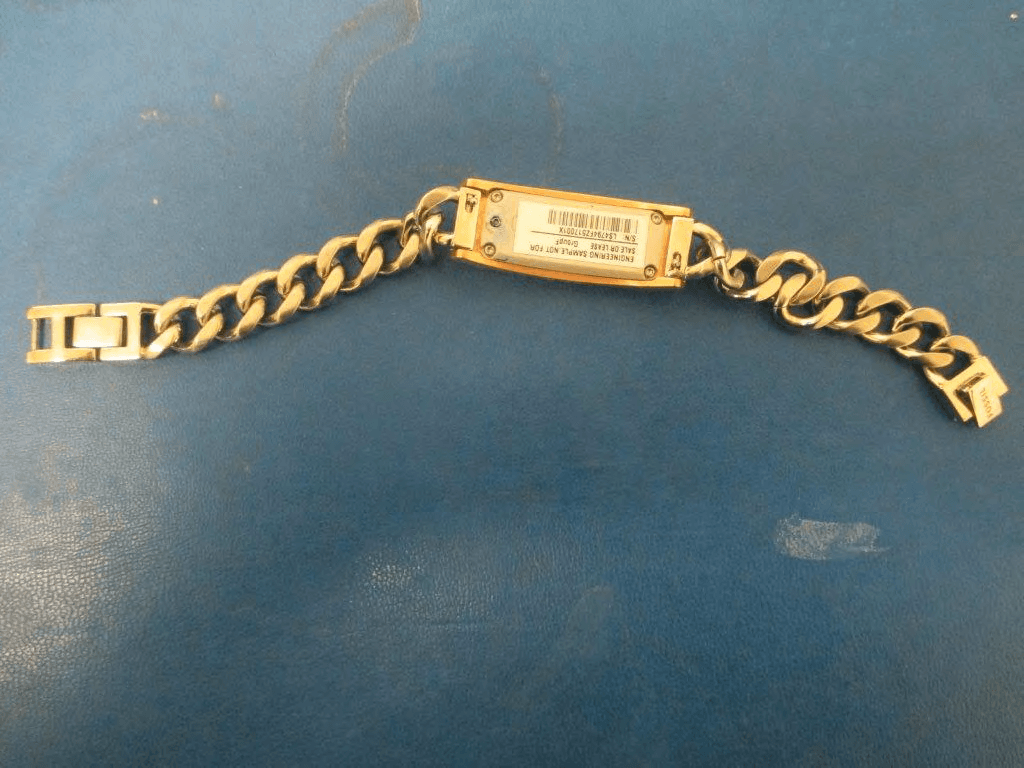

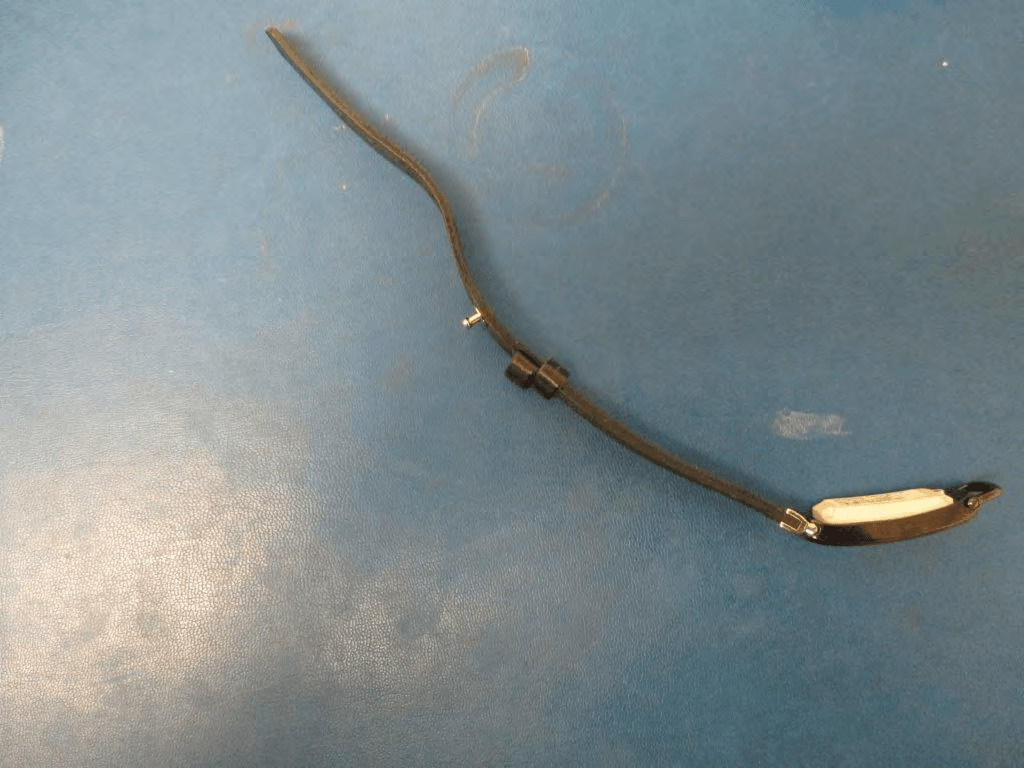

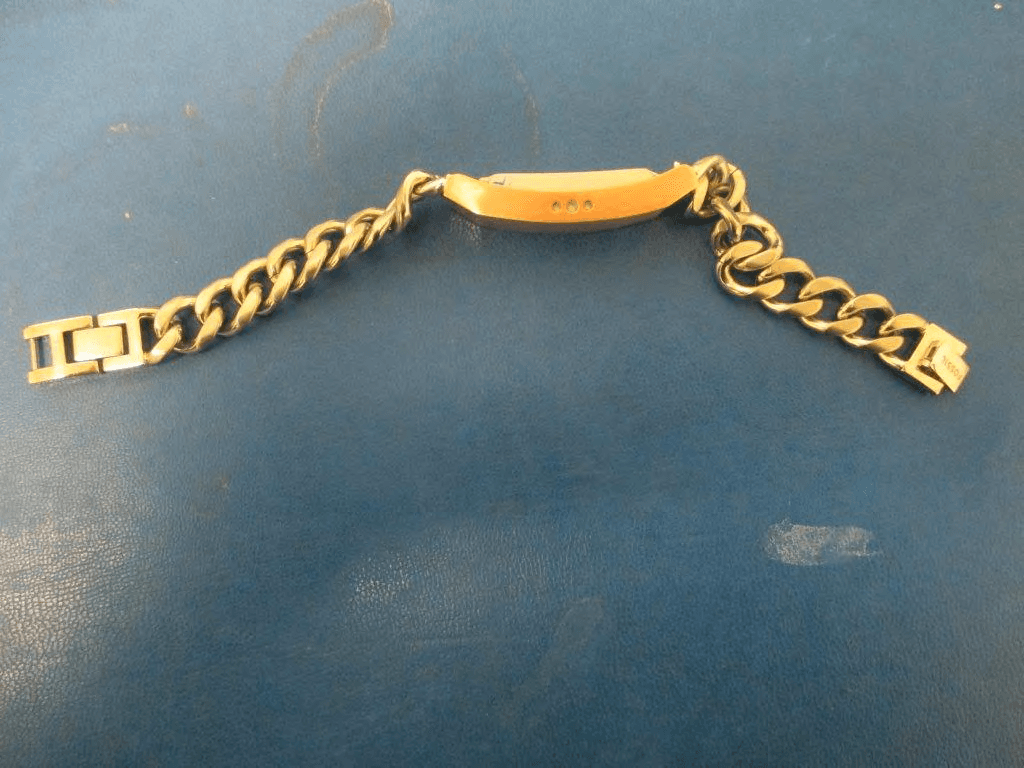

2AB8ZND5Health Tracking Band

Intel Confidential — Do Not Forward Lois/Clark Device Behavior April 28, 2015 New Business Group UX Document Owner: Anna Mansour [email protected] Intel Confidential — Do Not Forward | Contents CURRENT JEWELRY (DEVICE) BEHAVIOR SPECIAL SITUATIONS FOR THE R/GA APP PLANNED JEWELRY (DEVICE) BEHAVIOR 2 3 10 22 Intel Confidential — Do Not Forward | Current Jewelry Behavior 3 Intel Confidential — Do Not Forward | Summary of Device Behaviors (Completed) 4 Exact LED Colors TBD pending testing. Inactive = no movement/no alerts received from paired phone. Intel Confidential — Do Not Forward | Summary of Device Behaviors (Planned) 5 Exact LED Colors TBD pending testing. Inactive = no movement/no alerts received from paired phone. [By Beta. App must guide user to do FW update] Intel Confidential — Do Not Forward | Bluetooth Advertising 6 Events that will make the Device advertise itself (30 seconds): If the Device has not been paired with a phone § The device is turned on § The bluetooth pairing information is removed (via an 8-second button press) § [Planned] The button is pressed once when the device is already turned on If the Device has been paired with a phone § The device is turned on § A button press § A recognized double or triple tap § The BLE connection is interrupted § The bluetooth pairing information is removed (via an 8-second button press) § Periodically (~every 1s) to maintain a constant connection § [Planned] When movement (accelerometer) occurs after device hasn’t moved in a given time TBD More details in Clark/Lois BLE Behaviors document. Intel Confidential — Do Not Forward | Button Overview 7 VibraDevice turns off Vibra VibraVibra Vibra Vibra Turn on / BLE Advertise Device wipes pairing info Device goes to recover mode 0 Sec3 Sec8 Sec12 Sec Button Button Button Button HW Reset User releases button in response to vibra User releases button in response to vibra User releases button in response to vibra Power On Power Off Wipe Pairing Info Recovery Mode (used rarely) Note: If device is already powered on, pressing the button will trigger BLE to advertise Note: Currently, on release of the device button the haptic response is played. This will be fixed so that the haptics play after the button is held for the specified time. Hold button for 12s for recovery mode/hw reset until light feedback (exact pattern TBD) Intel Confidential — Do Not Forward | Debug Notifications – Extra Lights You’re Experiencing 8 These occur along with the normal behaviors. They are temporary debugging codes and will be removed before the Beta Field Trial. Please see Device Release Notes for the most up to date debug notifications. Intel Confidential — Do Not Forward | Tap Input 9 Pattern Error: Feedback if a tap not successfully sent to phone. Buzz: 250ms LED: Red 5 Flicker (100ms On, 100ms Off ) Pattern Gestures: Blink feedback for two and 3 taps. Intel Confidential — Do Not Forward | Special Situations for the R/GA App to handle 10 Intel Confidential — Do Not Forward | [Planned] Recovery Mode 11 Recovery Mode is needed for 3 situations 1. Device is non-functioning and no other fixes work (User-Initiated) 2. If BLE link is cut during FOTA (Automatic) 3. If too many critical problems have been detected (Automatic) There should be: • In-App detection of Recovery Mode and guidance for getting the user out of it (a firmware update). • FAQ/Support for putting the device into Recovery Mode when nothing else works, and getting the device out of Recovery Mode. • FAQ/Support for what to do when the device goes into Recovery Mode by itself. Intel Confidential — Do Not Forward | Unpairing a Device – Potential Issues Unpairing should be done on both the jewelry and the phone to prevent future pairing issues. The user needs to be instructed to unpair from both the phone and the jewelry. Two potential sticky situations: 12 Scenario 1: Kate is lending her watch to Julie Julie can’t pair until she wipes watch BT settings. Scenario 2: Olivia got a new phone Olivia can’t pair until she wipes the watch BT settings. Jewelry is still paired, Phone has no pairing info/is new ? Scenario 3: Kate gets her watch back from Julie Kate’s phone will have old pairing info, even though it recognizes the watch. She won’t be able to pair until she removes the device from her BT menu. Jewelry is wiped, Phone is still paired ? Intel Confidential — Do Not Forward | 13 Pairing, Wiping, Reconnecting Intel Confidential — Do Not Forward | Pairing New Jewelry – Never Been Paired 14 Begin Pairing Flow In App User follows App instructions to trigger Bluetooth advertising Confirmation of Pairing on Jewelry Paired & Connected 1 Blink (500 ms) 1 Buzz (250 ms) PAIR Brand new devices arrive in a shipping mode. They must be put on the charger to get out of shipping mode and be able to pair. It will power on automatically and advertise. Put Device on Charger and plug in We recommend requiring the user to press the button (an intentional act). Note: A firmware update might be necessary right after pairing. Intel Confidential — Do Not Forward | Pairing New Jewelry – Never Been Paired 15 A Potential Flow Open Box Plug in Jewelry/ Charger Download App If Jewelry still advertising, skip Device out of shipping mode and advertises Start Pairing Flow in App “Press Button on Jewelry” Jewelry Found & Paired Continue App Setup Flow User views instruction card A Firmware Update may be required Intel Confidential — Do Not Forward | Pairing New Jewelry – Previously Paired (ex. sharing/selling) 16 Remove previous pairing This will cause the device to broadcast for 30 seconds Begin Pairing Flow In App Follow App instructions to trigger Bluetooth advertising Confirmation of Pairing on Jewelry Paired & Connected 1 Blink (500 ms) 1 Buzz (250 ms) *Press* We recommend requiring the user to press the button (an intentional act). PAIR Intel Confidential — Do Not Forward | Pairing New Jewelry – Previously Paired 17 A Potential Flow Receive Jewelry Attempt to Pair in…

Text truncated - open the document above for the full version.

Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 FCC ID: 2AB8ZND5 IC: 1000X-­‐ND5 OEM Integration procedure: To insure compliance with FCC and Canada IC, the following steps should be followed for integration of Intel BT BLE module to the host: 1) FCC ID should be visible to the user after integration of module into bracelet. 2) IC number should be visible to the user after integration of module into bracelet. 3) Use in other bracelets may require submission of a C2PC filing for FCC and either reassessment or model addition for Industry Canada. Please work with Intel to determine the appropriate procedures. 4) User documentation with the regulatory statements required by FCC and Canada, as described in the sample manual provided to Intel, must be provided to the end user.

FCC Statement (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio or television technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING! Exposure to Radio Frequency Radiation The radiated output power of this device is below the FCC and Industry Canada radio frequency exposure limits. This device must not be co-­‐located or operating in conjunction with any other antenna or transmitter. FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by manufacture, may void the user’s authority to use the device ICES-­‐003 (Canada) This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the interfer-­‐ ence-­‐causing equipment standard entitled: “Digital Apparatus,” ICES-­‐003 of the Canadian Department of Communications. Cet appareil numérique respecte les limites bruits radioélectriques applicables aux appareils numériques de Classe Bprescrites dans la norme sur le matériel brouilleur: "Appareils Numériques", NMB-­‐003 édictee par le Ministre Canadian des Communications. This device complies with Industry Canada license-­‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Europe (CE Declration of Conformity) This product complies with the Low Voltage Directive 2006/95/EC; EMC Directive 2004/108/EC, EU Directive R&TTE Directive 1999/5/EC, and RoHS Directive 2011/65/EU. Point of contact: (please add your company name), Attn: (Please add your corporate address) "In the EU, this symbol means that this product must not be disposed of with household waste. It is your responsibility to bring it to a designated collection point for the recycling of waste electrical and electronic equipment. For more information, please contact your local waste collection center or your point of purchase of this product."

Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, , 5/29/2015 Masood Abrishamcar Compliance Manager Intel Corporation

Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AB8ZND5 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards , 5/29/2015 Masood Abrishamcar Compliance Manager Intel Corporation

Diagram of label for Module FCC ID 2AB8ZND5 Note – The label will be visible to the user after installation of the module.

Statement of Justification and Compliance for SAR Test Exclusion FCC ID: 2AB8ZND5 Applicant: Intel Corporation According to FCC KDB 447498 D01 General RF Exposure Guidance v05r02 4.3.1. Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Target power = 4dBm. So, max. power of channel, including tune-up tolerance = 3mW min. test separation distance = 5 mm f(GHz) = 2.480 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] = (3/ 5) · (√2.480) = 0.94 5≤ 7.5 SAR evaluation is not required for this device.

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 BLUETOOTH LOW ENERGY CERTIFICATION TEST REPORT FOR HEALTH TRACKING BAND MODEL NUMBERS: FTJ10001, FTJ10002, FTJ10003, FTJ10004, FTJ10011, FTJ10012, FTJ10013, FTJ10014. FTJ50001, FTJ50011, FTJ50012, FTJ50013, FTJ50014 FCC ID: 2AB8ZND5 IC: 1000X-ND5 REPORT NUMBER: 15U20336-E2A ISSUE DATE: June 4, 2015 Prepared for INTEL CORPORATION 2200 MISSION COLLEGE BOULEVARD SANTA CLARA, CA 95052, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 2 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 06/02/2015 Initial Issue T. Chan A 06/04/2015 Updated Section 10.1, 10.2 and 10.3 D. Weaver REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 3 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................................................ 5 3. FACILITIES AND ACCREDITATION.................................................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................................... 5 4.2. SAMPLE CALCULATION ............................................................................................................................. 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 6 5. EQUIPMENT UNDER TEST ................................................................................................................................. 7 5.1. DESCRIPTION OF EUT ............................................................................................................................... 7 5.2. MANUFACTURER’S DESCRIPTION OF MODEL DIFFERENCES ............................................................. 7 5.3. MAXIMUM OUTPUT POWER ...................................................................................................................... 7 5.4. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................................................. 7 5.5. SOFTWARE AND FIRMWARE .................................................................................................................... 7 5.6. WORST-CASE CONFIGURATION AND MODE .......................................................................................... 7 5.7. DESCRIPTION OF TEST SETUP ................................................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................................................... 10 7. MEASUREMENT METHODS ............................................................................................................................. 11 8. ON TIME, DUTY CYCLE AND MEASUREMENT METHODS ............................................................................ 12 9. ANTENNA PORT TEST RESULTS .................................................................................................................... 14 9.1. 6 dB BANDWIDTH...................................................................................................................................... 14 9.2. 99% BANDWIDTH ...................................................................................................................................... 16 9.3. OUTPUT POWER ...................................................................................................................................... 18 9.4. AVERAGE POWER .................................................................................................................................... 20 9.5. POWER SPECTRAL DENSITY .................................................................................................................. 21 9.6. CONDUCTED SPURIOUS EMISSIONS .................................................................................................... 23 10. RADIATED TEST RESULTS .......................................................................................................................... 27 10.1. LIMITS AND PROCEDURE ................................................................................................................... 27 10.2. TRANSMITTER ABOVE 1 GHz – EUT WITHOUT WRISTBAND .......................................................... 28 10.3. WORST-CASE BELOW 1 GHz – EUT WITHOUT WRISTBAND ........................................................... 38 10.4. TRANSMITTER ABOVE 1 GHz – EUT WITH METAL WRISTBAND ..................................................... 41 10.5. WORST-CASE BELOW 1 GHz –EUT WITH METAL WRISTBAND ...................................................... 51 11. SETUP PHOTOS ............................................................................................................................................ 54 REPORT NO: 1…

Text truncated - open the document above for the full version.

REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 54 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 55 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (BELOW 1 GHz) RADIATED FRONT PHOTO (BELOW 1 GHz) RADIATED BACK PHOTO (BELOW 1 GHz) REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 56 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (BELOW 1 GHz) – WITH METAL WRISTBAND RADIATED FRONT PHOTO (BELOW 1 GHz) RADIATED BACK PHOTO (BELOW 1 GHz) REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 57 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) RADIATED FRONT PHOTO (ABOVE 1 GHz) RADIATED BACK PHOTO (ABOVE 1 GHz) REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 58 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) – WITH METAL WRISTBAND RADIATED FRONT PHOTO (ABOVE 1 GHz) RADIATED BACK PHOTO (ABOVE 1 GHz) REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 59 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS PHOTO Y-AXIS PHOTO REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 60 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Z-AXIS PHOTO REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 61 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION – WITH METAL WRISTBAND X-AXIS PHOTO Y-AXIS PHOTO REPORT NO: 15U20336-E2A DATE: June 4, 2015 FCC ID: 2AB8ZND5 IC: 1000X-ND5 Page 62 of 62 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. END OF REPORT Z-AXIS PHOTO
