2ABC6MNC-H200NETWORK IP CAMERA

Full HD Wi-Fi Network Camera MNC-H200 USER'S MANUAL ■ is the trademark of MCNEX Co. Ltd. ■ The model and services of this product are the trademarks of the owner. ■ MCNEX Co. Ltd. owns the copyright of this document. ■ Copying, distributing, reproducing or modifying any part of this document is prohibited without an official approval of MCNEX Co. Ltd. ■ Before using this product, please register the product number attached on the back of the product warranty of this manual as well as on the product for the best customer support and after services. On the website. (If not registered, it requires the purchase receipt for seamless A/S.) Thank you for purchasing this product. Before using this product... www.mcnmate.com ■ This manual has been produced as of today/the present (by current standards). Best efforts were put for completeness and accuracy. However, there may be editorial errors or omissions, and there is no guarantee for this. The responsibility for using this document entirely depends on the user. ■ Any change(s) in the product specifications or manual for improvement in the product performance may take place without notice. ■ The images in this manual may look a little differently depending on the printer or a change in specifications. ■ We do not take any responsibility for loss or radio/TV interference caused by the user’s misusage or remodeling of the camera out of its original purpose. Please be aware that you may be legally punished by‘the Private Act and related statutes’if you intentionally record others. ■ This device as a home appliance (B grade), Electromagnetic compatibility device is mainly suitable for use in the home and can be used in all areas. The radio/wireless equipment may cause a mixed radio signal so cannot provide services related with life-saving. Important Notes Date of Publication: November 2014 Publisher: MCNEX Co. Led. 02 Table of Contents 01 Warnings and Cautions 1. Safety Warnings 2. Safety Cautions 03 Parts of Product 1. Components 2. Names and Functions 1. Product Features 04 Installation 1. Product Installation 2. Network Connection 05 Viewer Monitoring 1. Camera Registration 2. Live Video 3. Playback 4. Settings 06 Mobile Monitoring 1. Camera Registration 2. Live Video 3. SD Card Playing 4. Settings 06 Others 1. Product Specification 2. Troubleshooting 3. A/S Guidelines 4. Warranty 02 Product Features 03 01 Warnings and Cautions 1. Safety Warnings The following precautions are to prevent unexpected risks or damage by using the product safe and correct / correct use / the product. The precautions are divided into two types,“Warning”and“Caution”, meaning as follows: This graphic symbol is a symbol for attention on the operations and items that might cause a hazard. So, please read and follow the instructions carefully to prevent any risk. If you do not follow the instructions, the user takes all the responsibility. If this sign is violated, it may cause a serious injury or death. If this sign is violated, it may cause a minor injury or damage to the product. Warning Caution ! ! ! 05 1. Warnings for Safety ■ Before using the product, please read the instructions thoroughly, and follow the operating guidelines and warnings enclosed and indicated with this manual. ■ Do not touch the power cable with wet hands when plugging or unplugging. It can cause an electric shock. ■ Plug the power cable all the way in so that it’s not wobble, and do not use a damaged cable which can cause a fire/electric shock. ■ Use the supplied power adapter only. Use of a unauthorized adapter may cause a damage to the product. The power adapter must be used for home-rated power. ■ Install the product and power cable out of reach of children, and Place them away from infant beds or any other children’s furniture. Install the power cable especially out of children’s reach. ■ This product has been designed for indoor use, not for medical purposes, and requires supervision of an adult. ■ Install the product in a well-ventilated place. ■ Do not touch any uninsulated, exposed part of the power adapter when plugging or unplugging. ■ Do not place the product or power cable near any hear sources. ■ Do not leave any sharp objects near the adapter cable to prevent cable damage. ■ This product is not intended to replace human supervisory ability of children. ■ This product does not have a function of immediately notifying adults of any unexpected and sudden movements of children, so it requires a regular inspection and supervision management by staff. ■ Because this product as a Wi-Fi and Network product is used with transceivers of the antenna, keep the distance of longer than 20 cm between the antenna of the product and the user to satisfy the RF exposure specifications. ■ Do not operate the product with wet hands. This may cause an electric shock or product malfunction. ! WARNING 06 2. Safety Cautions ■ Use genuine McnMate products and parts only. Using a non-genuine product or part can cause a product damage. ■ Make sure the Micro SD card turned off before inserting or taking it out. ■ If the storage space in the Micro SD card is full, the oldest video is automatically deleted. Therefore, keep important recording files on a separate storage device. ■ When changing the mounting position of the product, the camera angle can be changed, so check the images after mounting the camera and adjusting its angle. If it is attached to the wrong location, normal recording may not be done. ■ Keep the front of the lens clean. ■ The best temperature for its functioning is between -20 ~ +55°C. Keep this temperature to prevent any problem especially in hot summer or cold winder. ■ Do not use the product in a place with high temperature or humidity. ■ Please contact the customer service immediately if you suspect a problem with the product or its function. Otherwise, the symptoms may get worse, and you may not be able to get normal customer support. ■ This product record images using a camera, so the …

Text truncated - open the document above for the full version.

MCNEX CO.,LTD. Hanshin IT Tower 2, 60-18, Gasan-dong, Geumcheon-gu, Seoul, Korea Tel. +82-70-4330-5715 / Fax. +82-2-2025-3610 May 11, 2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize KRL Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2ABC6MNC-H200 including signing of all documents relating to these matters. Any and all acts carried out by KRL Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from MCNEX CO.,LTD. KRL Co.,Ltd. (Contact Person) Contact name: Kyu-Hyun, Lee Position: Manager Phone:(82)70-4324-6611 E-mail: [email protected] Gi-ho, Kim / Manager MCNEX CO.,LTD.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 MCNEX CO.,LTD. May 11, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____MCNEX CO.,LTD. _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID : 2ABC6MNC-H200, M/N : MNC-H200 Sincerely, Gi-ho, Kim / Manager MCNEX CO.,LTD.

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 MCNEX CO.,LTD. May 11, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABC6MNC-H200 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Gi-ho, Kim / Manager Contact information / address: MCNEX CO.,LTD. / Hanshin IT Tower 2, 60-18, Gasan-dong, Geumcheon-gu, Seoul, Korea SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 MCNEX CO.,LTD. May 11, 2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: 2ABC6MNC-H200 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - Manual - EXT PHOTO - INT PHOTO - Test PHOTO The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title : Gi-ho, Kim / Manager Contact information / address: MCNEX CO.,LTD. / Hanshin IT Tower 2, 60-18, Gasan-dong, Geumcheon-gu, Seoul, Korea

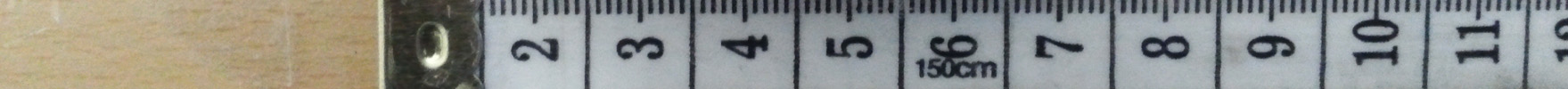

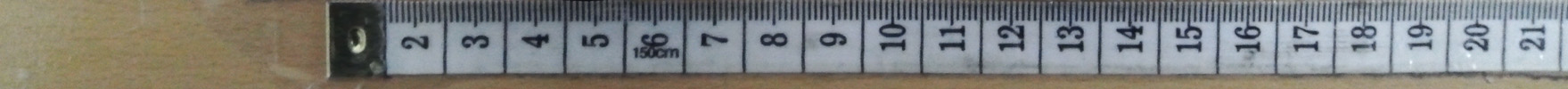

FCC ID: 2ABC6MNC-H200 Copyright c 2015, KRL Co., Ltd. Page 1 of 4 Upper Lower FCC ID: 2ABC6MNC-H200 Copyright c 2015, KRL Co., Ltd. Page 2 of 4 Side 1 Side 2 FCC ID: 2ABC6MNC-H200 Copyright c 2015, KRL Co., Ltd. Page 3 of 4 Side 3 Side 4 FCC ID: 2ABC6MNC-H200 Copyright c 2015, KRL Co., Ltd. Page 4 of 4 Internal ANTENNA

FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, KRL Co., Ltd. MCNEX CO.,LTD. M/N : MNC-H200 FCC ID : 2ABC6MNC-H200 SAMPLE LABEL & LOCATION

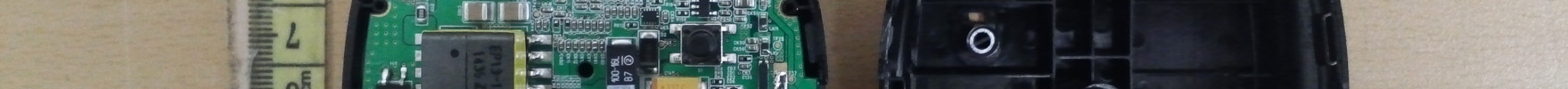

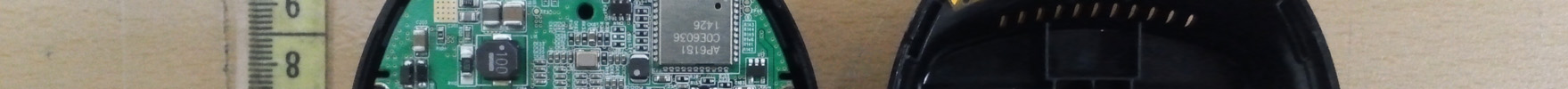

FCC ID: 2ABC6MNC-H200 Copyright c 2015, KRL Co., Ltd. Page 1 of 3 Main Board Front Main Board Rear FCC ID: 2ABC6MNC-H200 Copyright c 2015, KRL Co., Ltd. Page 2 of 3 Sub Board Front Sub Board Rear FCC ID: 2ABC6MNC-H200 Copyright c 2015, KRL Co., Ltd. Page 3 of 3 Module Board Front

FCC ID: 2ABC6MNC-H200 * Standalone SAR test exclusion considerations 1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times |E| 2, |H| 2 or S (minutes) 0.3-3.0 614 1.63(100)*6 3.0-30 1842/f 4.89/f(900/f)*6 30-300 61.4 0.1631.06 300-1500 F/3006 1500-10000 56 b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times |E| 2, |H| 2 or S (minutes) 0.3-3.0 614 1.63(100)*30 3.0-30 824/f 2.19/f(180/f)*30 30-300 27.5 0.0730.230 300-1500 F/150030 1500-10000 1.030 Note : f=frequency in MHz *=Plane-wave equivalent power density FCC ID: 2ABC6MNC-H200 2. MPE Calculation Method S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR 2 3. Calculated Result and Limit DC 5.0V (R = 20cm) Mode Channel Max. tune up Power Antenna Gain Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Result (dBm) (mW) (dBi) (numeric) 802.11b Low 18.500 70.795 -3.540 0.443 0.006233 1 PAS S Middle 18.500 70.795 -3.540 0.443 0.006233 1 PAS S High 18.500 70.795 -3.540 0.443 0.006233 1 PAS S 802.11g Low 23.000 199.526 -3.540 0.443 0.017568 1 PAS S Middle 23.000 199.526 -3.540 0.443 0.017568 1 PAS S High 23.000 199.526 -3.540 0.443 0.017568 1 PAS S 802.11n20 Low 22.500 177.828 -3.540 0.443 0.015658 1 PAS S Middle 22.000 158.489 -3.540 0.443 0.013955 1 PAS S High 22.000 158.489 -3.540 0.443 0.013955 1 PAS S FCC ID: 2ABC6MNC-H200 DC 48V(POE) (R = 20cm) Mode Channel Max. tune up Power Antenna Gain Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Result (dBm) (mW) (dBi) (numeric) 802.11b Low 18.500 70.795 -3.540 0.443 0.006233 1 PAS S Middle 18.500 70.795 -3.540 0.443 0.006233 1 PAS S High 18.500 70.795 -3.540 0.443 0.006233 1 PAS S 802.11g Low 23.000 199.526 -3.540 0.443 0.017568 1 PAS S Middle 23.000 199.526 -3.540 0.443 0.017568 1 PAS S High 23.000 199.526 -3.540 0.443 0.017568 1 PAS S 802.11n20 Low 22.000 158.489 -3.540 0.443 0.013955 1 PAS S Middle 22.000 158.489 -3.540 0.443 0.013955 1 PAS S High 22.000 158.489 -3.540 0.443 0.013955 1 PAS S

FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 2 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1504-0084 Apr. 15, 2015 Initial issue FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 3 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. EUT DESCRIPTION ................................................................... 4 3. SUMMARY OF TESTS ............................................................... 5 4. TEST METHODOLOGY ............................................................. 6 4.1 EUT CONFIGURATION ..................................................................................................... 6 4.2 EUT EXERCISE ................................................................................................................. 6 4.3 GENERAL TEST PROCEDURES ..................................................................................... 6 4.4 DESCRIPTION OF TEST MODES..................................................................................... 6 5. INSTRUMENT CALIBRATION ................................................... 7 6. FACILITIES AND ACCREDITATIONS ........................................ 7 6.1 FACILITIES ........................................................................................................................ 7 6.2 EQUIPMENT ...................................................................................................................... 7 7. ANTENNA REQUIREMENTS ..................................................... 7 8. TEST RESULT ........................................................................... 8 8.1 6 dB Bandwidth ................................................................................................................ 8 8.2 Maximum Peak Conducted Output Power ................................................................... 21 8.3 Maximum Power Spectral Density ................................................................................ 24 8.4 Out of Band Emissions at the Band Edge / Conducted Spurious Emissions .......... 37 8.5 Radiated Spurious Emissions ....................................................................................... 86 8.6 Power-line conducted emissions ................................................................................. 94 8.7 Occupied bandwidth ...................................................................................................... 99 9. LIST OF TEST EQUIPMENT .................................................. 100 APPENDIX I ............................................................................... 101 APPENDIX II .............................................................................. 102 FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 4 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 1. GENERAL INFORMATION Applicant : MCNEX CO., LTD. Address : Hanshin IT Tower 2, 60-18, Gasan-dong, Geumcheon-gu, Seoul, Korea FCC ID : 2ABC6MNC-H200 EUT : NETWORK IP CAMERA Model : MNC-H200 Additional Model(s) : Date of Test : 2015-03-19 ~ 2015-04-10 Contact person : Gi-ho Kim 2. EUT DESCRIPTION Product NETWORK IP CAMERA Model Name MNC-H200, MNC-H200W, MNC-H200P 01&+01&+01&+01&+01&+ 01&+01&+01&+01&+01&+ Power Supply DC 5 V DC 48 V (PoE) Frequency Range 2.4GHz Band ▪ 802.11b/g/n(20 MHz): 2412 MHz ~ 2462 MHz Max. RF Output Power DC 5V ▪ 802.11b: 18.31 dBm ▪ 802.11g: 22.86 dBm ▪ 802.11n (HT20): 22.01 dBm DC 48V (PoE) ▪ 802.11b: 18.29 dBm ▪ 802.11g: 22.58 dBm ▪ 802.11n (HT20): 21.99 dBm Modulation Type 802.11b: DSSS/CCK 802.11g/n: OFDM Antenna Specification Internal Antenna (1TX ,1RX) ▪ 2.4GHz Band Max. peak gain : -3.54 dBi 01&+:01&+3 01&+01&+01&+01&+01&+ 01&+01&+01&+01&+01&+ FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 5 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1 Watt C 15.247(d) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20 dBc in any 100 kHz BW C 15.247(e) RSS-210 [A8.2] Transmitter Power Spectral Density < 8 dBm / 3 kHz C - RSS-Gen [6.6] Occupied Bandwidth (99%) RSS-Gen(6.6) NA 15.205 15.209 RSS-210 [A8.5] General Field Strength Limits (Restricted Bands and Radiated Emission Limits) <FCC 15.209 limits Radiated C Note 2 15.207 RSS-Gen [8.8] AC Conducted Emissions < FCC 15.207 limits AC Line Conducted C 15.203 RSS-Gen [6.7] Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 6 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 4. TEST METHODOLOGY Generally the tests were performed according to the KDB558074 v03r2. And ANSI C63.10-2009 was used to reference appropriate EUT setup and maximizing procedures of radiated spurious emission and AC line conducted emission testing 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the test mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part…

Text truncated - open the document above for the full version.

FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 56 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 57 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 802.11n(HT20) & MCS 7 & 2437 MHz Reference Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 58 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 59 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 802.11n(HT20) & MCS 7 & 2462 MHz Reference High Band-edge FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 60 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 61 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 62 / 105 Copyright ○ C 2015, DT&C Co., Ltd. ▣RESULT PLOTS (DC 48V(PoE)) 802.11b & 11 Mbps & 2412 MHz Reference Low Band-edge FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 63 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 64 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 65 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 802.11b & 11 Mbps & 2437 MHz Reference Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 66 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 67 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 802.11b & 11 Mbps & 2462 MHz Reference High Band-edge FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 68 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 69 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 70 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 802.11g & 54 Mbps & 2412 MHz Reference Low Band-edge FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 71 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 72 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 73 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 802.11g & 54 Mbps & 2437 MHz Reference Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 74 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 75 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 802.11g & 54 Mbps & 2462 MHz Reference High Band-edge FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 76 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 77 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 78 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 802.11n(HT20) & MCS 7 & 2412 MHz Reference Low Band-edge FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 79 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 80 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 81 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 802.11n(HT20) & MCS 7 & 2437 MHz Reference Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 82 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 83 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 802.11n(HT20) & MCS 7 & 2462 MHz Reference High Band-edge FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 84 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 85 / 105 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: 2ABC6MNC-H200 DTNC1502-00787 Report No.: DRTFCC1504-0084 TRF-RF-213(04)140314 Page 86 / 105 Copyright ○ C 2015, DT&C Co., Ltd. 8.5 Radiated Spurious Emissions Test Requirements and limit, §15.247(d), §15.205, §15.209 & RSS-210 [A8.5], RSS-Gen [8.9], RSS-Gen [8.10] In any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a) and (b), then the 15.209(a) limit in the table below has to be followed ▪ FCC Part 15.209(a) and (b) Frequency (MHz) Limit (uV/m) Measurement Distance (meter) 0.009 – 0.490 2400/F(KHz) 300 0.490 – 1.705 24000/F(KHz) 30 1.705 – 30.0 30 30 30 ~ 88 100 ** 3 88 ~ 216 150 ** 3 216 ~ 960 200 ** 3 Above 960 500 3 ** Except as pr…

Text truncated - open the document above for the full version.

FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs DC 5V EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30 MHz) FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000 MHz) FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1 GHz) FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photo of Conducted Emissions FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs POE EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30 MHz) FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000 MHz) FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1 GHz) FCC ID: 2ABC6MNC-H200 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photo of Conducted Emissions
