2ABFFSH26Bluetooth Headset

Bluetooth Headset SH26 FCC ID:2ABFFSH26 Operation Instructions 1.TO TURN ON:Press and hold the MFB for 4 seconds, the blue indicator will flash fast 5 times. 2.TO TURN OFF:Press and hold the MFB for 4 seconds, the red indicator will flash fast 5 times . 3.TO PAIR:When the headset is off , hold down the MFB Button for 7 seconds and the Blue and Red indicator light will flash quickly and you’ll hear an audio tone. The headset is ready to connect to the device 4.TO ANSWER A CALL: Short press the MFB button once to answer an incoming call.You will hear an indication tone. 5.TO HANG UP: Short press the MFB button once to end the call. You will hear an indication tone. 6.TO REJECT A CALL:Hold the MFB button for 2 seconds to reject an incoming call. You will hear an indication tone and the call will be ended. 7.TO REDIAL THE LAST NUMBER:In the standby mode, double press the MFB button to redial the last number. 8.TO VOICE TRANSFER:During a call, hold the “Vo+” for 2 seconds until you hear a tone. The call will be transferred from your HEADSET to your mobile device. You can repeat the step to transfer to call back to your HEADSET 9.TO MAKE VOICE CALLS:If the voice recognition function is turned on for your device and it is connected to the speaker, you can make voice calls. Here’s how: 1) Press “Vo+” and “Vo-“ button at the same time, you will hear a tone to indicate that voice function has been activated. 2)Say clearly the name of the person you wish to call. (dependent on individual phone device) 10.TO MAKE VOICE CALLS: Short press the MFB button to play or pause music . 11. TO PLAY/ PAUSE MUSIC: Press PREV, play PREV song. 12.TO NEXT MUSIC:Press NEXT, play next song. 13. TO ADJUST VOLUME: Short press “Vo+”button to increase volume, and you will hear an indication tone when increase to maximum volume. Similarly, short press “Vo-“ button to decrease the volume, and also an indication tone when decrease to minimum volume. 14.TO MUTE:While taking a phone call,press and hold “Vo-“ with 3 seconds to mute your MIC,and you can repeat the operation to open the MIC. 15. After you have successfully connected with an Apple devices like iPhone or iPad, you will see a small battery icon indicating the battery level of your headset so you are always ready to party. (only applicable for selected Apple devices) Battery charging and low-voltage alert When connected normally to charge, the red LED is on when charging and Blue LED turns on when charging is complete. This takes 2-3 hours. When the battery is running low, the alert tone sounds and the red LED flashes twice every fifteen seconds.Charge as soon as possible or it will automatically shut down. Charging Charging voltage:5V Charging time: 2±0.5H Voltage after complete charging:4.10～4.20V Remarks 1) If headset stand by with paring mode for 5 min and without connection, It will be exit paring mode automatically, also, the device will power off after more 5 min.. 2) Automatic re-connection can happen in the two cases: a. If headset is turned off, it will connect to the pre-set device automatically when turned on manually. b. When headset disconnects from the device due to an exceeded effective range (normally < 10 meters), it will re-connect to your device if it is back in the effective range within 5 minutes. LED Indicator Status Power on Blue LED flashes 5 times with fast Power off Red LED flashes 5 times with fast Charging Red LED lights Charging complete Blue LED lights Standby BlueLED flashes twice every seven seconds Talking Blue LED flash once every seven seconds Incoming call Blue LED flash once every second Playing music with Bluetooth Blue LED flash once every two seconds Playing music with TF card Blue LED flash once every ten seconds Battery low Red LED flashes twice every fifteen seconds Pairing mode LED flashes in red and blue alternatively This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Dec.22, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ABFFSH26 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, SHENZHEN SURE THING INDUSTRY AND COMMERCE DEVELOPMENT CO.,LTD Contact person: Xiangyu Liu Title: Manager

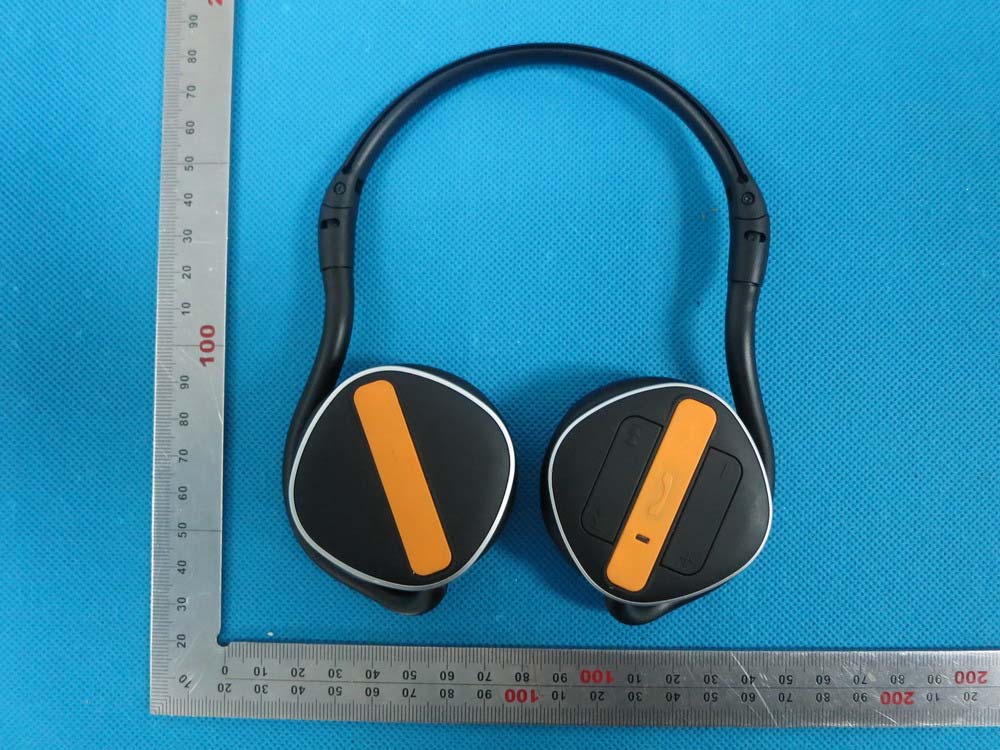

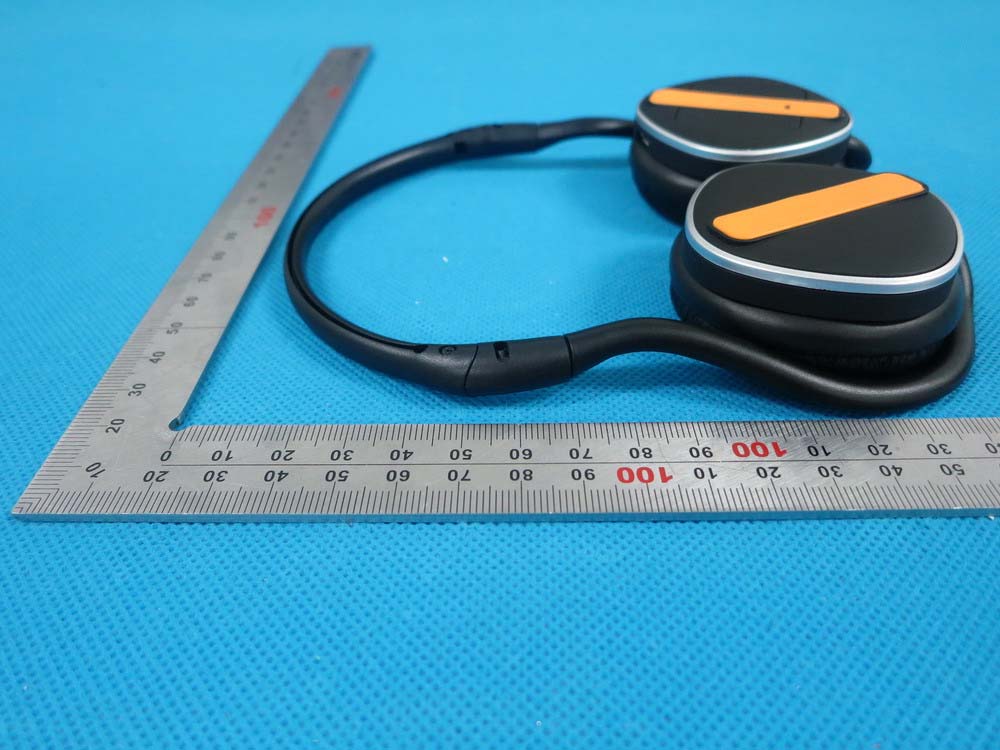

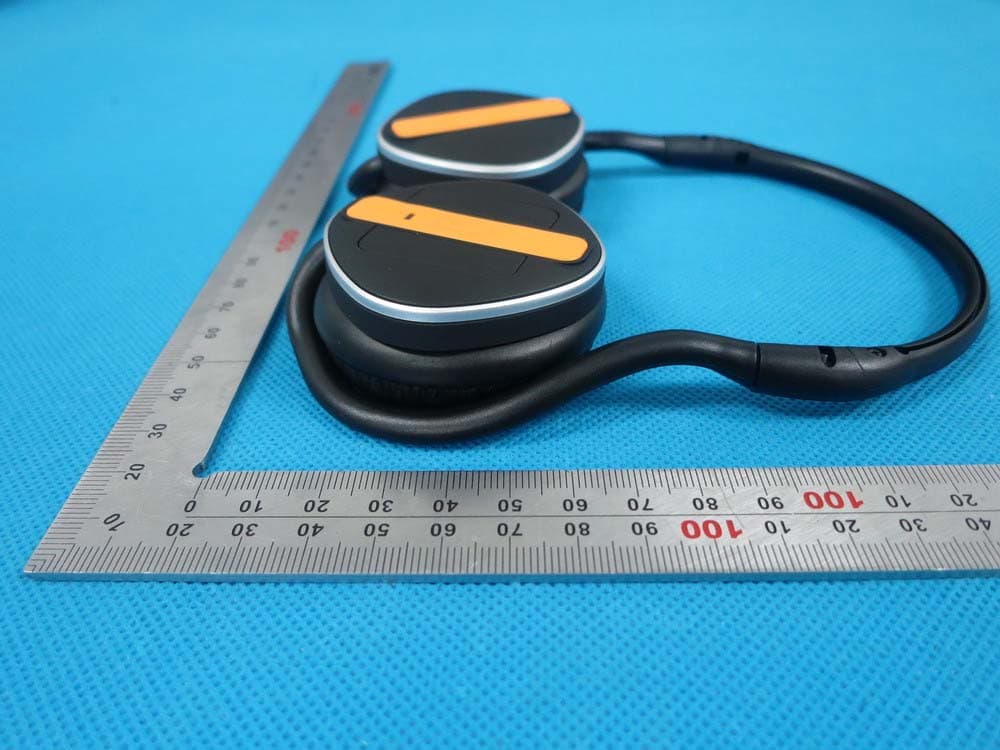

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: 2ABFFSH26

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Antenna INTERNAL VIEW OF EUT-5

Page 1 of 68 FCC Test Report Report No.: AGC01369141102FE03 FCC ID : 2ABFFSH26 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Headset BRAND NAME : N/A MODEL NAME : SH26, SH26B,SH26C,SH26D CLIENT : SHENZHEN SURE THING INDUSTRY AND COMMERCE DEVELOPMENT CO.,LTD. DATE OF ISSUE : Dec.11,2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01369141102FE03 Page 2 of 68 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Dec.11,2014 Valid Original Report Report No.: AGC01369141102FE03 Page 3 of 68 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 10.3. TEST RESULT .......................................................................................................................... 32 Report No.: AGC01369141102FE03 Page 4 of 68 11. BAND EDGE EMISSION .................................................................................................. 39 11.1. MEASUREMENT PROCEDURE .............................................................................................. 45 11.2. TEST SET-UP ........................................................................................................................... 45 11.3. TEST RESULT .......................................................................................................................... 46 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 50 12.1. MEASUREMENT PROCEDURE .............................................................................................. 50 12.2. TEST SETUP (BLOCK…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
