2ABFG-NTB600PBACCDigital Door Lock

Retrofitting or modifying this product may impact fire rating, safety features and warranty. Consult with code specifications to ensure compliance with all codes and ratings. nexTouch ™ Keypad Access Cylindrical Lock Touchscreen and Push Button Installation and Programming Instructions AA AA AA AA Optional 3/32" Optional 80-9150-0080-010 04-21 Part of ASSA ABLOY Determine Handing The hand of a door is determined from the secure side of the door. The term "secure" means the side from which you initially unlock and enter. Left Hand “LH”, Hinges Left. Open Inward. Left Hand Reverse "LHR", Hinges Left. Open Outward. Right Hand "RH", Hinges Right. Open Inward. Right Hand Reverse "RHR", Hinges Right. Open Outward. 2 80-9150-0080-010 04-21 Part of ASSA ABLOY Prepare Door Drill holes 1/2 way thru door then complete from other side to prevent splitting. DPS Option Wood Door: 3/8" Dia. Thru to Hole in Door Face *Metal Door: 3/4" Dia. Thru to Hole in Door Face *Metal Door Installations Supplied plastic collar MUST be installed for DPS to function properly. 1 3 80-9150-0080-010 04-21 Part of ASSA ABLOY Prepare Frame DoorFrame 1" Dia. x 1/2" Deep Frame Inside of Door Frame 3-1/2" DPS Option Wood Frame: 3/8" Dia. x 1" *Metal Frame: 3/4" Dia. x 1" See Instruction A7983B 7-16 / 8-32 x 1" UNCWS x2 *Metal Door Installations Supplied plastic collar MUST be installed for DPS to function properly. 2 4 80-9150-0080-010 04-21 Part of ASSA ABLOY Prepare Inside Lock Do not take apart the keypad. 3 2 1 3 5 80-9150-0080-010 04-21 Part of ASSA ABLOY Curved edge of latchbolt faces direction door closes. Install Latchbolt Inside of Door 7-16 / 8-32 x 1" UNCWS x2 2-3/8" Latchbolt for thin doors sold separately. See Installation Options. Remove Battery Cover 4 5 6 80-9150-0080-010 04-21 Part of ASSA ABLOY Install Keypad Inside of Door Inside of Door 1 2 View from Outside of Door "T" Tabs Retractor Pocket Mounting Flange Two moving "T" tabs must be fully captured in retractor pocket. Mounting Flanges must be in Mounting Flange Pockets. Mounting Flange Pocket Mounting Flange Mounting Flange Pocket Thin door gaskets sold separately. See Installation Options. Optional DPS 6 7 80-9150-0080-010 04-21 Part of ASSA ABLOY 10-32 x 2-1/2" PFHMS Install Inside Support x2 Do Not Overtighten Screws Inside of Door Optional DPS 7 8 80-9150-0080-010 04-21 Part of ASSA ABLOY Attach Cables to Inside Lock Optional DPS Connection Motor Connection Keypad Connection 8 9 80-9150-0080-010 04-21 Part of ASSA ABLOY Install Inside Lock Test Inside Lever Operation Avoid Crimping Cables Thin door gaskets sold separately. See Installation Options. 9 10 80-9150-0080-010 04-21 Part of ASSA ABLOY Install Batteries & Cover Optional Network or Yale Accentra Key module must be installed BEFORE batteries. See Installation Options. "Welcome to Yale." Congratulations, you've installed the Yale nexTouch™ Cylindrical Lock! 10 11 80-9150-0080-010 04-21 Part of ASSA ABLOY Network or Yale Accentra Key Module Installation Options Adjusting for 1-3/8" Door (if necessary) Privacy DPS Switch Order 1-3/8" Thin Door Kit: 14-4761-0106 Inside of Door Door Position Switch Option enables Privacy feature Metal Frame/Door Installations Supplied plastic collars MUST be installed for DPS to function properly. O optional Inside Gasket Outside Gasket CAUTION: Cylinders furnished with nexTouch™ lock for use in 1-3/8" doors have a tailpiece that is 1/4" shorter than the standard cylinders that are furnished for 1-3/4" doors. Trying to install a standard cylinder in 1-3/8" door will DAMAGE the lock. 2-3/8" Latchbolt 12 80-9150-0080-010 04-21 Part of ASSA ABLOY The Yale Accentra Key module enables access with physical (cards and fobs) and mobile credentials ONLY. Creation and use of User PIN codes are disabled. Programming Instructions Inside Lock Speaker Privacy Button Low Battery Indicator (Touchscreen) Keypad 9Volt Battery Override Terminal Lockout Mode Indicator (Touchscreen) Unlock Indicator (Touchscreen) Lock Activation On Touchscreen model touch Yale logo to wake lock Lock Activation On Push Button model touch check key to wake lock 13 80-9150-0080-010 04-21 Part of ASSA ABLOY Press Press Press Press (Touchscreen) Press (Push Button) Enter 4-8 digit Master PIN Code. "Register Master Code. Press the gear key to continue." "Enter a 4-8 digit PIN code. Press the gear key to continue." "Registered." "Completed." Creating Master PIN Code 1 Creating a Master PIN Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. 14 80-9150-0080-010 04-21 Part of ASSA ABLOY "Menu Mode, enter number." Creating User PIN Codes Master PIN code must be created first. *Max User Codes = 500 2 Enter Master PIN code Press Press Press "Press 1 to register a code." "Register User code. Press the gear key to continue." Press Press "Register User code. Press the gear key to continue." "PIN code registration. Enter a 4-8 digit PIN code. Press the gear key to continue." Press (Touchscreen) Press (Push Button) 15 80-9150-0080-010 04-21 Part of ASSA ABLOY The Yale Accentra Key module enables access with physical (cards and fobs) and mobile credentials ONLY. Creation and use of User PIN codes are disabled. 2 Creating User PIN Codes con't Press Adding more User Codes: Enter 4-8 digit PIN code Press To end programming: Press "Registered. Press the check key to complete. Press the gear key to continue." Enter 4-8 digit PIN code followed by "Completed." "Registered. Press the check key to complete. Press the gear key to continue." 16 80-9150-0080-010 04-21 Part of ASSA ABLOY 3 Locking & Unlocking Door with Registered Master or User PIN Code Enter PIN Code Press Press (Touchscreen) Press (Push Button) 17 80-9150-0080-010 04-21 Part of ASSA ABLOY The Yale Accentra Key module enables access with physical (cards and fobs) and mobile credentials ONLY. Creation and use of User PIN codes are disable…

Text truncated - open the document above for the full version.

iRevo-ASSA ABLOY Korea 205-29, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08503, Korea May 3, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Regarding FCC ID: 2ABFG-NTB600PBACC I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; iRevo-ASSA ABLOY Korea 205-29, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08503, Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, Soo-Kyung, Jang / Research Engineer iRevo-ASSA ABLOY Korea Tel: +82-2-2107-5741 E-mail: [email protected]

iRevo-ASSA ABLOY Korea 205-29, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08503, Korea May 3, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE : Request of Confidentiality for FCC ID : 2ABFG-NTB600PBACC To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, iRevo-ASSA ABLOY Korea hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give iRevo-ASSA ABLOY Koreatemporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1Block Diagram 2Operational Descriptions 3Schematics Short-Term 4External Photos 5Internal Photos 6Test-Setup Photos 7User’s Manual iRevo-ASSA ABLOY Korea 205-29, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08503, Korea The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, Soo-Kyung, Jang / Research Engineer iRevo-ASSA ABLOY Korea Tel: +82-2-2107-5741 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name iRevo-ASSA ABLOY Korea Address 205-29, Gasan Digital 1-ro, Geumcheon-gu, Seoul, Korea, 08052 Grantee Code 2ABFG FCC ID 2ABFG-NTB600PBACC Authorized Contact Name Jang, Soo-kyung Contact Email [email protected] Contact Phone 82-2-2107-5741 I, the undersi gned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accor dance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepti ng a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) l abeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Appl icant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accor dance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accor dance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the A pplicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Appl icant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CF Rs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: May 3, 2021 Print Name: Jang, Soo-kyung Title: Research Engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Letter of Declaration Product Equality May 3, 2021 We, as a manufacturer, hereby declare that our product has variant model names as listed below. Variant model is totally same as basic model but it does not have key sylinder on handels. Each model differences are described in the below table. iRevo-ASSA ABLOY Korea 205-29, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08503, Korea Soo-Kyung, Jang / Research Engineer iRevo-ASSA ABLOY Korea Tel: +82-2-2107-5741 E-mail: [email protected] Sincerely yours, lNTB 612-ACC Please attached the pictures of Basic model and Variation model NTB612-ACC (Basic model –Push Keypad) NTB632-ACC (Variation model –No Keyhole) Soo-Kyung, Jang / Research Engineer iRevo-ASSA ABLOY Korea Tel: +82-2-2107-5741 E-mail: [email protected]

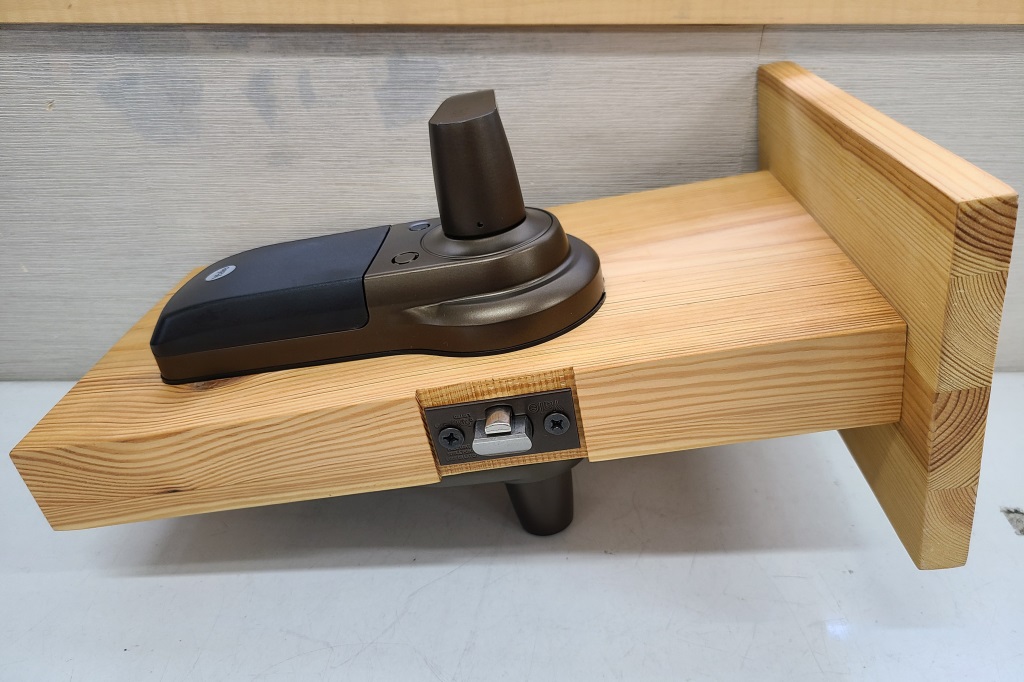

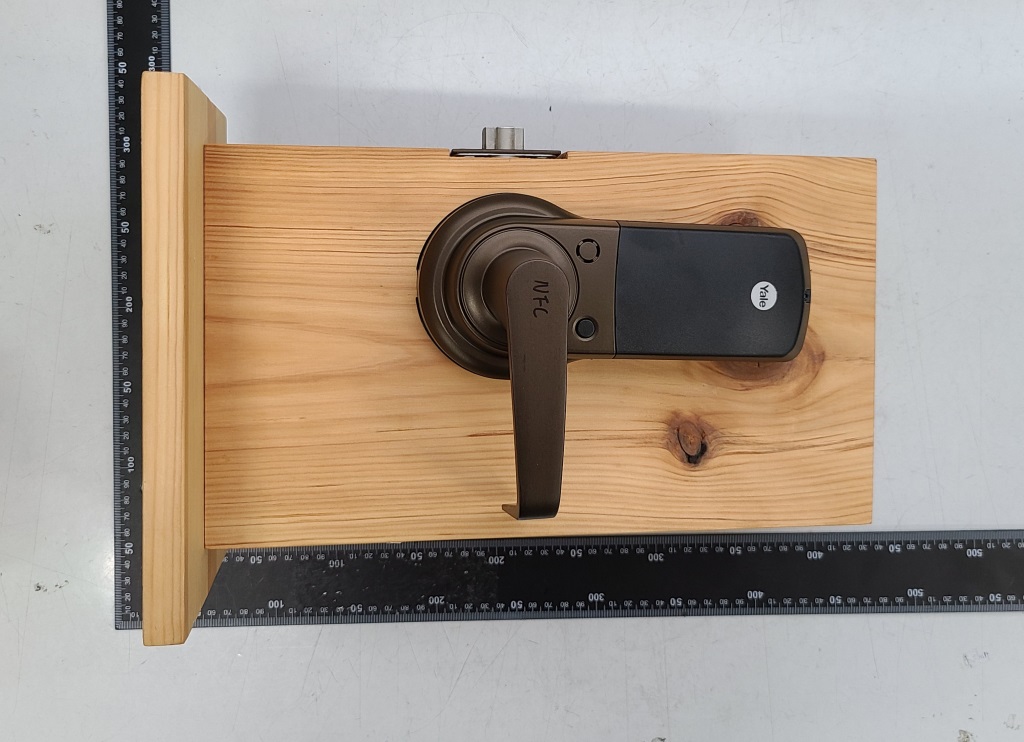

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

<Label Information> Label Location

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of LCD PCB Bottom view of LCD PCB View of Module Bluetooth Low Energy Module View of Antenna Bluetooth Low Energy Antenna NFC Antenna

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001888 Page: 2 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 5 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001888 Page: 3 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : iRevo-ASSA ABLOY Korea Address : 205-29, Gasan Digital 1-ro, Geumcheon-gu, Seoul, Korea, 08052 Contact Person : Jang, Soo-kyung Phone No. : +82 2 2107 5741 1.3. Details of Manufacturer Applicant : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product Digital Door Lock Model Name NTB612-ACC Variant Model NTB632-ACC Power Supply DC 6.0 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth Low Energy) Modulation Technique GFSK Number of Channels 40 channels (Bluetooth Low Energy) Antenna Type Chip antenna Antenna Gain -0.51㏈i H/W Version PV02 S/W Version V3.0.4 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001888 Page: 4 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL001888 2021.04.02 Initial 1.6. Description of variant model(s) Model Description NTB612-ACC - Basic model NTB632-ACC - Same to basic model except below - There is no key cylinder on handles. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001888 Page: 5 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/1500 30 1 500-100 000 - - 1.0 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001888 Page: 6 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Bluetooth Low Energy - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 400 ~ 2 483.5 5.0 -0.51 0.000 559 1 Note; - The power density Pd (5th column) at a distance of 20 ㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠. - This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - This equipment should be installed and operated with minimum 20 ㎝ between the radiator and your body. - The antenna gain of this transmitter is less than 6㏈ i and must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. - According to KDB 447498 D01 RF Exposure Guidance 4.1. - End of the Test Report -

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001886 Page: 2 of 24 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of contents 1. General Information ----------------------------------------------------------------------------------- 3 2. Radiated Emissions ------------------------------------------------------------------------ ----------- 7 3. Frequency Stability ------------------------------------------------------------------------------------ 17 4. 20 ㏈ Bandwidth & 99 % Bandwidth ------------------------------------------------------------- 22 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001886 Page: 3 of 24 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : iRevo-ASSA ABLOY Korea Address : 205-29, Gasan Digital 1-ro, Geumcheon-gu, Seoul, Korea, 08052 Contact Person : Jang, Soo-kyung Phone No. : +82 2 2107 5741 1.3. Details of manufacturer Applicant : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product Digital Door Lock Model Name NTB612-ACC Variant Model NTB632-ACC Serial Number Conducted: 001 Radiated: 002 Power Supply DC 6.0 V Frequency Range 13.56 ㎒ (NFC) Modulation Technique ASK Number of Channels 1 channel Antenna Type PCB pattern antenna Antenna Part Number PC2A-L421B-F1 H/W Version PV02 S/W Version V3.0.4 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001886 Page: 4 of 24 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMBV100A 255834 Jun. 03, 2020 Annual Jun. 03, 2021 Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2020 Annual Dec. 07, 2021 Spectrum Analyzer Agilent N9020A MY53421758 Sep. 04, 2020 Annual Sep. 04, 2021 High Pass Filter Mini circuits NHP-25+ V9741901107-1 Dec. 07, 2020 Annual Dec. 07, 2021 DC Power Supply Agilent U8002A MY54110041 Sep. 17, 2020 Annual Sep. 17, 2021 Temperature Chamber ESPEC CORP. PL-1J 15000793 Jun. 02, 2020 Annual Jun. 02, 2021 Preamplifier H . P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Dec. 12, 2020 Biennial Dec. 12, 2022 Test Receiver R&S ESU26 100368 Nov. 05, 2020 Annual Nov. 05, 2021 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/38 330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/38 330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MW X221-NMSNMS (4 m) J1023142 Dec. 01, 2020 Semi- Annual Jun. 01, 2021 Coaxial Cable RFONE PL520-NMNM-10M (10 m) 20200324001 Dec. 01, 2020 Semi- Annual Jun. 01, 2021 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001886 Page: 5 of 24 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: Applied standard : FCC Part15 subpart C, IC RSS-210 Issue 10, RSS-Gen Issue 5 Standard section(s) Test item(s) Result 15.225(a)(b)(c)(d) 15.209 RSS-210 Annex B Section B.6 RSS-Gen Section 8.9 Radiated Emission, Spurious Emission and Field Strength of Fundamental Complied 15.225(e) RSS-210 Annex B Section B.6 RSS-Gen Section 6.11 Frequency Stability Complied 15.215(c) RSS-Gen Section 6.7 20 ㏈ Bandwidth & 99 % Bandwidth Complied 15.207 RSS-Gen Section 8.8 AC Power Line Conducted Emissions N/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation. 1.7. Sample calculation Where relevant, the following sample calculation is provided: 1.7.1. Radiation test Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) - amplifier (㏈) 1.8. Test report revision Revision Report number Date of Issue Description 0 F690501-RF-RTL001886 2021.04.02 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001886 Page: 6 of 24 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.9. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty Occupied Bandwidth ± 13.12 ㎑ Radiated Emission, 9 ㎑ to 30 ㎒ H ± 3.66 ㏈ V ± 3.66 ㏈ Radiated Emission, below 1 ㎓ H ± 4.90 ㏈ V ± 4.82 ㏈ Uncertainty figures are valid to a confidence level of 95 %. 1.10. Description of variant model(s) Model Description NTB612-ACC - Basic model NTB632-ACC - Same to basic model except below - There is no key cylinder on handles. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001886 Page: 7 of 24 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 2. Radiated Emissions 2.1. Test Setup The diagra…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the below orthogonal plane and measured. X-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photo of Conducted test
