2ABFG-NTM600PBACCDigital Door Lock

Retrofitting or modifying this product may impact fire rating, safety features and warranty. Consult with code specifications to ensure compliance with all codes and ratings. nexTouch ™ Keypad Access Sectional Mortise Lock Touchscreen and Push Button Installation and Programming Instructions 1/2"3/4" 3/32" AA AA AA AA Optional #3 & #2 1/8" WARNING This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductiveharm.For more information go to www.P65warnings.ca.gov. 08/2018 Tools Needed 80-9086-0030-010 04-21 Part of ASSA ABLOY Determine Handing The hand of a door is determined from the secure side of the door. The term "secure" means the side from which you unlock and enter. RED Locking Slide should face the secure side of door. Latchbolt - Beveled edge must face strike. (See step 1 to reverse latchbolt.) Deadbolt Key cylinder used for cylinder option installation. T humbturn used when mortise lock is equipped with deadbolt. 2 80-9086-0030-010 04-21 Part of ASSA ABLOY Hand Latchbolt & Hubs (If Necessary) Locking Slide 1 2 2 2 1 PUSH away from square hole to create gap. Check for free movement of locking slide. PUSH IN causing locking slide to rotate. 3 RED MARK on locking slide must be on secure side of door! Continue to rotate locking slide from other side until "set" in position. Insert flat head screwdriver to pry latch head up. Rotate latch head to correct orientation. 3 1 80-9086-0030-010 04-21 Part of ASSA ABLOY 4 Prepare Door Inside of Door Outside of Door Drill thru holes 1/2 way thru door then complete from other side to prevent splitting. Mortise Lock Cable Hole: Drill only 1/2 way into door (7/8" depth) then STOP! Mortise Key Cylinder Hole: Drill only 1/2 way into door ONLY if lock is equipped with cylinder. Mortise Deadbolt Thumbturn Hole: Drill only 1/2 way into door ONLY if lock is equipped with deadbolt. 2 80-9086-0030-010 04-21 Part of ASSA ABLOY 5 x2 #12-24x1" Flat Head Combo Screw Frame Optional Strike Box Prepare Frame & Install Strike This prep is standard with or without deadbolt. Use #3 Philips head screwdriver 3 80-9086-0030-010 04-21 Part of ASSA ABLOY 6 Install Mortise Lock Do not tighten screws until Step 10. Make sure mortise pocket is free from debris. x2 Inside of Door #12-24x1" Flat Head Combo Screw Mortise Lock Cable Hole Use #3 Philips head screwdriver 4 80-9086-0030-010 04-21 Part of ASSA ABLOY 7 Install Key Cylinder (if applicable) For Cylinder Option ONLY Test Operation It may be necessary to loosen the cylinder set screw before installing the cylinder. Outside of Door 2 1 Then, use #2 Philips head screwdriver to tighten cylinder set screw. First, tighten cylinder until snug against door with the Yale logo horizontal. Outside of Door 1 Use #2 Philips head screwdriver HAND TIGHTEN. Do not use powered screw driver. 5 80-9086-0030-010 04-21 Part of ASSA ABLOY 8 Adjusting for 1-3/4" to 2-1/4" Door (if necessary) Use screw pack for thicker door at this step. Use appropriate fastener lengths to ensure proper installation. Install Rose Trim - all types Outside of Door Inside of Door #8-32x1" Pan Head Screw with Thread Locker (For 1-3/4" Door) x2 Use #2 Philips head screwdriver If provided If provided Tighten screws securely but avoid overtightening and warping door. 6 80-9086-0030-010 04-21 Part of ASSA ABLOY 9 Inside Spindle Outside Lever Install Levers Outside of Door 1 2 3 Prepare Levers Inside Lever Correct Orientation Pushing levers together, use hex wrench to tighten set screw securely against spindle. Loosen Inside Spindle 1/2 to 1 turn until Correct Orientation. 7 8 80-9086-0030-010 04-21 Part of ASSA ABLOY 10 Install Thumbturn (if applicable) For Deadbolt Option ONLY #6x3/8" Oval Head Screw x2 Inside of Door Use #2 Philips head screwdriver 9 Test Operation 80-9086-0030-010 04-21 Part of ASSA ABLOY Deadbolt retracts and extends by thumbturn and key. Once extended, it will also retract by lever. Latchbolt retracts and extends by levers and key. 11 Install Armor Front 8x32-1/4" Flat Head Screw x2 Tighten lockbody screws before installation of front. Do not bow front of lock case by overtightening. Outside of Door Yale logo will be at top and visible when installed. Use #2 Philips head screwdriver Test Operation Again 10 80-9086-0030-010 04-21 Part of ASSA ABLOY Install Keypad Inside of Door 12 11 80-9086-0030-010 04-21 Part of ASSA ABLOY 13 Choose fasteners appropriate for your door thickness. Install Inside Mounting Plate #10-32x3/4" Pan Head Screw with Washer (For 1-3/4" Door) x2 Inside of Door 3/32" Hex Wrench Use #2 Philips head screwdriver 12 80-9086-0030-010 04-21 Part of ASSA ABLOY 14 Attach Cables to Inside Lock Cables must be clear of all fastener holes. Inside of Door 13 80-9086-0030-010 04-21 Part of ASSA ABLOY 15 Install Inside Lock #8-32x3/8" Pan Head Screw (Black) x3 Inside of Door Use #2 Philips head screwdriver 14 80-9086-0030-010 04-21 Part of ASSA ABLOY 16 Install Batteries & Cover Optional Network or Yale Accentra Key module must be installed BEFORE batteries. See Installation Options. “Welcome to Yale.” Congratulations, you’ve installed the Yale nexTouch™ Keypad Access Sectional Mortise Lock! Continue to customize your product. 15 80-9086-0030-010 04-21 Part of ASSA ABLOY 17 Module must be installed BEFORE batteries. Remove batteries if adding module to existing unit. Network or Yale Accentra Key Module Installation Options O optional 80-9086-0030-010 04-21 Part of ASSA ABLOY The Yale Accentra Key module enables access with physical (cards and fobs) and mobile credentials ONLY. Creation and use of User PIN codes are disabled. 18 Programming Instructions Inside Lock Privacy Button Speaker Low Battery Indicator (Touchscreen) Keypad 9Volt Battery Override Terminal Lockout Mode Indicator (Touchscreen) Unlock Indicator (Touchscreen) Indicator Light Lock Activation On Touchscreen model touch Yale logo to wake lock Lock Activation On Push Button model touch check mark to wa…

Text truncated - open the document above for the full version.

iRevo-ASSA ABLOY Korea 205-29, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08503, Korea May 20, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Regarding FCC ID: 2ABFG-NTM600PBACC I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; iRevo-ASSA ABLOY Korea 205-29, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08503, Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, Soo-Kyung, Jang / Research Engineer iRevo-ASSA ABLOY Korea Tel: +82-2-2107-5741 E-mail: [email protected]

iRevo-ASSA ABLOY Korea 205-29, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08503, Korea May 20, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE : Request of Confidentiality for FCC ID : 2ABFG-NTM600PBACC To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, iRevo-ASSA ABLOY Korea hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give iRevo-ASSA ABLOY Koreatemporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1Block Diagram 2Operational Descriptions 3Schematics Short-Term 4External Photos 5Internal Photos 6Test-Setup Photos 7User’s Manual iRevo-ASSA ABLOY Korea 205-29, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08503, Korea The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, Soo-Kyung, Jang / Research Engineer iRevo-ASSA ABLOY Korea Tel: +82-2-2107-5741 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name iRevo-ASSA ABLOY Korea Address 205-29, Gasan Digital 1-ro, Geumcheon-gu, Seoul, Korea, 08052 Grantee Code 2ABFG FCC ID 2ABFG-NTM600PBACC Authorized Contact Name Jang, Soo-kyung Contact Email [email protected] Contact Phone 82-2-2107-5741 I, the undersigne d, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordanc e with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a G rant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) label ing the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Appli cant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordanc e with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordanc e with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Appl icant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Appli cant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs : https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: May 20, 2021 Print Name: Jang, Soo-kyung Title: Research Engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Letter of Declaration Product Equality May 20, 2021 We, as a manufacturer, hereby declare that our product has variant model names as listed below. Variant model is totally same as basic model but it does not have key sylinder on handels. Each model differences are described in the below table. iRevo-ASSA ABLOY Korea 205-29, Gasan digital 1-ro, Geumcheon-gu, Seoul, 08503, Korea - NTM617-ACC NTM617- ACC (Main) Main model NTM612- ACC Variation model No deadbolt version NTM637- ACC Variation model No Cylinder version NTM632- ACC Variation model No deadbolt & No Cylinder version Please refer to the attached the pictures of Basic model and Variation model Soo-Kyung, Jang / Research Engineer iRevo-ASSA ABLOY Korea Tel: +82-2-2107-5741 E-mail: [email protected] Sincerely yours,

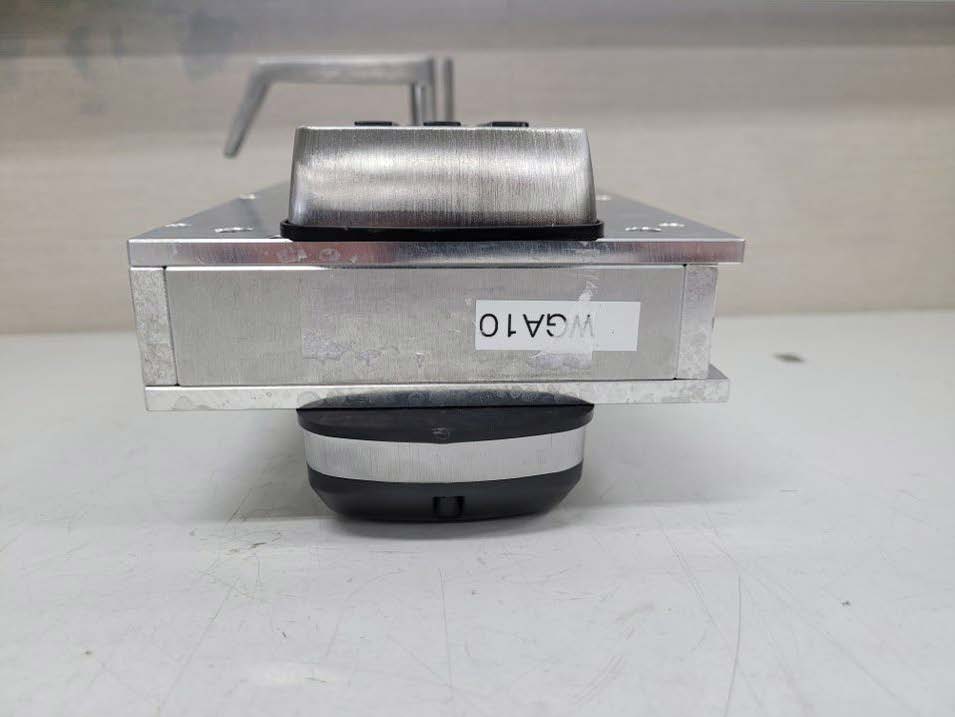

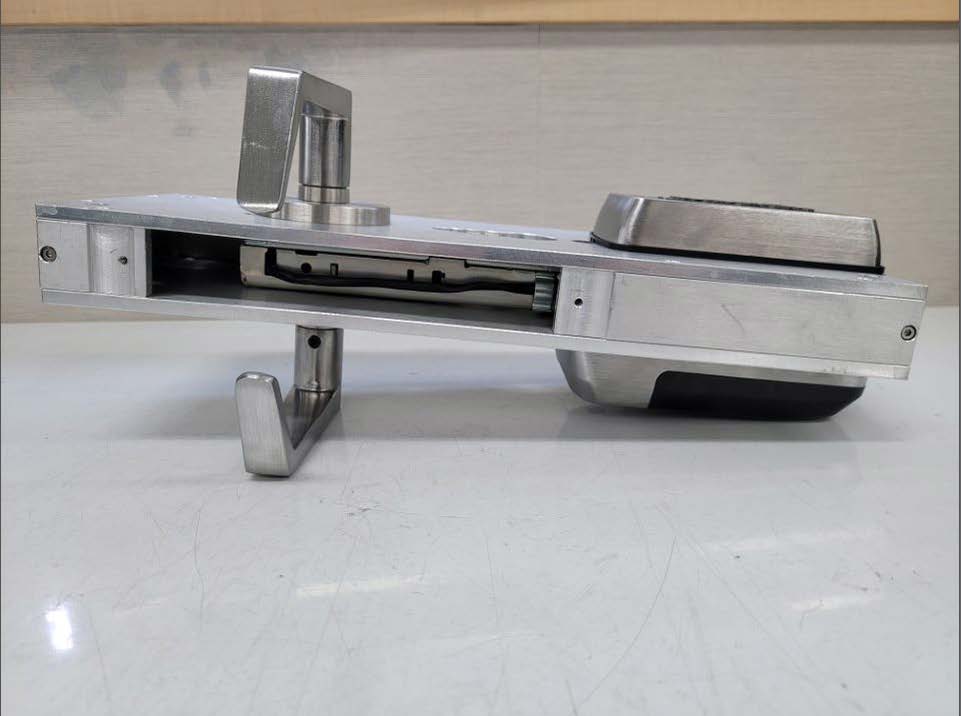

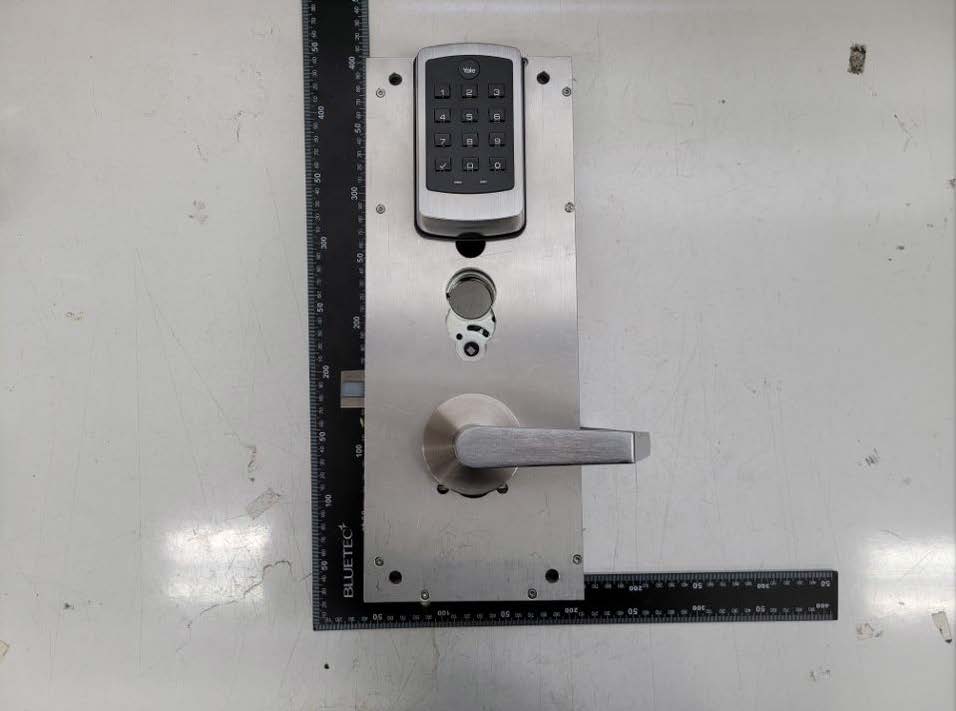

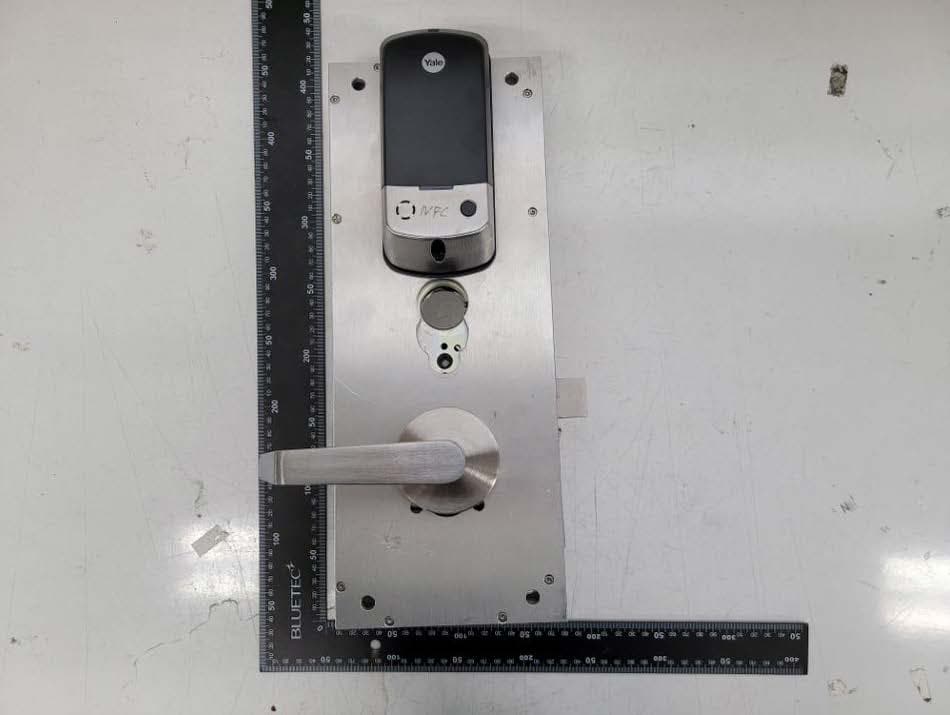

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

<Label Information> <Label Location>

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of Sub PCB2 Bottom view of Sub PCB2 View of Antenna & Module Bluetooth Low Energy Antenna NFC Antenna Bluetooth Low Energy Module

Test Report No. : F690501-RF-EMG000517 Page : 2 of 9 EMC5101-01A(2017.07.06)(2) A4(210mm*297mm) Contents 1. General Information ................................................................................................... 4 1.1 Client Information ................................................................................................ 4 1.2 Test Laboratory ................................................................................................... 4 1.3 General Information of E.U.T. ............................................................................. 4 1.4 Operating Modes and Conditions ........................................................................ 5 1.5 Auxiliary Equipments .......................................................................................... 5 1.6 Cable List ............................................................................................................ 5 1.7 System Configurations ........................................................................................ 5 1.8 Test System Layout ............................................................................................ 5 1.9 Modifications ....................................................................................................... 5 1.10 Applicable Standards for Testing ...................................................................... 5 1.11 Summary of Test Results .................................................................................. 5 2. Emission Test ............................................................................................................ 6 2.1 Test Results ........................................................................................................ 6 2.2 Test Method and Limits ....................................................................................... 6 2.2.1 Test Method ............................................................................................... 6 2.2.2 Test Limits ................................................................................................. 6 2.3 Radiated Emission .............................................................................................. 7 2.3.1 Test Equipments ........................................................................................ 7 2.3.2 Test Site .................................................................................................... 7 2.3.3 Environment Conditions and data .............................................................. 7 Appendix A : Radiated Emission ................................................................................... 9 Test Report No. : F690501-RF-EMG000517 Page : 3 of 9 EMC5101-01A(2017.07.06)(2) A4(210mm*297mm) Revision History Revision Report Number Description 0 F690501-RF-EMG000517 Initial 1 2 Test Report No. : F690501-RF-EMG000517 Page : 4 of 9 EMC5101-01A(2017.07.06)(2) A4(210mm*297mm) 1. General Information 1.1 Client Information Applicant : iRevo-ASSA ABLOY Korea - Address of Applicant : 10f of JEI PLATZ Bldg., 186, Gasandigital 1-ro, Geumcheon-gu, Seoul, 08502, Korea. Manufacturer : iRevo-ASSA ABLOY Korea - Address of Manufacturer : 10f of JEI PLATZ Bldg., 186, Gasandigital 1-ro, Geumcheon-gu, Seoul, 08502, Korea. Factory 1 : SHANGHAI IREVO ELECTRONIS Co., LTD. - Address of Factory 1 : 2F, Xiangling Road # 1018, Songjiang Industrial District Shanghai, China Factory 2 : ASSA ABLOY SMART PRODUCT VIETNAM CO.,LTD. - Address of Factory 2 : Lot A10, Ba Thien 2 Industrial Park, Thien Ke Ward, Binh Xuyen District, Vinh Phuc Province, Vietnam. 1.2 Test Laboratory Name and Address : SGS Korea Co., Ltd. - Giheung 1 Laboratory : 35, Giheungdanji-ro 121beon-gil, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea - Giheung 2 Laboratory : 23, Giheungdanji-ro 24beon-gil, Giheung-gu,Yongin-si, Gyeonggi-do, Republic of Korea - Gunpo Laboratory : 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, 15807, Republic of Korea. FCC Registration No. : KR0150 IC Registration No. : 7837B Phone : + 82 31 428 5719 Fax : + 82 31 427 2370 e-mail : [email protected] 1.3 General Information of E.U.T. Classification Description Product Name Digital Door Lock Model Name NTM617-ACC Atl.Model Names NTM612-ACC, NTM632-ACC, NTM637-ACC Model Differences - NTM612-ACC : No deadbolt version - NTM632-ACC : No deadbolt / No cylinder version - NTM637-ACC : No cylinder version *Except Dead bolt, Cylinder, there is no difference from Main model. Serial No. None EMI Classification Class B Test Voltage 6 Vd.c. Rated Voltage 6 Vd.c. Internal Clock Frequency 13.56㎒, 2 402 ~ 2 480㎒ Function This product is an electronic door lock. Test Report No. : F690501-RF-EMG000517 Page : 5 of 9 EMC5101-01A(2017.07.06)(2) A4(210mm*297mm) 1.4 Operating Modes and Conditions Operating Mode Operating Condition 1) Dial Unlock to press a number 1.5 Auxiliary Equipments Description Model Serial No. Manufacturer FCC ID - - - - - 1.6 Cable List Start END Cable Spec. Used core Name I/O Port Name I/O Port Length Shield EUT - - - - - - 1.7 System Configurations Description Model Serial No. Manufacturer Note. Front Board WGA11 BLE PB FRONT PV01 200626 - - - Rear Board A2PM-D4D1S-Y1 PV01UGX - - - Key Board - - - - Battery - - - - 1.8 Test System Layout 1.9 Modifications There was no modified item during the test. 1.10 Applicable Standards for Testing Standards Status Deviation FCC Part 15 Subpart B, ICES-003 Issue 7: 2020 Applicable No Deviation 1.11 Summary of Test Results Test Item Standards Results Radiated Emission FCC Part 15 Subpart B Section 15.109, ICES-003 Issue 7: 2020, ANSI C 63.4:2014 Complied Note : Test methods of all test items are performed according to the basic standards in this table. Test Report No. : F690501-RF-EMG000517 Page : 6 of 9 EMC5101-01A(2017.07.06)(2) A4(210mm*297mm) 2. Emission Test 2.1 Test Results Test Items Basic Standards Test Results Radiated Emission FCC Part 15 Subpart B Section 15.109, IC…
