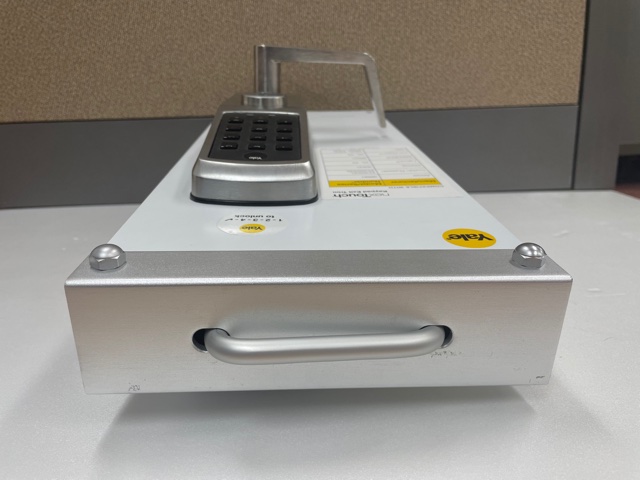

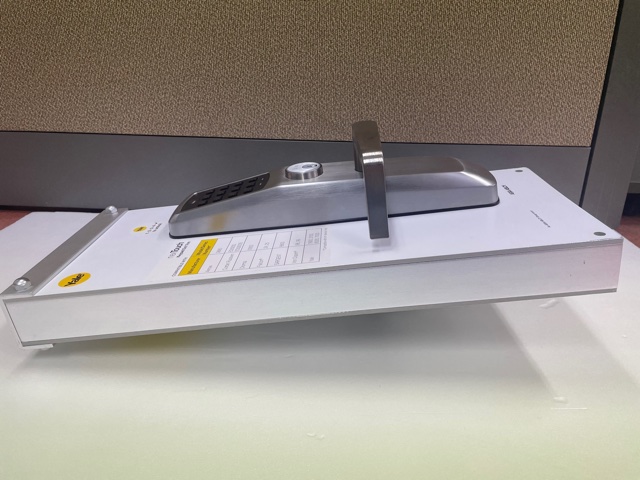

2ABFG-NTT600PBACCDigital Door Lock

Retrofitting or modifying this product may impact fire rating, safety features and warranty. Consult with code specifications to ensure compliance with all codes and ratings. nexTouch ™ Keypad Access Exit Trim Lock Touchscreen and Push Button Installation and Programming Instructions WARNING This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductiveharm.For more information go to www.P65warnings.ca.gov. 08/2018 80-8470-0900-000 04-21 Part of ASSA ABLOY Before You Begin 2 80-8470-0900-000 04-21 Part of ASSA ABLOY AA AA AA AA Optional Network Module template #3 & #2 1/2"3/4" Left Hand Reverse Right Hand Reverse Face a door swinging open toward you. If it swings open to the right, it is a right hand reverse door. If it swings opens to the left, it is a left hand reverse door. Exterior Outswinging Door Interior Optional Privacy DPS Switch Fire Guard Tools Needed 3 1 80-8470-0900-000 04-21 Part of ASSA ABLOY Prepare Door Drill holes 1/2 way thru door then complete from other side to prevent splitting. DPS Option for Privacy Function Wood Door: 3/8" Dia. Thru to Hole in Door Face *Metal Door: 3/4" Dia. Thru to Hole in Door Face *Metal Door Installations Supplied plastic collar MUST be installed for DPS to function properly. template Door Position Switch Option O optional Privacy DPS Switch With Door Position Switch installed and door closed, all keypad functions can be disabled by Privacy Button. 2 80-8470-0900-000 04-21 Part of ASSA ABLOY Test Cylinder Test cylinder by turning key counter-clockwise to unlock trim. If there is any binding then cylinder is not at correct depth and needs to be threaded further into escutcheon. If using cylinder other than 1-1/8", a new collar must be used that is sized appropriately for cylinder length. Install Cylinder Tighten counter-clockwise to secure lock. Use key to thread cylinder. Pull key out of cylinder to first blade cut for best operation. X 4 3 There is a spring inside spindle. Be sure to keep spring for reassembly. Set screw should be located on same side as lever arm. 1 2 2 1 1 2 1 2 Change Hand of Trim (if necessary) Right Hand ReverseLeft Hand Reverse Tighten nut then loosen just enough that spindle tab aligns with top of hole. Be sure spring is inside spindle. Spindle Ta b Nut 5 80-8470-0900-000 04-21 Part of ASSA ABLOY 6 4 Install Outside Trim Assembly #10-32 x 1" OHPMS x2 80-8470-0900-000 04-21 Part of ASSA ABLOY Do not take apart outside assembly. Do not tighten screws until exit device installation -Step 5. 2 hinge side screws hold outside trim assembly until exit device is installed. All 4 screws MUST be used for proper installation. 1 2 Exit Device Mounting Holes 7 5 80-8470-0900-000 04-21 Part of ASSA ABLOY Test Mechanical Lock Function by Key, Lever and Keypad Install Exit Device x2 #10-32 x 1" PHMS Tighten all screws. 3 4 Refer to exit device installation instructions for details of device installation. 8 6 80-8470-0900-000 04-21 Part of ASSA ABLOY Install Strike and Optional DPS x3 #10-24 PFHMS Refer to exit device installation instructions for details of strike installation. 3-1/2" DPS Option for Privacy Function *Metal Frame: 3/4" Dia. x 1" See Instructions with DPS Kit *Supplied plastic collar MUST be installed for DPS to function properly. Frame Strike must be centered with exit device bolt. For proper engagement, door should remain latched and not rattle when pushed, pulled or shaken in/out. 2 Inside of Door Optional DPS 1 9 7 80-8470-0900-000 04-21 Part of ASSA ABLOY x1 #10-32 x 1-1/2" THPMS Install Inside Mounting Plate x2 #8 x 3/8" PRH Sheet Metal OR #8 x 1/2" PHWS Wood x2 10 8 80-8470-0900-000 04-21 Part of ASSA ABLOY Attach Cables to Inside Lock Optional DPS Connection Motor Connection Keypad Connection Reset Button External Power 11 80-8470-0900-000 04-21 Part of ASSA ABLOY 9 Install Inside Lock x3 #8-32 x 5/16" PHMS Avoid crimping cables! Do not tighten screws until lock is flat against plate without excessive pressure.

12 10 11 Install Batteries & Cover Install Module (optional) "Welcome to Yale" Network or Yale Accentra Key Module Optional Network or Yale Accentra Key module must be installed BEFORE batteries. 80-8470-0900-000 04-21 Part of ASSA ABLOY The Yale Accentra Key module enables access with physical (cards and fobs) and mobile credentials ONLY. Creation and use of User PIN codes are disabled. 13 12 80-8470-0900-000 04-21 Part of ASSA ABLOY Congratulations, you've installed the Yale nexTouch ™ Exit Trim Lock! Continue to customize your product. Install Exit Device Cover Test Electronic Lock Function by Keypad See Programming Instructions to create Master PIN code before testing. Enter PIN code and press to test. Programming Instructions Speaker Inside Lock Privacy Button Indicator Light 14 Low Battery Indicator (Touchscreen) Keypad 9 Volt Battery Override Terminal Lockout Mode Indicator (Touchscreen) Unlock Indicator (Touchscreen) Lock Activation On Touchscreen models touch Yale logo to wake lock Lock Activation On Push Button models touch check mark to wake lock 80-8470-0900-000 04-21 Part of ASSA ABLOY 1 Creating Master PIN Code Creating a Master PIN Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. 15 80-8470-0900-000 04-21 Part of ASSA ABLOY Enter 4-8 digit Master PIN Code. Press Press "Registered." "Completed." "Register Master Code. Press the gear key to continue." Press (Touchscreen) Press (Push Button) "Enter a 4-8 digit PIN code. Press the gear key to continue." Creating User PIN Codes 2 a Master PIN code must be created first. *Max User Codes = 500 16 The Yale Accentra Key module enables access with physical (cards and fobs) and mobile credentials ONLY. Creation and use of User PIN codes are disabled. 80-8470-0900-000 04-21 Part of ASSA ABLOY Enter Master PIN code Press Press Press "Press 1 to register a code." "Register User code. Press the gear key to continue." Press Press "PIN code registration. Enter a 4-8 digit PIN code. Press the gear key to continue." "Menu Mode, enter number." Press (Touchscreen) Press (Push Button) "Register User code. Press the gear key to continue." 2 b Creating User PIN Codes con't 17 80-8470-0900-000 04-21 Part of ASSA ABLOY Press Adding more User Codes: Enter 4-8 digit PIN code Press To end programming: Press "Registered. Press the check key to complete. Press the gear key to continue." Enter 4-8 digit PIN code followed by "Completed." "Registered. Press the check key to complete. Press the gear key to continue." 3 Locking & Unlocking Door with Registered Master or User PIN Code 4 18 The Yale Accentra Key module enables access with physical (cards and fobs) and mobile credentials ONLY. Creation and use of User PIN codes are disabled. Master PIN code is only used for programming and configuring lock with Yale Accentra Multi-Family configuration app and will not unlock door. 80-8470-0900-000 04-21 Part of ASSA ABLOY Enter PIN Code Press Press (Touchscreen) Press (Push Button) DPS installation is required for this feature. Privacy must be 'Enabled' from feature menu. Locking Door with Privacy Button Resetting Lock to Factory Default 19 80-8470-0900-000 04-21 Part of ASSA ABLOY 1. Remove battery cover with supplied hex wrench. 2. Remove three (3) screws from inside lock to release lock from bracket plate. 3. Remove network module if installed. 4. Reset button is on back of inside lock. Cables may stay connected. (See illustration for location of reset button.) 5. Press reset button for 3 seconds. 6. While continuing to press reset button, temporarily remove one (1) AA battery. 7. Reinstall battery. 8. Release reset button and wait approximately 15 seconds. Speaker will announce "Welcome to Yale.” 9. Reinstall inside lock. 10. If utilizing a network module, remove batteries. Insert network module. Reinstall batteries. Inside Lock When lock is reset to factory defaults all user codes (including the Master PIN code*) are deleted and all programming features are reset to original default settings (see Factory Settings). Master PIN Code creation is the only option available and must be performed prior to any other programming of the lock. Button Reset Screw Location Screw Location Definitions 20 80-8470-0900-000 04-21 Part of ASSA ABLOY All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except Master) PIN code access. When attempting to enter a code while unit is in Lockout, there will be an audible lock response. The touchscreen keypad will display a RED locked padlock. (Main Menu selection #6.) Automatic Re-lock Time: After a successful unlock, unit will re-lock automatically after 5 seconds or for a duration selected in Advanced Lock Settings. (Main Menu selection #3 then #1) Eco Mode: When enabled, Eco Mode puts unit in low power mode extending life of battery. Inside Indicator Light: This light will blink red when the trim is locked. Language Setting Mode: Choose English (1), Spanish (2) or French (3) for lock's voice prompts. (Main Menu selection #5) Low Battery: When battery power is low, the Low Battery Warning indicator is a flashing red battery icon on the touchscreen keypad and the Yale logo will flash red on the push button keypad. If battery power is completely lost, use 9Volt battery override. To use 9V battery override apply 9V battery, in either direction, to terminals on the touchscreen for backup power option. Activate the touchscreen and enter your pin code to unlock door. Master PIN Code: The Master PIN code is used for programming and for feature settings. It must be created prior to programming lock. The Master PIN code will also unlock/lock the lock except when Accentra Key Module is installed. Network Module Setting: With optional Network Module installed, this setting becomes available (Main Menu selection #7) and allows the lock to connect with a network…
