2ABGW-F-710AMID

Model: F-710A USER’S MANUAL Products Features Button Functions z Button Functions 1. Power button: long press for 3 seconds is to turn on/off，short press to wake up screen; 2. Earphones:3.5mm earphone port 3. USB card/OTG port for U disk/mouse/keyboard 4. DC in: 2.5MM DC5V charging port 5. Vol +/-: short/long press is volume up,short/long press is volume down 6. TF card: TF expand card port 7. Camera: front and rear 8. Reset: short press for reset ； Use preparation z Connecting to your PC Start up your PC, and connect the product to your PC with the provided USB Cable for USB charging or file transfers. The product will show connected and you can copy/delete files within the player through PC. Notice: Do not play music or video while connected to your PC. Please be aware that we claim no responsibility for damage caused by this improper operation. z Turn on Long press "Power button" for 3 seconds. The system will enter android power-on status bar, and about 100 seconds later, enter the system menu. The screen is locked by default. To unlock, hold lock icon and drag up to the green point position. The device will unlock automatically just as the following picture shows: Connect the device with PC and the system will turn on the device automatically (it will only supply power and won't charge). Power saving & screen-lock：Turn on the device and short press the “POWER” button to enter SLEEP power saving mode. Once done, the screen will become black and enter screen lock mode. Press the “POWER” button again and the system will turn the screen on for about 1 second. Note: 1. Under power saving mode, operations such as music,video etc will not pause and will continuously work . It will only lock the screen. 2. If the system hangs up, press the "power switch" button for 10 seconds to turn the device off. Pressing the "power switch" again will turn it on. z Power off While the device is on, long press the "power button" for 3 seconds to access the power-off. Select "OK" to turn it off. 【Note】When power is not enough, the device will continuously give an alarm and will automatically power down if not charged. Please check the power status and charge it when this happens. Try to turn it on within 5 minutes to 10 minutes after it is charging if the battery was drained. z Using TF expansion card 1、Connect the device your PC and 2 Removable Discs will be recognized. The first one is build-in flash memory while the other one is the TF card if you’ve placed one in the tablet. The second Removable Disk will not be opened if you did not plug a TF expansion card to the player. Note: The player only supports TF kind of expansion card (maximum memory:32GB). 2、Plug expansion card To Plug, insert the expansion card as indicated on the card slot. Once the player identifies the expansion card, files stored in the card memory can be played. To Unplug: Press the expansion card slightly and remove it. z Charging the battery 1、For best results let it charge for about 5 to 6 hours during the first use to fully charge the battery to 100%. 2、Insert the MINI 5IN USB adapter into the device USB port. The other end of the adapter is inserted into the DC port. The device turn on automatically once this is done. The battery will show the lightning icon just as when charging. Please refrain from unplugging it until power is fully charged. The indicator light on the batter should blue but will turn green once charging stops. Wait for a minute and turn the device on when charging is completed. Notice: 1.If you want the special charger with 5V--2A, contact your local distributor. 2.The device supports only off screen (screen saver power-saving mode). Charging while the screen is on will not charge the battery fully. 3.Do NOT use a 9V charger. We are not responsible if the device is damaged by using a 9V charger. z Main User Interface （Menu Icons Definition） icon Function introduction icon Function introduction Return/Back button Press to return to main menu Menu of Recent opened apps The system has identified a new device To show the time on your system Battery icon showing the remaining power Function module menu Operation Introduction 1.Wifi Settings a. WIFI on settings：click module menu icon and enter the module menu list. Click "settings" to enter the setting menu and click "wireless & networks". To enter, select "Wi-Fi". b. WIFI settings and network connecting: Click "Wi-Fi settings” to enter and the system will automatically find any WIFI networks that are available. 2.USB-HOST function a. Reading U Disk function : Insert U disk into HOST/OTG port and click "explorer". After this, click "USB" to enter the file list of U disk as follows: b.External 3G USB Dongle： Insert 3G USB-DONGLE card through the OTG cable into the Dongle while the other end into USB/OTG HOST port. Wait for a few minutes and the 3G icon should appear and automatically connect to the Internet. 3.APK Installer The tablet supports applications from the android platform. Most apps can be downloaded from the internet and saved into the Interal Memory or T-Flash. • Click APK Installer“”，Pop-up APK installer menu, Installer, Manager, then Exit. • Installer：click installer to enter Apk installer menu. Internal Memory and SD Card is a separate flash memory from T-Flash card memory; Enter and choose the app you want in the right column and click "install". • Manage ：click "mange",enter the menu. - Launch：launch the software - Export：export the software to T-Flash card - Uninstall：uninstall the software - Cancel：cancel the operation 4．Explorer In main menu, click the explore icon to enter the manager interface. Click "SD Card", "Internal Memory" and "U Disk" to enter the sub file list. From there, you can add, copy, paste, and delete files. Long press the file or file folder, choose "last", "next", or "last level" to find the related position and click "edit". Choose "paste" to the related position in the coming box. 5.Record In main menu, click the record iconto…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Hong Kong Topsky Technology Limited 2014/11/21 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ___ Hong Kong Topsky Technology Limited _ _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： MID Trade Name： FAT Model Name： F-710A Serial Model： N/A FCC ID： 2ABGW-F-710A Sincerely, Signature Name: Alex Zhao Title: EM Address: Unit 5, 27/F., Richmond Commercial Building, 109 Argyle Street, Mongkok, Kowloon, Hong Kong

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Hong Kong Topsky Technology Limited 2014/11/21 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABGW-F-710A We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Name: Alex Zhao Title: EM Address: Unit 5, 27/F., Richmond Commercial Building, 109 Argyle Street, Mongkok, Kowloon, Hong Kong

Hong Kong Topsky Technology Limited Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2014-11-24 SUBJECT: FCC Application for ( FCCID: 2ABGW-F-710A) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Signature Name: Alex Zhao Title: EM Address: Unit 5, 27/F., Richmond Commercial Building, 109 Argyle Street, Mongkok, Kowloon, Hong Kong

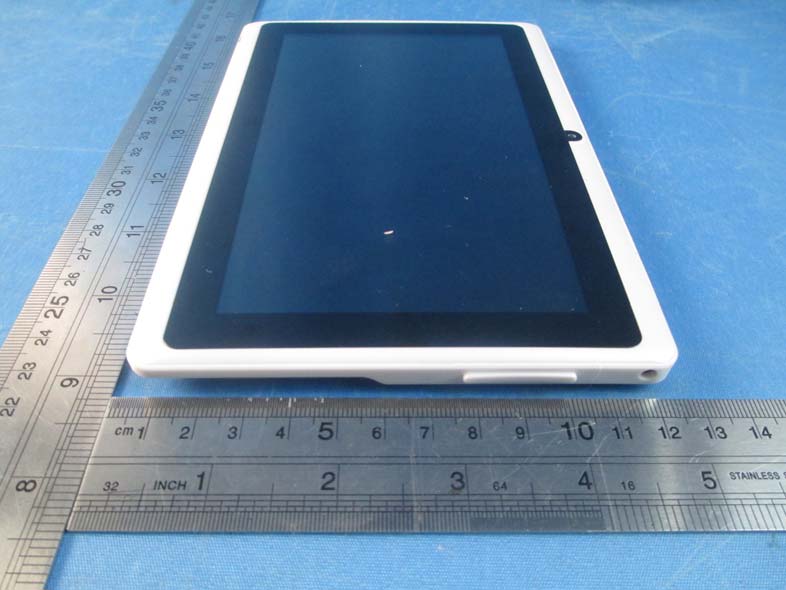

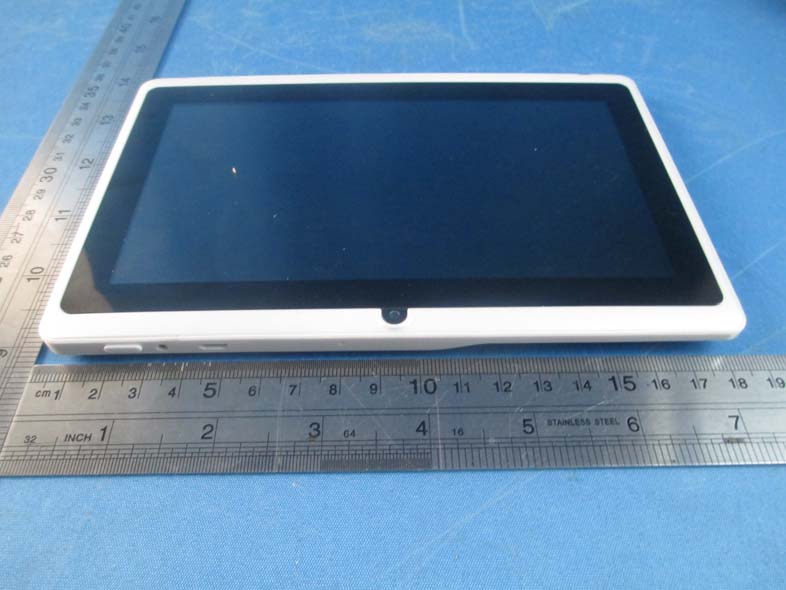

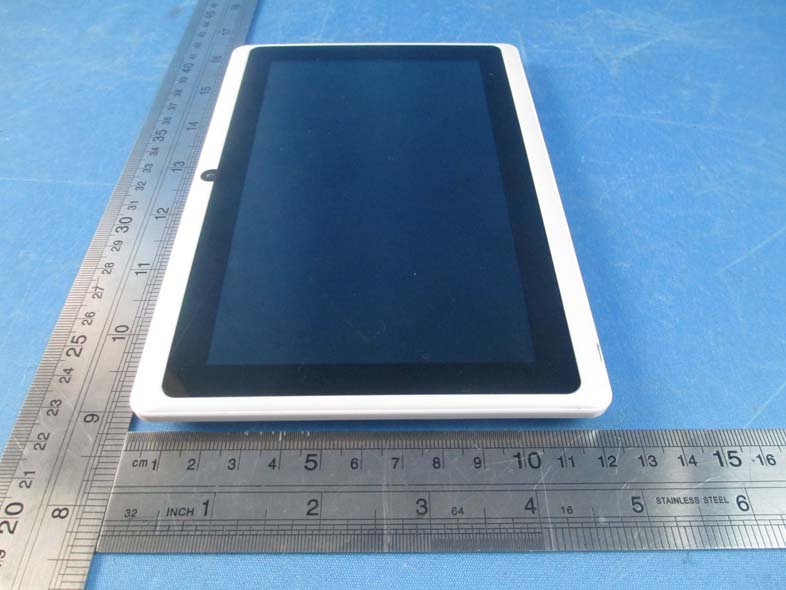

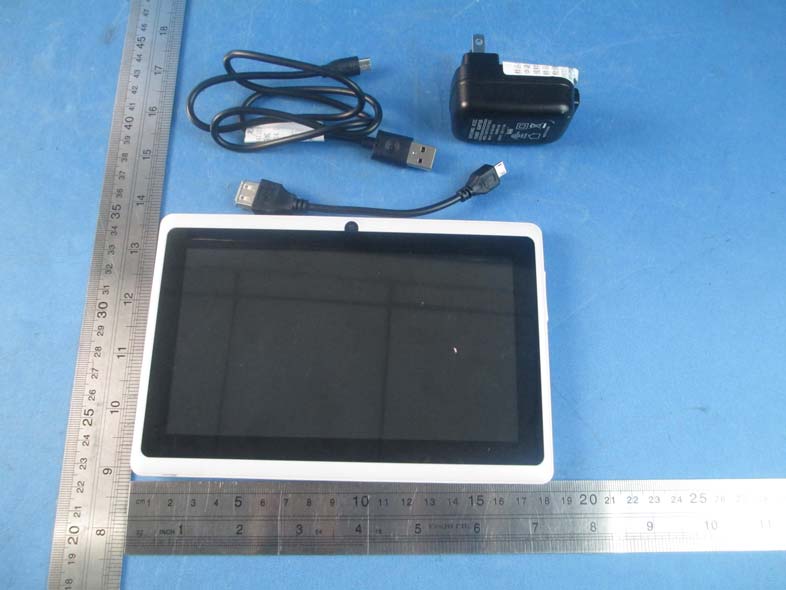

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

FCC ID LABELING AND LOCATION FCC ID Label MID Model NO.: F-710A FAT Input Rating: DC 5V/ 2000mA FCC ID: 2ABGW-F-710A Hong Kong Topsky Technology Limited. Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 ANT Photo 3 Photo 4 Photo 5

FCC ID : 2ABGW-F-710A RF EXPOSURE EVALUATION METHOD FCC ID: 2ABGW-F-710A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. WIFI: TX 802.11b Mode Te s t Channe Frequency Maximum Conducted Output Power(PK) Maximum Conducted Output Power(AV) Maximum Conducted Output Power(AV) (MHz) (dBm) (dBm) (mW) CH01 2412 12.36 9.22 8.356 CH06 2437 12.47 9.38 8.670 CH11 2462 12.74 9.58 9.078 TX 802.11g Mode CH01 2412 11.72 8.59 7.228 CH06 2437 11.81 8.67 7.362 CH11 2462 11.45 8.34 6.823 Remark: The best case gain of the antenna is 1.0dBi. 1.0 dBi logarithmic terms convert to numeric result is nearly 1.26 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] FCC ID : 2ABGW-F-710A WIFI: Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit TX 802.11b Mode CH01 7.6~9.6 9.6 9.120 5 2.412 2.83 3 CH06 7.6~9.6 9.6 9.120 5 2.437 2.85 3 CH11 7.6~9.6 9.6 9.120 5 2.462 2.86 3 TX 802.11g Mode CH01 7.0~9.0 9.0 7.943 5 2.412 2.47 3 CH06 7.0~9.0 9.0 7.943 5 2.437 2.48 3 CH11 7.0~9.0 9.0 7.943 5 2.462 2.49 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

FCC RADIO TEST REPORT-WIFI FCC ID: 2ABGW-F-710A Product： MID Trade Name： FAT Model Name： F-710A Serial Model： N/A Report No.： NTEK-2014NT11101957F Prepared for Hong Kong Topsky Technology Limited Unit 5, 27/F., Richmond Commercial Building, 109 Argyle Street, Mongkok, Kowloon, Hong Kong


Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 43 Report No.: NTEK-2014NT11101957F TEST RESULT CERTIFICATION Applicant’s name ........ Hong Kong Topsky Technology Limited Address ........................ Unit 5, 27/F., Richmond Commercial Building, 109 Argyle Street, Mongkok, Kowloon, Hong Kong

Manufacture's Name ... Innovate Tech LLC. Address ........................ 1435 E University Dr STE 101 Tempe, AZ 85281 USA Product description Product name .................MID Model and/or type reference ..................... F-710A Serial Model .................... N/A Standards .................... FCC Part15.247: 01 Oct. 2013 Test procedure ................ ANSI C63.4-2003 and KDB 558074:June 5, 2014 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ...................................... Date (s) of performance of tests ....... 10 Nov. 2014 ~19 Nov. 2014 Date of Issue ..................................... 19 Nov. 2014 Test Result ......................................... Pass Testing Engineer : (Kyle Xu) Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 43 Report No.: NTEK-2014NT11101957F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 25 4.1 APPLIED PROCEDURES / LIMIT 25 4.1.1 TEST PROCEDURE 25 4.1.2 DEVIATION FROM STANDARD 25 4.1.3 TEST SETUP 25 4.1.4 EUT OPERATION CONDITIONS 25 4.1.5 TEST RESULTS 26 5 . BANDWIDTH TEST 30 5.1 APPLIED PROCEDURES / LIMIT 30 5.1.1 TEST PROCEDURE 30 Page 4 of 43 Report No.: NTEK-2014NT11101957F Table of Contents Page TEST SETUP 30 5.1.2 EUT OPERATION CONDITIONS 30 5.1.3 TEST RESULTS 31 6 . PEAK OUTPUT POWER TEST 35 6.1 APPLIED PROCEDURES / LIMIT 35 6.1.1 TEST PROCEDURE 35 6.1.2 DEVIATION FROM STANDARD 35 6.1.3 TEST SETUP 35 6.1.4 EUT OPERATION CONDITIONS 35 6.1.5 TEST RESULTS 36 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 37 7.1 DEVIATION FROM STANDARD 37 7.2 TEST SETUP 37 7.3 EUT OPERATION CONDITIONS 37 7.4 TEST RESULTS 38 8 . ANTENNA REQUIREMENT 41 8.1 STANDARD REQUIREMENT 41 8.2 EUT ANTENNA 41 9 . EUT TEST PHOTO 42 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 43 Report No.: NTEK-2014NT11101957F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 43 Report No.: NTEK-2014NT11101957F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 43 Report No.: NTEK-2014NT11101957F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment MID Trade Name FAT Model Name F-710A Serial Model N/A Model Difference N/A Product Description The EUT is a MID Operation Frequency: 802.11b/g: 2412~2462MHz Modulation Type: CCK/OFDM Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps Number Of Channel 802.11b/g:11CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 12.74 dBm (Max.) 802.11g: 11.81 dBm (Max.) Antenna Gain (dBi) 1.0 dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Ratings DC 3.7V Adapter Model:FLD0710-5.0V1.50A-Z Input: 100-240V,50/60 H…

Text truncated - open the document above for the full version.

Page 42 of 43 Report No.: NTEK-2014NT11101957F 9. EUT TEST PHOTO Radiated Measurement Photos Page 43 of 43 Report No.: NTEK-2014NT11101957F Conducted Measurement Photos
