2ABLPFT2225Fixed L-Band satellite modem with WLAN and Bluetooth

FT2225 Terminal User Manual ViaSat Document No.: 1215301 ( Rev. 001 ) Prepared by: ViaSat, Inc. 6155 El Camino Real Carlsbad, CA 92009 1602 Tel: (760) 476-2200 Fax: (760) 929-3941 ViaSat Proprietary This document contains commercial information or trade secrets of ViaSat, Inc., which are confidential and exempt from disclosure to the public under the Freedom of Information Act, 5 U.S.C.552(b)(4), and unlawful disclosure thereof is a violation of the Trade Secrets Act, 18 U.S.C. 1905. Public disclosure of any such information or trade secrets shall not be made without the written permission of ViaSat, Inc. © ViaSat, Inc. 2015. U.S. export law as contained in the International Traffic in Arms Regulations (ITAR) is applicable to the information contained in this document. This technical information is not to be placed in the public domain, exported from the U.S., or given to any foreign person in the U.S., without the prior specific written authorization of ViaSat, Inc. and the U.S. Department of State. This technical data is subject to the United States (U.S.) Export Administration Regulations (EAR). Diversion contrary to U.S. law is prohibited. NOTICES Distribution ViaSat® Proprietary – Information, specifications, and features contained in this document are subject to change without notice and should not be construed as a commitment by ViaSat Inc. This document is proprietary to ViaSat Inc. and shall be protected by a receiving party in accordance with the terms of its contracts and agreements with ViaSat Inc., covering ArcLight and ViaSat products. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of ViaSat Inc. Trademark ViaSat® and the ViaSat logo are registered trademarks of ViaSat Inc. in the United States and other countries. All other trademarks, and registered trademarks, are the property of their respective owners. Google Chrome™ is a trademark or registered trademark of Google Inc. Copyright © Copyright 2015, ViaSat Inc. All rights reserved. Documentation The information, specifications, and features contained in this document are subject to change without notice and should not be construed as a commitment by ViaSat Inc. ViaSat Inc. assumes no responsibility for any errors that may appear in this document nor does it make expressed or implied warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ViaSat Inc. shall not be liable for incidental or consequential damages in conjunction with, or arising out of the furnishing, performance, or use of this document and the program material it describes. Open Source License Notification This product incorporates various open source software packages that are distributed under license terms as described at: http://www.viasat.com/FOSS-Usage ViaSat, Inc. Corporate Headquarters 6155 El Camino Real Carlsbad, CA 92009-1602 Phone: (760) 476-2200 Fax: (760) 929-3941 www.viasat.com Publication Information Revision Number Date Released Comments 001 28 July 2015 Initial Release FT2225 Terminal User Manual 1215301, Rev. 001 ViaSat Proprietary Information i DECLARATION OF CONFORMITY ViaSat, Inc., of 6155 El Camino Real, Carlsbad, CA, 92009, USA, declares under our sole responsibility that the product ViaSat FT2225 Terminal to which this declaration relates, is in conformity with the following standards and/or other normative documents: ETSI EN 301 444, ETSI EN 300 328, ETSI EN 301 489-1, ETSI EN 301 489-17, ETSI EN 301 489-20, IEC 60950-1, IEC 60950-22, Council Recommendation 1999/519/EC. We hereby declare that all essential radio test suites have been carried out and that the above named product is in conformity to all the essential requirements of R&TTE Directive 1999/5/EC, IC/FCC Class A Part 15. ViaSat, Inc. declares that this Satellite Modem is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. These limits are designed to provide a reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. To ensure regulatory and safety compliance, use only the provided power and interface cables. The technical documentation relevant to the above equipment will be held at: ViaSat, Inc., 6155 El Camino Real, Carlsbad, CA, 92009, USA FCC REGULATORY INFORMATION Compliance Statement (Part 15.19) The enclosed hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by ViaSat could void the user’s authority to operate the equipment. Manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Compliance Statement (Part 15.105(b)) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,…

Text truncated - open the document above for the full version.

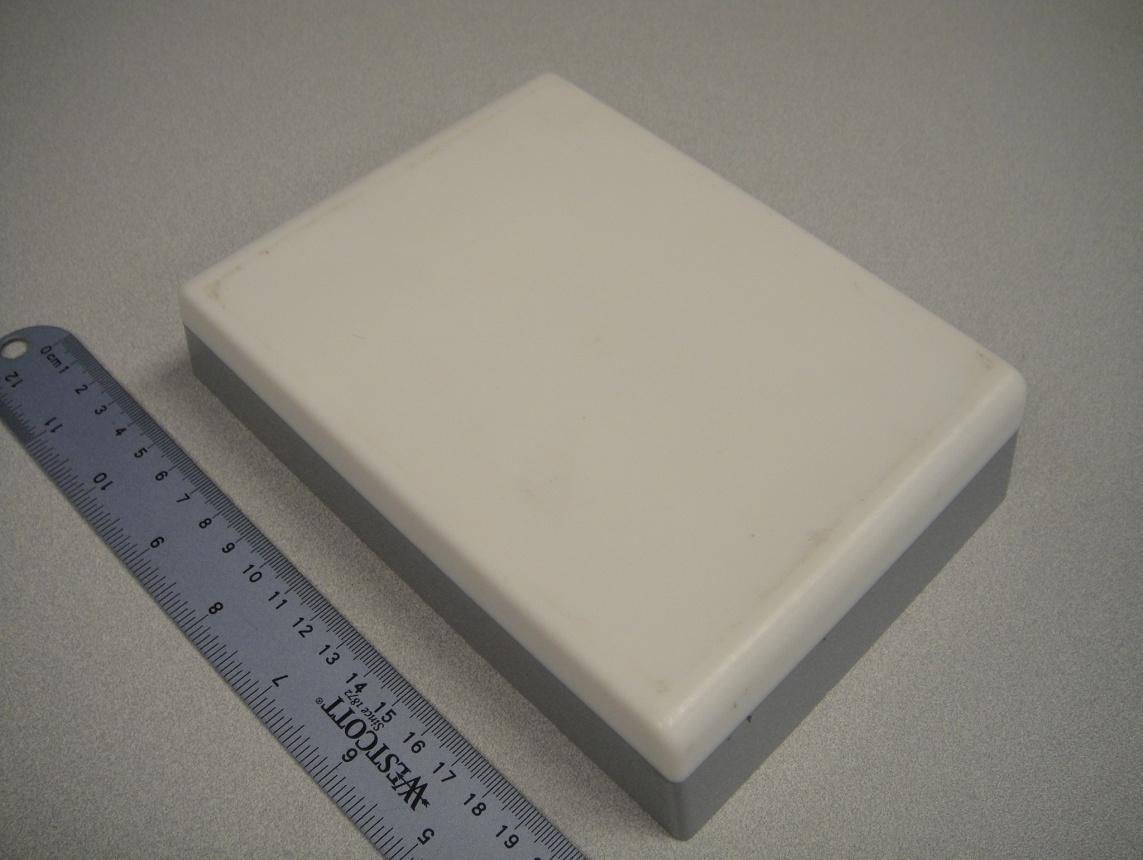

FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615

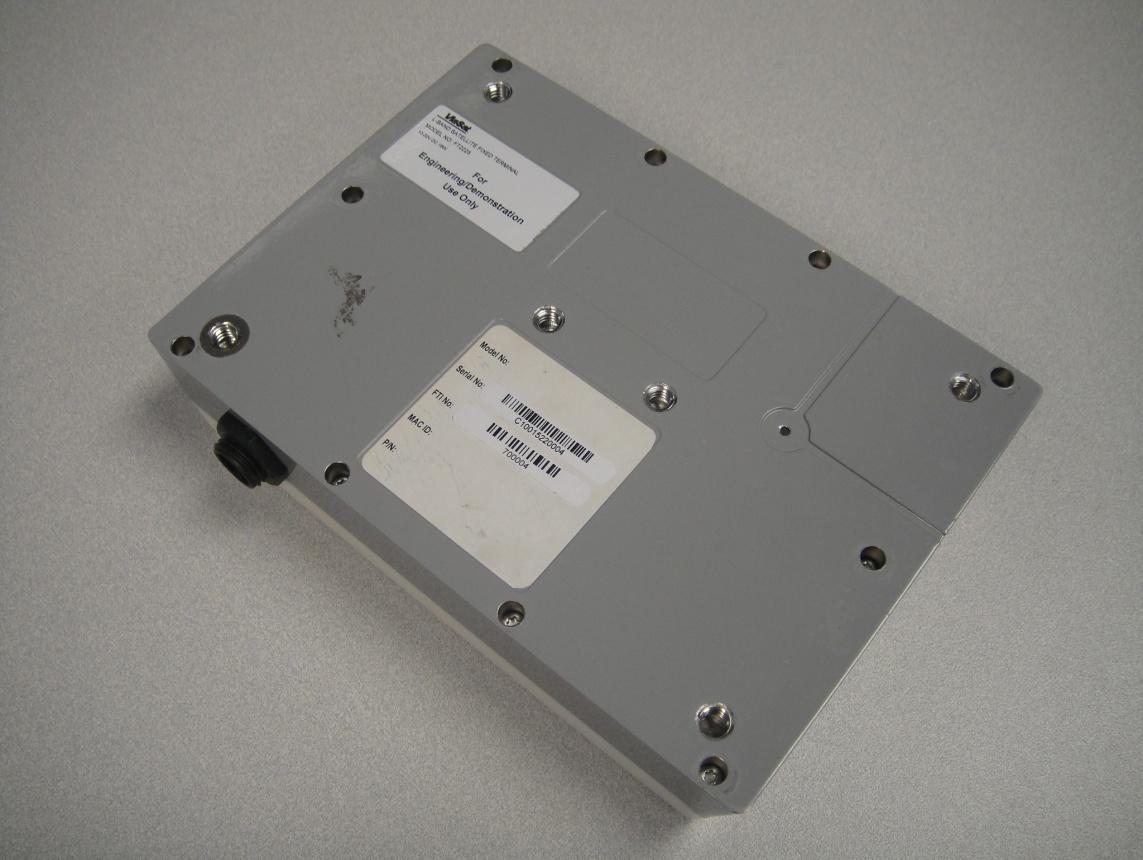

FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 ID Label FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 Label Location

FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615

TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 September 22, 2015 TUV SUD BABT Octagon House, Concorde Way Segensworth Rd N, Fareham PO15 5RL Attention: Director of Certification RE: Analysis of RF Exposure for Fixed and Mobile according to FCC 2.1091 and RSS-102 Issue 5 March 2015. FCC ID: 2ABLPFT2225 IC: 20546-FT2225 1. Mobile MPE Calculation Summary using a 31cm separation distance: Mode Output Power (dBm) Power Density (mW/cm 2 ) 802.11b 19.38 0.0024 802.11g 15.32 0.0007 Bluetooth 7.25 0.0001 Satellite (L-Band) 32.09 0.4754 2. Co-Located Transmitters transmission table: Transmitter type Transmitter type that can transmit at the same time WiFi 802.11 b/g Satellite (L-Band) / Bluetooth Bluetooth WiFi / Satellite (L-Band) Satellite WiFi / Bluetooth TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 3. Simultaneous Transmission MPE: Transmitter type MPE (mW/cm 2 ) Limit (mW/cm 2 ) MPE ratio (MPE/Limit) WiFi (802.11b) 0.0024 1.0 0.0024 Bluetooth 0.0001 1.0 0.0001 Satellite (L-Band) 0.4754 1.0 0.4754 Sum of the ratios (should be <1.0) 0.4779 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 4. Mobile MPE Calculation using a 31cm separation distance (802.11b): Using Power Density formula: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to isotropic R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.38 (dBm) Maximum peak output power at antenna input terminal: 86.70 (mW) Antenna gain(typical): -4.79 (dBi) Maximum antenna gain: 0.332 (numeric) Prediction distance: 31 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm 2 ) Power density at prediction frequency: 0.0024 (mW/cm 2 ) Power density at prediction frequency: 0.024 (W/m 2 ) Margin of Compliance: -26.23 (dB) 5. Mobile MPE Calculation using a 31cm separation distance (802.11g): Maximum peak output power at antenna input terminal: 15.32 (dBm) Maximum peak output power at antenna input terminal: 34.04 (mW) Antenna gain(typical): -6.23 (dBi) Maximum antenna gain: 0.238 (numeric) Prediction distance: 31 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm 2 ) Power density at prediction frequency: 0.0007 (mW/cm 2 ) Power density at prediction frequency: 0.007 (W/m 2 ) Margin of Compliance: -31.73 (dB) TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 6. Mobile MPE Calculation using a 31cm separation distance (Bluetooth): Maximum peak output power at antenna input terminal: 7.25 (dBm) Maximum peak output power at antenna input terminal: 5.31 (mW) Antenna gain(typical): -6.01 (dBi) Maximum antenna gain: 0.251 (numeric) Prediction distance: 31 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 2440 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm 2 ) Power density at prediction frequency: 0.0001 (mW/cm 2 ) Power density at prediction frequency: 0.001 (W/m 2 ) Margin of Compliance: -39.58 (dB) 7. Mobile MPE Calculation using a 31cm separation distance (Satellite L-Band): Maximum peak output power at antenna input terminal: 32.09 (dBm) Maximum peak output power at antenna input terminal: 1618.08 (mW) Antenna gain(typical): 5.5 (dBi) Maximum antenna gain: 3.548 (numeric) Prediction distance: 31 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1660.5 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm 2 ) Power density at prediction frequency: 0.4754 (mW/cm 2 ) Power density at prediction frequency: 4.754 (W/m 2 ) Margin of Compliance: -3.23 (dB) Sincerely, Alex Chang Name Authorized Signatory Title: EMC/Wireless Test Engineer

Report No. SD72107151C-0615 October 2015 America Report On Application for Grant of Equipment Authorization of the ViaSat, Inc. L-Band Satellite Fixed Terminal M2M FT2225 Terminal FCC Part 15 Subpart C §15.247 (FHSS) IC RSS-247 Issue 1 May 2015 IC RSS-Gen Issue 4, November 2014 FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No. SD72107151C-0615 Page 2 of 77 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 REPORT ON TEST REPORT NUMBER PREPARED FOR Radio Testing of the ViaSat, Inc. L-Band Satellite Fixed Terminal SD72107151C-0615 ViaSat, Inc. 6155 El Camino Real Carlsbad, CA 92009 USA CONTACT PERSON Jason Soares Hardware Engineer (760) 893-4654 [email protected] PREPARED BY Nikolay Shtin Name Authorized Signatory Title: EMC Wireless Engineer APPROVED BY Ferdinand S. Custodio Name Authorized Signatory Title: EMC/Senior Wireless Test Engineer DATED October 15, 2015 FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No. SD72107151C-0615 Page 3 of 77 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 Revision History SD72107151C-0615 ViaSat, Inc. L-Band Satellite Fixed Terminal M2M FT2225 Terminal DATE OLD REVISION NEW REVISION REASON PAGES AFFECTED APPROVED BY 10/15/2015 Initial Release Ferdinand Custodio FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No. SD72107151C-0615 Page 4 of 77 TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 CONTENTS Section Page No 1 REPORT SUMMARY ............................................................................................................................... 5 1.1 Introduction ................................................................................................................................................ 6 1.2 Brief Summary Of Results ........................................................................................................................... 7 1.3 Product Information ................................................................................................................................... 8 1.4 EUT Test Configuration ............................................................................................................................. 10 1.5 Deviations From The Standard ................................................................................................................. 13 1.6 Modification Record ................................................................................................................................. 13 1.7 Test Methodology ..................................................................................................................................... 13 1.8 Test Facility Location ................................................................................................................................. 13 1.9 Test Facility Registration ........................................................................................................................... 13 2 TEST DETAILS ...................................................................................................................................... 15 2.1 Carrier Frequency Separation ................................................................................................................... 16 2.2 Number Of Hopping Frequencies ............................................................................................................. 19 2.3 Time Of Occupancy (Dwell Time) .............................................................................................................. 21 2.4 20 dB Bandwidth ....................................................................................................................................... 26 2.5 99% Emission Bandwidth .......................................................................................................................... 32 2.6 Peak Output Power ................................................................................................................................... 39 2.7 Band-Edge Compliance Of RF Conducted Emissions ................................................................................ 42 2.8 Spurious RF Conducted Emissions ............................................................................................................ 49 2.9 Spurious Radiated Emissions .................................................................................................................... 55 2.10 Radiated Immediate Restricted Bands ..................................................................................................... 65 2.11 Receiver Spurious Emissions ..................................................................................................................... 69 3 TEST EQUIPMENT USED ...................................................................................................................... 70 3.1 Test Equipment Used ................................................................................................................................ 71 3.2 Measurement Uncertainty ....................................................................................................................... 72 4 DIAGRAM OF TEST SETUP ................................................................................................................... 73 4.1 Test Setup Diagram ................................................................................................................................... 74 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................................... 76 5.1 Accreditation, Disclaimers And Copyright ................................................................................................ 77 FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No. SD72107151C-0615 Page 5 of 77 TÜV…

Text truncated - open the document above for the full version.

FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 Setup for Bluetooth Radiated Emission Below 1GHz Front and Back FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 Setup for Bluetooth Radiated Emission Above 1GHz Front and Back FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 Setup for WiFi Radiated Emission Below 1GHz Front and Back FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 Setup for WiFi Radiated Emission Above 1GHz Front and Back FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 EUT in X-axis orientation EUT in Y-axis orientation EUT in Z –axis orientation FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 Setup for Satellite test Radiated Emission Below 1GHz Front and Back FCC ID: 2ABLPFT2225 IC: 20546-FT2225 Report No.: SD72107151-0615 Setup for Satellite test Radiated Emission Above 1GHz Front and Back
