AMW004 • 802.11b/g/n WICED™ Module ADS-MW004-100D8 • Preliminary Data Sheet March 4, 2014 ©2014 ACKme Networks. http://ack.me AMW004 Data Sheet WTS-Lab AMW004 • 802.11b/g/n WICED™ Module ADS-MW004-100D8 • Preliminary Data Sheet Page | i ©2014 ACKme Networks. http://ack.me March 4, 2014 Disclaimer While the information provided in this document is be- lieved to be accurate, it is under development and ACKme Networks reserves the right to make changes without further notice to the product described herein to improve reliability, function, or design, and makes no guarantee or warranty concerning the accuracy of said information, nor shall it be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon, such information. ACKme Networks makes no warranties of any kind, whether express, im- plied or arising by custom or course of trade or perfor- mance, and specifically disclaims the implied warranties of title, non-infringement, merchantability, or fitness for a particular purpose. No part of this document may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photographic, or otherwise, or used as the basis for manufacture or sale of any items without the prior written consent of ACKme Networks. Trademarks ACKme Networks and the ACKme Networks logo are trademarks of ACKme Networks. WICED™ is a trade- mark of Broadcom Corporation, Inc. Other trademarks in this document belong to their respective owners. Copyright © 2014 ACKme Networks. All rights reserved. Document Number: ADS-MW004-1xx Release Date: TBA Contact Email: [email protected] Web: http://ack.me http://ackmenetworks.com About this Data Sheet This document provides information on the AMW004 802.11b/g/n WICED module from ACKme Networks. Specifications for the module I/O and pe- ripherals are taken from the SAM4S Series data sheet from Atmel Corporation. Specifications for the WLAN subsystem were compiled from measured data unless otherwise noted. Organization This data sheet is organized into the following sections:  Features & Applications  General Description, Section 1  Block Diagram, Section 2  Electrical Specifications, Section 3  WLAN RF Specifications, Section 4  Pinout and Signal Descriptions, Section 5  Design Guidelines, Section 6  Regulatory Certification, Section 7  Packaging, Handling & Storage, RoHS, Section 8  Revision History & Glossary, Section 9  References, Section 10 WTS-Lab ADS-MW004-100D8 • Preliminary Data Sheet Page | ii ©2014 ACKme Networks. http://ack.me March 4, 2014 AMW004 Data Sheet 2.4GHz IEEE 802.11b/g/n WICED™ Module Features  Self-contained low-power Wi-Fi networking mod- ule with onboard microcontroller and antenna.  Integrated SPI-serial flash for software upgrades  Works seamlessly with Broadcom WICED Devel- opment System. Wi-Fi  Broadcom BCM43362 single band 2.4GHz IEEE 802.11b/g/n 1x1 Wi-Fi transceiver  Includes support for all Wi-Fi security modes in- cluding Open, WEP, WPA, and WPA2-PSK Microprocessor  Atmel AT91SAM4S16C ARM 32-bit Cortex™-M4 CPU, with a 2kB cache at up to 120MHz.  Integrated 1MB Flash memory and 128kB SRAM  Clock, reset & supply management including 32kHz RTC, high-precision 8/12MHz RC oscillator, PoR, brownout detector and watchdog  Up to 22 Peripheral DMA controller channels  Ultra Low Power sleep, wait and backup modes  128-bit unique ID Interfaces*  A/D converters: 10 channel input, 12-bit resolu- tion, 1Msps with gain control and auto calibration  D/A converter: 1 channel x 12-bit, 1Msps  UART: 2 x 4-wire, 2 x 2-wire up to 7.5Mbit/s  SPI: 1 x SPI master/slave up to 120Mbit/s  I 2 C: 2 x I 2 C interfaces (SMBus/PMBus)  I 2 S: 1 x I 2 S / Synchronous Serial Controller  GPIO: Up to 29 GPIOs (overlaid with peripherals)  USB: 1 x USB2.0 full-speed device controller with dedicated DMA, on-chip full-speed PHY  Timers: 2 x 3-Channel 16-bit Timer/Counter with IC/OC/PWM capability, quadrature decoder logic and additional 4-Channel 16-bit PWM  Wake-up : 12 External wake inputs and RTC/RTT wake for ultra-low power operation  External Wi-Fi antenna option  JTAG/SWD debug interface * Some interfaces share module pins Operational & Radio  Single operating voltage : 3.3V (typical)  Operational Temperature Range: -30°C to +85°C  Size : 1.25” x 0.70” x 0.11” (31.8 x 17.8 x 2.7mm)  Weight : 0.07oz (2g)  Current consumption @ 25°C - Backup : 1.85μA, <300μs wakeup - Wait : 28μA, <100μs wakeup, RAM retention - Wi-Fi Powersave : 0.77mA - Active receive : 6.9mA @ 1Mbit/s - Active transmit : 12.5mA @ 1Mbit/s  Maximum RF transmit power - 802.11b/g : +18.5 dBm - 802.11n : +13.5 dBm  Minimum Receive sensitivity - 802.11b/g : -94 dBm - 802.11n : -86 dBm  Sustained TCP throughput : >20Mbit/s Applications  Industrial, M2M and Home Automation - Environmental monitoring - Energy monitoring - Wireless sensing, remote data logging - HVAC, power, light, & thermostat control - Appliance control  Security - Cameras, Doors/Window monitoring - Alarms, Smoke Detectors - Door and entry control  Health & Fitness - Fitness Equipment - Home health monitoring eg. weight scales  Consumer - Audio, Toys, Robots WTS-Lab AMW004 • 802.11b/g/n WICED™ Module ADS-MW004-100D8 • Preliminary Data Sheet Page | 1 ©2014 ACKme Networks. http://ack.me March 4, 2014 Contents 1 General Description ............................................... 1 2 Block Diagram ........................................................ 2 3 Electrical Specifications .......................................... 3 3.1 Absolute Maximum Ratings ............................ 3 3.2 Recommended Operating Conditions ............ 3 DC Operating Conditions ........................ 3 3.2.1 Environmental Conditions ...................... 3 3.2.2 3.3 Power Consumption ....................................... 4 3.4 32kHz Crystal .................................................. 4 4 WLAN RF Specifications ...................…

Text truncated - open the document above for the full version.

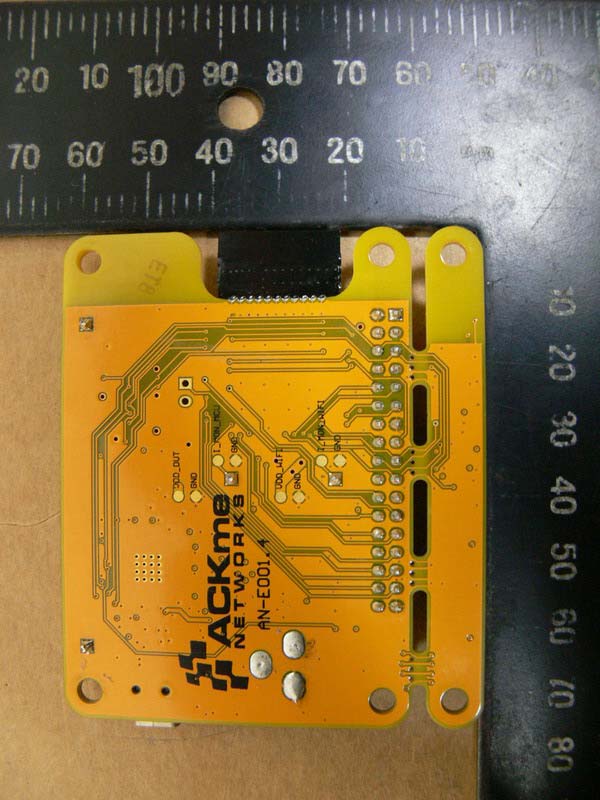

Registration number: W6M21401-13800-C-1 FCC ID: 2ABPY-61F8 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 100 of 102 EUT Photos PCB antenna / 3.18 dBi Registration number: W6M21401-13800-C-1 FCC ID: 2ABPY-61F8 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 101 of 102

15.0 Notes: 1. Material Specification: - Thermal Transfer Printable Polyimide (MPN: Polyonics XF-582) 2. Dimensions and Tolerances: - Tolerance should be +/- 0.2mm 3. Appearance: - Parts shall be free from unclear printing - Part surface shall be clean and free from any foreign substance 4. Serial number: - ABCD is the build number - 123456 is the last 6 hex digits of the MAC address 5. QR Code: - The QR Code shall have the following format: AMW004.03-ABCD-123456 It is 7x7mm in size. 6. Text Font: - Calibri Bold This document is confidential and proprietary to ACKme Networks Pty Ltd. This document is only to be shared only with people who have a Non-Disclosure Agreement with ACKme Networks Pty Ltd, or employees of ACKme Networks Pty Ltd. Confidential and Proprietary Information. AMW004 Label Information17 Jan 2014 20.0 AMW004 FCC ID label location

Registration number: W6M21401-13800-C-1 FCC ID: 2ABPY-61F8 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 100 of 102 EUT Photos PCB antenna / 3.18 dBi Registration number: W6M21401-13800-C-1 FCC ID: 2ABPY-61F8 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 101 of 102

Registration num ber: W6M21401-13800-C-1 FCC ID: 2ABPY-61F8 Worldwide Testing Services(Taiwan) Co., Ltd. Page 18 of 53 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain (Directional gain) EIRP = 23.58 dBm + 3.18 dBi = 26.76 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain ItemUnitValue Remarks PmW228.034 Peak value DdB AGdBi3.18 G2.08Calculated Value Rcm20 Assumed value SmW/cm 2 0.09436 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2 ) 1500 – 100.000 1.0

of Applicant: ACKme Networks Inc Address: 2 North Santa Cruz Ave Suite 207 Los Gatos California United States 95030 Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21401-13800-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Wallaby Model No.: AMW004 FCC ID: 2ABPY-61F8D Registration number: W6M21401-13800-C-1 FCC ID: 2ABPY-61F8 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 53 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 T ESTING LABORATORY......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 TEST STANDARDS.................................................................................................................. 5 2 TECHNICAL TEST ..................................................................................................................6 2.1 SUMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT............................................................................................................. 6 2.3 TEST EQUIPMENT LIST.......................................................................................................... 7 2.4 GENERAL TEST PROCEDURE................................................................................................. 9 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 11 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 12 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 18 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 18 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 19 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 20 3.6 RADIATED EMISSION ON THE BAND EDGE........................................................................... 28 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 32 3.8 P EAK POWER SPECTRAL DENSITY...................................................................................... 38 3.9 RADIATED EMISSION FROM RECEIVER PART....................................................................... 44 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 51 APPENDIX.............................................................................................................................. 53 Registration number: W6M21401-13800-C-1 FCC ID: 2ABPY-61F8 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 53 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: February 18, 2014 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: February 18, 2014 Kevin Wang Date WTS Name Signature Registration number: W6M21401-13800-C-1 FCC ID: 2ABPY-61F8 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 53 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Vill…
