2ABPY-BB4EABluetooth Module

AMS00x • Embedded Bluetooth Low Energy Solutions ADS-MS00x-102Dx • Preliminary Data Sheet January 27, 2015 ©2014 ACKme Networks. http://ack.me AMS001 / AMS002 Data Sheet AMS00x • Embedded Bluetooth Low Energy Solution ADS-MS00x-102Dx • Preliminary Data Sheet Page | i ©2014 ACKme Networks. http://ack.me January 27, 2015 Disclaimer While the information provided in this document is be- lieved to be accurate, it is under development and ACKme Networks reserves the right to make changes without further notice to the product described herein to improve reliability, function, or design, and makes no guarantee or warranty concerning the accuracy of said information, nor shall it be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon, such information. ACKme Networks makes no warranties of any kind, whether express, im- plied or arising by custom or course of trade or perfor- mance, and specifically disclaims the implied warranties of title, non-infringement, merchantability, or fitness for a particular purpose. No part of this document may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photographic, or otherwise, or used as the basis for manufacture or sale of any items without the prior written consent of ACKme Networks. Trademarks ACKme Networks and the ACKme Networks logo are trademarks of ACKme Networks. WICED™ is a trade- mark of Broadcom® Corporation, Inc. Bluetooth® is a trademark of the Bluetooth SIG. Other trademarks in this document belong to their respective owners. Copyright © 2014 ACKme Networks. All rights reserved. Document Number: ADS-MS00x-102Dx Release Date: TBD Contact http://ack.me/contact About this Data Sheet This document provides information on the family of AMS00x Bluetooth Low Energy (Bluetooth Smart) mod- ules from ACKme Networks. Organization This data sheet is organized into the following sections:  Features & Applications  General Description, Section 1  Block Diagram, Section 2  Electrical Specifications, Section 3  Bluetooth RF Specifications, Section 4  Pinout and Signal Descriptions, Section 5  Design Guidelines, Section 6  Regulatory Certification, Section 7  Packaging, Handling & Storage, RoHS, Section 8  Ordering Information, Section 9  Revision History & Glossary, Section 11 ADS-MS00x-102Dx • Preliminary Data Sheet Page | ii ©2014 ACKme Networks. http://ack.me January 27, 2015 AMS00x Family Data Sheet Embedded Bluetooth Low Energy Solution Features  Bluetooth Low Energy (Bluetooth Smart) modules fully certified to meet Bluetooth version 4.1.  Integrated SPI-serial flash supports firmware up- dates and multiple on-board applications  On-board PCB-style antenna  ARM® Cortex™ M3-based microprocessor core  Programmable RF transmit power control  Operation directly from a battery or mains supply  Small size enables integration into most sensor products and applications  Secure Over-the-Air (OTA) software update using industry-standard AES-128 security  Easily integrated into existing or new products us- ing TruConnect, ACKme’s configurable Bluetooth Low Energy application (pre-installed on every module)  Multiple services including ACKme TruConnect, Beacon, iBeacon, plus more ... Interfaces*  A/D converter: 7 channels with 4 modes providing variable resolution (10-13 ENOBs), sampling rate (5.9-187 kHz) and conversion latency (5-171 μs)  USART: 1 x 4-wire up to 1.5 Mbit/s for general use, 1 x 2-wire for in-circuit programming  SPI: 1 x master, 1 x slave at ≤12 Mbit/s  I 2 C: 1 x I 2 C master interface up to 1 MHz  GPIO: Up to 12 GPIOs (overlaid with peripherals), programmable pull-up/pull-down resistors with 16 mA drive strength at 3.3V (2 mA standard).  4 x PWM channels each with a 10-bit counter clocked at 128 kHz.  Wake-up: Wake from GPIO for ultra-low power operation. * Some interfaces share module pins Operational & Radio  Operational voltage : 1.8V - 3.6V  Operational Temperature Range: -30°C to +85°C  Size : 17.6 x 11.4 x 2.4mm (0.70” x 0.45” x 0.10”)  Weight : 0.04 oz (1.2g)  Current consumption @ 3.0V, 25°C - Deep Sleep : 0.65 μA - Sleep : 12 μA - AMS001  Active Receive : 12.8 mA  Active Transmit : 10.8 mA - AMS002  Active Receive : 26.6 mA  Active Transmit : 22.0 mA  RF Transmit Power: +4 dBm (max.)  Receive Sensitivity : -94 dBm Applications  Health & Fitness - Fitness Equipment - Heart rate monitors - Weight scales - Thermometers - Pedometers - Glucose meters - Blood pressure monitoring  Retail - Advertising and Beaconing - Proximity detection - Point-of-sale  Home & Industrial Control and Automation - Appliance control and monitoring - Doors/Window monitoring - Alarms - Wireless cable replacement - Environmental & Energy monitoring - Wireless sensing, remote data logging  Consumer - Toys - Robots Remote controls AMS00x • Embedded Bluetooth Low Energy Solution ADS-MS00x-102Dx • Preliminary Data Sheet Page | iii ©2014 ACKme Networks. http://ack.me January 27, 2015 Contents 1 General Description ............................................... 1 2 Block Diagram ........................................................ 2 3 Electrical Specifications .......................................... 3 3.1 Absolute Maximum Ratings ............................ 3 3.2 Recommended Operating Conditions ............ 3 DC Operating Conditions ........................ 3 Environmental Conditions ...................... 4 3.3 Power Consumption ....................................... 4 3.4 ADC Specifications .......................................... 4 4 Bluetooth RF Specifications ................................... 6 4.1 Summary RF Specifications ............................. 6 4.2 Receiver Specifications ................................... 6 4.3 Transmitter Specifications .............................. 7 5 Pinout and Signal Descriptions .............................. 8 5.1 Pinout...................................…

Text truncated - open the document above for the full version.

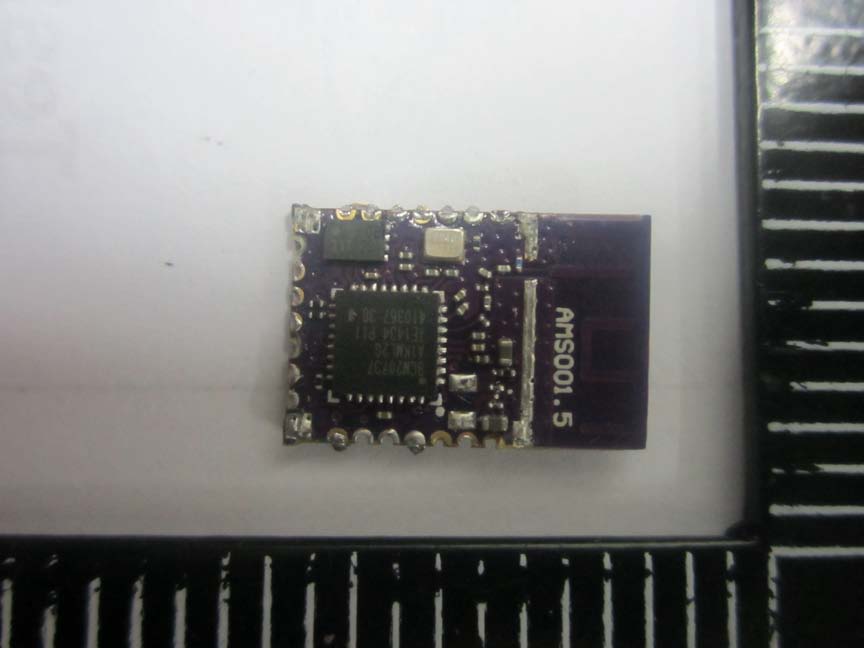

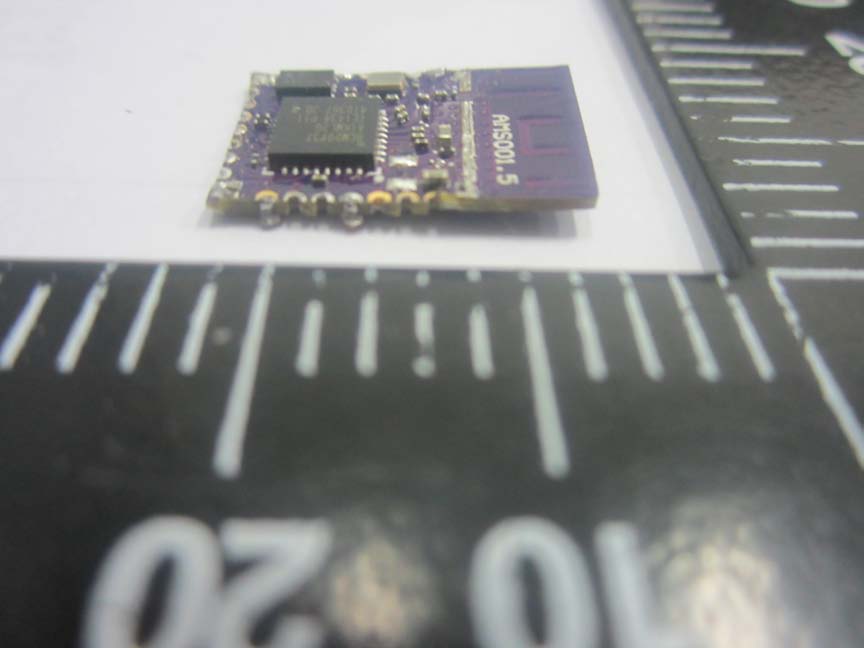

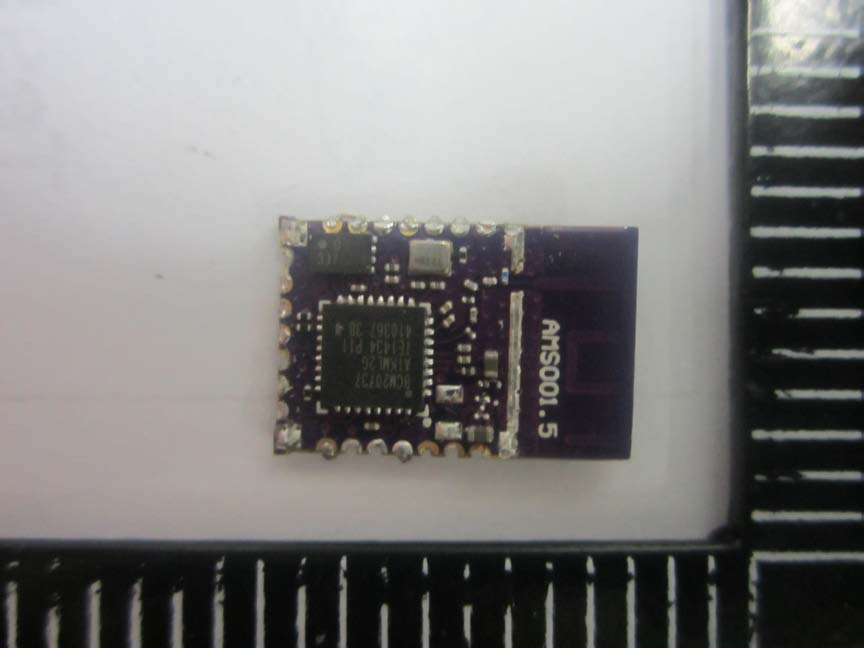

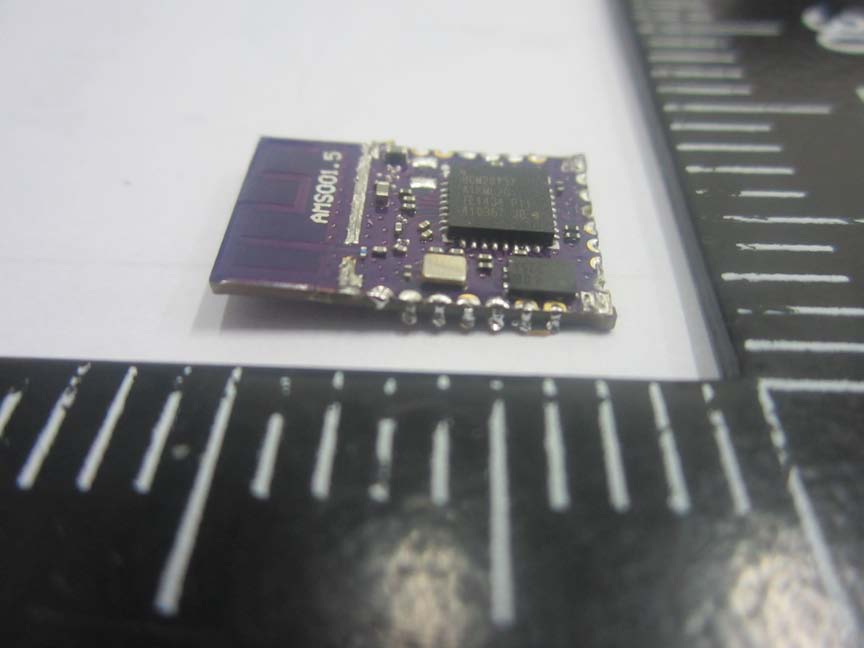

ACKme Networks Inc 2015/2/12 Dear Application Examiner, {ACKme Networks Inc, model: AMS001, FCC ID: 2ABPY-BB4EA}, would like to have your authorization as a modular approval specific to Bluetooth module. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: {Device is equipped with metal shielding to cover RF section. Refer to photos. } 2. “The modular transmitter must have buffered modulation/data inputs.”: {All inputs to the modules are buffered through logic and microprocessor inputs(BCM20737) } 3. “The modular transmitter must have its own power supply regulation.”: {Module chipset incorporates voltage regulation to transceiver circuitry } 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).”: { The device has a fixed PCB antenna. } 5. “The modular transmitter must be tested in a stand-alone configuration”: { Device is tested in a test fixture in a standalone configuration } 6. “The modular transmitter must be labeled with its own FCC ID number.”: {FCC ID label format will be included in the filling. Host ID label will be displayed on the host system.} 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.”: { Please refer to “User Manual” Exhibit } 8. “The modular transmitter must comply with any applicable RF exposure requirements.”: { RF exposure evaluation is exempted because of low output power (0.0008W). } Please contact me if you have any further questions. Regards, Ivy Zhu Certification Manager
