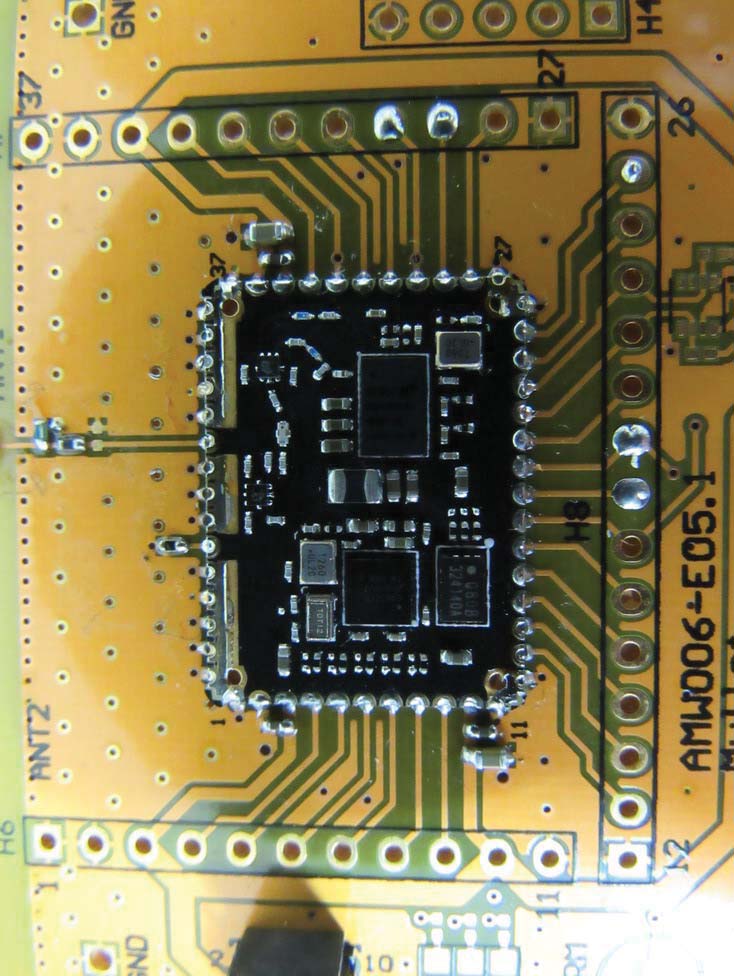

Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 1 of 7 EUT Photos Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 7 PCB Antenna Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 7 Chip Antenna Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 7 Wire Antenna

18.0 Notes: 1. Material Specification: - Thermal Transfer Printable Polyimide (MPN: Polyonics XF-582) 2. Dimensions and Tolerances: - Tolerance should be +/- 0.2mm 3. Appearance: - Parts shall be free from unclear printing - Part surface shall be clean and free from any foreign substance 4. Serial number: - ABCD is the build number - 123456 is the last 6 hex digits of the MAC address 5. QR Code: - The QR Code shall have the following format: AMW006.01-ABCD-123456 It is 6x6mm in size. 6. Text Font: - Calibri Bold This document is confidential and proprietary to ACKme Networks Pty Ltd. This document is only to be shared only with people who have a Non-Disclosure Agreement with ACKme Networks Pty Ltd, or employees of ACKme Networks Pty Ltd. Confidential and Proprietary Information. AMW006 Label Information29 May 2014 12.5 AMW006 FCC ID label location

Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 1 of 7 EUT Photos Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 7 PCB Antenna Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 7 Chip Antenna Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 7 Wire Antenna

Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY -B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Page 20 of 45 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain (Directional gain) EIRP = 23.20 dBm + 3.18 dBi = 26.38 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain Item Unit Value Remarks P mW 208.93 Peak value D dB AG dBi 3.18 G 2.08 Calculated Value R cm 20 Assumed value S mW/cm 2 0.08644 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2 ) 1500 – 100.000 1.0

of Applicant: ACKme Networks Inc Address:2 North Santa Cruz Ave Suite 207 Los Gatos California United States 95030 Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1, IC 5107A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21410-14584-C-1-R 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART15 SUBPART C TESTREPORT for Numbat Model No.: AMW006 FCC ID: 2ABPY-B5BD9 Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 45 TABLE OF CONTENTS 1GENERAL INFORMATION ................................................................................................... 2 1.1 N OTES................................................................................................................................... 2 1.2 T ESTING LABORATORY......................................................................................................... 3 1.2.1Location ....................................................................................................................... 3 1.2.2Details of accreditation status ..................................................................................... 3 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 A PPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2TECHNICAL TEST .................................................................................................................. 6 2.1 S UMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT............................................................................................................. 6 2.3 T ESTEQUIPMENT LIST.......................................................................................................... 7 2.4 G ENERAL TESTPROCEDURE............................................................................................... 11 3TEST RESULTS (ENCLOSURE) ......................................................................................... 13 3.1 P EAKOUTPUT POWER (TRANSMITTER) ............................................................................... 14 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 20 3.3 RF E XPOSURE COMPLIANCE REQUIREMENTS..................................................................... 20 3.4 T RANSMITTER RADIATEDEMISSIONS IN RESTRICTED BANDS............................................. 21 3.5 S PURIOUSEMISSIONS(TX) .................................................................................................. 22 3.6 R ADIATEDEMISSION ON THE BAND EDGE........................................................................... 25 3.7 M INIMUM 6dBBANDWIDTH............................................................................................... 29 3.8 P EAKPOWER SPECTRAL DENSITY...................................................................................... 35 3.9 R ADIATEDEMISSION FROM RECEIVER PART....................................................................... 41 3.10 P OWER LINE CONDUCTED EMISSION.................................................................................. 43 APPENDIX.............................................................................................................................. 45 Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 45 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: March 31, 2015 Kent Lin Date WTS-Lab. Name Signature Technical responsibility for area of testing: March 31, 2015 Kevin Wang Date WTS Name Signature Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 45 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing…

Text truncated - open the document above for the full version.

Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 7 Set Up Photo of Radiated Emission PCB Antenna Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 7 Chip Antenna Registration number: W6M21410-1584-C-1-R FCC ID: 2ABPY-B5BD9 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 7 Wire Antenna
