2ABQ3-STG001Wireless Tracker

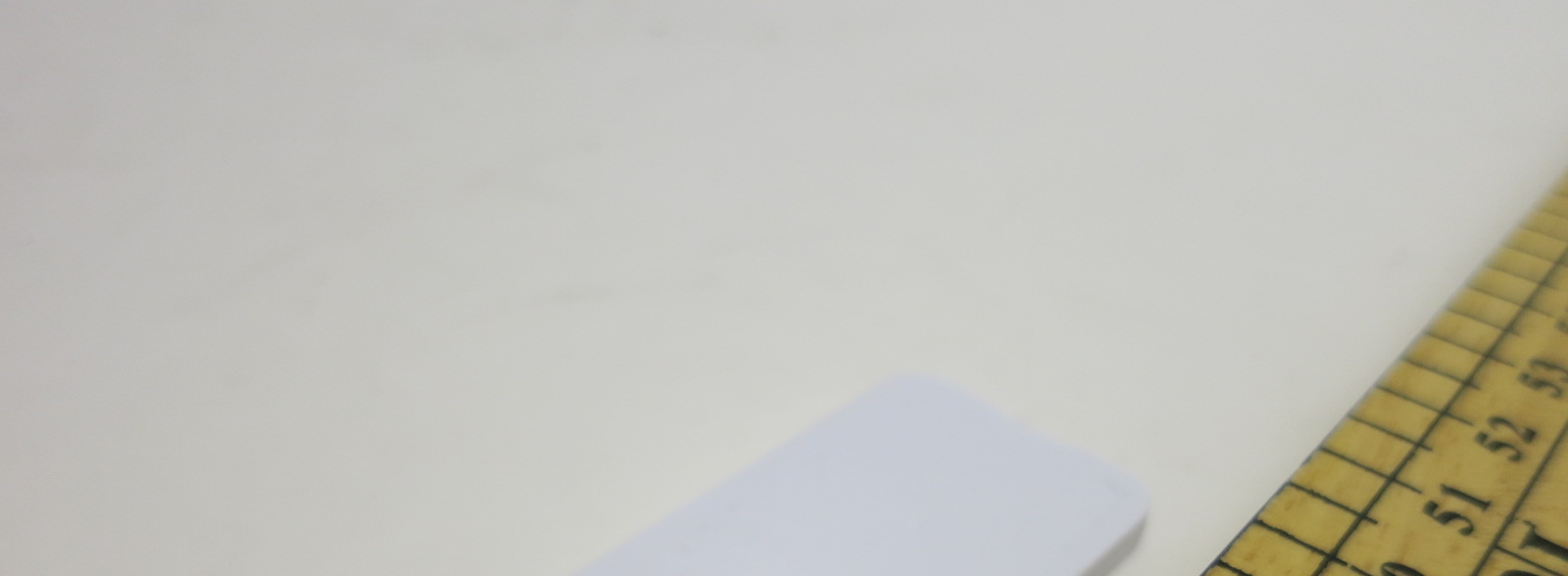

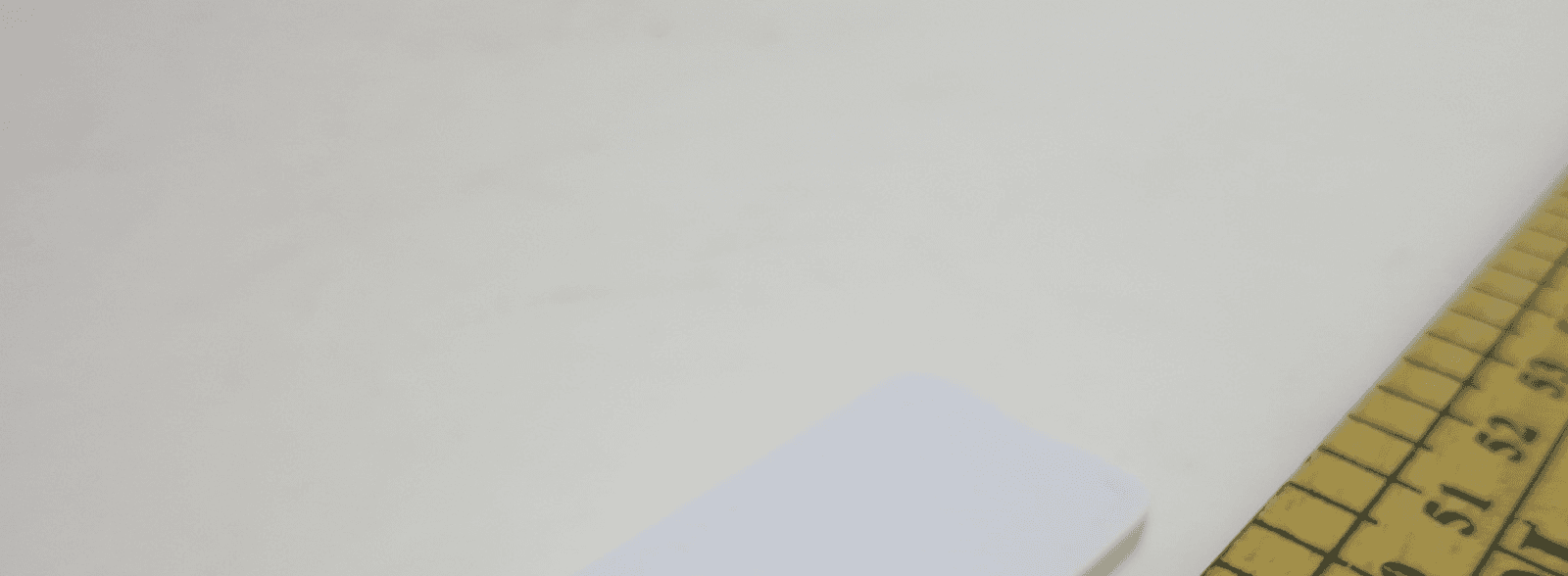

INTERTEK TESTING SERVICE Report No.: 13121178HKG-003 FCC ID: 2ABQ3-STG001 Equipment Photographs Model : TAGGO (External)

INTERTEK TESTING SERVICE Report No.: 13121178HKG-003 FCC ID: 2ABQ3-STG001 Equipment Photographs Model: TAGGO (Internal) INTERTEK TESTING SERVICE Report No.: 13121178HKG-003 FCC ID: 2ABQ3-STG001 Equipment Photographs Model: TAGGO (Internal) INTERTEK TESTING SERVICE Report No.: 13121178HKG-003 FCC ID: 2ABQ3-STG001 Equipment Photographs Model: TAGGO (Internal)

Analysis Report Report No.: 13121178HKG-003 The equipment under test (EUT) is a portable Bluetooth Wireless Tracker. The EUT contains a Bluetooth 4.0 (Single Mode BLE) transceiver. The Bluetooth 4.0 (Single Mode BLE) transceiver in the EUT is operating in the frequency range from 2402MHz to 2480MHz (40 channels with 2MHz channel spacing). The EUT is powered by 3.0 VDC (1 X 3.0V CR2016 battery). Antenna Type: Internal integral antenna Antenna Gain: +0.5dBi Production tolerance: -7dBm (Minimum) to -5dBm (Maximum) According to the KDB 447498: Based on the Maximum allowed conducted power of production tolerance was -5.0dBm in frequency 2.4GHz, thus; The Maximum conducted power is 0.32mW (i.e. -5.0dBm), thus; The maximum conducted source-based time-averaging output power = 0.32 mW * 100% = 0.32 mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted source-based time-averaged output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13121178HKG-003 Page 1 of 44 FCC ID: 2ABQ3-STG001 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: Systech Electronics Ltd. Applicant Address: 26/F, Lever Tech Centre, 69-71 King Yip Street, Kwun Tong, Kowloon, Hong Kong. Manufacturer Name: Victory Concept Electronics Ltd. Manufacturer Address: Units 905 & 918, 9/F, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Kowloon, Hong Kong FCC Specification Standard: FCC Part 15, October 1, 2012 Edition FCC ID: 2ABQ3-STG001 FCC Model(s): TAGGO Type of EUT: Digital Transmission System Description of EUT: Wireless Tracker Serial Number: Not Labelled Sample Receipt Date: Feb 15, 2014 Date of Test: Feb 15, 2014 to Mar 03, 2014 Report Date: Apr 08, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13121178HKG-003 Page 2 of 44 FCC ID: 2ABQ3-STG001 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Summary of Test Results....................................................................................................4 1.1 Statement of Compliance....................................................................................................4 2.0 General Description..............................................................................................................6 2.1 Product Description..............................................................................................................6 2.2 Related Submittal(s) Grants................................................................................................6 2.3 Test Methodology.................................................................................................................7 2.4 Test Facility...........................................................................................................................7 3.0 System Test Configuration.................................................................................................9 3.1 Justification...........................................................................................................................9 3.2 EUT Exercising Software..................................................................................................10 3.3 Details of EUT and Description of Accessories..............................................................11 3.4 Measurement Uncertainty.................................................................................................11 4.0 Test Results..........................................................................................................................13 4.1 Maximum Conducted Output Power at Antenna Terminals..........................................13 4.2 Minimum 6dB RF Bandwidth............................................................................................16 4.3 Maximum Power Spectral Density...................................................................................19 4.4 Out of Band Conducted Emissions..................................................................................22 4.5 Field Strength Calculation.................................................................................................35 4.6 Transmitter Radiated Emissions in Restricted Bands and Spurious Emissions.........36 4.6.1 Radiated Emission Configuration Photograph.............................................................37 4.6.2 Radiated Emission Data.................................................................................................37 4.6.3 Transmitter Duty Cycle Calculation...............................................................................42 5.0 Equipment List.....................................................................................................................44 Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13121178HKG-003 Page 3 of 44 FCC ID: 2ABQ3-STG001 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com EXHIBIT 1 SUMMARY OF TEST RESULTS & STATEMENT OF COMPLIANCE Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13121178HKG-003 FCC ID: 2ABQ3-STG001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: TAGGO TAGGO 13121178HKG-003 INTERTEK TESTING SERVICE Report No: 13121178HKG-003 FCC ID: 2ABQ3-STG001 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: TAGGO TAGGO 13121178HKG-003
