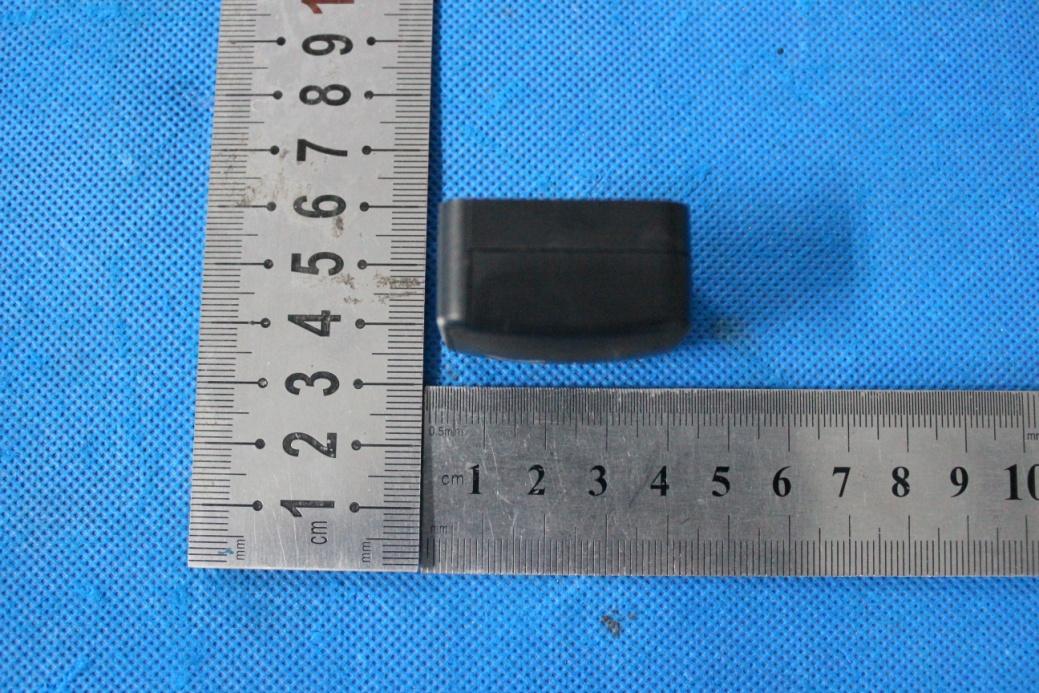

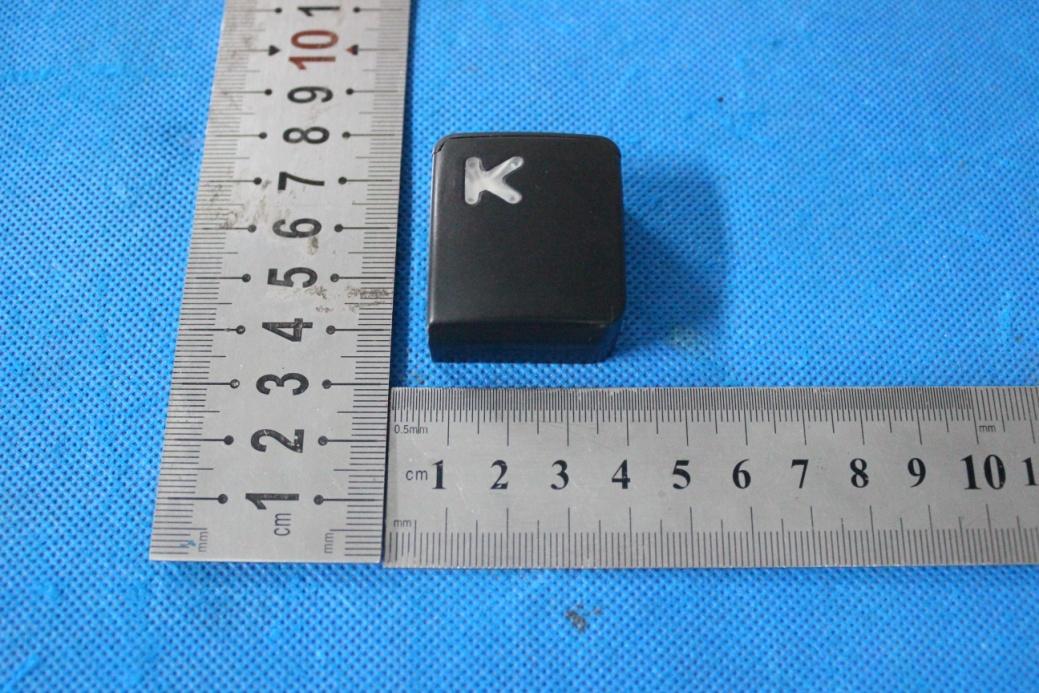

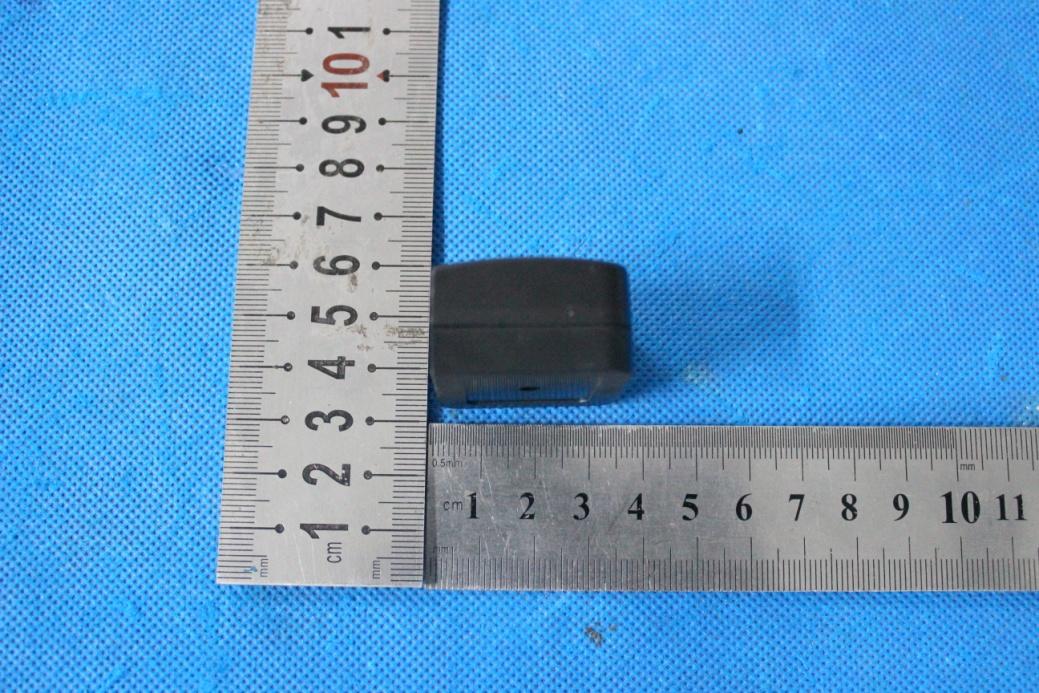

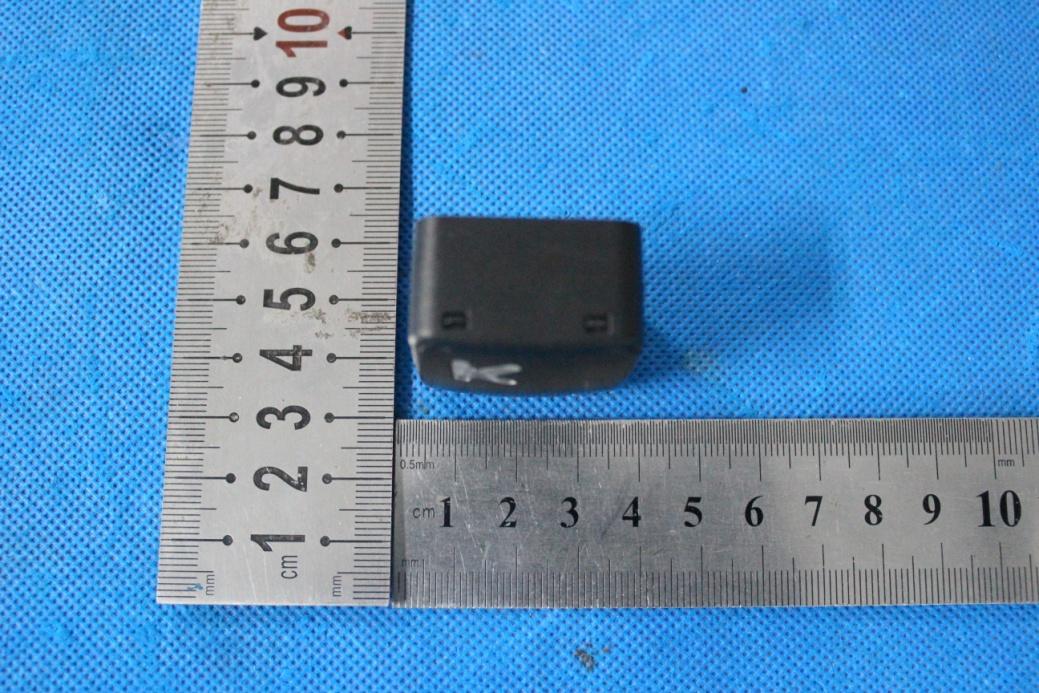

kBeacon Instructions – firmware version 28 Default password is “567400”, KOPI00 from the phone’s dial pad if it helps you remember. You can administrate various settings with the Lightblue tool from app store. 0xFFB1 – 4 btyes - Manufacturer address. (DO NOT CHANGE) 0xFFB2 – 16 bytes - UUID do NOT enter “-“ Need to test if it crashes beacon. 0xFFB3 – 2 bytes Major Pending example 0xFFB4 – 2 bytes Minor Pending example 0xFFB5 – 1byte TX calibration value - this is the factory calibration value (DO NOT CHANGE), 0xFFB6 – min Advertisement interval 0xFFB7 – max Advertisement interval Set both to be the same value, firmware only sets it at the max interval. Broken into a range only for future proof. 100ms – 0x00A0 (100ms = 160) 200ms – 0x0140 300ms – 0x01E0 400ms – 0x0280 500ms – 0x0320 600ms – 0x03C0 700ms – 0x0460 800ms – 0x0500 (Default) 900ms – 0x05A0 1000ms – 0x0640 0xFFB8 – Device Type (DO NOT CHANGE) 0xFFB9 – 4 bytes password Pending example 0xFFBA – Connection Count (read only) 0xFFBB – Boot Counter (read only) 0xFFBC – 10 bytes - Device name change (DO NOT CHANGE) 0xFFBD - 1 byte Connection timeout in minutes (DO NOT CHANGE) 0xFFBE – 1byte Transmit power (DO NOT CHANGE) 0xE1 0 dBm (Default) 0xD1 –2 dBm 0xC1 –4 dBm 0xB1 –6 dBm 0xA1 –8 dBm 0x91 –10 dBm 0x81 –12 dBm 0x71 –14 dBm 0x61 –16 dBm 0x51 –18 dBm 0x41 –20 dBm 0x31 –23 dBm 0xFFBF – 4bytes Traffic counter (for kCounter only) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment
