2ABRB96WBLEKopi 96W Bluetooth LE Indicator Board

Kopi 96W Bluetooth LE Indicator Board manual Product Name Kopi 96W Bluetooth LE Indicator Board Introduction Kopi 96W BLE With KOPI 96W Charger used by the 8-port LED display charging status, respectively, via Bluetooth iPAD, iphone and other devices are connected, you can show a 96W Charger USB1 ~ USB8 Port charging status and the charging current on the screen of the device. Features: Through the data line is connected to the charger Micro USB port, no additional power supply is available on the iPAD, iphone and other devices remotely visually see each port charging current, charging status. Bluetooth transmission range: 30m (Straight line distance) Specifications * Bluetooth 4.0 technology * Charging: 5V, micro USB * Minimum Operating Current: 21mA * Maximum Operating Current: 50mA * Dimensions: W25mm x H7mm x D66mm * Net weight: 9g * Accessories: micro USB charging cable, KOPI 96W Charger Use Means * The LED PCB'A cable plug 96W Bluetooth LE Indicator Board socket connector. iPAD, iphone and other equipment installed Kopi 8 Port software. * Turn off the power switch on the charger, USB data cable plug and Kopi 96W Bluetooth LE Indicator Board USB connection seat, the other end of the cable plugged into the charger Micro USB port. * Open the charger power switch, LED PCB'A the 'POWER' LED lights. Will be required to charge the device via the data cable into the 96W Charger USB port, LED PCB'A USB1 ~ USB8 corresponding LED will flash when charging is complete after the equipment, LED lights president, suggesting that charging is completed. * Open Kopi 8 Port software, click on the bottom left of the screen 'Connect' button, then install the software and the device will connect via Kopi 96W Bluetooth LE Indicator Board. After the connection is completed will show 96W Charger USB1 ~ USB8 charge status and the charging current port in the software interface. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. The module must not be modified in any way. Coupling of external circuitry must not bypass the provided connectors. End product must be externally labeled with “Contains FCC ID: 2ABRB96WBLE ” The integrator must not provide any information to the end-user on how to install or remove the module from the end-product.

Kopi Incorporation Limited SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 Kopi Incorporation Limited SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 3.0 2014/1/20 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Kopi Incorporation Limited hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： Kopi 96W Bluetooth LE Indicator Board Model Name： 96W BLE FCC ID： 2ABRB96WBLE Trade Name: KOPI We affirm that between SIEMIC and ___ Kopi Incorporation Limited __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Name: Samuel Au Title: Director Tel: 852+35251342 Company: Kopi Incorporation Limited Address: Unit 716, Vanta Ind.Ctr.,21-33 Tai Lin Pai Road, Kwai Chung, N.T.,Hong Kong Kopi Incorporation Limited SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 3.0

Kopi Incorporation Limited SCS-F26 Modular Approval Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option 2.0 3.0 April 14 2010 Kopi Incorporation Limited SCS-F26 Modular Approval Letter Page 2 of 2 Rev 3.0 Jan 21, 2014 (Product name) FCC ID : 2ABRB96WBLE , is seeking FCC Authorization as a Modular transmitter / Limited Modular Approval (Please check one). The EUT meets the requirements for Modular approval / Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: 1. “The modular transmitter must have its own RF shielding.” No. 2. “The modular transmitter must have buffered modulation/data inputs.” YES 3. “The modular transmitter must have its own power supply regulation.” YES 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” YES 5. “The modular transmitter must be tested in a stand-alone configuration.” YES 6. “The modular transmitter must be labeled with its own FCC ID number.” YES 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” YES 8. “The modular transmitter must comply with any applicable RF exposure requirements.” YES Signature Date: 2014/1/20 Name: Samuel Au Title: Director Tel: 852+35251342 Company: Kopi Incorporation Limited

Top View Bottom View

MADE IN CHINA Kopi 96W Bluetooth LE Indictor BoardMODEL NO.:96W BLEINPUT:DC 5V 50mA max FCC ID: 2ABRB96WBLE www.kopi-d.com

Label Location

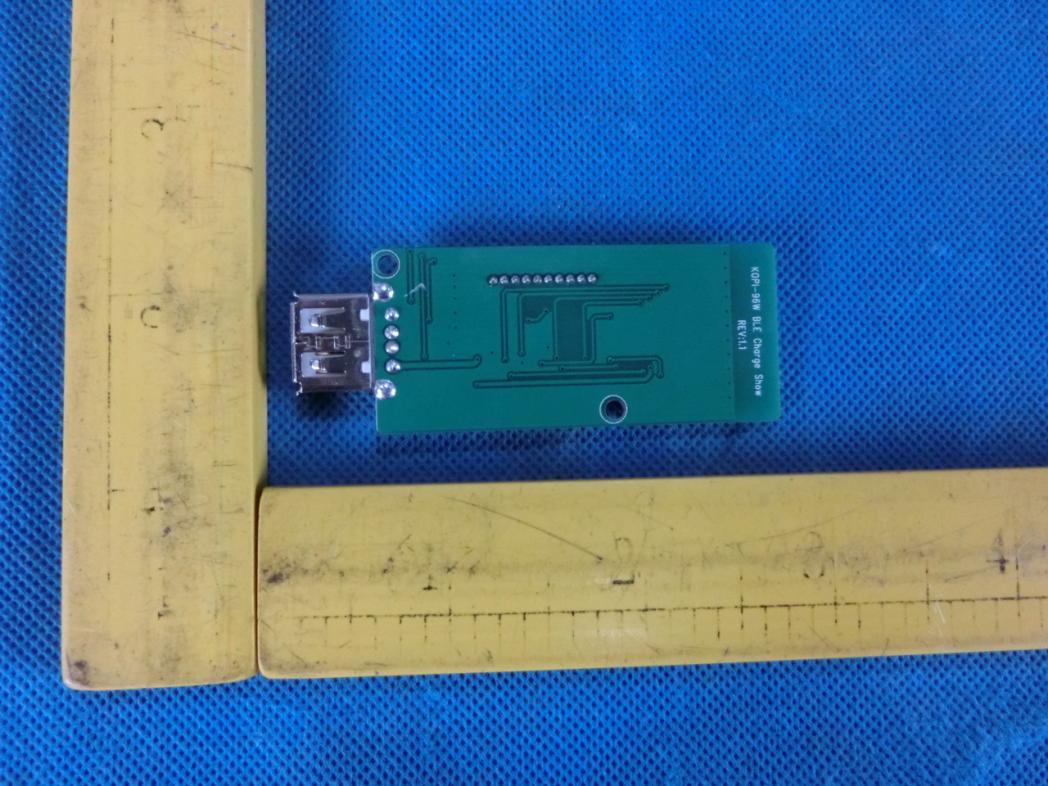

Top View Bottom View Antenna

FCC ID: 2ABRB96WBLE RF EXPOSURE TEST FCC ID: 2ABRB96WBLE SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2ABRB96WBLE Maximum measured transmitter power. GFSK frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power (mW) 2402 4.86 3.06 2440 4.63 2.90 2480 4.37 2.74 The max.output power E.I.R.P is 4.86dBm=3.06mW, Frequency is 2.402GHz So (3.06/5)* √2.402=0.9486≤ 3.0 Note: √2.402 =1.550 The max.output power E.I.R.P is 4.63dBm=2.90mW, Frequency is 2.440GHz So (2.9/5)* √2.44=0.9048≤ 3.0 Note: √2.440 =1.56 The max.output power E.I.R.P is 4.37dBm=2.74mW, Frequency is 2.480GHz So (2.74/5)* √2.48=0.86≤ 3.0 Note: √2.480 =1.57 Conclusion: No SAR is required.

FCC RADIO TEST REPORT FCC ID: 2ABRB96WBLE Product： Kopi 96W Bluetooth LE Indicator Board Trade Name： KOPI Model Number： 96W BLE Serial Model： 2ABRB96WBLE Report No.： BZT-140119043F Prepared for Kopi Incorporation Limited Unit 716, Vanta Ind.Ctr.,21-33 Tai Lin Pai Road, Kwai Chung, N.T.,Hong Kong Prepared by BZT Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Page 2 of 41 Report No.: BZT-140119043F TEST RESULT CERTIFICATION Applicant’s name ................. : Kopi Incorporation Limited Address ................................. : Unit 716, Vanta Ind.Ctr.,21-33 Tai Lin Pai Road, Kwai Chung, N.T.,Hong Kong Manufacture's Name ............ : Active Enterprises Limited Address ................................. : Bei Men Industrial Zone, Heng Keng,Liao Bu,Dong Guan City,Guang Dong,China Product description Product name ........................... : Kopi 96W Bluetooth LE Indicator Board Model and/or type reference : 96W BLE Serial Model ............................. : N/A DIFF .......................................... : N/A Standards ............................. : FCC Part15.247 Test procedure .............................. : ANSI C63.4-2003 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT, this document may be altered or revised by BZT, personal only, and shall be noted in the revision of the document. Date of Test .......................................... : Date (s) of performance of tests ............. : 16~19 January. 2014 Date of Issue ........................................ : 20 January. 2014 Test Result ............................................ : Pass Testing Engineer : (Lynn Chen) Technical Manager : (Carlen Liu) Authorized Signatory : (Tommy zhang) Page 3 of 41 Report No.: BZT-140119043F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 27 4 . POWER SPECTRAL DENSITY TEST 31 4.1 APPLIED PROCEDURES / LIMIT 31 4.1.1 TEST PROCEDURE 31 4.1.2 DEVIATION FROM STANDARD 31 4.1.3 TEST SETUP 31 4.1.4 EUT OPERATION CONDITIONS 31 4.1.5 TEST RESULTS 32 5 . BANDWIDTH TEST 34 5.1 APPLIED PROCEDURES / LIMIT 34 Page 4 of 41 Report No.: BZT-140119043F Table of Contents Page 5.1.1 TEST PROCEDURE 34 5.1.2 DEVIATION FROM STANDARD 34 5.1.3 TEST SETUP 34 5.1.4 EUT OPERATION CONDITIONS 34 5.1.5 TEST RESULTS 35 6 . PEAK OUTPUT POWER TEST 37 6.1 APPLIED PROCEDURES / LIMIT 37 6.1.1 TEST PROCEDURE 37 6.1.2 DEVIATION FROM STANDARD 37 6.1.3 TEST SETUP 37 6.1.4 EUT OPERATION CONDITIONS 37 6.1.5 TEST RESULTS 38 7 . ANTENNA REQUIREMENT 39 7.1 STANDARD REQUIREMENT 39 7.2 EUT ANTENNA 39 8 . EUT TEST PHOTO 40 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 41 Report No.: BZT-140119043F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 41 Report No.: BZT-140119043F 1.1 TEST FACILITY BZT Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.: 701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 41 Report No.: BZT-140119043F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Kopi 96W Bluetooth LE Indicator Board Trade Name KOPI Model Name 96W BLE Serial Model N/A Model Difference N/A Product Description The EUT is a Kopi 96W Bluetooth LE Indicator Board Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Radio Technology Bluetooth 4.0 Number Of Channel 40 Antenna Designation: Please see Note 3. Peak Output Power(Conducted): 4.86 dBm (Max.) Antenna Gain (dBi) 1 dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Ratings DC 5V from Adapter with AC 120V/60Hz Adapter Input voltage:AC 100-240V.50/60Hz Output voltage: DC 5V Battery N/A Connecting I/O Port(s) Please refer to the User's Manual Note: 1. …

Text truncated - open the document above for the full version.

Radiated Emission Test Setup in Chamber Conducted Emission Test Setup
