2ABRU-RFM208Multi-Band Wireless Module

BDE-RFM208 BDE Technology Inc. Multi-Band Wireless Module Key Features  Multi-Band, supports 2.4G and Sub-1G band  Powerful ARM Cortex-M4F processor  Clock speed: up to 48MHz  352KB of In-System programmable flash  80KB SRAM  8KB of cache SRAM  2-Pin cJTAG and JTAG debugging  Support Over-the-Air upgrade (OTA)  Ultra-Low power sensor controller with 4KB of SRAM  28 GPIOs  4 x 32-Bit or 8 x 16-Bit general purpose timer  12-Bit ADC, 200 kSamples/s, 8 channels  2 x comparator with internal reference DAC  Programmable current source  2 x UART  2 x SSI (SPI, MICROWIRE, TI)  IIC, IIS  Real-Time-Clock (RTC)  AES 128- and 256-bit crypto accelerator  ECC and RSA public key hardware accelerator  SHA2 accelerator (Full suite up to SHA-512)  True Random Number Generator (TRNG)  Capacitive sensing, up to 8 channels  Integrated temperature and battery monitor  On-Chip buck DC/DC converter  RF performance  TX power: Output power up to +14 dBm (Sub-1G) and +5dBm (2.4G) with temperature compensation  RX sensitivity: -121 dBm for SimpleLink long-range mode, -110 dBm at 50 kbps, –105 dBm for Bluetooth 125 kbps (LE Coded PHY)  Communication range: about 250 meters (LOS) – Long Range Mode (2.4G), upto 1000 meters (LOS) – Long Range Mode (Sub-1G) (TBD)  Antenna: UFL connector for Sub-1G, UFL or PCB antenna for 2.4G BDE-RFM208 BDE Technology Inc.  Size: 29.86 mm x 19.98 mm x 2.15 mm (With Shielding)  Ultra low power consumption:  Shutdown: 150nA (Wake up on external events)  Standby: 0.85uA (RTC running and RAM/CPU retention)  RX current: 5.8mA (3.6 V, 868 MHz), 6.9 mA (3.0 V, 2.4 GHz)  TX current @ 0dBm: 8.0 mA (3.6 V, 868 MHz), 7.1 mA (3.0 V, 2.4 GHz)  TX @ 14 dBm: 24.9 mA (868 MHz)  BQB, FCC, CE, RoHS compliant Descriptions BDE-RFM208 is a multi-band wireless module which supports Sub-1G and 2.4G band. It also supports multiprotocol, such as Thread, Zigbee, Bluetooth 5 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), Wireless M-Bus, Wi-SUN, KNX RF, proprietary systems, SimpleLink TI 15.4-Stack (Sub-1 GHz), and Dynamic Multiprotocol Manager (DMM) driver. BDE-RFM208 highly integrates radio, stack, profile and applications in a SoC, without the need of using an external MCU. The module also offers flexible hardware interfaces for the sensor application. It enables ultra-low power connectivity and data transfer for the applications that are sensitive to power consumption, size and cost. BDE-RFM208 BDE Technology Inc. Applications  433, 470 to 510, 868, 902 to 928, and 2400 to 2480 MHz ISM and SRD systems with down to 4 kHz of receive bandwidth  Building automation  Grid infrastructure  Industrial transport – asset tracking  Factory automation and control  Medical  Electronic point of sale (EPOS) – Electronic Shelf Label (ESL) Electrical Characteristics  Absolute maximum rating Rating Min Typ Max Unit Notes Storage Temperature -40 - 125 °C VDD -0.3 - 4.1 V Other Digital Terminals -0.3 - VDDS+0.3≤4.1 V Voltage on ADC input -0.3 - VDDS V Voltage scaling enabled -0.3 - 1.49 V Voltage scaling disabled, internal reference -0.3 - VDDS/2.9 V Voltage scaling disabled, VDDS as reference RF pin - - 5 dBm Input level, 2.4 GHz RF pins - - 10 dBm Input level, Sub-1 GHz RF pins  Recommended operating conditions Rating Min Typ Max Unit Operating Temperature -40 - 85 °C VDD 2.1 3.3 3.8 V BDE-RFM208 BDE Technology Inc. Pinout Fig. 2: The pinout of BDE-RFM208 (TOP VIEW) Table 1: Pin definitions of BDE-RFM208 Pin Number Pin Name Definitions 1 GND Power Ground 2 RFOUT_1 Sub-1G RF Output Port 3 GND Power Ground 4 GND Power Ground 5 DIO_3 GPIO 6 DIO_4 GPIO 7 DIO_5 GPIO, High-drive Capability 8 DIO_6 GPIO, High-drive Capability 9 DIO_7 GPIO, High-drive Capability 10 DIO_8 GPIO 11 DIO_9 GPIO 12 DIO_10 GPIO 13 GND Power Ground 14 VDD Supply Power 15 VDD Supply Power 16 DIO_11 GPIO 17 DIO_12 GPIO 18 DIO_13 GPIO 19 DIO_14 GPIO 20 DIO_15 GPIO 21 JTAG_TMSC JTAG TMSC, High-drive Capability 22 JTAG_TCKC JTAG TCKC 23 DIO_16 GPIO, JTAG_TDO, High-drive Capability 24 DIO_17 GPIO, JTAG_TDI, High-drive Capability 25 DIO_18 GPIO BDE-RFM208 BDE Technology Inc. 26 DIO_19 GPIO 27 DIO_20 GPIO 28 DIO_21 GPIO 29 DIO_22 GPIO 30 RESET Reset, Active Low 31 DIO_23 GPIO, Analog Capability 32 DIO_24 GPIO, Analog Capability 33 DIO_25 GPIO, Analog Capability 34 DIO_26 GPIO, Analog Capability 35 DIO_27 GPIO, Analog Capability 36 DIO_28 GPIO, Analog Capability 37 DIO_29 GPIO, Analog Capability 38 DIO_30 GPIO, Analog Capability 39 GND Power Ground 40 GND Power Ground 41 RFOUT_2 2.4G RF Output Port 42 GND Power Ground Overall Dimensions Fig. 3 shows the overall dimensions of BDE-RFM208. The module measures 29.86mm long by 19.97mm wide by 2.15mm high with the shield. Fig. 3: Overall Dimensions of BDE-RFM208 BDE-RFM208 BDE Technology Inc. Module Location In order to get a fine performance when integrate the module to your product, it is advised to use the recommended module location to the respective PCB.  Location in X-Y plane Fig. 4: Recommended location in X-Y plane Fig. 5: Not recommended location in X-Y plane BDE-RFM208 BDE Technology Inc.  Location in Z plane Fig. 6: Recommended location in Z plane Fig. 7: Not recommended location in Z plane Typical Solder Reflow Profile Fig. 8: Typical Solder Reflow Profile BDE-RFM208 BDE Technology Inc. Package Information Fig. 9: Package FCC Warning Integration instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01 1. List of applicable FCC rules FCC Part 15.247 2. Specific operational use conditions This transmitter/module and its antenna(s) must not be co-located or operating in conjunction with any transmitter. This information also extends to the host manufacturer’s instruction manual. 3. Limited module procedures Not applicable 4. Trace antenna designs It is “not applicable” as trace antenna which is not used on the module. 5. RF exposure considerations This equipment complies with FCC RF radiation exposure limits set forth f…

Text truncated - open the document above for the full version.

Guangzhou BDE Technology Inc. B2-403, Chuangyi Building, 162 Science Avenue, Huangpu District, Guangzhou 510663, China Agent Authorization Company: Guangzhou BDE Technology Inc. Address: B2-403, Chuangyi Building, 162 Science Avenue, Huangpu District, Guangzhou 510663, China Product Name: Multi-Band Wireless Module Model Number(s): BDE-RFM208, BDE-RFM208-IN Product Description: Multi-Band Wireless Module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Mar. 19, 2021 Name: Jacky Tian Title: General Manager Company: Guangzhou BDE Technology Inc.

Guangzhou BDE Technology Inc. B2-403, Chuangyi Building, 162 Science Avenue, Huangpu District, Guangzhou 510663, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Mar. 19, 2021 Subject; Request for Confidentiality FCC ID: 2ABRU-RFM208 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jacky Tian Title: General Manager

Guangzhou BDE Technology Inc. B2-403, Chuangyi Building, 162 Science Avenue, Huangpu District, Guangzhou 510663, China Mar. 19, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2ABRU-RFM208 Models: BDE-RFM208, BDE-RFM208-IN To Whom It May Concern: We, The Guangzhou BDE Technology Inc. hereby declare that the model : BDE- RFM208-IN is identical with the model : BDE-RFM208, except the model names and Limit operating temperature：BDE-RFM208-IN can operate from - 40°C to 105°C, while BDE-RFM208 operates from -40°C to 85°C. Except for the different above, no other modification is performed. Sincerely, Guangzhou BDE Technology Inc. Signature: [Jacky Tian, General Manager]

Guangzhou BDE Technology Inc. B2-403, Chuangyi Building, 162 Science Avenue, Huangpu District, Guangzhou 510663, China RE FCC ID: 2ABRU-RFM208 To the certification reviewer: We are hereby applying for [full] modular approval of the above-referenced FCC ID, based on compliance with [all] of the criteria as detailed below. Sincerely, [Jacky Tian] [General Manager] Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i) The radio elements of the modular transmitter must have their own RF shielding. Shielding is provided by a metal cover over the circuitry. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. All modulation and data inputs are buffered by circuitry on the transmitter chip. (iii) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by circuitry on the transmitter chip. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna is fixed. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Testing was performed in a stand-alone configuration as shown in the test setup photos. Guangzhou BDE Technology Inc. B2-403, Chuangyi Building, 162 Science Avenue, Huangpu District, Guangzhou 510663, China (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The modular was labeled with its own FCC ID. The outside of device in to which the module is installed will labeled Contains TX FCC ID: 2ABRU- RFM208, Please refer to User Manual. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The modular is comply with all applicable FCC rules. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. This module operates under Part 15 .247 which is exempt from RF exposure evaluation owing to the very low operating power.

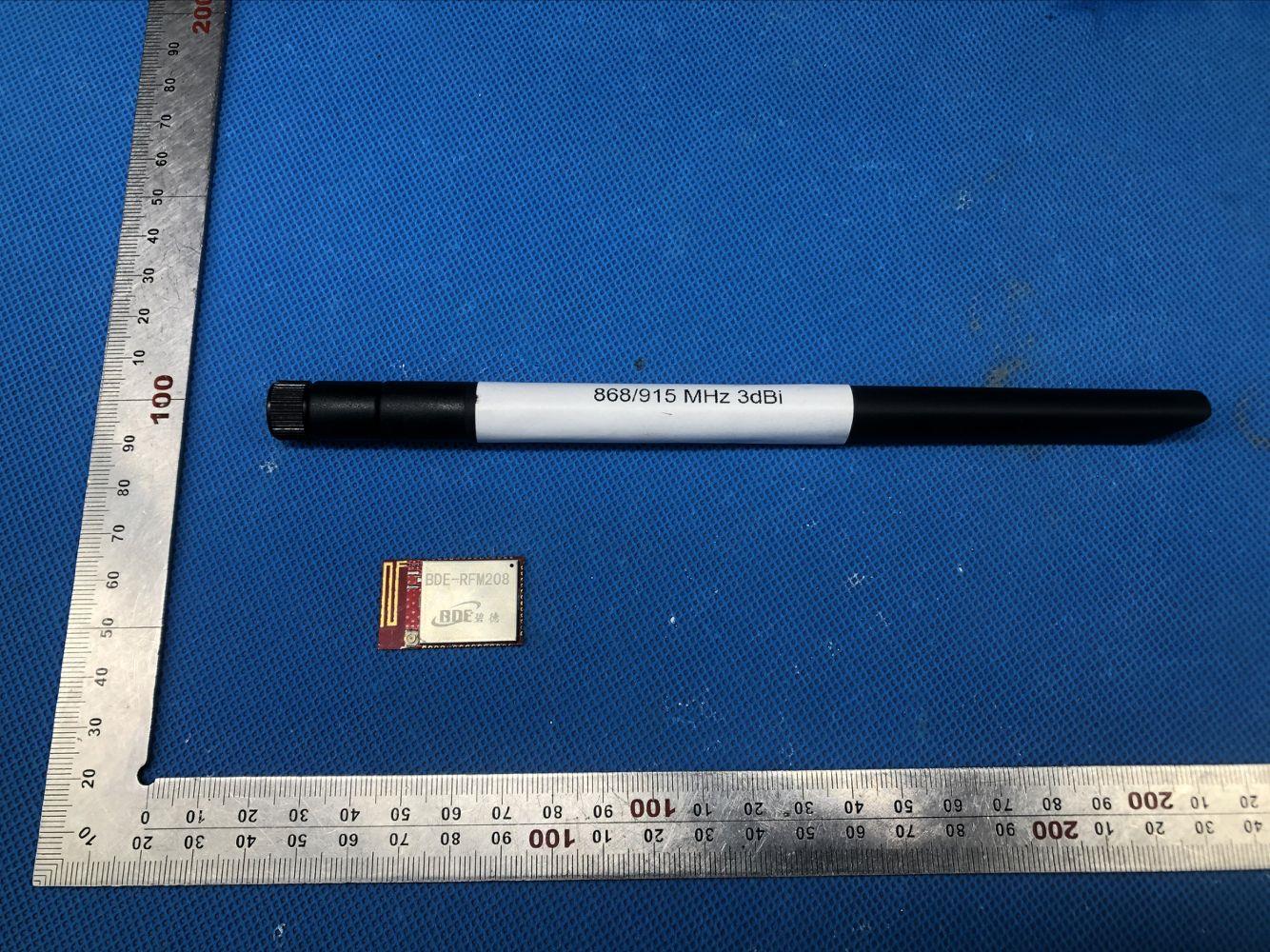

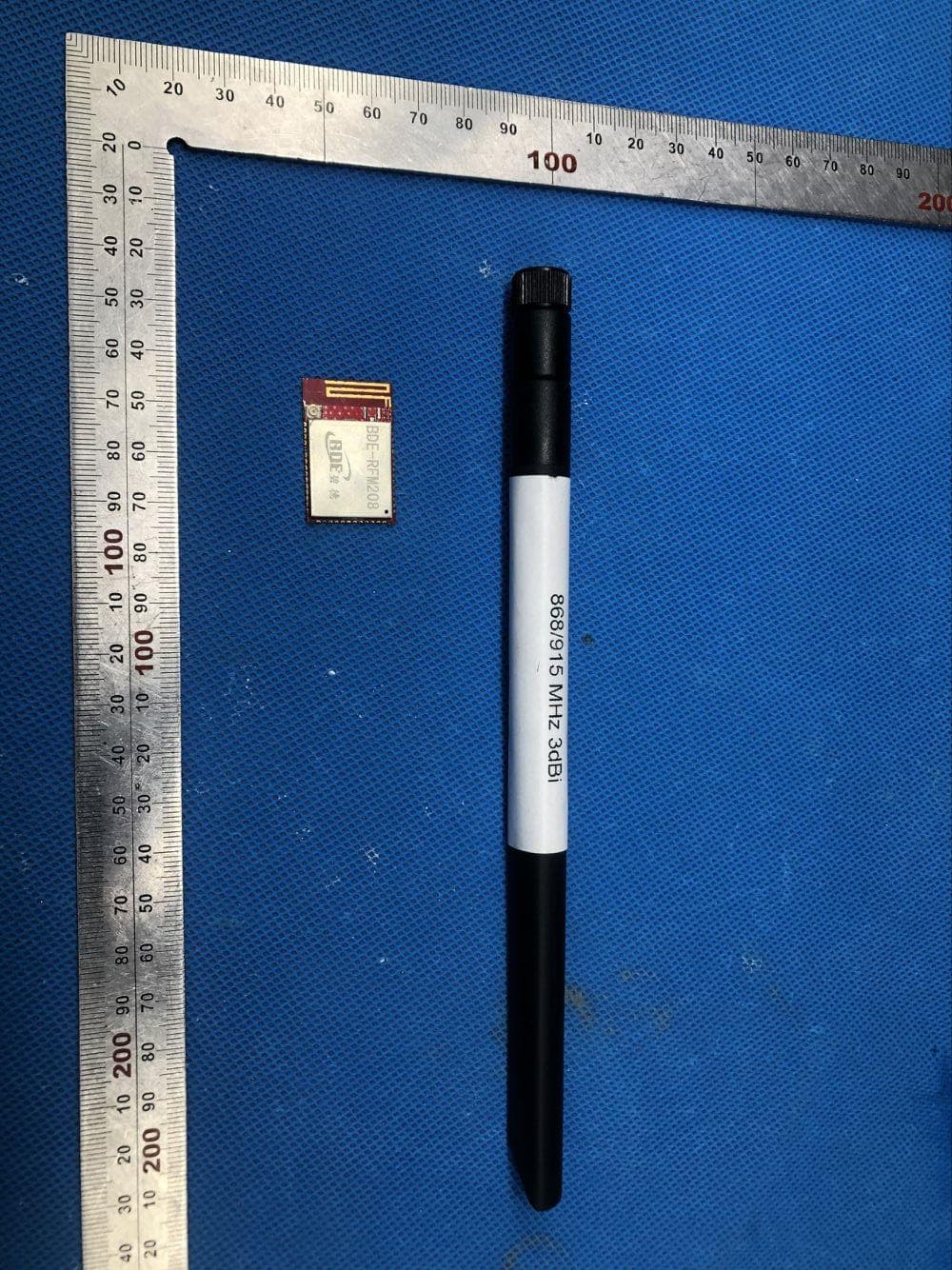

External Photos ALL VIEW OF EUT Main model: BDE-RFM208 TOTAL VIEW OF EUT-1 TOTAL VIEW OF EUT-2 TOP VIEW OF EUT 915MHz Antenna BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Series model: BDE-RFM208-IN TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID and IC Label Location 10mm*8mm FCC ID: 2ABRU-RFM208 IC: 25657-RFM208 BDE-RFM208 10mm*8mm FCC ID: 2ABRU-RFM208 IC: 25657-RFM208 BDE-RFM208-IN

Internal Photos Main model: BDE-RFM208 QPEN VIEW OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT BT/Zigbee Antenna 915MHz Antenna port Series model: BDE-RFM208-IN OPEN VIEW OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Multi-Band Wireless Module Model Name BDE-RFM208, BDE-RFM208-IN FCC ID 2ABRU-RFM208 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. BT Antenna Gain=2.9dBi (Numeric 1.95), π=3.14 O-QPSK Antenna Gain=2.9dBi (Numeric 1.95), π=3.14 915MHz Antenna Gain=3dBi (Numeric 2), π=3.14 Note: 1. Only the worst case recorded. 2. The BT, O-QPSK and 915MHz can not transmit simultaneously: 3. conclusion Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2440(125KHz) 4.723 2.967 0.00115 1 2440(500KHz) 4.608 2.889 0.00112 1 2440(1M) 4.722 2.966 0.00115 1 2440(2M) 4.718 2.963 0.00115 1 Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2440 4.711 2.959 0.00115 1 Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 902.2 12.802 19.063 0.00759 1 Compliance the RF exposure requirement

Page 1 of 38 FCC Test Report Report No.: AGC02390201204FE04 FCC ID : 2ABRU-RFM208 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Multi-Band Wireless Module BRAND NAME : BDE MODEL NAME : BDE-RFM208, BDE-RFM208-IN APPLICANT : Guangzhou BDE Technology Inc. DATE OF ISSUE : Mar. 17, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC02390201204FE04 Page 2 of 38 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 17, 2021 Valid Initial Release Report No.: AGC02390201204FE04 Page 3 of 38 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 7 2.4. TEST METHODOLOGY ............................................................................................................................. 7 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................... 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. PEAK OUTPUT POWER ................................................................................................................................ 12 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. 6 DB BANDWIDTH ......................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 17 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 17 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 22 Report No.: AGC02390201204FE04 Page 4 of 38 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 22 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 22 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 22 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 22 11. RADIATED EMISSION ................................................................................................................................. 24 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 24 11.2. TEST SETUP .......................................................................................................................................... 25 11.3. LIMITS AND MEASUREMENT RESULT.......................................................................…

Text truncated - open the document above for the full version.

Page 1 of 96 FCC Test Report Report No.: AGC02390201204FE02 FCC ID : 2ABRU-RFM208 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Multi-Band Wireless Module BRAND NAME : BDE MODEL NAME : BDE-RFM208, BDE-RFM208-IN APPLICANT : Guangzhou BDE Technology Inc. DATE OF ISSUE : Feb. 02, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC02390201204FE02 Page 2 of 96 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Feb. 02, 2021 Valid Initial Release Report No.: AGC02390201204FE02 Page 3 of 96 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 7 2.4. TEST METHODOLOGY ............................................................................................................................. 7 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................... 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. PEAK OUTPUT POWER ................................................................................................................................ 12 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. 6 DB BANDWIDTH ......................................................................................................................................... 19 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 21 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 21 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 21 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 29 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 29 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 29 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 29 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 29 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 57 Report No.: AGC02390201204FE02 Page 4 of 96 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 58 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 58 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 58 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 58 11. RADIATED EMISSION ................................................................................................................................. 64 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 66 11.2. TEST SETUP .......................................................................................................................................... 67 11.3. LIMITS AND MEASUREMENT RESULT.......................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC02390201204FE02 Page 54 of 96 TEST RESULT FOR BAND EDGE 125 KHz GFSK MODULATION IN LOW CHANNEL GFSK MODULATION IN HIGH CHANNEL Report No.: AGC02390201204FE02 Page 55 of 96 500 KHz GFSK MODULATION IN LOW CHANNEL GFSK MODULATION IN HIGH CHANNEL Report No.: AGC02390201204FE02 Page 56 of 96 1M GFSK MODULATION IN LOW CHANNEL GFSK MODULATION IN HIGH CHANNEL Report No.: AGC02390201204FE02 Page 57 of 96 2M GFSK MODULATION IN LOW CHANNEL GFSK MODULATION IN HIGH CHANNEL Report No.: AGC02390201204FE02 Page 58 of 96 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY 10.1. MEASUREMENT PROCEDURE (1). Connect EUT RF output port to the Spectrum Analyzer through an RF attenuator (2). Set the EUT Work on the top, the middle and the bottom operation frequency individually. (3). Set the SPA Trace 1 Max hold, then View. Note: The method of PKPSD in the KDB 558074 item 10.2 was used in this testing. 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) Refer to Section 7.2. 10.3. MEASUREMENT EQUIPMENT USED Refer to Section 6. 10.4. LIMITS AND MEASUREMENT RESULT 125KHz Channel No. PSD (dBm/3kHz) Limit (dBm/3kHz) Result Low Channel -1.572 8 Pass Middle Channel -1.260 8 Pass High Channel -1.686 8 Pass TEST PLOT OF SPECTRAL DENSITY FOR LOW CHANNEL Report No.: AGC02390201204FE02 Page 59 of 96 TEST PLOT OF SPECTRAL DENSITY FOR MIDDLE CHANNEL TEST PLOT OF SPECTRAL DENSITY FOR HIGH CHANNEL Report No.: AGC02390201204FE02 Page 60 of 96 500 KHz Channel No. PSD (dBm/3kHz) Limit (dBm/3kHz) Result Low Channel -7.380 8 Pass Middle Channel -8.009 8 Pass High Channel -7.837 8 Pass TEST PLOT OF SPECTRAL DENSITY FOR LOW CHANNEL Report No.: AGC02390201204FE02 Page 61 of 96 TEST PLOT OF SPECTRAL DENSITY FOR MIDDLE CHANNEL TEST PLOT OF SPECTRAL DENSITY FOR HIGH CHANNEL Report No.: AGC02390201204FE02 Page 62 of 96 1M Channel No. PSD (dBm/3kHz) Limit (dBm/3kHz) Result Low Channel -5.243 8 Pass Middle Channel -4.527 8 Pass High Channel -4.548 8 Pass TEST PLOT OF SPECTRAL DENSITY FOR LOW CHANNEL Report No.: AGC02390201204FE02 Page 63 of 96 TEST PLOT OF SPECTRAL DENSITY FOR MIDDLE CHANNEL TEST PLOT OF SPECTRAL DENSITY FOR HIGH CHANNEL Report No.: AGC02390201204FE02 Page 64 of 96 2M Channel No. PSD (dBm/3kHz) Limit (dBm/3kHz) Result Low Channel -10.042 8 Pass Middle Channel -10.485 8 Pass High Channel -10.647 8 Pass TEST PLOT OF SPECTRAL DENSITY FOR LOW CHANNEL Report No.: AGC02390201204FE02 Page 65 of 96 TEST PLOT OF SPECTRAL DENSITY FOR MIDDLE CHANNEL TEST PLOT OF SPECTRAL DENSITY FOR HIGH CHANNEL Report No.: AGC02390201204FE02 Page 66 of 96 11. RADIATED EMISSION 11.1. MEASUREM…

Text truncated - open the document above for the full version.
