2ABS7-ARBRFU915Transceiver unit

ELCA S.r.l. Via del Commercio, 7/b - 36065 Mussolente (VI) ITALY www.elcaradio.com tel. +39 0424 578500 fax +39 0424 578520 ENG man BRAVO-FUNK-915 00 0408MA000x56 Remote control system for Drilling Machine User manual BRAVO Industrial radio remote control AT BRAVO-FUNK-915 Transmitting Unit AR BRAVO-FUNK-915 Receiving Unit ENGLISH User manual ENGLISH ENG man BRAVO-FUNK-915 00 BRAVO-FUNK-915 Radio remote control system - Page I - ENGLISH INDEX a. FEDERAL COMMUNICATIONS COMMISSION (FCC) CONFORMITY AND FREQUENCIES .II a.1 CONFORMITY .....................................................................................................................................................II a.2 FCC CONFORMITY STATEMENT .................................................................................................................II a.3 FREQUENCIES ...................................................................................................................................................II a.4 MARKET ................................................................................................................................................................II 1. USER MANUAL ................................................................................................................................................................1 2. USE INSTRUCTIONS ........................................................................................................................................2 2.1 GENERAL INFORMATION ...............................................................................................................................2 2.2 APPLICATIONS AND USE CONDITIONS NOT PERMITTED. .............................................................2 2.3 INSTRUCTIONS FOR A PROPER AND SAFE USE OF THE RADIO REMOTE CONTROL SY- STEM. ............................................................................................................................................................................3 2.5 INFORMATION FOR INSTALLATION ..........................................................................................................5 2.6 MAINTENANCE ...................................................................................................................................................7 2.7 WARRANTY ..........................................................................................................................................................8 2.8 DISPOSAL INFORMATION ..............................................................................................................................8 3. TECHNICAL DATA .............................................................................................................................................9 3.1 GENERAL FEATURES ......................................................................................................................................9 3.2 AT BRAVO-FUNK-915 TRANSMITTING UNIT FEATURES ...................................................................9 3.3 RECEIVING UNIT FEATURES .......................................................................................................................9 3.4 CHARGING SYSTEM FEATURES ..............................................................................................................10 4. TRANSMITTING UNIT ....................................................................................................................................11 4.1 DESCRIPTION OF OPERATIONS ...............................................................................................................11 5. RECEIVING UNIT .............................................................................................................................................12 5.1 DESCRIPTION OF OPERATIONS ..............................................................................................................12 5.3 MODIFYING THE PROPORTIONAL FUNCTION PARAMETERS (SETUP) ..................................14 6. BATTERY CHARGER......................................................................................................................................16 6.1 BATTERY CHARGER USAGE ......................................................................................................................16 7. TROUBLESHOOTING ....................................................................................................................................17 7.1 TYPE OF TROUBLE ........................................................................................................................................17 7.2 TRANSMITTING UNIT FUNCTIONAL CONTROL ..................................................................................19 7.3 RECEIVING UNIT FUNCTIONAL CONTROL ..........................................................................................20 7.4 CHARGING CYCLE FUNCTIONAL CONTROL.......................................................................................21 8. BRAVO-FUNK-915 RADIO REMOTE CONTROL TRANSMITTING UNIT .....................................22 8.1 GENERAL INFORMATION .............................................................................................................................22 8.2 SPECIAL FUNCTIONS IN DRILLING MODE (WORK) ..........................................................................23 8.3 SPECIAL FUNCTIONS IN DRILLING MODE (WORK) WITH CHARGER.......................................25 8.4 SPECIAL SAFETY AND MANAGEMENT FUNCTIONS .....................................................................25 10. CORRESPONDENCE OF FUNK UNIT FUNCTIONS FOR DRILLING MACHINE ......................26 ENG man BRAVO-FUNK-915 00 BRAVO-FUNK-915 Radio remote control system - Page II - Each BRAVO-FUNK-915 series’ radio remote control working in the frequency band 915-928MHz complies with Part 15 of standards FCC and with RSS-210 of IC standa…

Text truncated - open the document above for the full version.

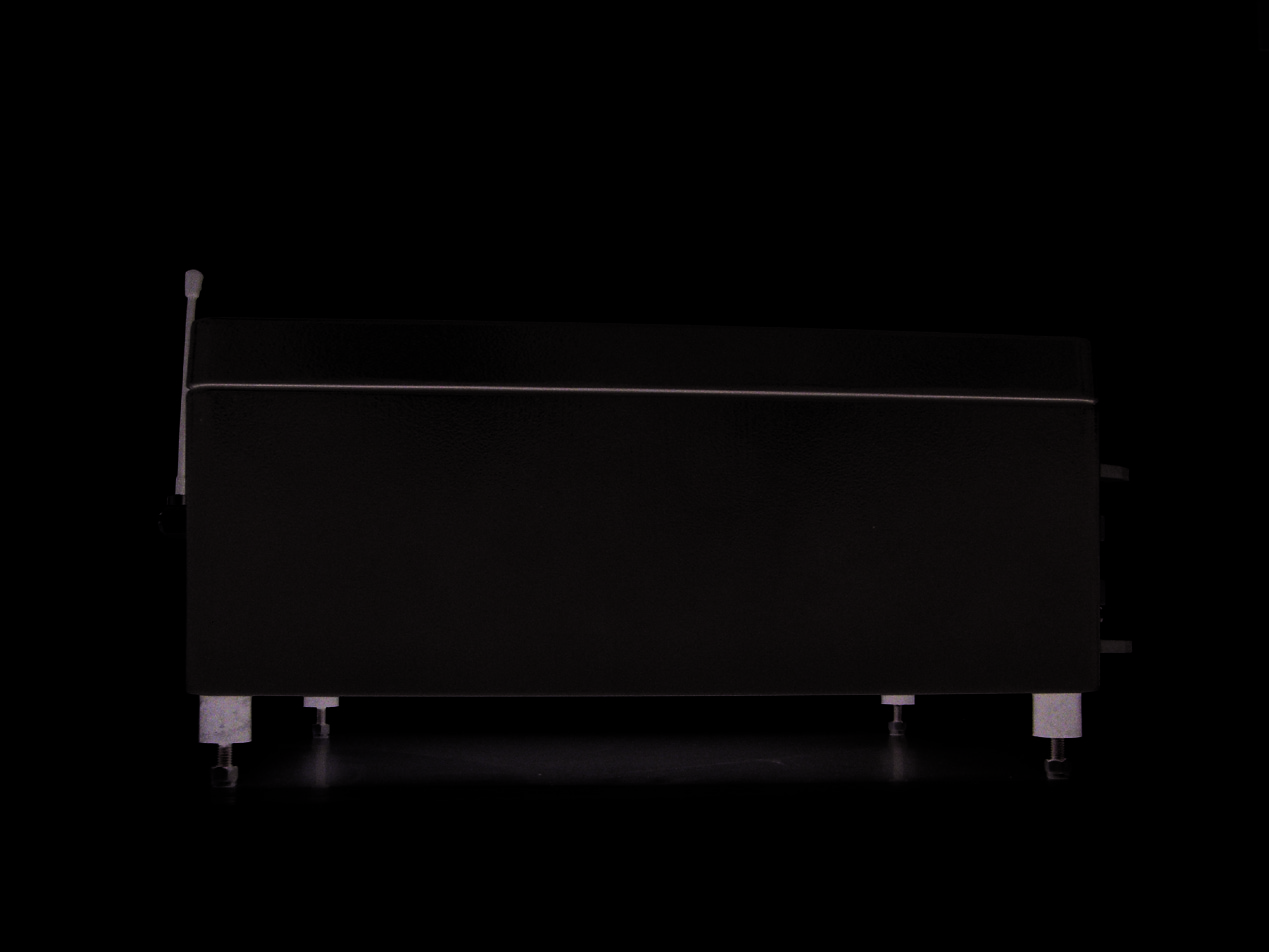

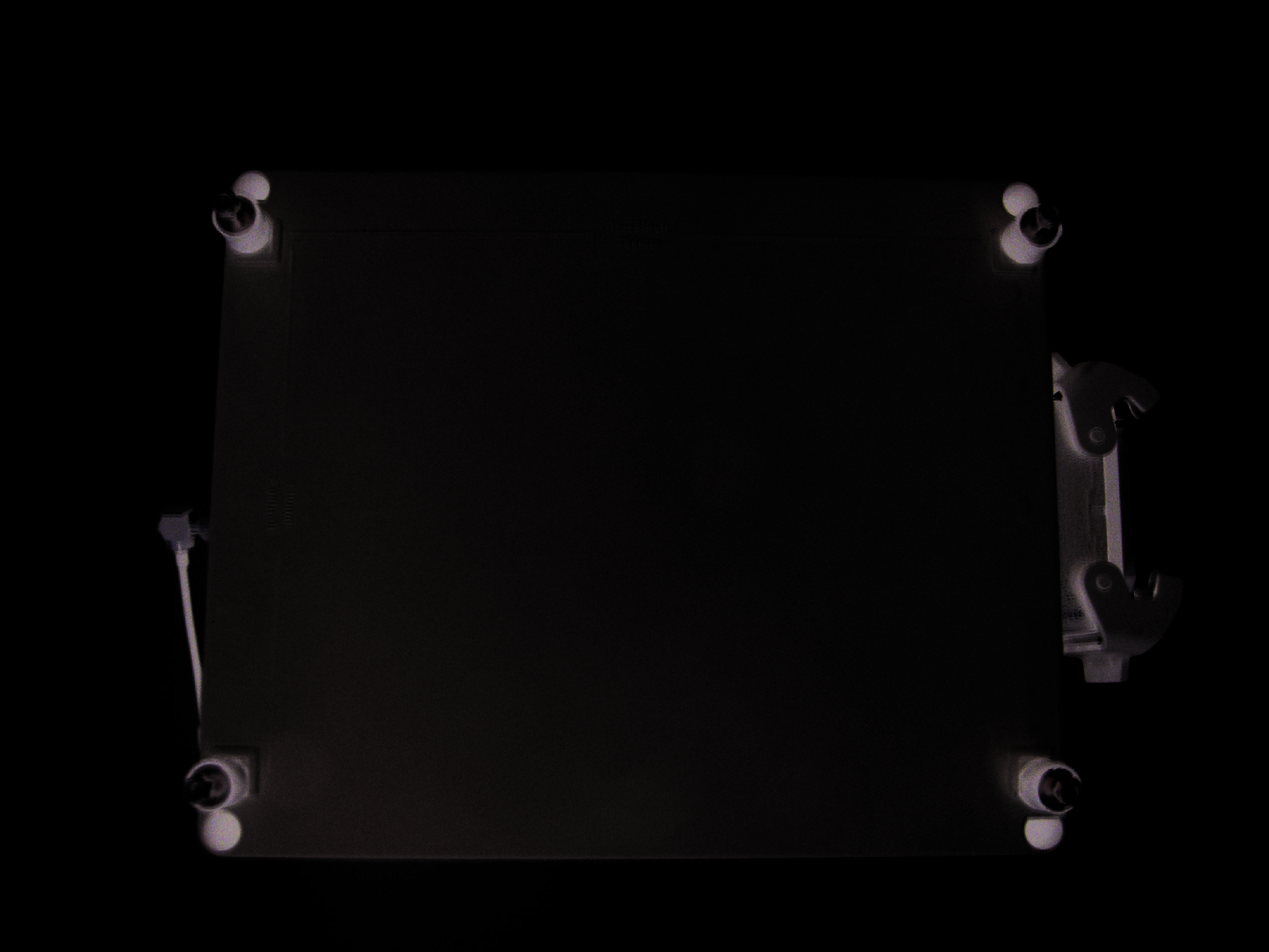

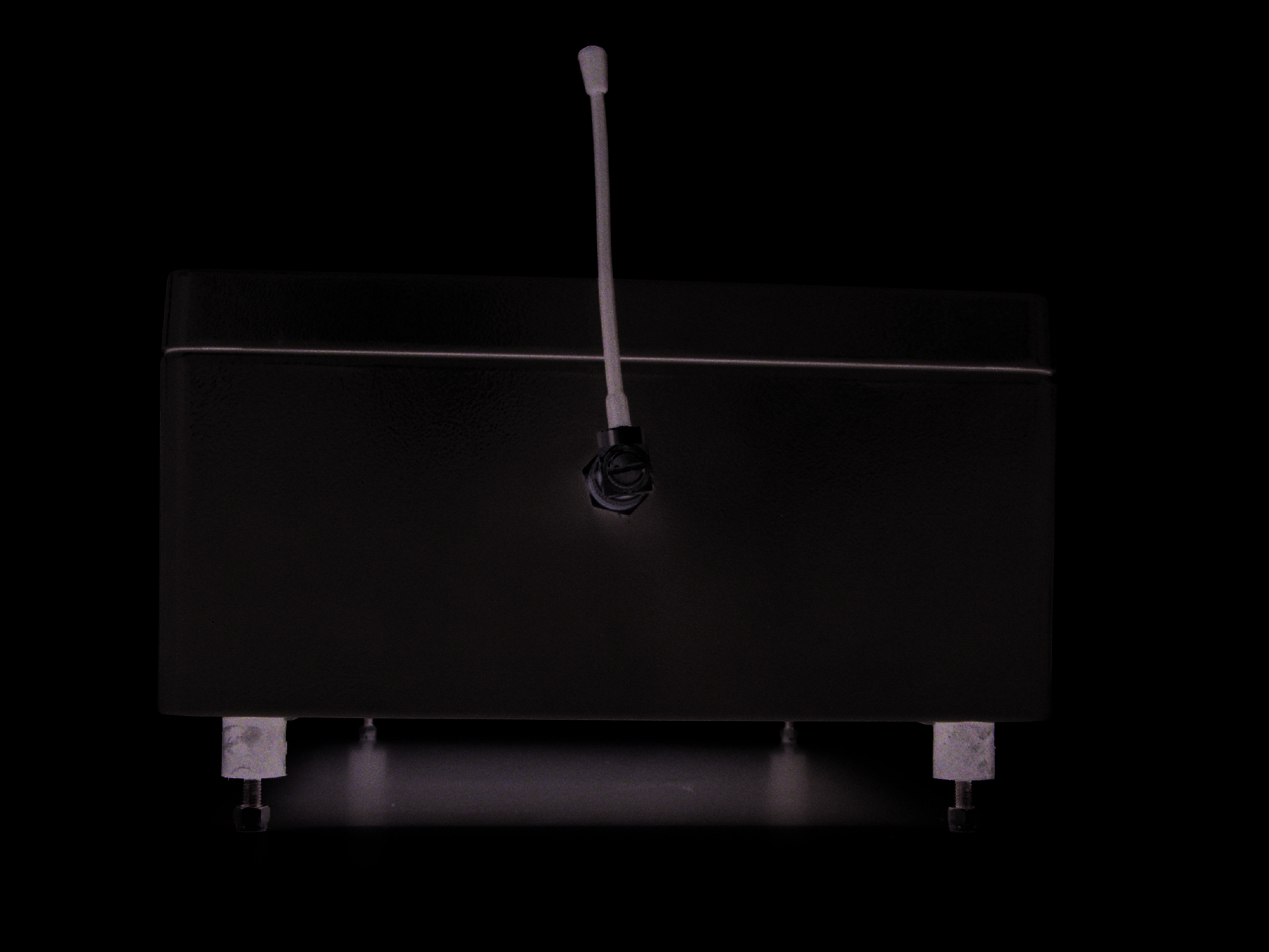

FCC ID 2ABS7-ARBRFU915 Page 1 of 3 Receiving Unit AR Bravo-FUNK-915 EXTERNAL PHOTOS AR BRAVO-FUNK-915 FCC ID 2ABS7-ARBRFU915 Page 2 of 3 Receiving Unit AR Bravo-FUNK-915 FCC ID 2ABS7-ARBRFU915 Page 3 of 3 Receiving Unit AR Bravo-FUNK-915

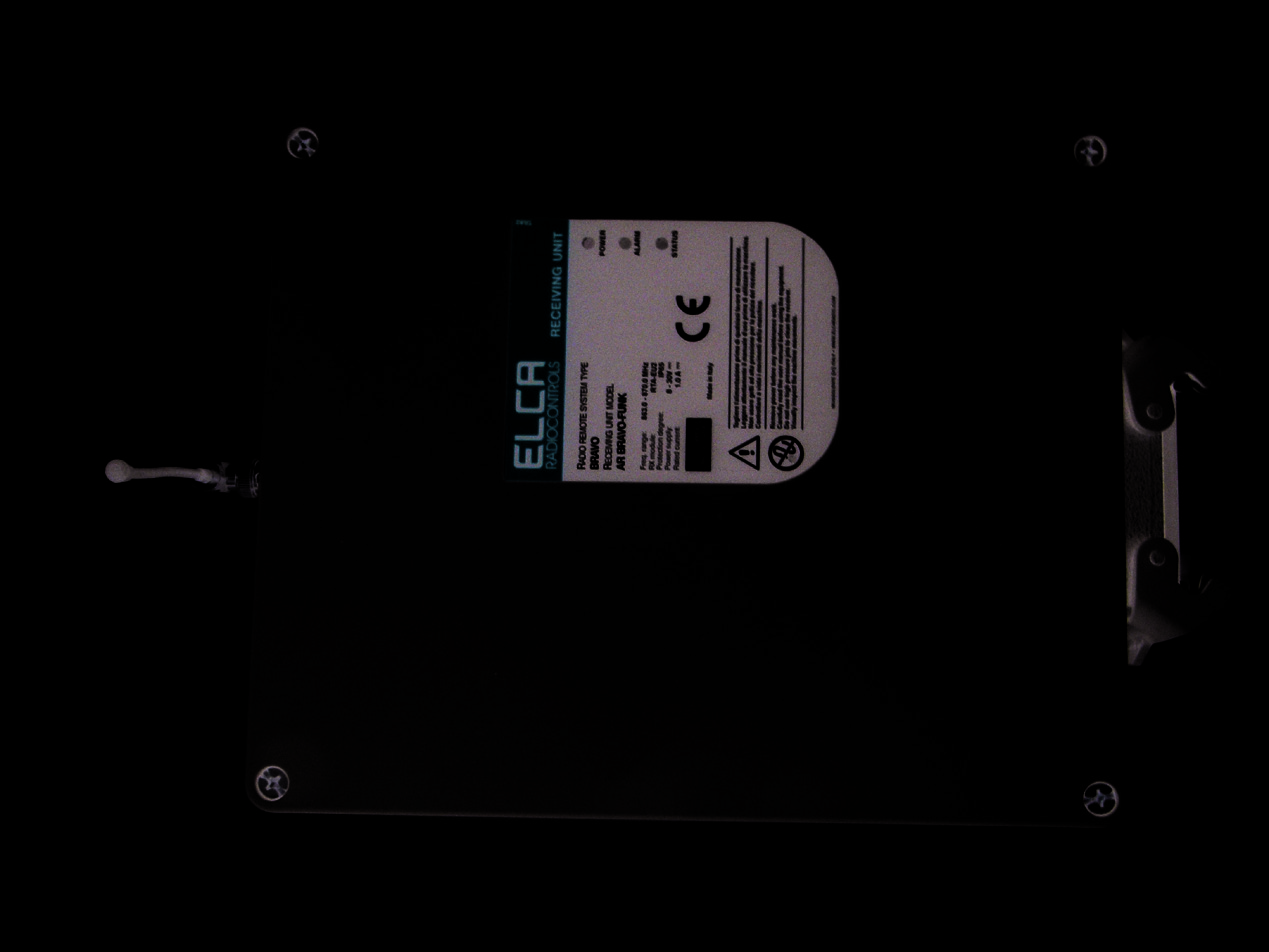

FCC ID 2ABS7-ARBRFU915 Page 1 of 1 Receiving Unit AR Bravo-FUNK-915 107,0 mm 87,0 mm LABEL DIMENSIONS AND POSITION AR BRAVO-FUNK-915 1. Label contents and dimensions 2. Label position Position of label with FCC ID

CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) – ITALY Tel./Fax +39 0445 367702 www.cmclab.it - [email protected] Independent Testing Laboratory Test report R14026601 Rev. 1.0 Order M140266 page 1 of 57 TEST REPORT nr. R14026601 Federal Communication Commission (FCC) Test item Description ........................ : TRANSCEIVER UNIT Trademark ......................... : ELCA Model/Type ...................... : AR BRAVO-FUNK-915 Test Specification Standard ........................... : FCC Rules & Regulations, Title 47:2013 Part 15 paragraph(s): 203, 204, 207, 209 and 247 Client’s name .............. : ELCA S.r.l. Address .............................. : Via del Commercio, 7/B – 36065 Mussolente (VI) – ITALY Manufacturer’s name : Same as client Address .............................. : -- Report Tested by ........................... : G. Gandini – Technician Approved by .................... : R. Beghetto – Laboratory Manager Date of issue ..................... : 30.09.14 Contents ............................ : 57 pages This test report shall not be reproduced except in full without the written approval of CMC. The test results presented in this report relate only to the item tested. CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 2 of 57 Index 1. SUMMARY ..................................................................................................................................................3 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) .....................................................................................4 2.1 TEST SITE .................................................................................................................................................... 4 3. TESTING AND SAMPLING ..........................................................................................................................4 4. OPERATIVE CONDITIONS ..........................................................................................................................4 5. PHOTOGRAPH(S) OF EUT ..........................................................................................................................5 5.1 PHOTOGRAPH(S) OF EUT ........................................................................................................................... 5 6. EQUIPMENT LIST .........................................................................................................................................6 7. MEASUREMENT UNCERTAINTY ..................................................................................................................7 8. REFERENCE DOCUMENTS..........................................................................................................................8 9. DEVIATION FROM TEST SPECIFICATION ...................................................................................................9 10. TEST CASE VERDICTS .............................................................................................................................9 11. RESULTS ................................................................................................................................................10 11.1 ANTENNA REQUIREMENTS ......................................................................................................................... 11 11.2 CONDUCTED EMISSIONS ........................................................................................................................... 12 11.3 RADIATED EMISSIONS ................................................................................................................................ 16 11.4 20 DB BANDWIDTH ................................................................................................................................... 28 11.5 CHANNEL SEPARATION ............................................................................................................................. 33 11.6 NUMBER OF HOPPING CHANNELS ............................................................................................................. 36 11.7 TIME OF OCCUPANCY .............................................................................................................................. 39 11.8 BAND EDGE ............................................................................................................................................. 43 11.9 PEAK OUTPUT POWER – CONDUCTED ....................................................................................................... 49 11.10 SPURIOUS EMISSION ................................................................................................................................. 54 11.11 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................................. 57 CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 3 of 57 1. Summary Standard: FCC Rules & Regulations, Title 47:2013 Part 15 paragraph(s): 203, 204, 207, 209 and 247 Test specifications Environmental Phenomena Tests sequence Result Part 15.203 Antenna requirements 1 Complies Part 15.207 Conducted emissions 6 Complies Part 15.209 Radiated emissions 2 Complies Part 15.247 20dB Bandwidth 3 Complies Part 15.209 and 15.247 Peak Output Power 7 Complies Part 15.247 Band edge 4 Complies Part 15.209 Spurious emission 5 Complies The Test Report was given to the Client representatives for necessary documentation of ratification of the tested equipment and it is valid for the FCC certification CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 4 of 57 2. Description of Equipment under test (EUT) Power supply ..........................…

Text truncated - open the document above for the full version.

CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 36 of 57 11.6 Number of hopping channels Test set-up and execution  FCC Rules and Regulation; Titles 47 Part 15.247  DA 00-705  Internal procedure PM001  See clause 4 of this test report Test configuration and test method Test site: Laboratory Auxiliary equipment: See clause 4 of this test report EUT exercising See clause 4 of this test report Test equipment used CMC S108, CMC S136, CMC S164 Measurement uncertainty: See clause 7 of this test report Test specification See FCC Part 15.247 Environmental conditions Temperature (ºC) Atmospheric pressure (kPa) Relative humidity (%) 21 98 48 Acceptance limits: For frequency hopping systems operating in the 902–928 MHz band: if the 20 dB bandwidth of the hopping channel is less than 250 kHz, the system shall use at least 50 hopping frequencies. CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 37 of 57 Setup Result Graphs Number of hopping channels Results G14026622 64 Complies CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 38 of 57 Graphs G14026622 Result: The requirements are met CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 39 of 57 11.7 Time of occupancy Test set-up and execution  FCC Rules and Regulation; Titles 47 Part 15.247  DA 00-705  Internal procedure PM001  See clause 4 of this test report Test configuration and test method Test site: Laboratory Auxiliary equipment: See clause 4 of this test report EUT exercising See clause 4 of this test report Test equipment used CMC S164 Measurement uncertainty: See clause 7 of this test report Test specification See FCC Part 15.247 Environmental conditions Temperature (ºC) Atmospheric pressure (kPa) Relative humidity (%) 22 99 49 Acceptance limits: For frequency hopping systems operating in the 902–928 MHz band: if the 20 dB bandwidth of the hopping channel is less than 250 kHz, the system shall use at least 50 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 20 second period; if the 20 dB bandwidth of the hopping channel is 250 kHz or greater, the system shall use at least 25 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 10 second period Frequency hopping systems in the 2400–2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 40 of 57 Setup Result Dwell time of transmission Frequency (MHz) Graphs Dwell time (ms) 915,12 G14026618 14,7 Number of transmissions per period (20s) Frequency (MHz) Time between 2 transmission on different channels Number of transmission 915,32 G14026617 49,8 ms 20000 / 49,8 / 64 = 6,27 Time of occupancy (Dwell time x Nr. of transmission) 14,7 x 6,27= 92,17 ms CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 41 of 57 Graphs G14026617 Ref 10 dBmAtt 20 dB * A TDF RBW 100 kHz VBW 300 kHz TRG Center 915.1217949 MHz10 ms/ SWT 100 ms VIEW 1 PK PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 16.59 dBm 0.000000 s 2 Delta 2 [T1 ] -0.80 dB 49.800000 ms POS 10 dBm Date: 1.JAN.2000 02:28:59 CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 42 of 57 G14026618 Ref 10 dBmAtt 20 dB * A TDF RBW 100 kHz VBW 300 kHz TRG Center 915.1217949 MHz4 ms/ SWT 40 ms MAXH 1 PK PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 14.10 dBm 0.000000 s 2 Delta 2 [T1 ] -10.87 dB 14.720000 ms POS 10 dBm Date: 1.JAN.2000 02:35:37 1G Result: The requirements are met CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 43 of 57 11.8 Band edge Test set-up and execution  FCC Rules and Regulation; Titles 47 Part 15.247  DA 00-705  Internal procedure PM001  See clause 4 of this test report Test configuration and test method Test site: Laboratory Auxiliary equipment: See clause 4 of this test report EUT exercising See clause 4 of this test report Test equipment used CMC S164 Measurement uncertainty: See clause 7 of this test report Test specification See FCC Part 15.247 Environmental conditions Temperature (ºC) Atmospheric pressure (kPa) Relative humidity (%) 22 98 50 Acceptance limits: operation within the band 902 – 928 MHz CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 44 of 57 Setup Result Frequency (MHz) Graph(s) – Hopping Results 915,050 G14026619 F L : 915,0357 MHz Complies 927,950 G14026620 F H : 927,9631 MHz Complies Frequency (MHz) Graph(s) – No hopping Results 915,050 G14026608 F L : 915,0361 MHz Complies 927,950 G14026613 F H : 927,9628 MHz Complies CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 45 of 57 Graphs G14026608 Att 20 dB * A TDF Ref 10 dBm Center915 MHzSpan200 kHz20 kHz/ * RBW 3 kHz VBW 10 kHz SWT 25 ms 1 PK VIEW PRN -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 18.46 dBm 915.042800000 MHz 2 Delta 2 [T1 ] -20.32 dB -6.700000000 kHz POS 10 dBm Date: 1.JAN.2000 02:50:57 CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R14026601 Rev. 1.0 Order M140266 page 46 of 57 G14026613 At…

Text truncated - open the document above for the full version.

Independent Testing Laboratory CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) – ITALY Tel./Fax +39 0445 367702 www.cmclab.it - [email protected] Page 1 of 1 SETUP PHOTO
