2ABS7-ATMILS915Transceiver unit

MITO_MINI+_915_P1-00_ENG AT MITO-MINI+ 915 MITO OTHER LANGUAGES https://qrcode.elcaradio.biz/man/170be55eb609c787177d5fb6931208fd Part 1 TRANSMITTING UNIT USER MANUAL 0408MA000477 Instructions translated from the original ENG WARNING THIS PART OF THE MANUAL CONSISTS OF: Part 1 – Information, instructions and general warnings for the Transmitting Unit and its charging system. The manual consists of Part 1 "Transmitting Unit user manual", Part 2 "Receiving Unit user manual", Position of the controls and the Connection diagram. THIS MANUAL, INCLUDING ALL ITS PARTS, AND ALL THE INSTRUCTIONS CONTAINED IN IT MUST BE READ CAREFULLY AND UNDERSTOOD BEFORE EACH INSTALLATION, USE, MAINTENANCE OR REPARATION OPERATION OF THE ELCA RADIO REMOTE CONTROL. FAILURE TO READ THE MANUAL AND COMPLY WITH ALL THE APPLICABLE WARNINGS AND INSTRUCTIONS, OR ANY RESTRICTION PROVIDED IN THIS MANUAL CAN CAUSE SERIOUS PHYSICAL INJURIES OR DEATH AND/OR DAMAGE TO PROPERTY. THE ELCA RADIO REMOTE CONTROL IS NOT AN INDEPENDENT PRODUCT AND IS EXCLUSIVELY A COMPONENT OF A MACHINE THAT: -PERMITS A RADIO REMOTE CONTROL TO BE USED IN AN APPROPRIATE MANNER, -CAN BE OPERATED SAFELY AND IN COMPLIANCE WITH ALL LEGAL PROVISIONS, REGULATIONS AND STANDARDS APPLICABLE TO THIS RADIO REMOTE CONTROL. ACCORDINGLY, IT IS THE RESPONSIBILITY OF THE MANUFACTURER AND THE DESIGNERS OF THE MACHINE ON WHICH YOU INTEND TO INSTALL THE ELCA RADIO REMOTE CONTROL to carry out a careful and in-depth risk assessment to determine whether the Elca radio remote control is suitable for the safe and efficient use of the Machine, taking into account the conditions of use and the intended uses, and that the installation, maintenance and use of the Elca radio remote control and all its components are carried out only and entirely in accordance with this Manual and in compliance with all local safety rules, standards and regulations (referred to herein as "Laws, Regulations and Standards"). With reference to the US market, the Laws, regulations and Standards include all regulations and standards of the Occupational Safety & Health Administration (OSHA) (http://www.osha.gov), all federal, state and local laws and provisions, the construction and electric devices codes and all applicable standards, including, bit not only, ANSI standards. It is the responsibility of the Manufacturer and the designers of the Machine on which you intends to install and use the Elca Radio Remote Control to make sure that the structure, condition, organisation and the markings of the Machine as well as how it is installed in its place of use are appropriate and allow the Machine to be used and controlled safely and reliably using the interface of the Elca Radio Remote Control. IT IS THE RESPONSIBILITY OF THE USER OF THE SYSTEM AND THEIR DESIGNERS that the installation, maintenance and use of the Elca Radio Remote Control and all its components are carried out only and entirely in accordance with this Manual and in compliance with all applicable Laws, Regulations and Standards, also local. It is also the responsibility of the Owner, the system user and their designers to make sure that the structure, the condition, the organisation and the markings of the Machine and the place where the Elca Radio Remote Control is installed and used are appropriate and allow the Machine to be used and controlled safely and reliably using the interface of the Elca Radio Remote Control. ONLY QUALIFIED AND SUITABLY TRAINED PERSONNEL ARE ALLOWED TO CONTROL AND USE THE ELCA RADIO REMOTE CONTROL AND THE MACHINE CONTROLLED BY THE ELCA RADIO REMOTE CONTROL. ONLY QUALIFIED AND SUITABLY TRAINED PERSONNEL ARE ALLOWED ACCESS TO THE VICINITY OF THE MACHINE CONTROLLED BY THE ELCA RADIO REMOTE CONTROL. INADEQUATE INSTALLATION, OPERATION, MAINTENANCE AND ASSISTANCE OPERATIONS ON THE ELCA RADIO REMOTE CONTROL CAN CAUSE SERIOUS PHYSICAL DAMAGE OR DEATH AND/OR DAMAGE TO PROPERTY. For further assistance refer to this Manual and all its parts, or else contact Elca. Elca is not responsible for and accepts no liability for any installation of the Elca Radio Remote Control carried out by Elca itself, or for any use or maintenance of the Elca Radio Remote Control that do not fully comply with all the instructions and warnings supplied by Elca and with all applicable Laws, Regulations and Standards, also local. Elca is not responsible for and accepts no liability for any alterations or modifications of the Elca Radio Remote Control, or for the use of non-original Elca parts that are used together or incorporated inside the Radio Remote Control itself. IT IS THE RESPONSIBILITY OF THE OWNER, AND USER OF THE SYSTEM AND ITS DESIGNERS to make sure that the Elca Radio Remote Control is always maintained and serviced in compliance with all the instructions and warnings provided by Elca, and in compliance with all applicable Laws, Regulations and Standards, also local. ENG IT IS THE RESPONSIBILITY OF THE OWNER, THE USER OF THE SYSTEM AND THEIR EMPLOYEES MANAGERS AND SUPERVISORS to make sure that all the Users of the Elca Radio Remote Control and all those that work or will work with or near the Machine operated by or through the Elca Radio Remote Control are completely and adequately instructed and trained by qualified persons on the correct and safe use of the Elca Radio Remote Control and the Machine, including without restrictions the complete familiarity with and understanding of the warnings and instructions provided by Elca, and all applicable Laws, Regulations and Standards, also local; it is equally also their responsibility to make sure that these Users or other Persons use or work always in a safe manner with the Elca Radio Remote Control and e ONLY in compliance with the instructions and warnings provided by Elca and in compliance with all applicable Laws, Regulations and Standards, also local. FAILURE TO COMPLY WITH THIS INSTRUCTION CAN CAUSE SERIOUS PHYSICAL INJURIES OR DEATH AND/OR DAMAGE TO PROPERTY. IT IS THE RESPONSIBILI…

Text truncated - open the document above for the full version.

ELCA Instructions for the User 29 The belt should be replaced if it shows signs of wear or damage. Any other use of the belt constitutes incorrect use of the radio remote control. ENG

Description of the Transmitting Unit ELCA 30 10 Description of the Transmitting Unit CONTINUOUS TRANSMISSION TEMPORARY TRANSMISSION 8 keys, 6 keys or 4 keys8 keys, 6 keys or 4 keys ACommand device sCommand devices BSTART buttonCommand devices CSTOP buttonCommand devices DLED CheckLED Check EContacts for chargingContacts for charging F T echnical data plat e Technical data plate Some personalised models may have extra functions in addition to those shown in this manual. These details are described in the command layout or in the connection diagram attached to this manual. D C B A RADIOCONTROLS E D C B A RADIOCONTROLS D C B A RADIOCONTROLS F Made in Italy RAD I OCONTROLS T445B Freq. range: Protection degree: Transmitting power: Internal battery: IP67 868.0125-869.9875 MHz Trasmitting model: Radio remote system type: AT MITO-MINI+ 915 MITO <5 mW ERP Li-ion 3.7 V 1100 mA Serial n°: M00000 Manufactured: 20XX G Serial numberSerial number G ELCA Description of the Transmitting Unit 31 10.1 Technical data Radio transceiver module SWE-U Antennaincorporated Power supplyLi-poly 3.7 V 1100 mAh battery Current draw<25 mA Absorbed power<0,1 W RF effective radiated power < 3 mW ERP Run time with fully charged battery at 20 °C (emissions power 10mW) 50 hours Autonomy after "low battery" warning 10 min Protection degreeIP67 Dimensions 137x62x35 mm Weight200 g 10.2 The Position of the controls and Connection diagram The documentation supplied with the Radio Remote Control consists of: -“Arrangement of Controls” that contains the configuration of the Transmitting Unit and the names of the commands sent to the Receiving Unit; -“Connection diagram” that indicates the correspondence of the commands sent by the Transmitting Unit and those available in the Receiving Unit . The Connection diagram should be checked, filled out and signed by the Installer who is responsible for carrying out the wiring correctly. The Position of the controls and the Connection diagram should always remain attached to this Manual: if you have to use one or more of these documents for administrative purposes (controls, tests, etc.) a copy should be made. The wiring of the outputs of the Receiving Unit should always correspond to what is indicated in the Position of the controls and the Connection diagram. 1 0.3 Transmitting Unit data plate There is just one Data plate on the Transmitting Unit AT MITO-MINI+ 915. Its position and the information contained in it can be found in the table below. ENG Description of the Transmitting Unit ELCA 32 TablePositionInformation Transmitting Unit plate Back of the transmitting unit Serial number (Serial Num.), year of manufacture and the main technical information of the Transmitting Unit, the marking and any trademarks of the Radio Remote Control. 10.4 Indicator lights 10.4.1 LED Check [A] The LED [A] turns green to provide information about the radio remote control. Refer to the following table for the meaning of the LED lights. To know what to do in response to a light signal, refer to the table in paragraph 14.1. The meanings of the LED lights cannot be altered. SIGNALMEANING The LED [A] flashes quickly (1 flash/ second). The radio remote control is working correctly and the transmitting unit battery is charged. The LED [A] flashes slowly (1 flash every 2 seconds). The radio remote control is working correctly but the transmitting unit battery is low (10 minutes of run time). LED [A] is off. The battery is low or the radio remote control indicates the presence of an error (see par. 14.1). A ELCA General operating instructions 33 11 General operating instructions 11.1 START button The START key (in continuous transmission mode only) is used to switch on the transmitting unit when it is off, and simultaneously activate radio transmission. This command is on the selector [C] of the Transmitting Unit dedicated to this purpose. 11.2 STOP button With the transmitting unit active, the STOP button (in continuous transmission mode only) immediately disables all the active commands and disconnects the power supply to the unit. To restart working after the STOP button was pressed, proceed as follows: -check that the operating conditions are safe; -press START. if a dangerous situation arises press the STOP button to immediately stop the Machine. It is necessary to check that the Manufacturer of the Machine and/or the Installer provide suitable instructions and warnings in relation to any risks that derive from the stoppage of the Machine. These risks could, for example, come from inertial movements or from the swinging of the load. C STOP ENG General operating instructions ELCA 34 11.3 Keys For the functions of the various keys on the unit, refer to the command layout attached to the unit itself. 11.4 Hold commands In continuous transmission mode only, a hold can be programmed on any command apart from the START command and the STOP button. When a command is programmed to be held at the first impulse, it is activated and remains active until the next impulse or until the transmitting unit is switched off. 11.5 Starting the Radio Remote Control Starting the Radio Remote Control consists of establishing the radio link between the Transmitting Unit and the Receiving Unit. In continuous mode only, a sequence of 3 commands (PIN CODE) can be programmed to release the START key for use. The PIN code is needed to prevent the Radio Remote Control being used by unauthorised persons. 11.6 Activating the controls Once the Radio Remote Control has been started it is possible to start the buttons for the controls of the Machine. It is the responsibility of the Installer and/or the Manufacturer of the Machine to choose the functions and the symbols of the buttons of the Transmitting Unit and it is always their duty to provide these instructions with the Machine so that the User is well informed on this matter. 11.7 Interruption of the radio link If for any reason the radio link is incorrect or interrupted, use the autom…

Text truncated - open the document above for the full version.

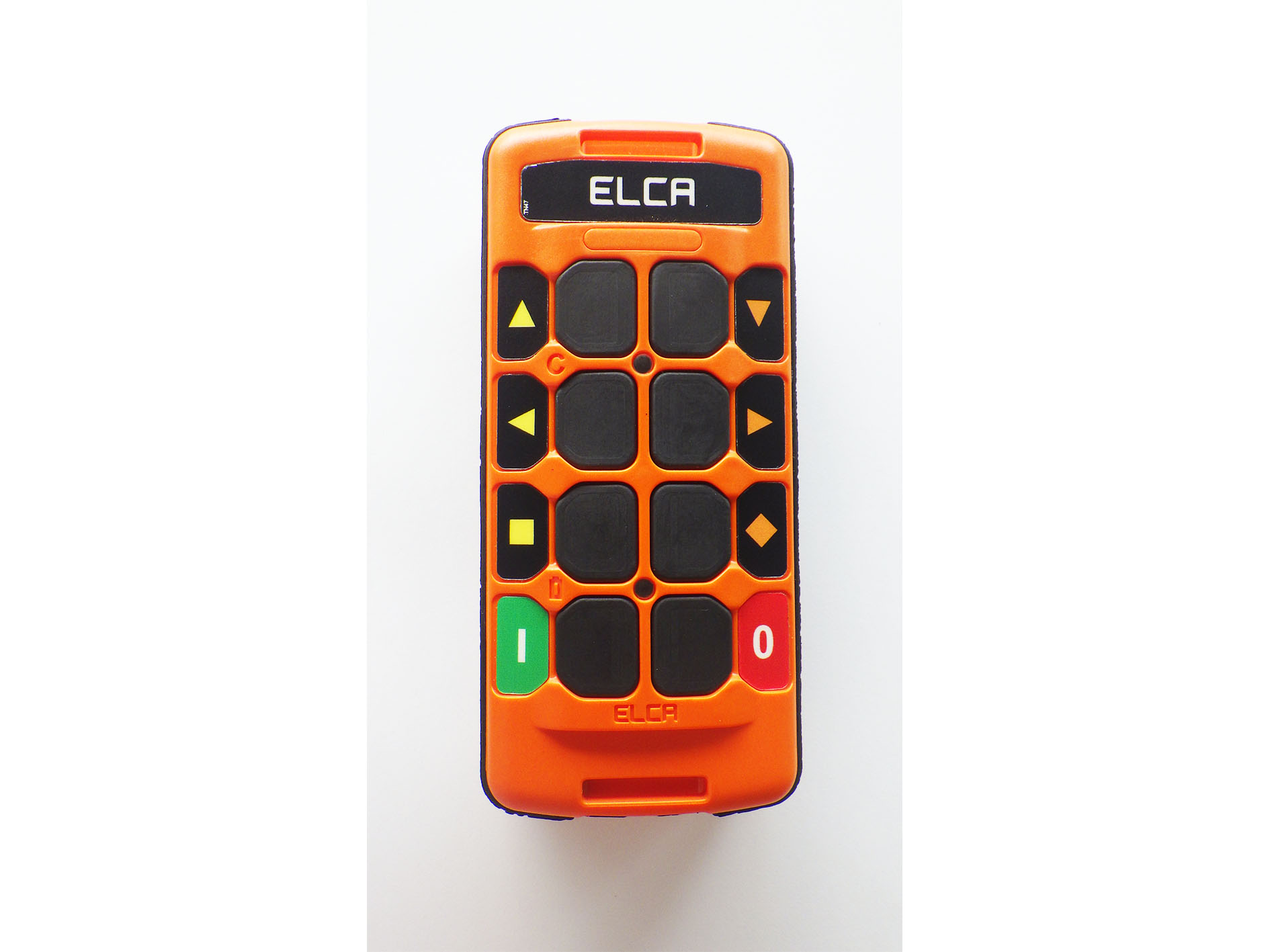

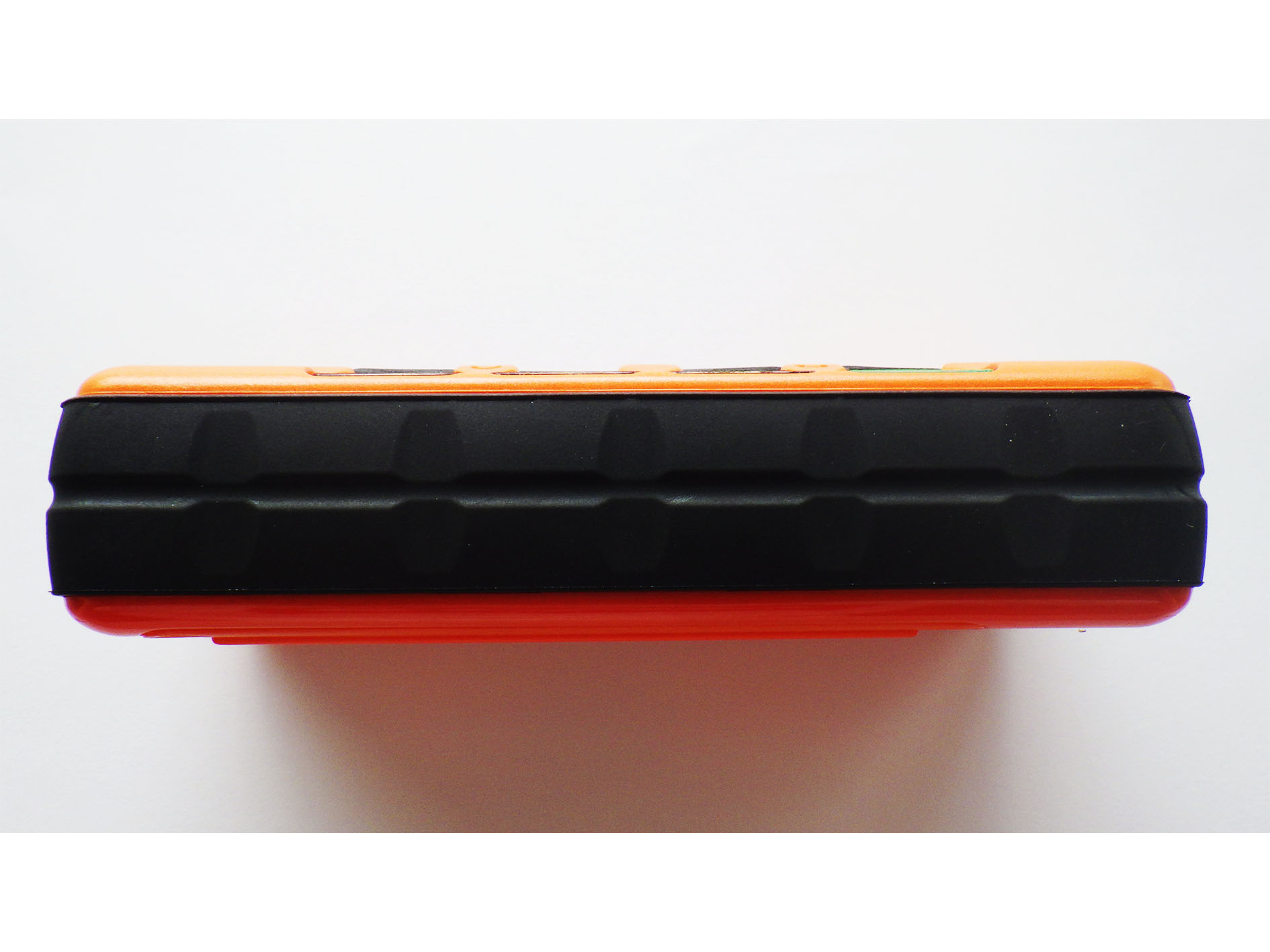

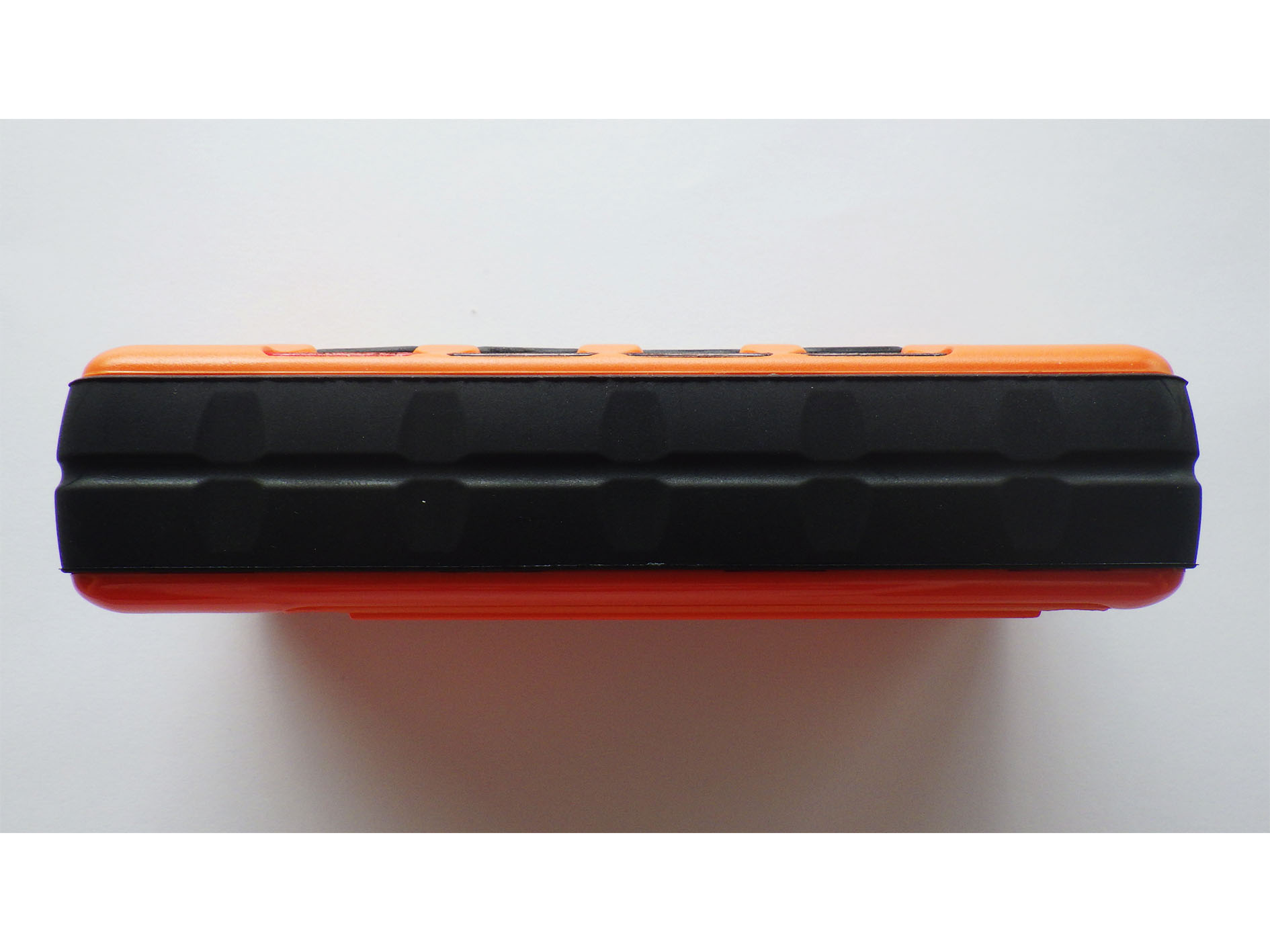

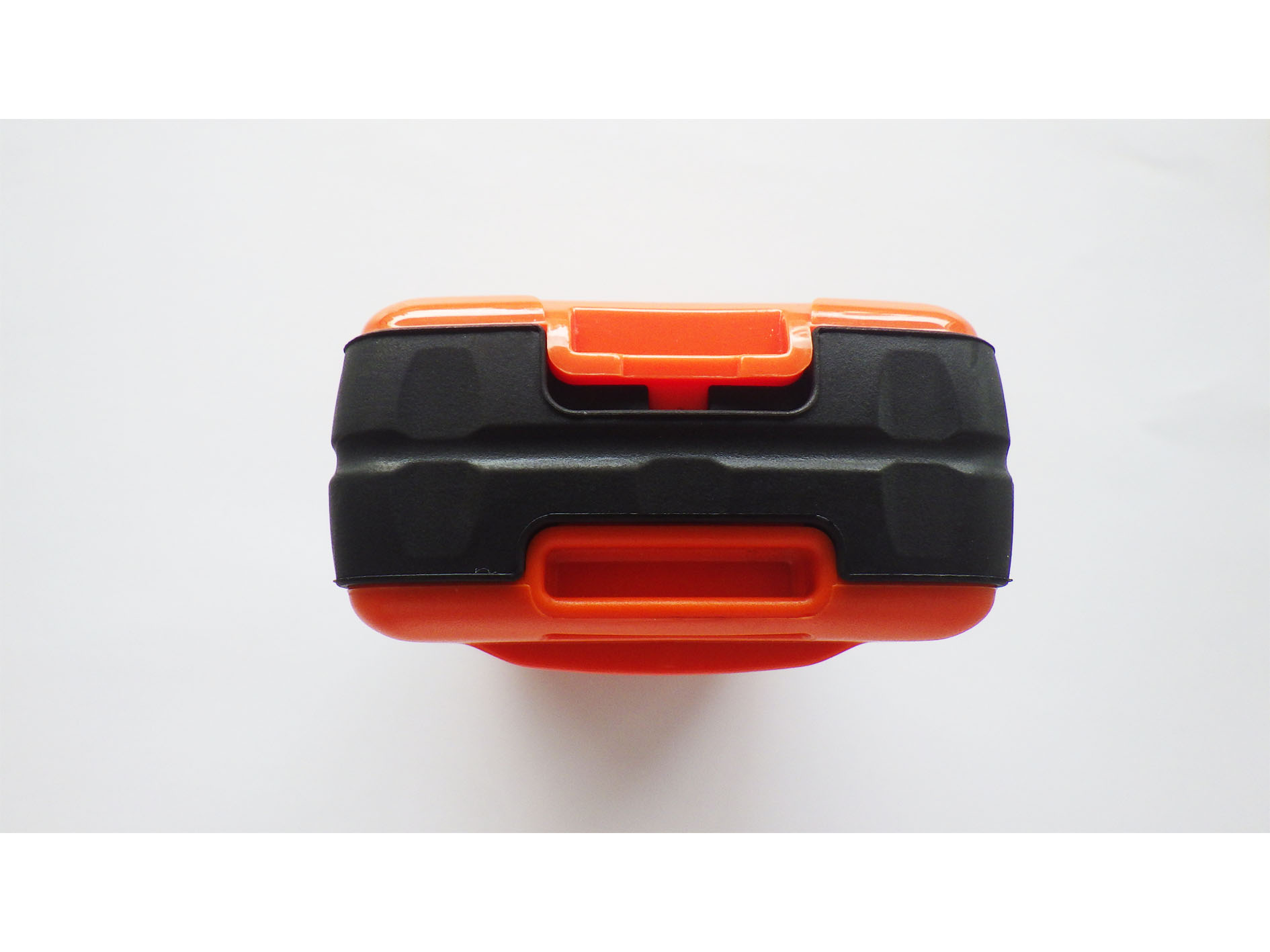

FCC ID 2ABS7-ATMILS915 Page 1 of 3 Transmitting Unit AT MITO-MINI+915 EXTERNAL PHOTOS AT MITO-MINI+915 FCC ID 2ABS7-ATMILS915 Page 2 of 3 Transmitting Unit AT MITO-MINI+915 FCC ID 2ABS7-ATMILS915 Page 3 of 3 Transmitting Unit AT MITO-MINI+915

FCC ID 2ABS7-ATMILS915 Page 1 of 1 Transmitting Unit AT MITO-MINI+915 LABELS DIMENSIONS AND POSITION AT MITO-MINI+915 1. Label contents and dimensions 2.Label position Position of label with FCC ID

FCC ID 2ABS7-ATMILS915 Page 1 of 2 Transmitting Unit AT MITO-MINI+915 INTERNAL PHOTOS AT MITO-MINI+915 FCC ID 2ABS7-ATMILS915 Page 2 of 2 Transmitting Unit AT MITO-MINI+915

CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) – ITALY Tel./Fax +39 0445 367702 www.cmclab.it - [email protected] Independent Testing Laboratory TRF No. 15-247_HoppingCMC Page 1 of 15 Test Report No. R21007401 rev.1.0 TEST REPORT Nr. R21007401 Federal Communication Commission (FCC) Report Reference No. ............... : R21007401 Date of issue: .............................. : 02.12.2020 Total number pages: ................... : 15 Applicant ́s name ...................... : Elca S.r.l. Address ....................................... : Via del Commercio, 7/B – 36065 Mussolente (VI) – Italy Test specification: Standards ................................... : KDB 447498 D01 General RF Exposure Guidance v06 Non-standard test method .......... : N/A Test Report Form No. ............... : 15-247_HoppingCMC Test Report Form(s) Originator .. : CMC Centro Misure Compatibilità S.r.l. Master TRF ................................. : 2020-01 General disclaimer: The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of CMC Centro Misure Compatibilità S.r.l. Test item description ................ : Transmitting unit AT MITO-MINI+: portable component (remote station) through which the user interfaces with the Radio Remote Control Trademark .................................. : Elca Manufacturer ............................... : Elca S.r.l. Model / Type reference ............... : AT MITO-MINI+ FCC ID ........................................ : 2ABS7-ATMILS915 Rating(s) ..................................... : 3,7 Vdc from battery Report Tested by (name + signature) ..... : C. Panozzo .............................................................. Approved by (name + signature) .................................... : R. Beghetto .............................................................. CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-247_HoppingCMC Page 2 of 15 Test Report No. R21007401 rev.1.0 1 Summary 1 Summary ........................................................................................................................................... 2 2 Reference standard .......................................................................................................................... 3 3 List of attachments ............................................................................................................................ 3 4 Deviation(s) from test specification ................................................................................................... 3 5 Testing location ................................................................................................................................. 3 6 General description of test item(s) .................................................................................................... 5 6.1 Photos of the test item ................................................................................................................. 6 7 Verdict summary section .................................................................................................................. 7 8 Test conditions .................................................................................................................................. 9 8.1 General ........................................................................................................................................ 9 9 Test results .....................................................................................................................................10 9.1 RF Exposure Analysis ...............................................................................................................10 CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-247_HoppingCMC Page 3 of 15 Test Report No. R21007401 rev.1.0 2 Reference standard KDB 447498 D01 General RF Exposure Guidance v06 RF exposure procedures and equipment authorization policies for mobile and portable devices 3 List of attachments Attachment 1: Instruments list, measurement uncertainty, judgement of compliance and quality manual references 4 Deviation(s) from test specification None 5 Testing location CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 – 36016 Thiene (VI) – Italy Test site facility’s FCC registration number: 182474 Revision index Date Change history 1.0 02.12.2020 -- CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-247_HoppingCMC Page 4 of 15 Test Report No. R21007401 rev.1.0 Testing and sampling: Date of receipt of test item ....................................................... : 21.10.2020 Testing start date ..................................................................... : 02.12.2020 Testing end date ...................................................................... : 02.12.2020 Sampling procedure ................................................................. : Equipment used for testing was picked up by the manufacturer, at the end of the production process with random criterion. The results relate to the sample as it has been received. Internal identification ................................................................ : Adhesive label with the product number P201071 General remarks: This report shall not be reproduced, except in full, without the written approval of CMC. The test results presented in this report relate only to the object tested. “(see appended table)": refers to a table appended to the report. Throughout this report a comma is used as the decimal separator. Possible test case verdicts: Test case does not apply to the test object: N/A (Not Applicable) Test object does meet the requirement: P (Pass) Test object does not meet the requirement: F (Fail) Test object does not performed: N/E (Not Executed) Definition…

Text truncated - open the document above for the full version.

CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) – ITALY Tel./Fax +39 0445 367702 www.cmclab.it - [email protected] Independent Testing Laboratory Accredited by ACCREDIA according to UNI CEI EN ISO/IEC 17025 cert. nr. 0168 TRF No. 15-249CMC Page 1 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L TEST REPORT Nr. R20197401 Federal Communication Commission (FCC) Report Reference No. ............... : R20197401 Date of issue: .............................. : 02.12.2020 Total number pages: ................... : 70 Applicant ́s name ...................... : Elca S.r.l. Address ....................................... : Via del Commercio, 7/B – 36065 Mussolente (VI) – Italy Test specification: Standards ................................... : FCC Rules & Regulations, Title 47:2019 Part 15 paragraph(s): 203, 204, 205, 207, 209, 215 and 249 Non-standard test method .......... : N/A Test Report Form No. ............... : 15-249CMC Test Report Form(s) Originator .. : CMC Centro Misure Compatibilità S.r.l. Master TRF ................................. : 2020-05 General disclaimer: The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of CMC Centro Misure Compatibilità S.r.l. Test item description ................ : Transmitting unit AT MITO-MINI+: portable component (remote station) through which the user interfaces with the Radio Remote Control Trademark .................................. : Elca Manufacturer ............................... : Elca S.r.l. Model / Type reference ............... : AT MITO-MINI+ FCC ID ........................................ : 2ABS7-ATMILS915 Rating(s) ..................................... : 3,7 Vdc from battery Report Tested by (name + signature) ..... : C. Panozzo .............................................................. Approved by (name + signature) .................................... : R. Beghetto .............................................................. CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 2 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L 1 Summary 1 Summary ........................................................................................................................................... 2 2 Reference standard .......................................................................................................................... 3 3 List of attachments ............................................................................................................................ 3 4 Deviation(s) from test specification ................................................................................................... 3 5 Testing location ................................................................................................................................. 3 6 General description of test item(s) .................................................................................................... 5 6.1 Photos of the test item ................................................................................................................. 6 7 Verdict summary section .................................................................................................................. 7 8 Test conditions .................................................................................................................................. 9 8.1 General ........................................................................................................................................ 9 9 Test results .....................................................................................................................................10 9.1 Antenna requirements ...............................................................................................................10 9.2 Radiated emissions and spurious emission ..............................................................................11 9.3 Peak Output Power....................................................................................................................54 9.4 20 dB bandwidth ........................................................................................................................58 9.5 Band edge .................................................................................................................................63 CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 3 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L 2 Reference standard FCC Rules and Regulation Title 47 part 15:2019 -- 3 List of attachments Attachment 1: Instruments list, measurement uncertainty, judgement of compliance and quality manual references 4 Deviation(s) from test specification None 5 Testing location CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 – 36016 Thiene (VI) – Italy Test site facility’s FCC registration number: 182474 Revision index Date Change history 1.0 02.12.2020 -- CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 4 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L Testing and sampling: Date of receipt of test item ....................................................... : 21.10.2020 Testing start date ..................................................................... : 26.10.2020 Testing end date ...................................................................... : 26.11.2020 Sampling procedure ................................................................. : Equipment used for testing was picked up by the manufacturer, at the end of the production process with random criterion. The results relate to the sample as it has been received. Internal identification ................................................................ : Adhesive l…

Text truncated - open the document above for the full version.

CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 36 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 37 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 38 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 39 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 40 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 41 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 42 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 43 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 44 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 45 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 46 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 47 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 48 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 49 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 50 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 51 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 52 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 53 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 54 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L 9.3 Peak Output Power Tested by .................................... : C. Panozzo Test date ..................................... : 26.11.2020 Test location (stand) ................... : Semi-anechoic chamber (CMC A070) Reference standards .................. : FCC Rules and Regulation; Titles 47 Part. 15.209 and 249 Supplementary test set-up description .................................. : EUT – antenna distance: 3 m Supplementary information ......... : -- Acceptance limits Frequency range (MHz) RF Power Output (mV/m) RF Power Output dB(μV/m) 902 – 928 50 94 Frequency range (MHz) RF Power Output (mV/m) RF Power Output dB(μV/m) 2400 – 2483,5 50 94 Test setup Test setup PE004_03 Nr. Id. Number Manufacturer Model Description 2 CMC S164 Rohde & Schwarz ESU26 Receiver 20 Hz - 26.5 GHz 1 CMC S287 Schwarzbeck VUSLP 9111B Broadband Antenna Result Channel (MHz) Polarization Graphs Measured level (dBμV/m) Limit (dBμV/m) 920,25 Worst case G20197425 88,51 94,00 920,60 Worst case G20197420 89,37 94,00 921,15 Worst case G20197413 89,88 94,00 CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 55 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L Graphs CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 56 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 57 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 36016 Thiene (VI) TRF No. 15-249CMC Page 58 of 70 Test Report No. R20197401 rev.1.0 LAB N° 0168 L 9.4 20 dB bandwidth Tested by .................................... : C. Panozzo Test date ..................................... : 26.11.2020 Test location (stand) ................... : Semi-anechoic chamber (CMC A070) Reference standards .................. : FCC Rules and Regulation; Titles 47 Part. 15.215 (c) ANSI C63.10 cl. 7.8.7 Test specification ........................ : Intentional radiators operating under the alternative provisions to the general emission limits, as contained in §§15.217 through 15.257 and…

Text truncated - open the document above for the full version.
