Genius TM Irrigation System 52 Genius Irrigation System Training Manual 250 W. 73 rd S IrriGreen, Inc. t., Suite I, Ed Phone : www 2013 IrriGreen, In ina, MN 5543 : 612‐238‐757 w.irrigreen.co 2013 IrriGree save w the ex a wasted profit p nc. 39 75 om en TM manufac ater and simp act landscape d water by 50 per installatio ctures and se plify installati e shape cuttin 0%. IrriGreen on and greate ells landscape ion. We use ng installation certified con er ownership e irrigation sys digital techno n time in half ntractors gene value to end stems that ology to wate and reducing erate more users. er g IrriGreen Genius Irrigation System – Training Manual Page 1 Changing the way we water the world™ TABLE OF CONTENTS Introduction 2 Comparison of the Genius Irrigation System to Conventional Systems 3 Key Features and Benefits of the Genius Irrigation System 4 Selling the Genius Irrigation System 5 Planning & Layout for the Genius Irrigation System 6 Installing the Genius Irrigation System 8 Programming the Genius Irrigation System 12 Maintaining the Genius Nozzle and Filt er System 18 Warranty Error! Bookmark not defined. Per FCC 15.19 (a) (3) and (a) (4): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21: The user and installer of the IrriGreen Genius Irrigation System shall not make any modifications to the system not expressly approved by IrriGreen. Unauthorized modifications will void the warranty and void the user's authority to operate the equipment per FCC rules. IrriGreen Genius Irrigation System – Training Manual Page 2 Changing the way we water the world™ IrriGreen™ Genius™ Irrigation System Training Manual Introduction The Genius irrigation system combines digital technology with a patent pending nozzle design to produce an irrigation system capable of distributing water in patterns that fit the shape of the landscape. The Genius irrigation system does this while both reducing the water required to irrigate the landscape and saving significant installation ti me and materials. The Genius irrigation system is designed to significantly reduce the labor required to install in‐ground irrigation systems while at the same time reducing water required to sufficiently water the lawn. The center of the system is the Genius sprinkler that can be programed to water a wide variety of shapes and sizes. Th is sprinkler reduces the need for distribution pipe by up to 85%, significantly cuts the number of sprinkler heads required and reduces the amount of water typically wasted to irrigate the lawn by up to 50%. While the cost of the water is born by the property owner, it is still a barrier that can be turned into an opportuni ty when selling the benefits of Genius irrigation systems to consumers. Reducing installation labor for the installer and reducing end user water bills are compelling reasons for irrigation contractors to consider switching all or part of their installation busin ess to the Genius irrigation system. The installer will be able to address business in more price sensitive areas by offering services at a reduced price while maintaining profitability on every installation. Their customers will be happier with green, hassle free lawns and lower water bills than those customers with conventional irrigation systems. This traini ng manual is a component of a training program developed to train experienced irrigation contractors on the techniques unique to installing the Genius irrigation system. This program is intended for licensed (if required by local and/or state code), experienced irrigation contractors for residential and commercial in‐ground irriga tion systems. It is not intended as a complete or comprehensive training program for installing in‐ground irrigation systems. THIS TRAINING PROGRAM IS INTENDED FOR IRRIGATION CONTRACTORS THAT ARE ALREADY LICENSED AND/OR EXPERIENCED IRRIGATION PROFESSIONALS. (NOTE: PROFESSIONAL IRRIGATION TRAINING RECOMMENDED.) The following points will be covered by this training program and manual:  Comparison of the Genius irrigation system to conventional sprinkler systems.  Key features and benefits of the Ge nius irrigation system.  Selling the Genius irrigation system.  Installation techniques unique to the Genius irrigation system.  Programming the Genius sprinklers.  Maintenance techniques unique to the Genius irrigation system.  System warranty information. IrriGr Com 1 2 reen Genius I mparison of t 1. System si  D p  D ir  R  U ir  R a n  Ir  C  U 2. System di  U s p  El  G n  G  U f r  R p  I n e  W  W rrigation Syst Changi the Genius I milarities, th esigned to be roperties. esigned for u rigation syste equires the s ses similar di rigation syst e equires the s nd is compati rrigates in wat an be used in ses the same ifferences, th ses software prinkler can b liminates the enius sprinkl e ozzle. enius sprinkl e ses 12 VDC to rom server ar equires the w rogrammer) t ncludes an Irr lectrically con Wireless progr We recommen Conventi tem – Trainin ng the w rrigation Sys he Genius irrig e permanentl use with conv em installers. ame 24 VAC l stribution pip ems, but signi ame mainten ible with regu tering zones – n conjunction e water sourc he Genius irri in sprinklers , be programm need for he a ers digitally c ers are 11.5 i o power and e allowed. water pattern to fit the indiv iGreen netwo nnected to ea rammer can b nd a master s ional System g Manual way we wa stem to Con gation system ly installed in entional irrig low voltage p pe and fitting ificantly less p nance for spri ular sequenci – 1 zone for 1 with convent e as conventi gation system , servers and ed to fit the l ad‐to‐head w ontrol the w a nches in heig communicate for each Gen vidual landsc ork server wh ach sprinkler a b…

Text truncated - open the document above for the full version.

NORTHWEST EMC, INC. 22975 NW Evergreen Pkwy, Suite 400  Hillsboro, Oregon 97124  503 844-4066  Fax 503 844-3826 Date: June 17, 2014 Federal communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Application Examiner: Northwest EMC Test report # IRRI0001 was used to support an original grant of certification for FCC ID: 2ABSA5001 issued March 17, 2014. After the grant was issued, the TCB, Northwest EMC, Inc. determined that he test report contained data only for the lowest channel. Per 15.31(m), the lowest, middle and highest channels should have been tested The grantee scheduled testing of their product at the middle and highest channels. It failed to meet the spurious radiated emissions limits while transmitting at high channel (455.92 MHz). The grantee then decided to modify the software on their product so that it would only transmit from 433.92. – 443.92 MHz The original test report has been revised to include data while transmitting at the lowest (433.92 MHz) channel, and the highest (443.92 MHz) channel. Note that FCC 15.31(m) requires only the lowest and highest channels to be tested when the operating range is 1 – 10 MHz Best regards, Tim O’Shea Operations Manager – Brooklyn Park, MN Northwest EMC, Inc. Email: [email protected] ph: (763) 425-2281

WTD 13.4.9 FCC Compliance Opinion IRRI0001 Information about the Applicant Grantee (Company Name) IrriGreen, Inc FCC Contact Person Gary Klinefelter Address 5250 W. 93rd Street, Suite 1 City, State, Zip Edina, MN 55439 Job Number IRRI0001 Model 500101 FCC ID 2ABSA5001 Agent Approval Type Original Equipment Class DXX Part 15, Low Power Communication Device Transmitter Rule Part 15.231 Overview IrriGreen is seeking FCC original certification approval for its 500101 Genius Server according to rules 15.231 and 15.207. Our Genius Server is the central control for an irrigation system that allows an in-ground electronic sprinkler, Genius Head 400101 to be controlled by a wireless programmer. Confidentiality requested for allowed files. Request is properly addressed and referenced. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 3/11/2014

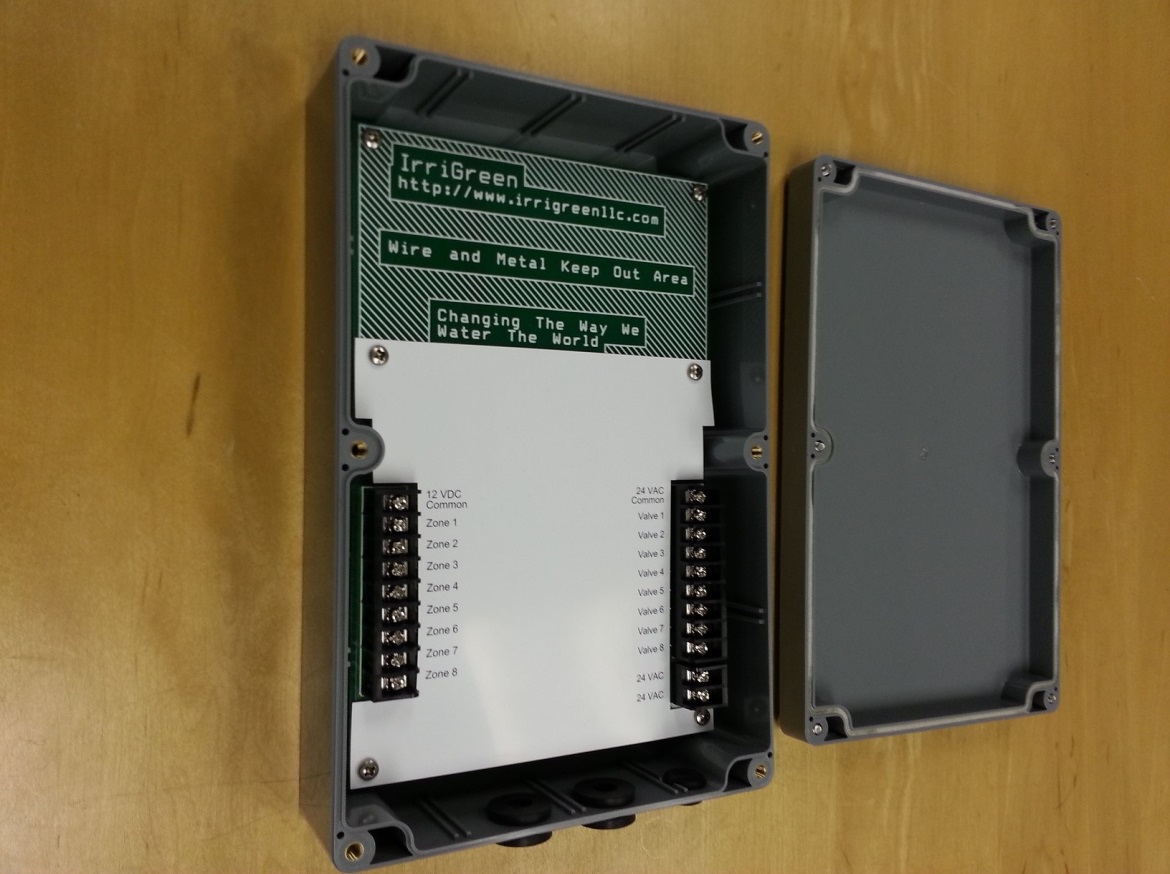

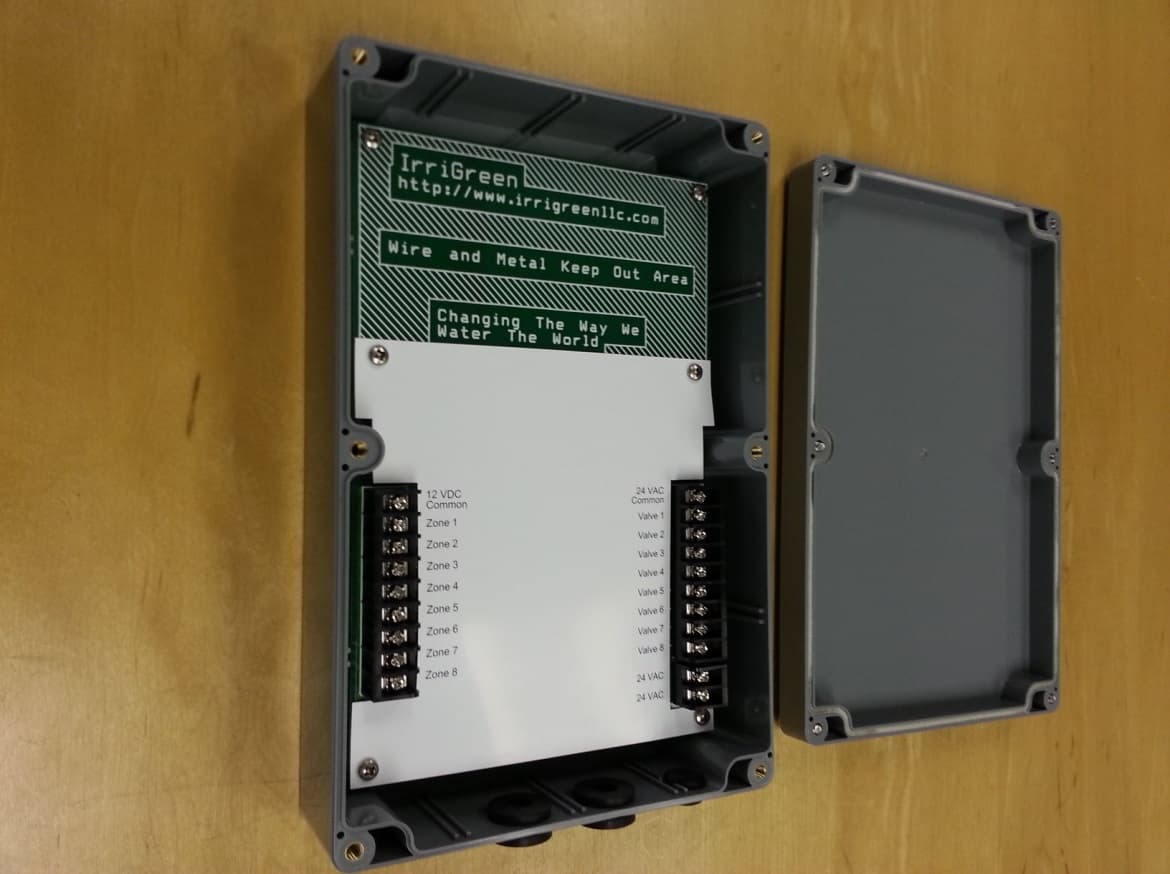

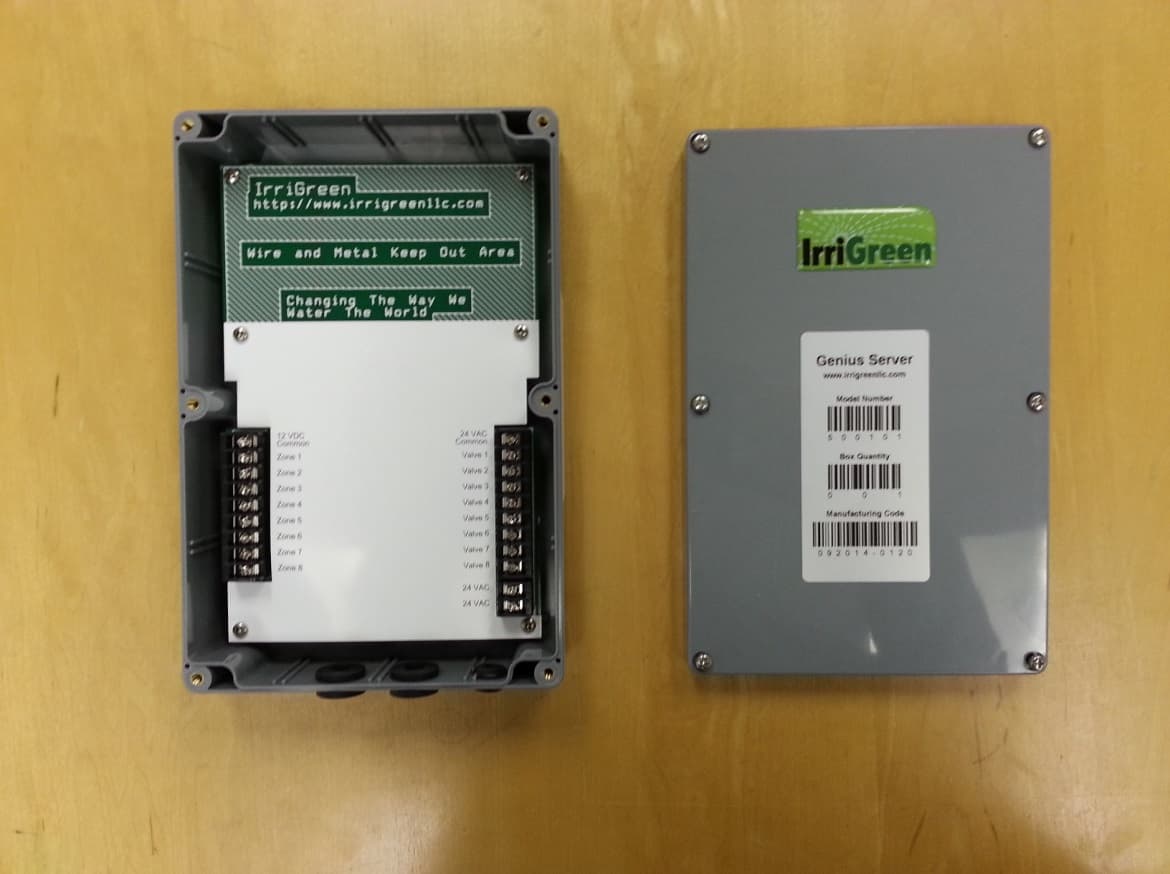

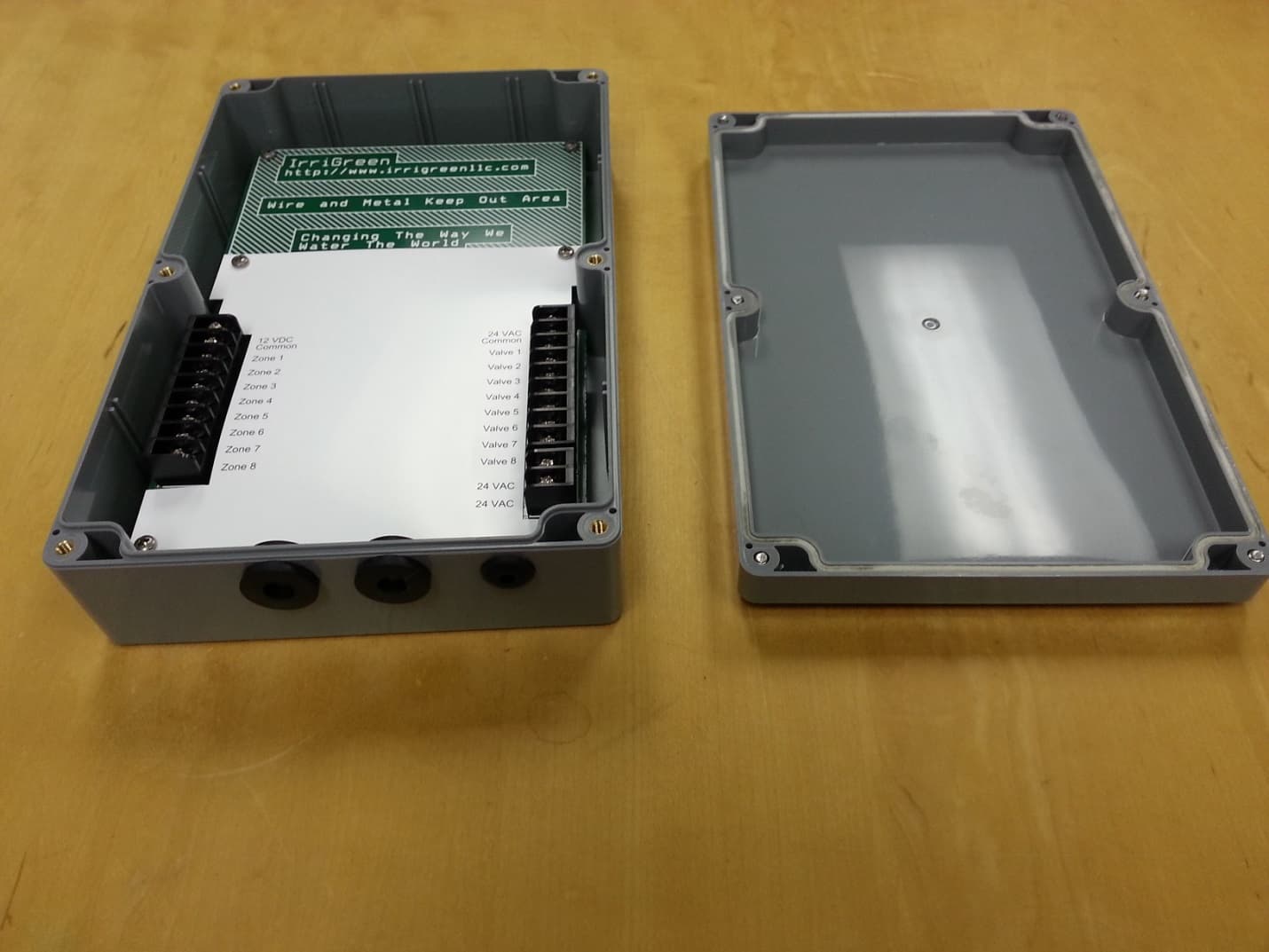

IrriGreen Server Model 500101 External Photos February 19, 2014 View of system as tested (sprinkler not shown) View of Irrigation Controller (not made by IrriGreen) Irrigation Controller 24 VAC transformer (not made by IrriGreen) IrriGreen Server Top View of IrriGreen Server Right View of IrriGreen Server Label View of IrriGreen Server Back View of IrriGreen Server Left View of IrriGreen Server Bottom View of IrriGreen Server

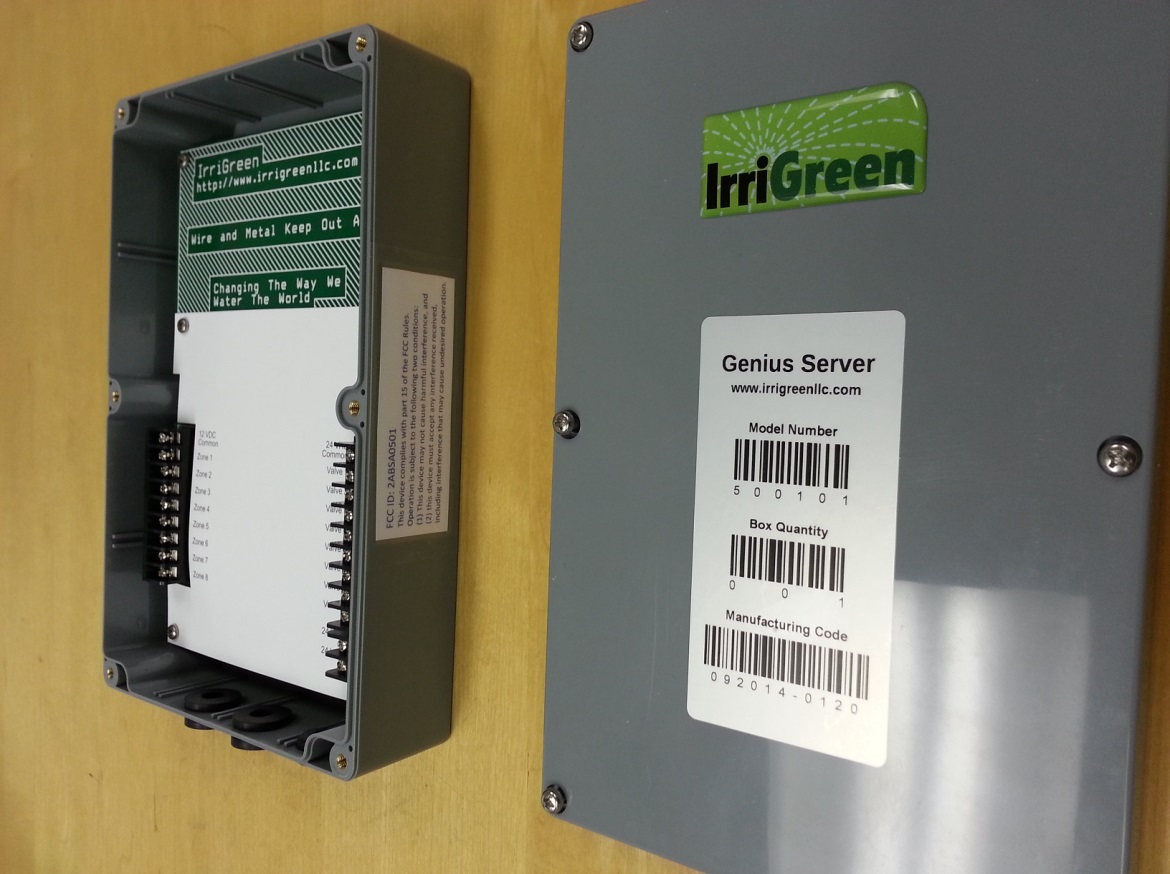

IrriGreen Server Model 500101 Label Photos March 6, 2014 Right View of IrriGreen Server Label View of IrriGreen Server

IrriGreen Server Model 500101 Internal Photos February 19, 2014 Internal View of IrriGreen Server IrriGreen Server Printed Circuit Board IrriGreen Server Antenna IrriGreen Server Radio Section

IrriGreen FCC Antenna Info March 6, 2014 IrriGreen Server Model 500101 The IrriGreen Server includes a printed circuit board antenna similar to an inverted F type. The SMC connector on the back side of the printed circuit board is for test purposes and is not connected to the antenna feed as produced. The IrriGreen Server is installed by professional irrigation installers and the circuit board antenna is encased in as shown in the photo exhibits. The antenna gain is approximately 1 dBm based on test measurements. IrriGreen Server 500101 PCB Antenna

IrriGreen, Inc. IrriGreen Genius Irrigation System FCC 15.207:2014 FCC 15.231:2014 Report #: IRRI0001 Report Prepared By Northwest EMC Inc. NORTHWEST EMC – (888) 364-2378 – www.nwemc.com California – Minnesota – Oregon – New York – Washington WTD 12.5.23 CERTIFICATE OF TEST Last Date of Test: January 15, 2014 IrriGreen, Inc. Model: IrriGreen Genius Irrigation System Emissions Test Description Specification Test Method Pass/Fail Duty Cycle FCC 15.231:2014 ANSI C63.10:2009 Pass Occupied Bandwidth FCC 15.231:2014 ANSI C63.10:2009 Pass Field of Strength Fundamental FCC 15.231:2014 ANSI C63.10:2009 Pass Spurious Radiated Emissions FCC 15.231:2014 ANSI C63.10:2009 Pass Powerline Conducted Emissions FCC 15.207:2014 ANSI C63.10:2009 Pass Deviations From Test Standards None Approved By: Tim O'Shea, Operations Manager NVLAP Lab Code: 200881-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. REV 2012.08.02 REVISION HISTORY Revision Number Description Date Page Number 00 None Barometric Pressure The recorded barometric pressure has been normalized to sea level. REV 2012.05.24 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea KCC / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. Russia GOST – Accredited by Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC to perform EMC and Hygienic testing for Information Technology products to GOST standards. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ REV 2013.03.8 MEASUREMENT UNCERTAINTY Measurement Uncertainty When a measurement is made, the result will be different from the true or theoretically correct value. The difference is the result of tolerances in the measurement system that cannot be completely eliminated. To the extent that technology allows us, it has been our aim to minimize this error. Measurement uncertainty is a statistical expression of measurement error qualified by a probability distribution. A measurement uncertainty estimation has been performed for each test per our internal quality document WP 342. The estimation is used to compare the measured result with its "true" or theoretically correct value. The expanded measurement uncertainty (K=2) for each test is listed below. Our measurement data meets or exceeds the measurement uncertainty requirements of the applicable specification; therefore, the test data can be compared directly to the specification limit to determine compliance. The calculations for estimating measurement uncertainty are based upon ETSI TR 100 028 (or CISPR 16-4-1 as applicable), and are available upon request. The following table represents the Measurement Uncertainty (MU) budgets for each of the tests that may be contained in this report. Test + MU - MU Frequency Accuracy (Hz) 0.12 -0.01 Amplitude Accuracy (dB) 0.49 -0.49 Conducted Power (dB) 0.41 -0.41 Radiated Power via Substitution (dB) 0.69 -0.68 Temperature (degrees C) 0.81 -0.81 Humidity (% RH) 2.89 -2.89 Field Strength (dB) 3.80 -3.80 AC Powerline Conducted Emissions (dB) 2.94 -2.94 REV 2013.06.28 FACILITIES Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 685-0796 Minnesota Labs MN01-08 9349 W Broadway Ave. Brooklyn Park, MN 55445 (763) 425-2281 Washington Labs NC01-05,SU02,SU07 19201 120 th Ave. NE Bothell, WA 98011 (425) 984-6600 VCCI A-0108 A-0029 A-0109 A-0110 Industry Canada 2834D-1, 2834D-2 2834B-1, 2834B-2, 2834B-3 2834E-1 2834C-1 NVLAP NVLAP Lab Code: 200630-0 NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200629-0 WTD 12.5.23 PRODUCT DESCRIPTION Client and Equipment Under Test (EUT) Information Company Name: IrriGreen, Inc Address: 5250 W. 73rd Street, Suite I City, State, Zip: Edina, MN 55439 Test Requested By: Gary Klinefelter Model: IrriGreen Genius Irrigation System First Date of Test: January 14, 2014 Last Date of Test: January 15, 2014 Receipt Date of Samples: January 14, 2014 Equipment Design Stage: Production Equipment Condition: No Damage Informat…

Text truncated - open the document above for the full version.

IrriGreen, Inc. IrriGreen Genius Irrigation System FCC 15.207:2014 FCC 15.231:2014 Report #: IRRI0001 Rev.1 Report Prepared By Northwest EMC Inc. NORTHWEST EMC – (888) 364-2378 – www.nwemc.com California – Minnesota – Oregon – New York – Washington WTD 12.5.23 CERTIFICATE OF TEST Last Date of Test: May 20, 2014 IrriGreen, Inc. Model: IrriGreen Genius Irrigation System Emissions Test Description Specification Test Method Pass/Fail Duty Cycle FCC 15.231:2014 ANSI C63.10:2009 Pass Occupied Bandwidth FCC 15.231:2014 ANSI C63.10:2009 Pass Field of Strength Fundamental FCC 15.231:2014 ANSI C63.10:2009 Pass Spurious Radiated Emissions FCC 15.231:2014ANSI C63.10:2009Pass Powerline Conducted Emissions FCC 15.207:2014 ANSI C63.10:2009 Pass Deviations From Test Standards None Approved By: Tim O'Shea, Operations Manager NVLAP Lab Code: 200881-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. REV 2012.08.02 REVISION HISTORY Revision Number Description Date Page Number 00 None 01 Updated last date 5/27/2014 2, 7, 9 01 Updated functional description 5/27/2014 7 01 Added High Channel Data 5/27/2014 13-15, 19-21, 24-25, 29-30, 31-41 Barometric Pressure The recorded barometric pressure has been normalized to sea level. REV 2012.05.24 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea KCC / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. Russia GOST – Accredited by Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC to perform EMC and Hygienic testing for Information Technology products to GOST standards. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ REV 2013.03.8 MEASUREMENT UNCERTAINTY Measurement Uncertainty When a measurement is made, the result will be different from the true or theoretically correct value. The difference is the result of tolerances in the measurement system that cannot be completely eliminated. To the extent that technology allows us, it has been our aim to minimize this error. Measurement uncertainty is a statistical expression of measurement error qualified by a probability distribution. A measurement uncertainty estimation has been performed for each test per our internal quality document WP 342. The estimation is used to compare the measured result with its "true" or theoretically correct value. The expanded measurement uncertainty (K=2) for each test is listed below. Our measurement data meets or exceeds the measurement uncertainty requirements of the applicable specification; therefore, the test data can be compared directly to the specification limit to determine compliance. The calculations for estimating measurement uncertainty are based upon ETSI TR 100 028 (or CISPR 16-4-1 as applicable), and are available upon request. The following table represents the Measurement Uncertainty (MU) budgets for each of the tests that may be contained in this report. Test + MU - MU Frequency Accuracy (Hz) 0.12 -0.01 Amplitude Accuracy (dB) 0.49 -0.49 Conducted Power (dB) 0.41 -0.41 Radiated Power via Substitution (dB) 0.69 -0.68 Temperature (degrees C) 0.81 -0.81 Humidity (% RH) 2.89 -2.89 Field Strength (dB) 3.80 -3.80 AC Powerline Conducted Emissions (dB) 2.94 -2.94 REV 2013.06.28 FACILITIES Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 685-0796 Minnesota Labs MN01-08 9349 W Broadway Ave. Brooklyn Park, MN 55445 (763) 425-2281 Washington Labs NC01-05,SU02,SU07 19201 120 th Ave. NE Bothell, WA 98011 (425) 984-6600 VCCI A-0108 A-0029 A-0109 A-0110 Industry Canada 2834D-1, 2834D-2 2834B-1, 2834B-2, 2834B-3 2834E-1 2834C-1 NVLAP NVLAP Lab Code: 200630-0 NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200629-0 WTD 12.5.23 PRODUCT DESCRIPTION Client and Equipment Under Test (EUT) Information Company Name: IrriGreen, Inc Address: 5250 W. 73rd Street, Suite I City, State, Zip: Edina, MN 55439 Test Requested By: Gary Klinefelter Model: IrriGreen Genius Irrigation System First Date of Test: January 14, 2…

Text truncated - open the document above for the full version.

photo SE 001.jpg SE 002.jpg SPURIOUS RADIATED EMISSIONS PSA-ESCI 2012.12.14 photo SE 001.jpg SE 002.jpg FIELD STRENGTH OF FUNDAMENTAL PSA-ESCI 2012.12.14 WTD.2013.07.23, PSA-ESCI 2012.12.14, EmiR5 2014.01.02 POWERLINE CONDUCTED EMISSIONS DUTY CYCLE XMit 2013.08.15 NORTHWEST DUTY CYCLE EMC SE 001.jpg SE 002.jpg DUTY CYCLE OCCUPIED BANDWIDTH XMit 2013.08.15 NORTHWEST OCCUPIED BANDWID EMC SE 001.jpg SE 002.jpg OCCUPIED BANDWIDTH
