2ABTR-E01-NYT-02Perception Neuron Studio

Description E01-NYT-02 is a 100mW industrial-grade wireless transceiver integrated data transmission module with high speed (maximum air speed is up to 2Mbps) and high stability working in 2.4GHz frequency. The module uses NORDIC original nRF24L01P RF chip and RFX2401C power amplifier chip, built-in LNA with receiving sensitivity increased by 10dBm and works in the 2.402GHz ~ 2.482G Hz ISM band.It has small harmonics, small channel crosstalk , ultra- small size. All ar e M urata original B level material, it is the industrial standard model. Electrical characteristics NO. Parameter name Parameter values Abstract 1 RF chip nRF 24L01P Nordic 2 O pe r at e frequency 2.402GHz~2.482GHz Adjusta ble，1MHz step by step 3 Supply Voltage 1.8~ 3.6VDC Voltage higher than 3.6Vwill damage the module permanently 4 Communic ation level 0.7VCC~5V VCC means the module’s supply voltage 5 Air rate 250k~2Mbps 3 levels adjustable(250kbps、 1Mbps、2Mbps) 6 Turn off current 1.0uA Set nRF4L01P as power down，CE as low level 7 Sending current 150Ma@dBm Power supply must be more than 250mA 8 Receiving current 23mA CE=1 9 Communica tion Interface SPI The maximum rate is up to 10Mbps 10 RSSI s upport Not support Only supports simple packet-loss statistics 11 Receiving sensitivity -94dBm@250kps See the chip manual for details 12 O pe r a tion temperature -40~+85°C Industrial grade 13 Storage temperature -40~+125°C Industrial grade 14 O pe r a tion humidity 10%~90%RH No condensation good spectrum characteristics, Pin D escription Re g ulatory Module Integration Instructions 2.2 List of applicable FCC rules This device complies with part 15.249 of the FCC Rules. According to the definition of mobile and fixed device is described in Part 2.1091(b), this device is a mobile device. 2.3 Summarize the specific ope rational use conditions This module can be used in household electrical appliances as well as lighting equipments. The input voltage to the module should be nominally 3.3V VDC ,typical value 3.3VDC and the ambient temperature of the module should not exceed 85°C. This module using only one kind of antennas with maximum gain is 1.5dBi .Other antenna arrangement is not covered by this certification. The antenna is not field replaceable. If the antenna needs to be changed, the certification should be re-applied. 2.4 Limited module procedures Not applicable 2.5 Trace antenna designs Not applicable 2.6 RF exposure considerations This module complies with FCC radiation exposure limits set forth for an uncontrolled environment . 2.7 Antennas Module only contains one chip antenna. No additional external connectors. 2.9 Information on test mo des and additional testing requirements a) The modular transmitter has been fully tested by the module grantee on the required number of channels, modulation types, and modes, it should not be necessary for the host installer to re-test all the available transmitter modes or settings. It is recommended that the host product manufacturer, installing the modular transmitter, perform some investigative measurements to confirm that the resulting composite system does not exceed the spurious emissions limits or band edge limits (e.g., where a different antenna may be causing additional emissions). b) The testing should check for emissions that may occur due to the intermixing of emissions with the other transmitters, digital circuitry, or due to physical properties of the host product (enclosure). This investigation is especially important when integrating multiple modular transmitters where the certification is based on testing each of them in a stand-alone configuration. It is important to note that host product manufacturers should not assume that because the modular transmitter is certified that they do not have any responsibility for final product compliance. c) If the investigation indicates a compliance concern the host product manufacturer is obligated to mitigate the issue. Host products using a modular transmitter are subject to 2.8 Label and compliance information The outside of final products that contains this module device must display a label referring to the enclosed module. This exterior label can use wording such as: “Contains Transmitter Module FCC ID: 2ABTR- ”,or “Contains FCC ID: 2ABTR- ”, Any similar wording that expresses the same meaning may be used. E01 -NYT- 02 E01- NYT-02 all the applicable individual technical rules as well as to the general conditions of operation in Sections 15.5, 15.15, and 15.29 to not cause interference. The operator of the host product will be obligated to stop operating the device until the interference has been corrected 2. 10 Additio nal testing, Part 1 5 subpart B disclaimer The final host / module combi nation need to be evaluated against the FCC Part 15B criteria for unintentional radiators in order to be properly authorized for operation as a Part 15 digital device. The host integrator installing this module into their product m ust ensure that the final composite product complies with t he FCC requirements by a techn ical assessment or evaluation to the FCC rules, i ncluding the transmitter operatio n and should refer to guidance in KDB 996369. Frequency spectrum to be investigated For host products with certifi ed modular transmitter, the frequency range of investigation of the composite system is specified by rule in Sections 15.33( a)(1) through (a)(3), or the range applicable to the digital device, as shown in Section 15.33(b)(1), whichever is the higher frequency range of investigation. Operating the host pro duct When testing the host product, all the transmitters must be operating.The transmitters can be enabled by using publicly-available drivers and turned on, so the transmitters are active. In certain conditions it might be appropriate to use a technology-specific call box (test set) where accessory devices or drivers are not available. When testing for emissions from the unintentional radiator, the transmitter shall be place…

Text truncated - open the document above for the full version.

QA-FR-170-B 7/29/2014 Company: Beijing Noitom Technology Ltd. Add: 502,Tower A,28 Xinjiekouwai Blvd, Beijing,China Tel: 010-82055391 Email: [email protected] FCC Authorization 2020-03-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Beijing Noitom Technology Ltd., Hereby authorizes Bay Area Compliance Laboratory Corp. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Wuda Liu Title: Manager

QA-FR-171-A Company: Beijing Noitom Technology Ltd. Add: 502,Tower A,28 Xinjiekouwai Blvd, Beijing,China Tel: 010-82055391 Email: [email protected] FCC Confidential Authorization Date:2020-03-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ABTR-E01-NYT-02 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Beijing Noitom Technology Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Wuda Liu Title: Manager

TEL: 010-82055391 Beijing Noitom Technology Ltd. ADD: 502,Tower A,28 Xinjiekouwai Blvd, Beijing,China E-mail: [email protected] Modular Approval Letter Date: 2020-03-12 To whom it may concern: We, Beijing Noitom Technology Ltd., hereby request Modular Approval for Product: Perception Neuron Studio (Model number: E01-NYT-02, FCC ID: 2ABTR-E01-NYT-02). The EUT meets the requirement for modular approval as detailed in FCC 15.212.The requirements is described below: 1. The modular transmitter have its own RF shielding. Please refer the product photo. 2. The modular transmitter has buffered modulation/data inputs, Buffered data inputs stage has been integrated in chip (Model: nRF24L01P). 3. The modular transmitter has its own power supply regulation. Please refer to the Block Diagram. 4. Comply with the antenna requirements of Section 15.203 and 15.204(c), the module has 1 internal Antenna with 1.5dBi antenna gain. 5. The modular transmitter be tested in a stand-alone configuration,please refer to the setup photos. 6. The modular transmitter have a label on the modular’s shielding, labeled with its own FCC ID number: 2ABTR-E01-NYT-02 7. Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The necessary explanation to be complied with this requirement is contained in the user manual, and please refers to the User Manual. 8. Comply with any applicable RF exposure requirements in its final configuration. Sincerely Yours, Signature: Printed Name: Wuda Liu Title: Manager Single S in g l e FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046

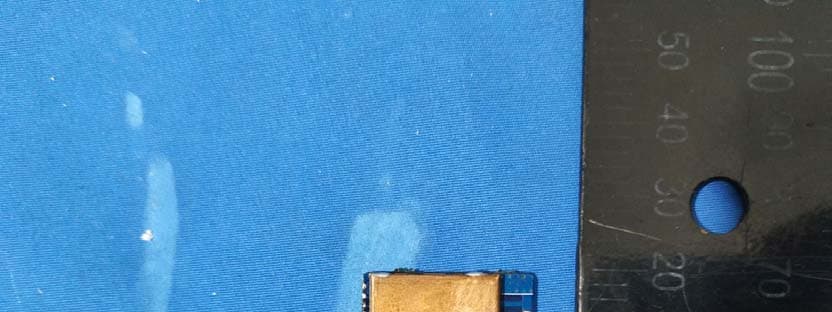

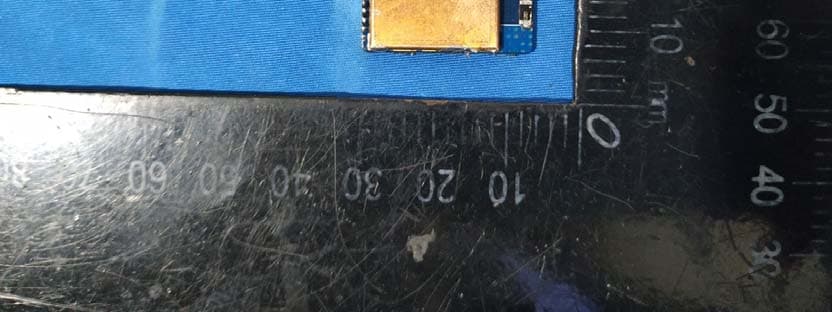

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

Label Artwork Label Location

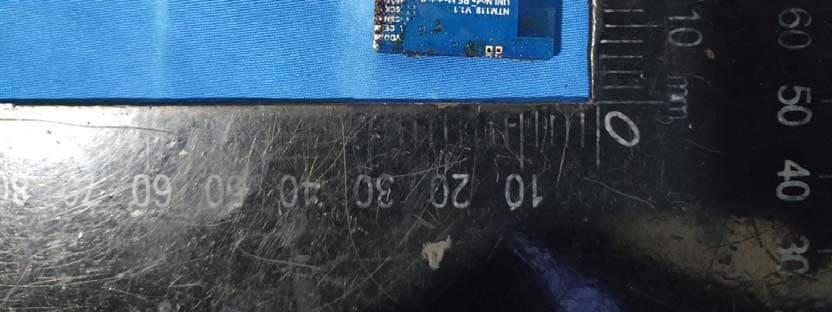

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS ANT

FCC PART 15.249 TEST REPORT For Beijing Noitom Technology Ltd. 502,Tower A,28 Xinjiekouwai Blvd, Beijing,China FCC ID: 2ABTR-E01-NYT-02 Report Type: Original Report Product Name: Perception Neuron Studio Re port Number: RBJ191126054-00 Re port Date: 2019-12-26 Reviewed By: Gavin Xu RF Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RBJ191126054-00 Page 2 of 23 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 DECLARATIONS ............................................................................................................................................................ 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS ........................................................................................................ 5 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 8 FCC §15.207 (A)– AC LINE CONDUCTED EMISSIONS ....................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 EUT SETUP .................................................................................................................................................................. 9 EMI TEST RECEIVER SETUP ......................................................................................................................................... 9 TEST PROCEDURE ...................................................................................................................................................... 10 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 11 FCC§15.205, §15.209&§15.249- RADIATED EMISSIONS .................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 TEST EQUIPMENT SETUP ............................................................................................................................................ 14 TEST PROCEDURE ...................................................................................................................................................... 14 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 15 TEST EQUIPMENT LIST AND DETAILS ............................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
