2ABTTIBK10Bluetooth Low Energy Advertising Device

ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com Ibks10 – Version 2.0 Bluetooth Low Energy ® advertising beacon device www.accent-systems.com pag.1/8 IBks10 – Version 2.0 Features Product image • Bluetooth LE Advertising packets • Compatible with Apple® iBeacons definition • Compatible with all Bluetooth 4.0 (and above) devices • Ultra low power • Up to 2 years life battery with CR2032 • User button feature • Configurable parameters ◦ TX Power ◦ Advertising frequency ◦ UUID, Major and Minor values ◦ Password change • Password protected ODA firmware upgrade (wireless) Applications • Indoor location applications • Indoor/outdoor tracking • Bluetooth marketing Advertising Packet iBks series devices start to send the advertising packet as soon as they are powered up with standard 3V CR2032 coin cell. The advertising packet follows the Apple iBeacons standard and has the following structure: Byte Value CONFIGURATION OVER GATT SERVICE 0xFFF0 Characteristic UUID Characteristic value length Default factory value 0 0x02 CONSTANT PREAMBLE 1 0x01 2 0x1A 3 0x1A 4 0xFF 5 0x4C 6 0x00 7 0x02 8 0x15 9 UUID[0] 0xFFF1 16 bytes 0x53 10 UUID[1] 0xFFF1 16 bytes 0x44 11 UUID[2] 0xFFF1 16 bytes 0x58 12 UUID[3] 0xFFF1 16 bytes 0x30 13 UUID[4] 0xFFF1 16 bytes 0x35 14 UUID[5] 0xFFF1 16 bytes 0x84 15 UUID[6] 0xFFF1 16 bytes 0x11 16 UUID[7] 0xFFF1 16 bytes 0xE3 17 UUID[8] 0xFFF1 16 bytes 0xAA 18 UUID[9] 0xFFF1 16 bytes 0x6E 19 UUID[10] 0xFFF1 16 bytes 0x08 20 UUID[11] 0xFFF1 16 bytes 0x00 21 UUID[12] 0xFFF1 16 bytes 0x20 22 UUID[13] 0xFFF1 16 bytes 0x0C ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com Ibks10 – Version 2.0 Bluetooth Low Energy ® advertising beacon device www.accent-systems.com pag.2/8 23 UUID[14] 0xFFF1 16 bytes 0x9A 24 UUID[15] 0xFFF1 16 bytes 0x66 25 Major[0] 0xFFF2 2 bytes 0x01 26 Major[1] 0xFFF2 2 bytes 0xFF 27 Minor[0] 0xFFF3 2 bytes 0x00 28 Minor[1] 0xFFF3 2bytes 0xEE 29 MeasuredCalPower1m 0xFFF4 1 byte 0xC6 30 batteryLevel + Button state read Only. bXXXXXXXY, where X bits are Battery level and Y Button status. Service UUID 0xFFF0 Charcteristic UUID Length Parameter Comments 0xFFF1 16 Bytes UUID iBeacon protocol 0xFFF2 2 Bytes Major iBeacon protocol 0xFFF3 2 Bytes Minor iBeacon protocol 0xFFF4 1 Bytes Measured Cal Power 1m iBeacon protocol 0xFFF5 2 Bytes Change adv interval 625us/step from 32 to 16384 0xFFF6 1 Byte Change TX power Possible values: 0: -23 dBm 1: -6 dBm 2: + 0 dBm 3: +4Bm 0xFFF7 1 Byte Change password 8 bit micro-switch ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com Ibks10 – Version 2.0 Bluetooth Low Energy ® advertising beacon device www.accent-systems.com pag.3/8 Configuration Set the secret password (default factory value 00000000) in the 8 bit microswitch and press the button to enter in configuration mode, then a GATT service will be available for some time. iBks parameters can be configured by any BLE Central device writing on the following characteristics of the 0xFFF0 service: Usage Accordingly to the Apple® iBeacons protocol, iBks10 will advertise the packet with the fixed preamble and the user data as described above. All other platforms can also read this data and process like iOS does it. Broadcast the button status is interesting for user interaction applications since smartPhone APP can detect the status and how close the user is to the iBks. The applications are limited just by imagination. ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com Ibks10 – Version 2.0 Bluetooth Low Energy ® advertising beacon device www.accent-systems.com pag.4/8 iBks also broadcasts the Battery level, so developers can use the smartPhone APP as a battery level tracking tool. If some of them have to be replaced the APP can report to the server. ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com Ibks10 – Version 2.0 Bluetooth Low Energy ® advertising beacon device www.accent-systems.com pag.5/8 Dimensions (in mm) ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com Ibks10 – Version 2.0 Bluetooth Low Energy ® advertising beacon device www.accent-systems.com pag.6/8 Images ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com Ibks10 – Version 2.0 Bluetooth Low Energy ® advertising beacon device www.accent-systems.com pag.7/8 Label info 1. FCC Caution: "Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment." 2. FCC Statement: "This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com Ibks10 – Version 2.0 Bluetooth Low Energy ® advertising beacon device www.accent-systems.com pag.8/8 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help." This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) t…

Text truncated - open the document above for the full version.





 !""!#   $ % & '%() & '*+,--,-, --,&
          ,".$.!/
0.  ,".$,  ,".$.1-
- ",1-  ,".$."23-$  ,".$. ,.  ,".345


    ,-6-0,- ,/&760,.6 8.-890,60,,6,66-0,-&:-0 ,,09,,-&         ",--,;,6-.-.9,, .-69.,--.. ,-&
     ",--,;,6,.9,,.- 69-< .,,=>-. ,?- ./0&",6-.6.-./0, -,-& --9,,-"3@,, 6.00,-,-.6,-&"3@, 9,,.6--$:
 2 % '&  +  !AAAAAAAAAAAAAAAAAAAAA(>1)AAAA5&B.AAAAAAAAAAAAAAA ( 0 ")($.)

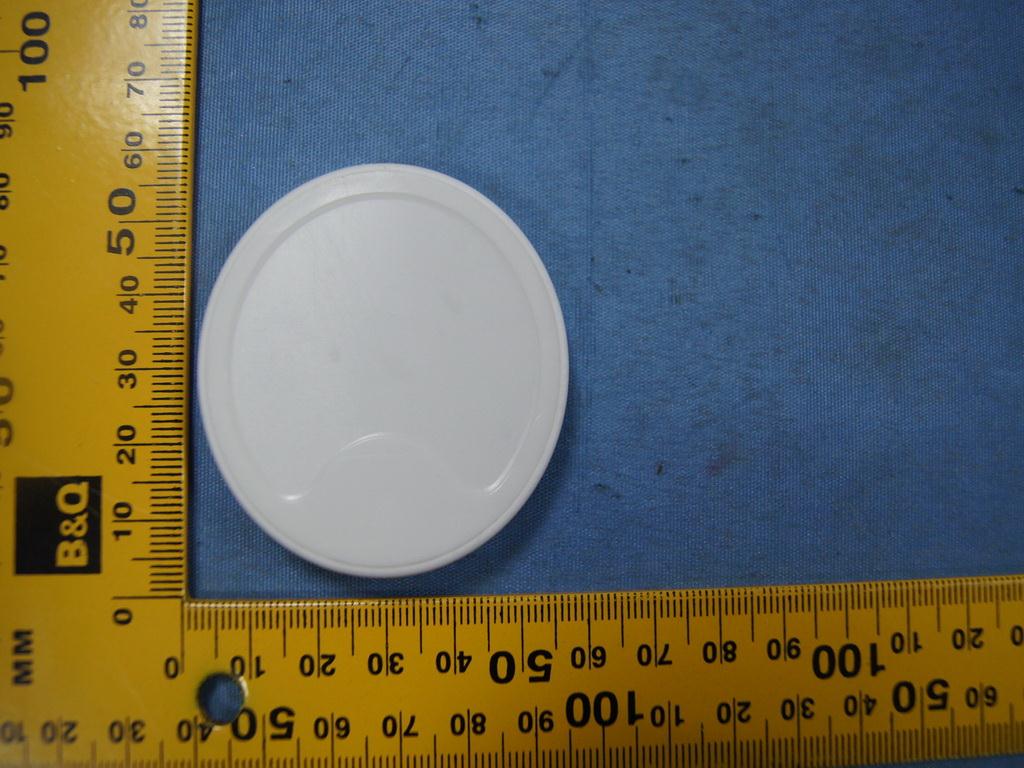

Page 1 of 1 Type Designation: IBK10 Report Number: 17042940 002 Fig. 1: External view Fig. 2: External view

Page 1 of 2 Type Designation: IBK10 Report Number: 17042940 002 Fig. 1: Internal view Fig. 2: Internal view Page 2 of 2 Type Designation: IBK10 Report Number: 17042940 002 Fig. 3: Internal view Fig. 4: Internal view

Produkte Products RF Exposure Compliance Seite 1 von 1 Page 1 of 1 Product: Bluetooth Low Energy Advertising packets FCC ID: 2ABTTIBK10 Radio Frequency Exposure Compliance RESULT: Passed Test standard : FCC KDB Publication 447498 v05r02 The minimum distance for the EUT is 5mm, since maximum peak output power of the transmitter is 3.84mW <10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB Publication 447498 D01 General RF Exposure Guidance v05r02.

Produkte Products TÜV Rheinland LGA Products GmbH
Tillystraße 2
D - 90431 Nürnberg
Tel.: +49 911 655 5225
Fax: +49 911 655 5226 Mail: [email protected]
Web: www.tuv.comom Prüfbericht-Nr.: Test Report No.: 17042940 002 Auftrags-Nr.: Order No.: 164010483 Seite 1 von 24 Page 1 of 24 Kunden-Referenz-Nr.: Client Reference No.: N/A Auftragsdatum: Order date: 14.01.2014 Auftraggeber: Client: Accent Advanced Systems SLU Bergueda 43 Local 18, Castellar del Valles 08211, Spain Prüfgegenstand: Test item: Bluetooth Low Energy Advertising Device Bezeichnung / Typ-Nr.: Identification / Type No.: IBKS10 Auftrags-Inhalt: Order content: FCC Certification and Verification Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 Wareneingangsdatum: Date of receipt: 14.01.2014 Prüfmuster-Nr.: Test sample No.: A000039552-001 Prüfzeitraum: Testing period: 15.03.2014 - 29.04.2014 Ort der Prüfung: Place of testing: Shenzhen Accurate Technology Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 28.09.2014 Owen Tian / Senior Project Manager kontrolliert von / reviewed by: 30.09.2014 Winnie Hou / Technical Certifier Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No. 17042940 002 Seite 2 von 24 Page 2 of 24 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Passed 5.1.4 -6DB BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17042940 002 Seite 3 von 24 Page 3 of 24 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 T RACEABILITY .................................................................................................................. 6 2.4 CALIBRATION ................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. G ENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 I NDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 8 3.5 SUBMITTED DOCUMENTS .................................................................................................. 8 4. T EST SET-UP AND OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 10 4.5 TEST SETUP DIAGRAM .................................................................................................... 10 5. T EST RESULTS ............................................................................................................... 12 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 12 5.1.1 Antenna Requirement ............................................................................................................…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17042940 002 Seite 22 von 24 Page 22 of 24 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 2: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17042940 002 Seite 23 von 24 Page 23 of 24 Photograph 3: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 4: Set-up for Spurious Emissions (18GHz-26GHz)
