2ABTTUSMART10Bluetooth Low Engery Module

ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com uSmart10 – Version 2.0 Bluetooth Low Energy ® module www.accent-systems.com pag.1/6 uSmart 10 Features • Bluetooth LE Module • Based on TI®CC2540 • User programable with BLE profiles • FCC, IC and CE compliant Product image Applications • BLE compatible accessories Pinout (TOP VIEW) ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com uSmart10 – Version 2.0 Bluetooth Low Energy ® module www.accent-systems.com pag.2/6 PIN NUMBER INTERNAL NAME 1 P24 / OSC32K 2 P23 / OSC32K 3 DCLK 4 DDAT 5 P20 6 P17 7 P16 8 PUSBCL_P 9 PUSBCL_N 10 D_USB 11 P15 12 P14 13 P13 14 P12 15 P11 16 GND 17 P10 18 PG_EXT_RESET 19 VCC 20 P07 21 P06 22 P05 23 P04 24 P03 25 P02 26 P01 ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com uSmart10 – Version 2.0 Bluetooth Low Energy ® module www.accent-systems.com pag.3/6 27 P00 Firmware upload interface • DCLK, DDAT, VCC, GND and PG_EXT_RESET is the interface to upload new firmwares to module. Optional low frecuency clock • Opcional 32.768 Hz clock can be connected to perform 500 nA of current consumption in low power mode. Crystal may be connected in pins 1 and 2. ◦ Maximum crystal tolerance +-40 ppm. ◦ ESR 40 to 130 kOhms ◦ Maximum shunt capacitance 2pF. ◦ Load capacitance up to 16pF. Dimensions (in mm) ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com uSmart10 – Version 2.0 Bluetooth Low Energy ® module www.accent-systems.com pag.4/6 Compilance information Specification Compilance FCC IC CE RoHs ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com uSmart10 – Version 2.0 Bluetooth Low Energy ® module www.accent-systems.com pag.5/6 Label information ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com uSmart10 – Version 2.0 Bluetooth Low Energy ® module www.accent-systems.com pag.6/6 1. FCC Caution: "Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment." This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2. FCC Statement: "This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help."





 !""# $ "   % & ' (&)* ' (+,-..-.- ..-'
          -"/%/!0
1/  -"/%-  -"/%/2.
. "-2.  -"/%/"3#.%  -"/%/ -/  -"/#4$


    -.5.1-. -0'651-/5 7/.781-51--5-55.1-.'9.1 --18--.'         "-..-:-5././8-- /.58/-..// -.'
     "-..-:-5-/8--/. 58.; /--<=./ ->. /01'"-5./5/./01- .-.' ..8--."#?-- 5/11-.-./5-.'"#?- 8--/5..%9
 3 & ('  ,  !@@@@@@@@@@@@@@@@@@@@)=2*@@@@@@@@@$'A/@@@@@@@@@@@@ ) 1 "*)%/*

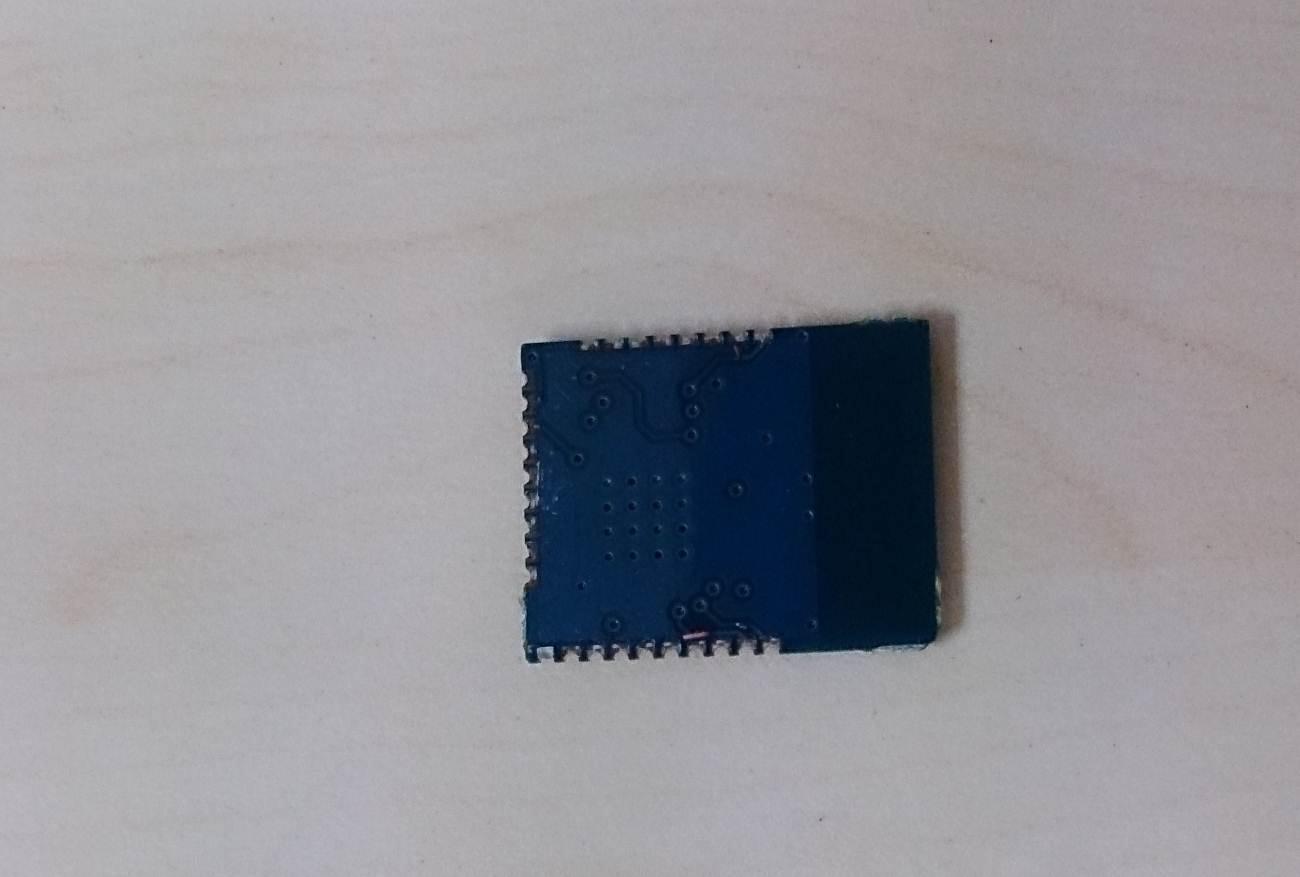

Page 1 of 1 Type Designation: USMART10 Report Number: 17042940 001 Fig. 1: External view Fig. 2: External view

ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com uSmart10 – Version 2.0 Bluetooth Low Energy ® module www.accent-systems.com pag.1/2 Label information 1. FCC ID: 2ABTTUSMART10 2. FCC statement: "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation." (Or in manual if product too small) ACCENT ADVANCED SYSTEMS S.L.U. e-mail:[email protected] www.accent-systems.com uSmart10 – Version 2.0 Bluetooth Low Energy ® module www.accent-systems.com pag.2/2 3. Model number: USMART10

Page 1 of 1 Type Designation: USMART10 Report Number: 17042940 001 Fig. 1: Internal view Fig. 2: Internal view

Produkte Products RF Exposure Compliance Seite 1 von 1 Page 1 of 1 Product: Bluetooth Low Energy Module FCC ID: 2ABTTUSMART10 Radio Frequency Exposure Compliance RESULT: Passed Test standard : FCC KDB Publication 447498 v05r02 The minimum distance for the EUT is 5mm, since maximum peak output power of the transmitter is 3.84mW <10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB Publication 447498 D01 General RF Exposure Guidance v05r02.

Produkte Products TÜV Rheinland LGA Products GmbH
Tillystraße 2
D - 90431 Nürnberg
Tel.: +49 911 655 5225
Fax: +49 911 655 5226 Mail: [email protected]
Web: www.tuv.comom Prüfbericht-Nr.: Test Report No.: 17042940 001 Auftrags-Nr.: Order No.: 164010483 Seite 1 von 24 Page 1 of 24 Kunden-Referenz-Nr.: Client Reference No.: N/A Auftragsdatum: Order date: 14.01.2014 Auftraggeber: Client: Accent Advanced Systems SLU Bergueda 43 Local 18, Castellar del Valles 08211, Spain Prüfgegenstand: Test item: Bluetooth Low Energy Module Bezeichnung / Typ-Nr.: Identification / Type No.: USMART10 Auftrags-Inhalt: Order content: FCC Certification and Verification Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 Wareneingangsdatum: Date of receipt: 14.01.2014 Prüfmuster-Nr.: Test sample No.: A000039552-001 Prüfzeitraum: Testing period: 15.03.2014 - 29.04.2014 Ort der Prüfung: Place of testing: Shenzhen Accurate Technology Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 28.09.2014 Owen Tian / Senior Project Manager kontrolliert von / reviewed by: 30.09.2014 Winnie Hou / Technical Certifier Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No. 17042940 001 Seite 2 von 24 Page 2 of 24 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Passed 5.1.4 -6DB BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17042940 001 Seite 3 von 24 Page 3 of 24 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 T RACEABILITY .................................................................................................................. 6 2.4 CALIBRATION ................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. G ENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 I NDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 8 3.5 SUBMITTED DOCUMENTS .................................................................................................. 8 4. T EST SET-UP AND OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 10 4.5 TEST SETUP DIAGRAM .................................................................................................... 10 5. T EST RESULTS ............................................................................................................... 12 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 12 5.1.1 Antenna Requirement ................................................................................................................ 12 5.…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17042940 001 Seite 22 von 24 Page 22 of 24 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 2: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17042940 001 Seite 23 von 24 Page 23 of 24 Photograph 3: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 4: Set-up for Spurious Emissions (18GHz-26GHz)
