2ABTU-MT7030Mobile Data Terminal

VIKING Mobile Data Terminal User¡s Manual Model: MT7030 v1.1 2 Contents CONTENTS ...................................................................................................................................... 2 SAFETY PRECAUTIONS ................................................................................................................. 3 REGULATORY AND CERTIFICATION ............................................................................................. 4 FCC .............................................................................................................................................. 4 CE MARKING ......................................................................................................................................................... 5 LITHIUM BATTERY SAFETY STATEMENT .......................................................................................................................... 5 CHAPTER 1. PRODUCT INTRODUCTION ...................................................................................... 6 HARDWARE SPECIFICATIONS .............................................................................................................................. 6 ENVIRONMENT ....................................................................................................................................................... 7 I/O PORTS .............................................................................................................................................................. 8 DIMENSION AND WEIGHT ..................................................................................................................................... 9 VIKING Standard ...................................................................................................................... 9 PACKAGE LIST ..................................................................................................................................................... 10 CHAPTER 2. HARDWARE INSTALLATION ......................................................................................... 11 INSTALLING/REMOVING THE SIM CARD............................................................................................................ 11 CHAPTER 3. HARDWARE MOUNTING......................................................................................... 12 CHAPTER 4. START UP ................................................................................................................ 12 POWERING THE SYSTEM .................................................................................................................................... 12 Installation Instructions ............................................................................................................ 13 LED STATUS........................................................................................................................................................................ 17 ADJUST THE SPEAKER VOLUME ........................................................................................................................ 18 AUTO-BRIGHTNESS ADJUSTMENT .................................................................................................................... 18 INTERNAL MICROPHONE..................................................................................................................................... 19 PROGRAMMABLE BUTTONS ............................................................................................................................... 19 POWER MANAGEMENT ....................................................................................................................................... 19 CHAPTER 5. JUMPERS AND CONNECTORS .............................................................................. 20 BOTTOM VIEW ..................................................................................................................................................... 20 EXTERNAL CONNECTORS PIN ASSIGNMENTS ................................................................................................. 21 Power Connector .................................................................................................................... 21 3 Safety Precautions 4 Regulatory and Certification FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Shielded interconnect cables and shielded AC power cable must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system¡s manufacturer cou…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division June 18, 2020 ATTESTATION FCC ID: 2ABTU-MT7030 Product: Mobile Data Terminal Model: MT7030 We don’t provide any controls or software to allow operation outside the USA frequency band when we sell a product bearing the FCC ID: 2ABTU-MT7030 anywhere in the world. Sincerely, ------------------------------------------------------------ Jay Wu / Manager RuggON Corporation Tel: +886-2-87516008 Fax: +886-2-87518878 Email: [email protected]

FCC ID.: 2ABTU-MT7030 Date: June 18, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Type of Confidentiality Requested Exhibit ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term Internal Photos ☒ Permanent Operation Description/Theory of Operation ☐ Permanent Parts List & Placement/BOM ☐ Permanent Tune-Up Procedure ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term User’s Manual The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely, ------------------------------------------------------ Name: Jay Wu Title: Manager RuggON Corporation

FCC ID.: 2ABTU-MT7030 Date: August 3, 2020 Federal Communications Commission Authorization and Evaluation Division To whom it may concern: This letter will declaration that this device only use in the vehicles and it will be fixed in the vehicles, cannot be used as portable. The distance between device and end-user is over 20cm. And this device use DC power, not battery. Whether the product is turned on depends on ACC(accessory) of the vehicles through DC power cable. This device cannot be turned on if it does not connect to ACC. Also, this device will be auto power off in one minute after ACC off. This device cannot be turned on when ACC is off. Schematic drawing for ACC(accessory): If there are any questions, please feel free to contact us. Sincerely, _______________________ Name: Jay Wu Title: Manager Company name: RuggON Corporation

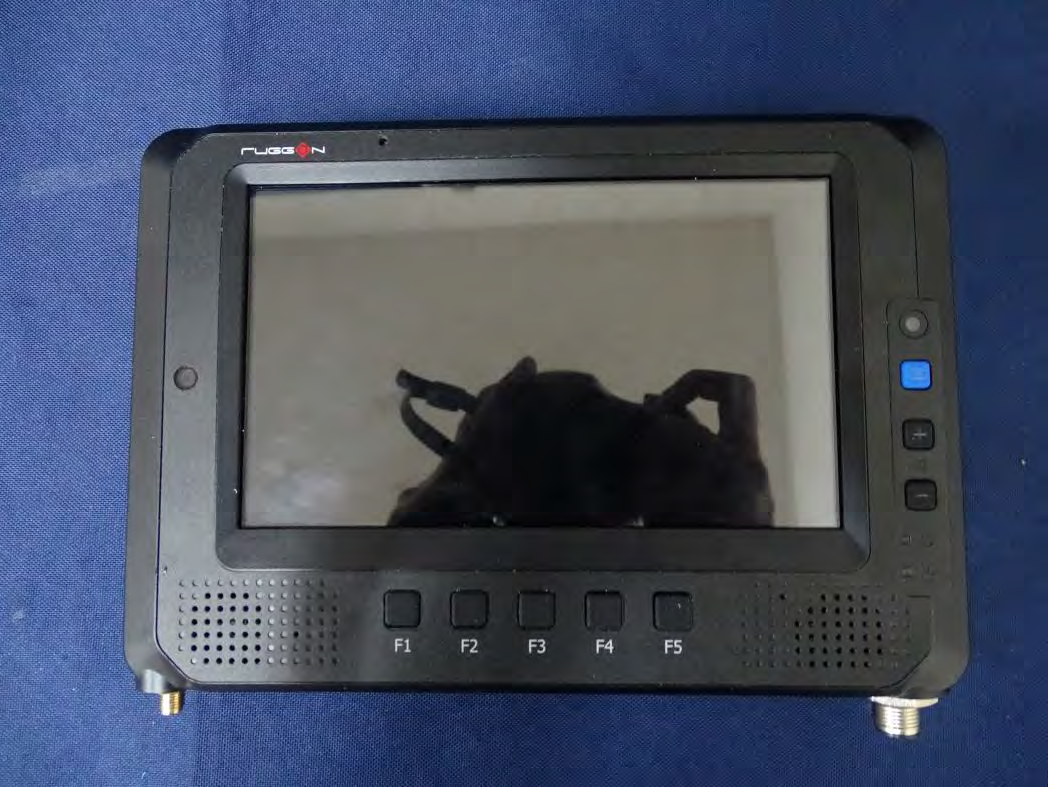

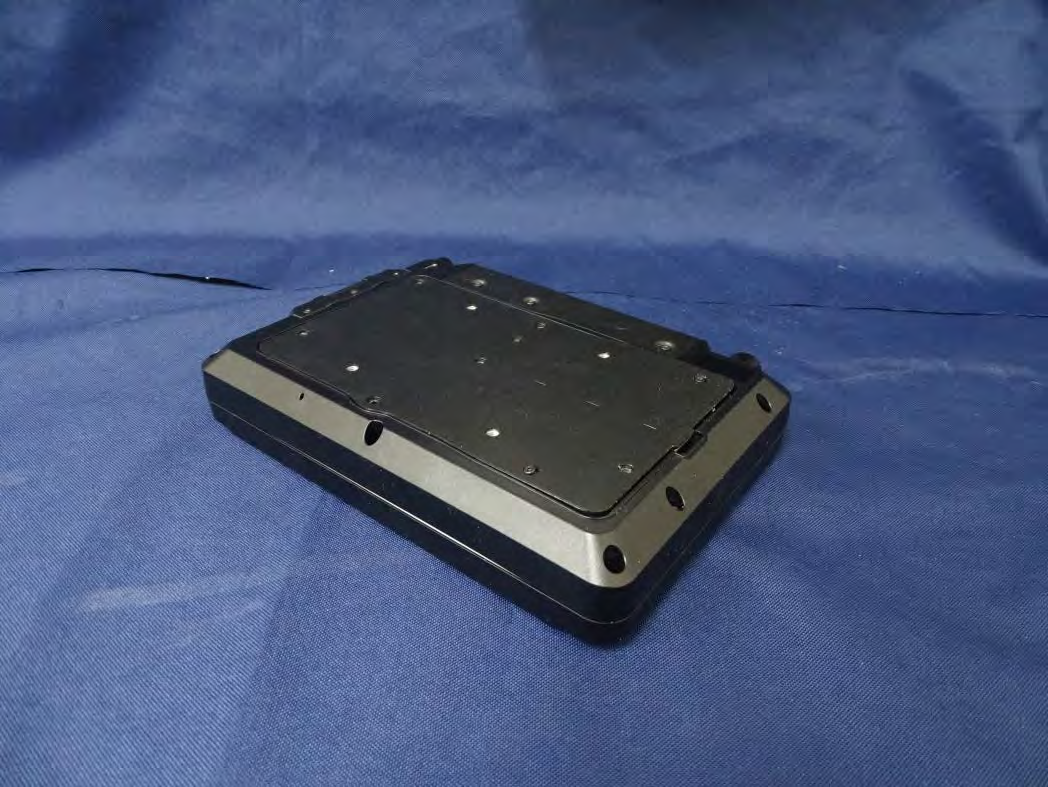

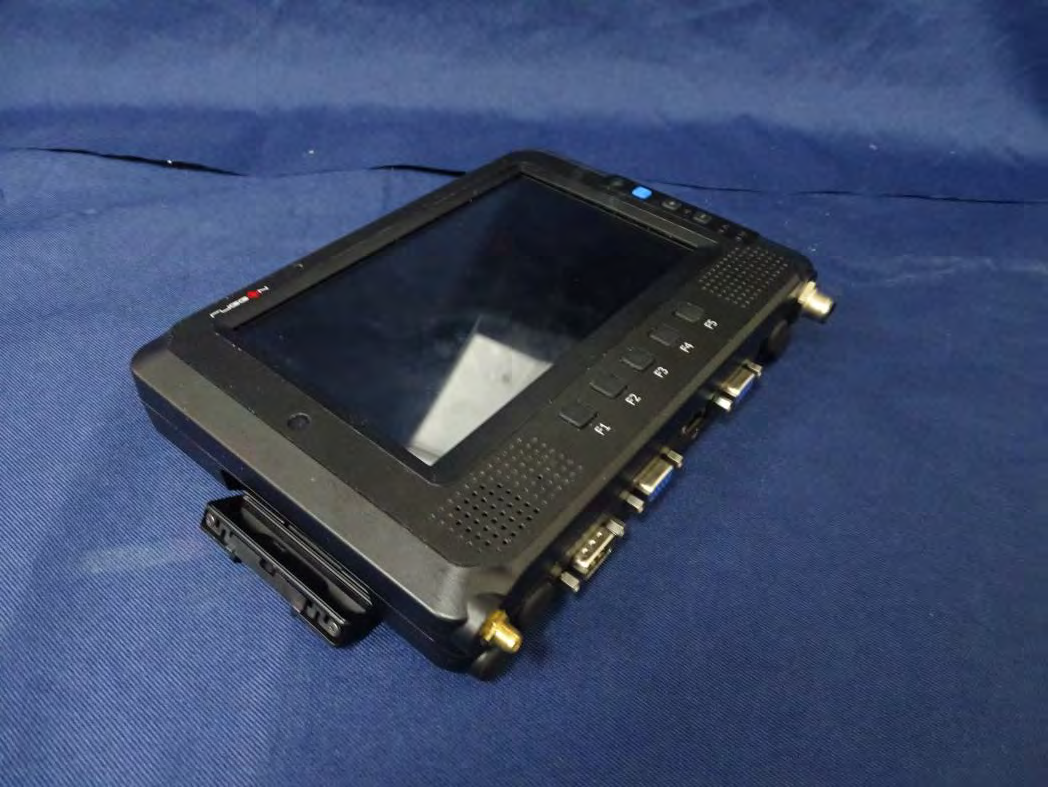

Page : 1 of 3 Attachment 2 : EUT Detailed Photographs – External Report No.: 2030836R-RFUSP17V01; 2030836R-RFUSP29V00 (1) EUT Photo (2) EUT Photo Draft Page : 2 of 3 (3) EUT Photo (4) EUT Photo Draft Page : 3 of 3 (5) EUT Photo (6) EUT Photo Draft

RuggON Corporation FCC ID.: 2ABTU-MT7030 4F, No. 298, Yang Guang St., Neihu Dist., Taipei City, Taiwan Tel : 886-2-87516008 FCC ID Label

RuggON Corporation FCC ID.: 2ABTU-MT7030 4F, No. 298, Yang Guang St., Neihu Dist., Taipei City, Taiwan Tel : 886-2-87516008 FCC ID Label

Page : 1 of 23 Attachment 3 : EUT Detailed Photographs – Internal Report No.: 2030836R-RFUSP17V01; 2030836R-RFUSP29V00 (1) EUT Photo (2) EUT Photo Draft Page : 2 of 23 (3) EUT Photo (4) EUT Photo Draft Page : 3 of 23 (5) EUT Photo (6) EUT Photo Draft Page : 4 of 23 (7) EUT Photo (8) EUT Photo Draft Page : 5 of 23 (9) EUT Photo (10) EUT Photo Draft Page : 6 of 23 (11) EUT Photo (12) EUT Photo Draft Page : 7 of 23 (13) EUT Photo (14) EUT Photo Draft Page : 8 of 23 (15) EUT Photo (16) EUT Photo Draft Page : 9 of 23 (17) EUT Photo (18) EUT Photo Draft Page : 10 of 23 (19) EUT Photo -RFID (20) EUT Photo Draft Page : 11 of 23 (21) EUT Photo (22) EUT Photo NFC Chip Draft Page : 12 of 23 (23) EUT Photo (24) EUT Photo WLAN Antenna WLAN Antenna LTE Antenna LTE Antenna NFC Antenna Draft Page : 13 of 23 (25) EUT Photo (26) EUT Photo Draft Page : 14 of 23 (27) EUT Photo (28) EUT Photo –LTE Antenna Draft Page : 15 of 23 (29) EUT Photo – LTE Antenna (30) EUT Photo Draft Page : 16 of 23 (31) EUT Photo (32) EUT Photo Draft Page : 17 of 23 (33) EUT Photo (34) EUT Photo Draft Page : 18 of 23 (35) EUT Photo (36) EUT Photo Draft Page : 19 of 23 (37) EUT Photo (38) EUT Photo Draft Page : 20 of 23 (39) EUT Photo – RFID Antenna (40) EUT Photo Draft Page : 21 of 23 (41) EUT Photo (42) EUT Photo Draft Page : 22 of 23 (43) EUT Photo (44) EUT Photo – WLAN Antenna Draft Page : 23 of 23 (45) EUT Photo – WLAN Antenna Draft

Report No. 2030836R-RFUSP17V01 Page: 1 of 37 FCC Test Report Product Name Mobile Data Terminal Model No. MT7030 FCC ID 2ABTU-MT7030 Applicant RuggON Corporation Address 4F, No. 298, Yang Guang St., Neihu Dist., Taipei City, Taiwan Date of Receipt Mar. 31, 2020 Issued Date Jul. 02, 2020 Report No. 2030836R-RFUSP17V01 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No. 2030836R-RFUSP17V01 Page: 2 of 37 Te s t R e p o r t Issued Date: Jul. 02, 2020 Report No.: 2030836R-RFUSP17V01 Product Name Mobile Data Terminal Applicant RuggON Corporation Address 4F, No. 298, Yang Guang St., Neihu Dist., Taipei City, Taiwan Manufacturer RuggON Corporation Model No. MT7030 FCC ID. 2ABTU-MT7030 EUT Rated Voltage DC 9~36V EUT Test Voltage DC 24V Trade Name RuggON Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2018 ANSI C63.4: 2014, ANSI C63.10: 2013 Test Result Complied Documented By : ( Senior Adm. Specialist / Anny Chou ) Tested By : ( Assistant Engineer / Trista Huang ) Approved By : ( Director / Vincent Lin ) Report No. 2030836R-RFUSP17V01 Page: 3 of 37 Revision History Report No. Version Description Issued Date 2030836R-RFUSP17V01 V1.0 Initial issue of report. 2020-07-02 Report No. 2030836R-RFUSP17V01 Page: 4 of 37 TA B L E O F C O N T E N T S Description Page 1. GENERAL INFORMATION ................................................................................................ 5 1.1. EUT Description ...................................................................................................................... 5 1.2. Operational Description ........................................................................................................... 6 1.3. Tested System Datails .............................................................................................................. 7 1.4. Configuration of tested System ................................................................................................ 7 1.5. EUT Exercise Software ............................................................................................................ 7 1.6. Test Facility ............................................................................................................................. 8 1.7. List of Test Equipment ............................................................................................................. 9 2. Conducted Emission ............................................................................................................. 11 2.1. Test Setup ............................................................................................................................... 11 2.2. Limits .................................................................................................................................... 12 2.3. Test Procedure ....................................................................................................................... 12 2.4. Uncertainty ............................................................................................................................ 12 2.5. Test Result of Conducted Emission ........................................................................................ 13 3. Radiated Emission ............................................................................................................... 14 3.1. Test Setup .............................................................................................................................. 14 3.2. Limits .................................................................................................................................... 15 3.3. Test Procedure ....................................................................................................................... 16 3.4. Uncertainty ............................................................................................................................ 17 3.5. Test Result of Radiated Emission ........................................................................................... 18 4. Band Edge ............................................................................................................................ 28 4.1. Test Setup .............................................................................................................................. 28 4.2. Limits .................................................................................................................................... 29 4.3. Test Procedure ....................................................................................................................... 29 4.4. Uncertainty ............................................................................................................................ 29 4.5. Test Result of Band Edge ....................................................................................................... 30 5. Frequency Tolerance ............................................................................................................ 32 5.1. Test Setup .............................................................................................................................. 32 5.2. Limits ........................…

Text truncated - open the document above for the full version.

Report No. 2030836R-RFUSP29V00 Page: 1 of 42 FCC Test Report Product Name Mobile Data Terminal Model No. MT7030 FCC ID. 2ABTU-MT7030 Applicant RuggON Corporation Address 4F, No. 298, Yang Guang St., Neihu Dist., Taipei City, Taiwan Date of Receipt Mar. 31, 2020 Issued Date Jul. 02, 2020 Report No. 2030836R-RFUSP29V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No. 2030836R-RFUSP29V00 Page: 2 of 42 Te s t R e p o r t Issued Date: Jul. 02, 2020 Report No.: 2030836R-RFUSP29V00 Product Name Mobile Data Terminal Applicant RuggON Corporation Address 4F, No. 298, Yang Guang St., Neihu Dist., Taipei City, Taiwan Manufacturer RuggON Corporation Model No. MT7030 FCC ID. 2ABTU-MT7030 EUT Rated Voltage DC 9~36V EUT Test Voltage DC 24V Trade Name RuggON Applicable Standard FCC CFR Title 47 Part 15 Subpart C ANSI C63.4: 2014, ANSI C63.10: 2013 Test Result Complied Documented By : ( Senior Adm. Specialist / Anny Chou ) Tested By : ( Assistant Engineer / Trista Huang ) Approved By : ( Director / Vincent Lin ) Report No. 2030836R-RFUSP29V00 Page: 3 of 42 Revision History Report No. Version Description Issued Date 2030836R-RFUSP29V00 V1.0 Initial issue of report. 2020-07-02 Report No. 2030836R-RFUSP29V00 Page: 4 of 42 TA B L E O F C O N T E N T S Description Page 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. EUT Description ............................................................................................................................... 5 1.2. Test Summary.................................................................................................................................... 6 1.3. Operational Description ..................................................................................................................... 8 1.4. Tested System Details ........................................................................................................................ 9 1.5. Configuration of Tested System ......................................................................................................... 9 1.6. EUT Exercise Software ..................................................................................................................... 9 1.7. Test Facility ..................................................................................................................................... 10 1.8. List of Test Item and Equipment ....................................................................................................... 11 2. RADIATED EMISSION ............................................................................................................... 13 2.1. Test Setup ........................................................................................................................................ 13 2.2. Limits .............................................................................................................................................. 15 2.3. Test Procedure ................................................................................................................................. 16 2.4. Uncertainty ...................................................................................................................................... 17 2.5. Test Result of Radiated Emission ..................................................................................................... 18 3. EMI REDUCTION METHOD DURING COMPLIANCE TESTING ........................................ 40 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs – Externa Attachment 3: EUT Detailed Photographs – Internal Report No. 2030836R-RFUSP29V00 Page: 5 of 42 1. GENERAL INFORMATION 1.1. EUT Description Product Name Mobile Data Terminal Trade Name RuggON Model No. MT7030 FCC ID. 2ABTU-MT7030 Frequency Range WLAN：802.11b/g/n-20: 2412-2472 MHz, 802.11n-40: 2422-2462 MHz 802.11a/ n/ac-20: 5180-5320 MHz, 5500-5720 MHz, 5745-5825MHz 802.11n/ac-40: 5190-5310 MHz, 5510-5670 MHz, 5755-5795MHz 802.11ac-80 MHz: 5210-5290 MHz, 5530-5690 MHz,5775MHz Bluetooth：2402-2480 MHz Channel Number WLAN：802.11b/g/n-20: 13CH, 802.11n-40: 9CH 802.11a /n/ac-20: 25CH 802.11ac-80 MHz: 5CH Bluetooth：V3.0+HS, V2.1+EDR: 79CH, V4.0: 40CH Data Rate WLAN：802.11b: 1-11Mbps, 802.11a/g: 6-54Mbps, 802.11n: up to 300Mbps 802.11ac-80 MHz: up to 866.7 Mbps Bluetooth: 1-3Mbps Channel Separation WLAN：802.11b/g/n: 5 MHz, 802.11a/n-20 MHz: 20 MHz, 802.11n-40 MHz: 40 MHz 802.11ac-80 MHz: 80 MHz Bluetooth：V3.0: 1 MHz; V5.0: 2 MHz Type of Modulation WLAN：802.11b:DSSS, DBPSK, DQPSK, CCK 802.11a/g/n/ac: OFDM, BPSK, QPSK, 16QAM, 64QAM, 256QAM Bluetooth：V3.0+HS, V2.1+EDR: GFSK(1Mbps) /π/4DQPSK(2Mbps) / 8DPSK(3Mbps); V5.0: GFSK(1Mbps)/(2Mbps) Antenna Type PIFA Antenna Channel Control Auto Antenna Gain Refer to the table “Antenna List” Antenna List No. Manufacturer Part No. Antenna Type Peak Gain 1 AnJie AJDQ1J-B0029 (Main) AJDQ1J-W0022 (Aux) PIFA 2.5dBi for 2.4 GHz 3.7dBi for 5150-5250MHz 3.7dBi for 5250-5350MHz 3.6dBi for 5470-5725MHz 3.9dBi for 5725-5850MHz Note: The antenna of EUT is conform to FCC 15.203 Report No. 2030836R-RFUSP29V00 Page: 6 of 42 1.2. Test Summary…

Text truncated - open the document above for the full version.

Report No. 2030836R-RFUSP29V00 Page: 41 of 42 Attachment 1: EUT Test Setup Photographs Front View of Spurious Emission Test (Horn) Back View of Spurious Emission Test (Horn) Report No. 2030836R-RFUSP29V00 Page: 42 of 42 Front View of Spurious Emission Test (Horn) Back View of Spurious Emission Test (Horn)

Report No. 2030836R-RFUSP17V01 Page: 36 of 37 Attachment 1: EUT Test Setup Photographs Front View of Radiated Test Back View of Radiated Test Report No. 2030836R-RFUSP17V01 Page: 37 of 37 Front View of Radiated Test-LOOP Back View of Radiated Test-LOOP
