S1000 AM DEACTIVATOR S1000 AM Deactivator AM LABELS DEACTIVATOR (S1000_AM_REV_2.2) TYPE: INSTALLATION AND SERVICE GUIDE SERIAL CODE: Version 2.2 August 2022 CALLIDUS TRADING spol. s r.o. - 2 - This document was created to provide intended recipient documentation of requested device for technician purposes only. Any other usage of this document is an illegal and unlawful act. This document is a confidential and proprietary document and consist of information what can be protected by copyrights or the others intellectual property protection instruments of the others subjects. All other information, what are not generally known ones, is an intellectual property of manufacturer. This document including any and all attachments hereto is intended solely to be used by individual or entity to which it is addressed. If the reader of this document is not the intended recipient, or an employee or agent responsible for delivering this document to its intended recipient, you are herewith notified that any dissemination, distribution, copying or retention of this document or the information contained herein is strictly prohibited. If you have received this document in error, please immediately and permanently delete and destroy the original and any copy or printout thereof. INSTALLATION AND SERVICE This setup and service guide describes how to tune service and troubleshoot S1000 AM deactivator that works on frequency 58.2 kHz. S1000 SINGLE ANTENNA DEACTIVATOR FEATURES • High Deactivation Throughput Operation • Easy Installation - Plug and Play • Remote Calibration and Diagnostics Capabilities • Adjustable Sound Alarm • RGB LED Optically Diffused Visual Alarm • Can Use Different Types of Deactivation Pads CONTENT 1. OPERATION GUIDELINES .................................................................................................................................... 3 2. BASIC INFORMATION ......................................................................................................................................... 3 3. INSTALLATION REQUIREMENTS ......................................................................................................................... 3 4. MOUNTING THE DEACTIVATOR ......................................................................................................................... 4 5. SOFTWARE DESCRIPTION ................................................................................................................................... 6 5.1 USB DONGLE CONNECTION ........................................................................................................................ 6 6. SMARTEAS SETTINGS APPLICATION ................................................................................................................... 7 6.1 COMMUNICATION ...................................................................................................................................... 7 6.2 DEACTIVATOR ............................................................................................................................................. 8 6.3 SCOPE ....................................................................................................................................................... 10 6.4 EVENTS ..................................................................................................................................................... 13 6.5 SYSTEM ..................................................................................................................................................... 15 6.6 RTC ........................................................................................................................................................... 16 6.7 ACCESS CONTROL ..................................................................................................................................... 17 7. DECLARATION .................................................................................................................................................. 18 7.1 EQUIPMENT MODIFICATION CAUTION ..................................................................................................... 18 7.2 LIMITATION OF LIABILITY .......................................................................................................................... 18 8. REGULATORY INFORMATION ........................................................................................................................... 19 8.1 FCC AND IC COMPLIANCE STATEMENT ..................................................................................................... 19 8.2 FCC INFORMATION TO THE USER ............................................................................................................. 19 HISTORY OF REVISIONS AND REPAIRS CALLIDUS TRADING spol. s r.o. - 3 - This document was created to provide intended recipient documentation of requested device for technician purposes only. Any other usage of this document is an illegal and unlawful act. This document is a confidential and proprietary document and consist of information what can be protected by copyrights or the others intellectual property protection instruments of the others subjects. All other information, what are not generally known ones, is an intellectual property of manufacturer. This document including any and all attachments hereto is intended solely to be used by individual or entity to which it is addressed. If the reader of this document is not the intended recipient, or an employee or agent responsible for delivering this document to its intended recipient, you are herewith notified that any dissemination, distribution, copying or retention of this document or the information contained herein is strictly prohibited. If you have received this document in error, please immediately and permanently delete and destroy the original and any copy or printout thereof. CAU…

Text truncated - open the document above for the full version.

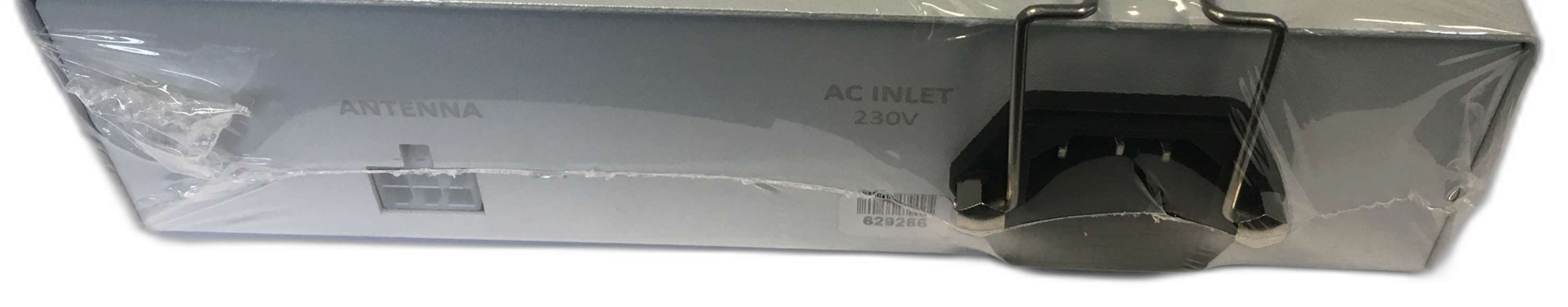

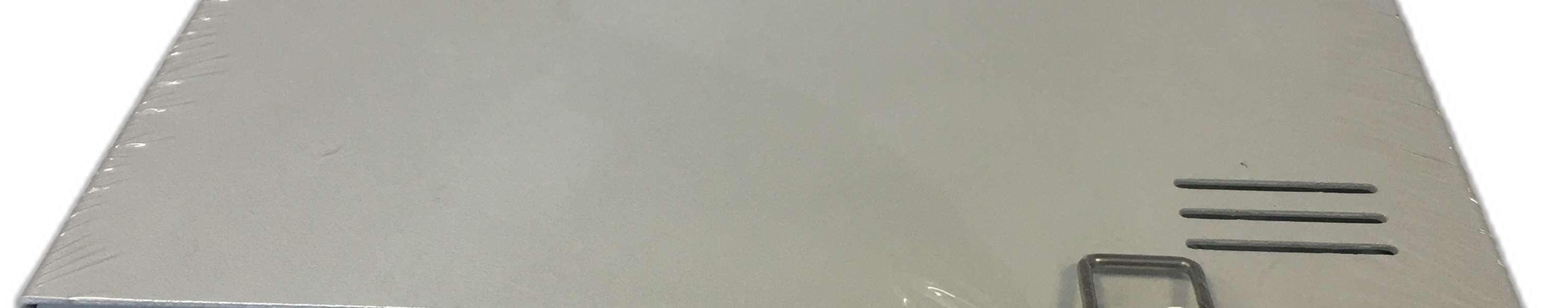

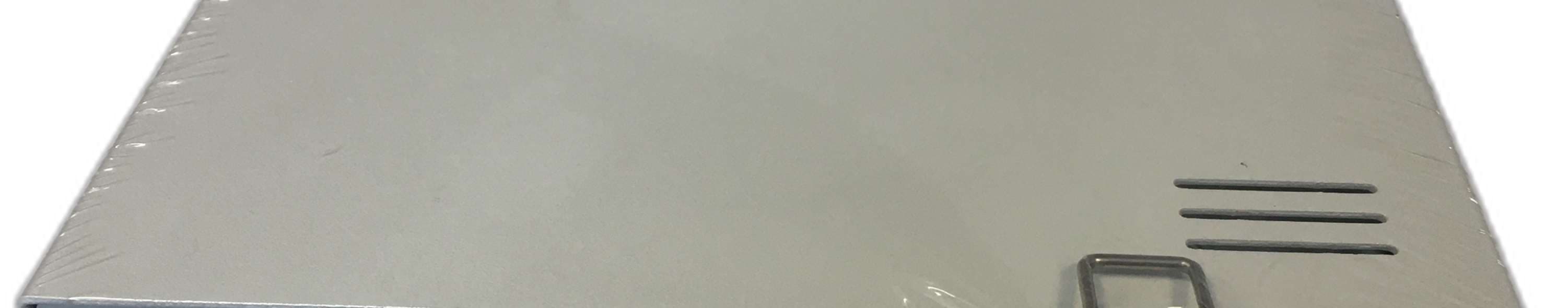

Callidus AM deactivator, FRONT, wrapped Callidus AM deactivator, FRONT Callidus AM deactivator, REAR, wrapped Callidus AM deactivator, REAR Bottom Side of Callidus AM Deactivator

Top View of the Antenna Pad Bottom View of the Antenna Pad ' Side View #1 of the Antenna Pad

FCC ID: 2ABWHAS1000A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. IC: 29314-AS1000A Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Callidus AM deactivator, BOTTOM board Callidus AM deactivator, TOP board Callidus AM deactivator, without cover

Apply a duty cycle? no SAR type Head/Body This device FCC ID: is excluded from SAR testing by the following justification The maximum power that the transmitter is capable of is 0.0300 mW* Using formula G.1 from ANSI C63.10: 2013 Using the following formula from section 4.3.1 (c)(2)of KDB 447498{[(Power limit for <50mm) + (separation distance - 50mm) * (100/150)] * [1 + log(100/f(MHz))]} *1/2 Duty Cycle 100.00% Power Threshold 10-g (mW) 1004.060000 ###### "Value" is  3 , the SAR test exclusion threshold The maximum EUT power is less than the Power Threshold“source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An example of this is the determination of exposure from a device that uses digital technology such as a time-division multiple-access (TDMA) scheme for transmission 2ABWHAS1000A When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Max Peak Power (dBm) Min Separation distance (mm) Frequency (MHz) -15.23 <50 0.058

Report Number: B20729D1 FCC Part 15 Subpart B and FCC Section 15.209; ICES-003, RSS-210 & RSS-GEN Test Report EAS system Model: AM deactivator Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 21 FCC PART 15, SUBPART B and C; ICES-003, RSS-210 & RSS-GEN TEST REPORT for EAS system Model: AM deactivator Prepared for Callidus trading, spol. s r.o. Pašerových 1270/1 709 00 Ostrava - Mariánské Hory, Česká republika Prepared by:_____________________ JAMES ROSS Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: DECEMBER 6, 2022 REPORT APPENDICES TOTAL BODY A B C D E PAGES 21 2 2 2 12 24 63 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B20729D1 FCC Part 15 Subpart B and FCC Section 15.209; ICES-003, RSS-210 & RSS-GEN Test Report EAS system Model: AM deactivator Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 21 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 1.1 Decision Rule & Risk 7 2. ADMINISTRATIVE DATA 8 2.1 Location of Testing 8 2.2 Traceability Statement 8 2.3 Cognizant Personnel 8 2.4 Date Test Sample was Received 8 2.5 Disposition of the Test Sample 8 2.6 Abbreviations and Acronyms 8 3. APPLICABLE DOCUMENTS 9 4. DESCRIPTION OF TEST CONFIGURATION 10 4.1 Description of Test Configuration - Emissions 10 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 5.1 EUT and Accessory List 11 5.2 Emissions Test Equipment 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 6.3 Measurement Uncertainty 14 7. TEST PROCEDURES 15 7.1 RF Emissions 15 7.1.1 Radiated Emissions (Spurious and Harmonics) Test – Lab A 15 7.1.2 Radiated Emissions (Spurious and Harmonics) Test – Lab D 16 7.1.3 Conducted Emissions Test 17 7.1.4 RF Emissions Test Results 18 7.1.5 Sample Calculations 19 7.1.6 Variation of the Input Power 20 8. CONCLUSIONS 21 Report Number: B20729D1 FCC Part 15 Subpart B and FCC Section 15.209; ICES-003, RSS-210 & RSS-GEN Test Report EAS system Model: AM deactivator Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 21 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Models Covered Under This Report D Diagrams and Charts  Test Setup Diagrams  Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site 2 Layout of the Semi-Anechoic Test Chamber 3 Conducted Emissions Test Setup LIST OF TABLES TABLE TITLE 1 Radiated Emission Results 2 Conducted Emission Results Report Number: B20729D1 FCC Part 15 Subpart B and FCC Section 15.209; ICES-003, RSS-210 & RSS-GEN Test Report EAS system Model: AM deactivator Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 21 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the federal government. Device Tested: EAS system Model: AM deactivator P/N: 13-047.C115(R2) S/N: 627966 Product Description: The device is used to deactivate AM labels usually attached on merchandise. Operating frequency: 20 MHz, 32.768 kHz. Dimensions: 17 cm (W) x 5.3 cm (L) x 7 cm (H) Modifications: The EUT was not modified during the testing. Customer: Callidus trading, spol. s r.o. Pašerových 1270/1 709 00 Ostrava - Mariánské Hory, Česká republika Test Date: July 25, 28, and 29, 2022 Test Specifications : Emissions requirements CFR Title 47, Part 15, Subpart B, sections 15.107 and 15.109; Subpart C, sections 15.205, 15.207, and 15.209; ICES-003, RSS-210 and RSS-Gen Test Procedure: ANSI C63.4 and ANSI C63.10 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B20729D1 FCC Part 15 Subpart B and FCC Section 15.209; ICES-003, RSS-210 & RSS-GEN Test Report EAS system Model: AM deactivator Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 21 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Spurious Radiated RF Emissions, 9 kHz – 30 MHz (Transmitter and Digital portion) Complies with the limits of CFR Title 47, Part 15, Subpart C, section 15.205 and 15.209; and the limits of RSS-Gen and RSS-210 2 Spurious Radiated RF Emissions, 30 MHz – 1,000 MHz (Transmitter and Digital portion) Complies with the Class A limits of CFR Title 47, Part 15, Subpart B, section 15.109; the Class A limits of ICES-003; RSS-Gen; and RSS-210 3 Conduc…

Text truncated - open the document above for the full version.

Antenna Information for AM Deactivator 1.General description Antenna pad coil dimensions are 175x175mm. The number of turns is 46. Coil is inserted inside the deactivation pad and at the 58 kHz (resonance) is high impedance.

Radiated Front Image – Lab A Radiated Rear Image – Lab A Radiated Front Image – Lab D Radiated Rear Image – Lab D Conducted Front Image – Lab D Conducted Rear Image – Lab D
