2ABXRBVMCN5102Bluetooth Low Energy Module

User Manual Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; [for FCC] Contains Transmitter Module FCC ID: 2ABXRBVMCN5102 or Contains FCC ID: 2ABXRBVMCN5102 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. *If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. The following statements must be described on the user manual of the host device of this module; FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. When installing in Mobile device This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). When installing in Portable device This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). * Portable device: Distance between the person's body and the antenna is 20cm or less. * Mobile device: Distance between the person's body and the antenna is more than 20cm.

Letter of Authorization

Request for Modular Transmitter Approval March 3, 2014 FCC ID :2ABXRBVMCN5I02 Applicant: Braveridge Co., Ltd. This transmitter, model: BVMCN5l02 is designed by us. It complies with the modular transmitters basic requirements (ltem I to 8) in FCC Part 15 Subpart C Section 15.212 as indicated below: Modular Approval Checklist: Modular aonroval requirement (l ) Have its own RF shielding. (2) Have buffered modulation/data inputs. (3) Have its own power supply regulation. (5) Tested in a stand-alone configuration. Unless the $ansmitter module will be battery powered, it must comply with the AC line conducted requirements found in FCC $ 15.207. AC or DC power lines and data inpuroutput lines connected to th€ module must not conlain ferrites, unless they will be marketed with the module. The lenglh ofthese lines shall be the length t)?ical ofactual use or, ifthat length is unknown, at least l0 centimeters to insure that there is no coupling between the case of the module and supponing equipment. Any accessories, peripherals, or support equipment connected to the module during testins shall be unmodified and commercially available. (6) Equipped with either a permanently affixed label or must be capable of electronicauy displaying its FCC ID. If the FCC ID is not visible when the module is installed inside anotherdevice, then the outside ofthe device into which the module is installed must also display a label referring to the enclosed module. (7) Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements, (8) Comply with any applicable RF exposure requirements in its final configuration: The modular transmitter complies with FCC radiation exposure requiremenl.

Request for Confi dentiality Date: March 3, 2014 UL Japat Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC lD : 2ABXRBVMCN5I02 Applicant: Braveridge Co., Ltd. To whom it may concern: Please be advised that the following information is to b€ held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagmm Theory of Operation Schematics The application contains technical information which we deem to be trade secrets and proprieary. If made public, the information might be used to the disadvantage ofrhe applicant in the market place. Thank you for your attention to this matter. Sincerely,

! *'=r=ridse Request for Short-Term Confi dentiality Dale: March 3,2014 UL Japan lnc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID :2ABXRBVMCN5I02 Applicant: Braveridge Co., Ltd. To whom it may concem: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalfof us, refening to the FCC rules 0.457 and 0.459: Extemal Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadyantage ofthe applicant in the market place. Thank you for your attention to this mafter. Sincerely, Braveridge Co., Ltd.

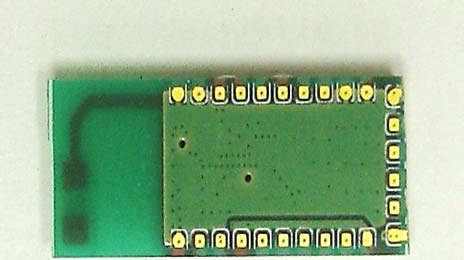

External Photo Soldering part 右 Right 正面 Front上 Top背面 Rear 左 Left 下 Bottom

This module is small, so there is no space FCCID written in by one line . 技適マークのサイズは径3mm以上です。 2ABXRBVMCN5102

Internal Photo 上 Top without Shield

UL Japan, Inc. Head Office EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp March 3, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: 2ABXRBVMCN5102 To whom it may concern, We, UL Japan, Inc, hereby declare that Bluetooth Low Energy Module, model: BVMCN5102 (FCC ID: 2ABXRBVMCN5102) of Braveridge Co., Ltd. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(V05). KDB 447498D01(V05) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum tune-up tolerance limit was 1 mW So for this device: 1 mW[maximum tune-up tolerance limit]/5 mm[minimum separation distance]*√2.48 = 0.3 *This is less than 3.0, so no SAR is required. Thank you for your attention to this matter. Takahiro Hatakeda Leader of Head Office EMC Lab. WiSE Japan UL Verification Service UL Japan, Inc.

Test report No. : 10093118H-A-R1 Page : 2 of 32 Issued date : March 3, 2014 Revised date : March 19, 2014 FCC ID : 2ABXRBVMCN5102 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10093118H-A Revision Test report No. Date Page revised Contents - (Original) 10093118H-A March 3, 2014 - - 1 10093118H-A-R1 March 19, 2014 P.4 Correction of Rating: From DC1.75V - 3.6V to DC1.8V - 3.6V Test report No. : 10093118H-A-R1 Page : 3 of 32 Issued date : March 3, 2014 Revised date : March 19, 2014 FCC ID : 2ABXRBVMCN5102 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 15 Maximum Peak Output Power .......................................................................................................... 17 Average Output Power ...................................................................................................................... 18 Conducted Spurious Emission .......................................................................................................... 23 Power Density ................................................................................................................................... 26 99%Occupied Bandwidth ................................................................................................................. 28 APPENDIX 2: Test instruments ............................................................................................................. 29 APPENDIX 3: Photographs of test setup ............................................................................................... 30 Conducted Emission ......................................................................................................................... 30 Radiated Spurious Emission ............................................................................................................. 31 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 32 Test report No. : 10093118H-A-R1 Page : 4 of 32 Issued date : March 3, 2014 Revised date : March 19, 2014 FCC ID : 2ABXRBVMCN5102 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Braveridge Co., Ltd. Address : 3-27-2 Shusenji Nishi-ku, Fukuoka-city, Fukuoka, Japan 819-0373 Telephone Number : +81-92-834-5789 Facsimile Number : +81-92-807-7718 Contact Person : Yasunari Kohashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth Low Energy Module Model No. : BVMCN5102 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC1.8V - 3.6V Receipt Date of Sample : October 15, 2013 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 16MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : GFSK Power Supply (radio part input) : DC 1.6V Antenna type : Helical Monopole Antenna Antenna Gain : 0.9dBi (peak) Test report No. : 10093118H-A-R1 Page : 5 of 32 Issued date : March 3, 2014 Revised date : March 19, 2014 FCC ID : 2ABXRBVMCN5102 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2013, final revised on September 30, 2013 and effective October 30, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on September 30, 2013 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 10.6dB, 0.45146MHz, N AV 6.8dB, 0.45146MHz, N 0.45243MHz, L Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance for Performing Compliance Measurements on Digital Transmission …

Text truncated - open the document above for the full version.

Test report No. : 10093118H-A-R1 Page : 30 of 32 Issued date : March 3, 2014 Revised date : March 19, 2014 FCC ID : 2ABXRBVMCN5102 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10093118H-A-R1 Page : 31 of 32 Issued date : March 3, 2014 Revised date : March 19, 2014 FCC ID : 2ABXRBVMCN5102 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10093118H-A-R1 Page : 32 of 32 Issued date : March 3, 2014 Revised date : March 19, 2014 FCC ID : 2ABXRBVMCN5102 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
