  1. Home/
  2. Braveridge Co., Ltd./
  3. 2ABXRBVMCN5103

2ABXRBVMCN5103Bluetooth Low Energy Module

Braveridge Co., Ltd.
Bluetooth Low Energy Module - FCC ID 2ABXRBVMCN5103 - Braveridge Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 28, 2014
Application Purpose
Original Equipment
Date of Application
Aug 28, 2014
Equipment Note
Bluetooth Low Energy Module
Frequency Range
2402.00000000 - 2480.00000000
Company
Braveridge Co., Ltd.
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

改訂:2014/01/21 User Manual Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; [for FCC] Contains Transmitter Module FCC ID:2ABXRBVMCN5103 or Contains FCC ID: 2ABXRBVMCN5103 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. *If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. The following statements must be described on the user manual of the host device of this module; FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. When installing in Mobile device This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). When installing in Portable device This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). * Portable device: Distance between the person's body and the antenna is 20cm or less. * Mobile device: Distance between the person's body and the antenna is more than 20cm.

External Photos

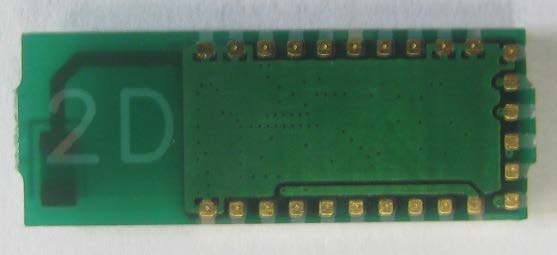

PRODUCT PICTURE (Shielded) Soldering Point RIGHT FRONTBACK TOP LEFT BOTTOM

Internal Photos

PRODUCT PICTURE (Unshielded) RIGHT FRONTBACK TOP LEFT BOTTOM

RF Exposure Info

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp August 22, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: 2ABXRBVMCN5103 To whom it may concern, We, UL Japan, Inc, hereby declare that Bluetooth Low Energy Module, model: BVMCN5103 (FCC ID: 2ABXRBVMCN5103) of Braveridge Co., Ltd. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(V05). KDB 447498D01(V05) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum tune-up tolerance limit was 3 mW (Declared value) So for this device: 3 mW[maximum tune-up tolerance limit]/5 mm[minimum separation distance]*√2.48 = 0.9 *This is less than 3.0, so no SAR is required. Thank you for your attention to this matter. Takayuki Shimada Engineer of Ise EMC Lab. Consumer Technology Division UL Japan, Inc.

Test Report

Test report No. : 10410328H-A-R1 Page : 2 of 29 Issued date : August 22, 2014 Revised date : August 26, 2014 FCC ID : 2ABXRBVMCN5103 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10410328H-A Revision Test report No. Date Page revised Contents - (Original) 10410328H-A August 22, 2014 - - 1 10410328H-A-R1 August 26, 2014 P.17-19 Correction of calculating formula Test report No. : 10410328H-A-R1 Page : 3 of 29 Issued date : August 22, 2014 Revised date : August 26, 2014 FCC ID : 2ABXRBVMCN5103 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 15 Maximum Peak Output Power .......................................................................................................... 16 Radiated Spurious Emission ............................................................................................................. 17 Conducted Spurious Emission .......................................................................................................... 21 Power Density ................................................................................................................................... 24 99%Occupied Bandwidth ................................................................................................................. 25 APPENDIX 2: Test instruments ............................................................................................................. 26 APPENDIX 3: Photographs of test setup ............................................................................................... 27 Conducted Emission ......................................................................................................................... 27 Radiated Spurious Emission ............................................................................................................. 28 Worst Case Position .......................................................................................................................... 29 Test report No. : 10410328H-A-R1 Page : 4 of 29 Issued date : August 22, 2014 Revised date : August 26, 2014 FCC ID : 2ABXRBVMCN5103 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Braveridge Co., Ltd. Address : 3-27-2 Shusenji Nishi-ku, Fukuoka-city, Fukuoka, Japan 819-0373 Telephone Number : +81-92-834-5789 Facsimile Number : +81-92-807-7718 Contact Person : Yasunari Kohashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth Low Energy Module Model No. : BVMCN5103 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC1.8V - 3.6V Receipt Date of Sample : July 10, 2014 Country of Mass-production : Japan Condition of EUT : Production model Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 16MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : GFSK Power Supply (radio part input) : DC 1.6V Antenna type : Multilayer Monopole Antenna Antenna Gain : 0.9dBi (peak) Test report No. : 10410328H-A-R1 Page : 5 of 29 Issued date : August 22, 2014 Revised date : August 26, 2014 FCC ID : 2ABXRBVMCN5103 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2014, final revised on May 1, 2014 and effective June 2, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 16.3dB, 0.15349MHz, N AV 18.9dB, 0.53008MHz, N Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247(issued on June 5, 2014)" FCC: Section 15.247(a)(2) See data. - Conducted IC: RSS-Gen 4.6.2 IC: RSS-210 A8.2(a) Maximum Peak Output Power FCC: "Guidance for Performing Comp…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 10410328H-A-R1 Page : 27 of 29 Issued date : August 22, 2014 Revised date : August 26, 2014 FCC ID : 2ABXRBVMCN5103 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10410328H-A-R1 Page : 28 of 29 Issued date : August 22, 2014 Revised date : August 26, 2014 FCC ID : 2ABXRBVMCN5103 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10410328H-A-R1 Page : 29 of 29 Issued date : August 22, 2014 Revised date : August 26, 2014 FCC ID : 2ABXRBVMCN5103 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Below1GHz(Horizontal: X-axis/ Vertical:X-axis) Above1GHz(Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report

Contact Information

Applicant

Yasunari Kohashi(CTO)
[email protected]+81-92-834-5789Fax: +81-92-807-7718

Technical Contact

UL Japan, Inc.Takayuki Shimada
[email protected]81-596-24-8999

4383-326 Asama-cho, Ise-shi · Mie-ken · Japan

Test Firm

UL Japan, Inc. Head office EMC Lab.Tetsuya Hashimoto
[email protected]+81-596-24-8116Fax: +81-596-24-8095

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz3.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Output power listed is Conducted. Compliance of this device in all final host configurations is the responsibility of the Grantee. OEM integrators and end-users must be provided with specific information required to satisfy RF exposure compliance for the final host device. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
