2ABY6-MOB55CL3Mobile Payment Terminal

Ingenico Mobile Solutions – 101 Federal St, 7th Floor Boston, MA 02110 Phone: +1.888.589.5885 USER GUIDE Moby/5500  R02 0000 05172/10Copyright © 2018INGENICO INC. We recommend that you read this guide before use. It provides important information about usage, safety precautions, installation and maintenance of your Moby/5500seriescard readers. This guide is applicable to Moby/5500 series card readers shown as follows: Model Description Moby/5500 CL3 With rechargeable battery Moby/5500M CL3 Without rechargeable battery WARRANTY / SECURITY In order to benefit from the product-related guarantee and to ensure security, we ask you to use only accessories delivered in box with the product, entrusting maintenance operations only to an authorized person. Moby/5500 CL3is battery powered or can be charged with the USB-C cable connected to a mobile phone charger, use only Ingenico parts for replacement: Moby/5500M CL3can be charged with the USB-C cable connected to a mobile phone charger. Failure to comply with these instructions will void the manufacturer’s responsibility. Unpacking The following items are included in the Moby/5500seriesbox: This User guide The Moby/5500Card Reader USB-C cable  R02 0000 05173/10Copyright © 2018INGENICO INC. Security of your Moby/5500 Upon receipt of your card reader you should check for signs of tampering of the equipment. It is strongly advised that these checks be performed regularly. You should check, for example: that there is no evidence of unusual wires that have been connected to any ports on your reader or associated equipment, the chip card slot, or any other part of your reader. Such checks will provide warning of any unauthorized modifications to your card reader. Your reader detects any “tampered state.” If the reader is tampered, the CLES LEDs will repeatedly flash, and further use of the reader will not be possible. Battery Moby/5500is fitted with a lithium battery (only for Moby/5500 CL3) which is not accessible to the user. Only use chargers with rating that match the power ratings. Moby/5500 can be charged with the USB-C cable connected to a mobile phone charger. Do not attempt to open the reader. Warning Risk of explosion if battery is replaced by an incorrect type. Do not disassemble.Do not short-circuit. Do not dispose in fire. Do not throw in water. Charging Before using the reader for the first time, it should be charged for approximately 2 hours via a USB port wall charger with power output of 500mA. Moby/5500 Card Reader  R02 0000 05174/10Copyright © 2018INGENICO INC. Moby/5500 allows merchants to convert a smart phone or a tablet into a powerful & secure POS solution. Usage ON To power on the reader press the Side Button. OFF By default, the Moby/5500 powers off on its own after 3 minutes. It should be noted that your payment application may assign a different value. Alternatively, you can long press the Side button to turn it OFF. BLUETOOTH PAIRING AND CONNECTION Bluetooth is enabled and the Moby/5500 is discoverable for as long as the reader is turned on. Pairing: Pairing of Moby/5500 with your mobile phone/tablet must be initiated from the mobile app that is being used. From the point where the mobile app displays the device name and 6-digit passkey, do the following: 1. Tap OK, and the Moby/5500 will be temporarily paired for 30 seconds 2. The Moby/5500 will beep, and both the mobile app and the Moby/5500 will display the same pattern of LEDs 3. Tap Confirm on the mobile app to validate that the LED pattern is the same on both the Moby/5500 and mobile app 4. Pairing should now be complete Connectivity: Once the Moby/5500 is paired to you mobile phone/tablet, it will automatically connect to your mobile app during subsequent use.  R02 0000 05175/10Copyright © 2018INGENICO INC. The pairing of the Moby/5500 with your mobile device must be initiated from the mobile payments application that you are using. You will not be able to pair the Moby/5500 from the Bluetooth Settings on your mobile device. Card reading Swiping a card Insert the card manually in the swiping slot at the top of the reader, card numbers facing down, as illustrated above. Swipe the card with constant speed, not too slow not too fast, for optimum reading accuracy. Inserting a chip card Chip Cards should be inserted into the reader as illustrated, with the chip facing up and into the card reader slot. Tapping a contactless card/mobile device The contactless antenna is on the front side of the device. Customers should tap close to the face of the contactless logo to perform transaction. Tapping works best when the distance between the card/phone and the Moby/5500 is less than 1.5 inches.  R02 0000 05176/10Copyright © 2018INGENICO INC. Maintenance Begin by unplugging all cables from the reader. Good rules for proper cleaning of the reader are: Do not clean the electrical connections. Do not use in any case solvents, detergents, alcoholic or abrasive products as those materials will damage the plastic and electrical contacts. Avoid exposing the reader to direct sunlight. Do not insert anything but cards into the smart card reader slot. Troubleshooting Moby/5500 does not turn on: Battery level is too low. Check the USB connection. Check that the wall plug PSU is fully inserted in the electrical socket. If Moby/5500 fails to establish Bluetooth Connection with your mobile app: Check if Moby/5500 is paired to your mobile device using the mobile app. Check if Bluetooth on your mobile device in ON. Unpair the reader from your mobile device’s system Bluetooth Settings, and pair the reader again from your mobile app. Seek technical support. Ensure the pairing of Moby/5500 with the device is done from the mobile payment application and not the device’s system settings. Cards are not read Check that the magnetic card is swiped correctly Swipe the card with a constant movement Check that the magnetic stripe is not damaged, grooved or cracked. Ensure you have…

Text truncated - open the document above for the full version.

Ingenico Inc. Add: 101 Federal St,Suite 700, 7th flr,Boston,Massachusetts 02110 United States Tel/Fax: 6784561866 Mail: [email protected] Date: 2023-07-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Ingenico Inc., hereby authorize China Certification ICT Co., Ltd (Dongguan) to act as a laboratory for testing and test report generation for the following project(s): (Product Name: Mobile Payment Terminal (FCC ID: 2ABY6-MOB55CL3), Model Name: Moby/5500 CL3,Moby/5500M CL3 ) The RF Chip used in our product supports BT&BLE,but for this device BLE(2M) were disabled by software. Sincerely, Signature Printed name: Christopher ROTSAERT Title: VP of HW Product Management& Supply chain

Ingenico Inc. Add: 101 Federal St,Suite 700, 7th flr,Boston,Massachusetts 02110 United States Tel/Fax: 6784561866 Mail: [email protected] CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date: 2023-06-25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID:2ABY6-MOB55CL3 Ingenico Inc.(“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ingenico Inc. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Printed name: Christopher ROTSAERT Title: VP of HW Product Management& Supply chain

U.S. AGENT LETTER OF ATTESTATION Date: June 25, 2023 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID:2ABY6-MOB55CL3 TO WHOM IT MAY CONCERN: We, Ingenico Inc. designate Ingenico, Inc. to act as U.S. agent for service of process. Ingenico, Inc. with FCC Registration Number (FRN) 0033589185 hereby acknowledges the obligation of the U.S. agent for service of process. Further Ingenico Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding in volving the equipment. Ingenico,Inc. (U.S. agent) accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. ______________________________ Signature Signature Applicant U.S. Agent Contact: Christopher ROTSAERT Contact: Christopher E. Bryant Title: VP of HW Product Management& Supply chain Title: Product Manager Company: Ingenico Inc. Company: Ingenico, Inc. Address: Address: 101 Federal St,Suite 700, 7th flr, 3025 Winward Parkway Boston,Massachusetts 02110 Suite 600 Alpharetta, GA 30350 - USA United States Phone:+1678-456-1200 Mail: [email protected] E-mail:[email protected]

QA-FR-170-B Ingenico Inc. Add: 101 Federal St,Suite 700, 7th flr,Boston,Massachusetts 02110 United States Tel/Fax: 6784561866 Mail: [email protected] FCC Authorization Date: 2023-06-25 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Ingenico Inc., hereby authorizes China Certification ICT Co.,Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co.,Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed name: Christopher ROTSAERT Title: VP of HW Product Management& Supply chain

QA-FR-172-A Ingenico Inc. Add: 101 Federal St,Suite 700, 7th flr,Boston,Massachusetts 02110 United States Tel/Fax: 6784561866 Mail: [email protected] FCC Confidential Authorization Date: 2023-06-25 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2ABY6-MOB55CL3 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Ingenico Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description As well as short-term (secrecy cycle: 180 days) confidential treatment of information accompanying this application as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature Printed name: Christopher ROTSAERT Title: VP of HW Product Management& Supply chain

Declaration of Similarity Ingenico Inc. Mail: [email protected] Dear Sir or Madam, We, Ingenico Inc., hereby declare that there are some differences between Moby/5500 CL3 and Moby/5500M CL3 with FCC ID:2ABY6-MOB55CL3. Moby/5500M CL3 without rechargeable battery configuration compares to Moby/5500 CL3 configuration, they share the same PCB,with the same electromagnetic emissions and electromagnetic compatibility characteristics, but removes the related components of the rechargeable battery and has different power supply for NFC module, as well as the corresponding mechanical design of the terminal, as the pictures below: VS Please contact me should there be need for any additional clarification or information. Printed Name: Christopher ROTSAERT Title: VP of HW Product Management & Supply chain Thanks& Best regards. Add: 101 Federal St,Suite 700, 7th flr,Boston,Massachusetts 02110 United States Tel/Fax: 6784561866 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046

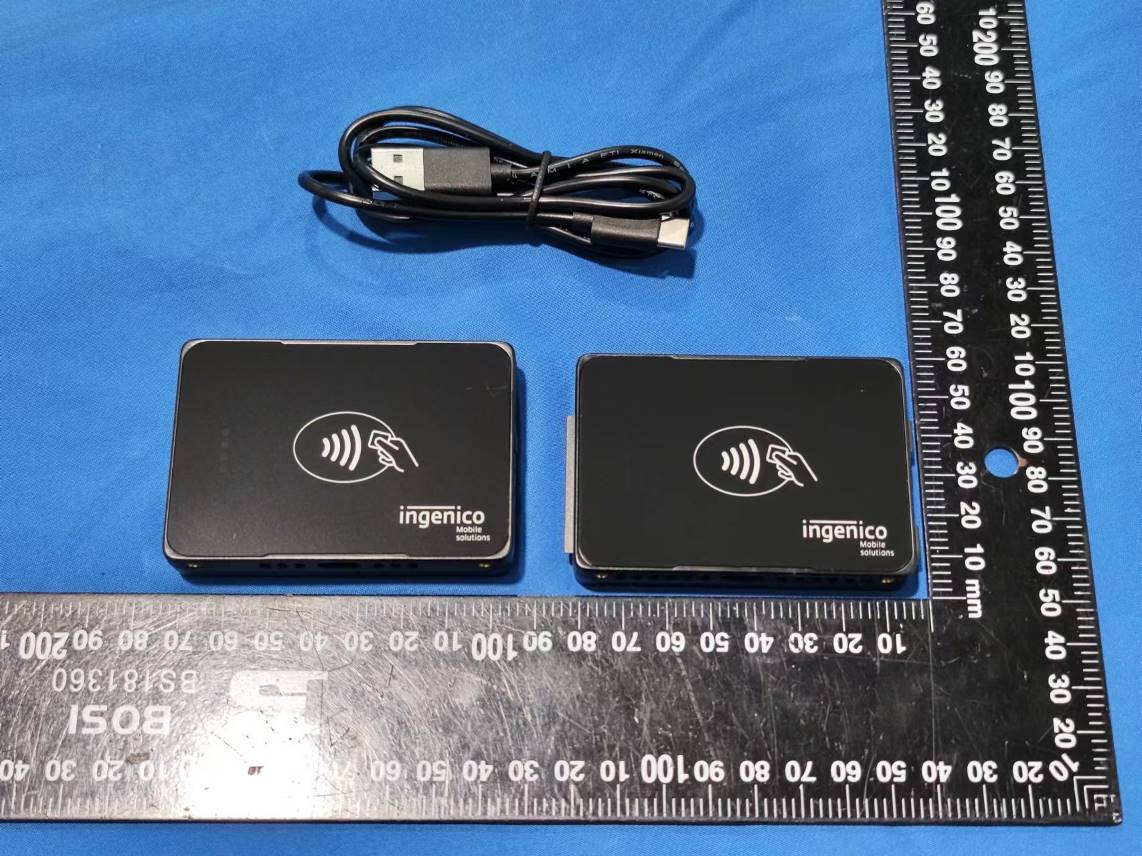

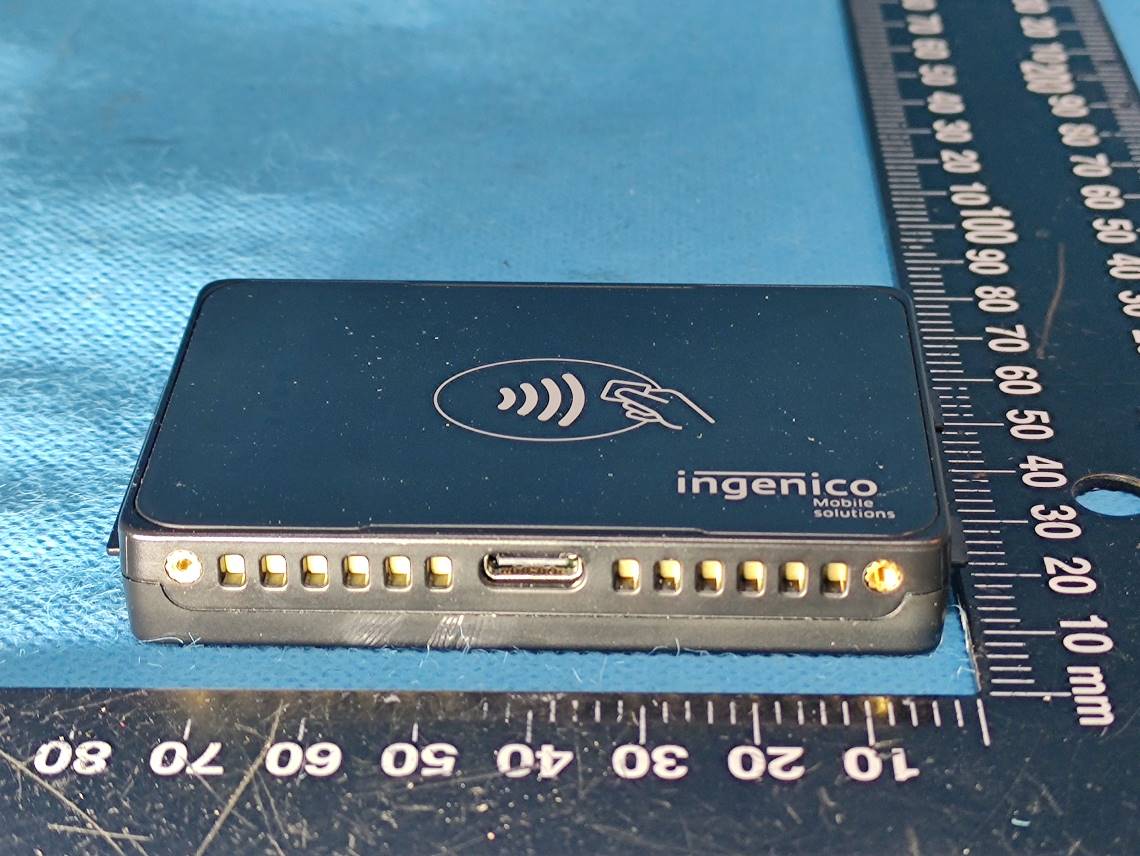

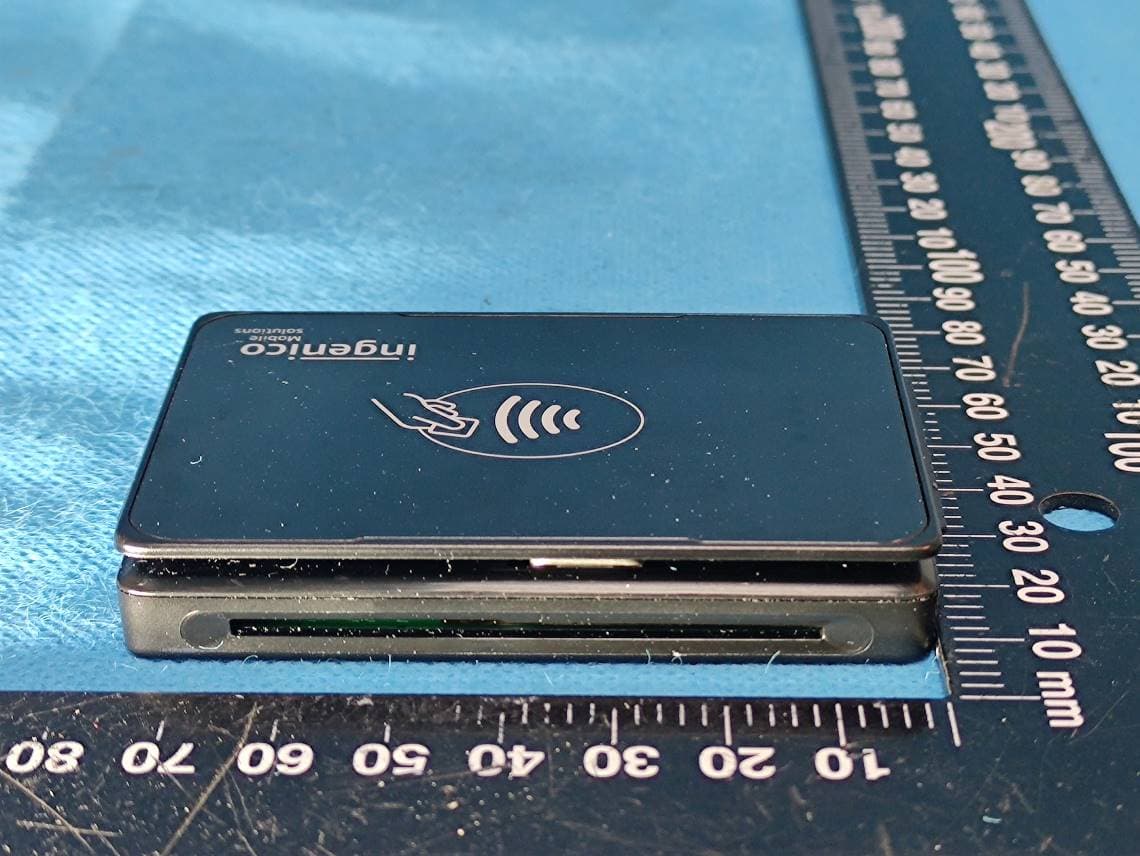

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Model: Moby/5500 CL3 Model: Moby/5500M CL3

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Model: Moby/5500 CL3 Bluetooth Antenna NFC Antenna Model: Moby/5500M CL3 Bluetooth Antenna NFC Antenna

RF EXPOSURE EVALUATION Appli cant: Ingenico Inc. Address: 101 Federal St,Suite 700, 7th flr,Boston,MA 02110 United States FCC ID: 2ABY6-MOB55CL3 Product Name: Mobile Payment Terminal Standard(s): 47 CFR §1.1310, 47 CFR §2.1093 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230529072-00EM1 Date Of Issue: 2023/7/10 Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230418098-00FM1 Page 2 of 6 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230418098-00FM1 Page 3 of 6 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 4 FCC§1.1310 & §2.1093- RF Exposure ........................................................................................... 5 1.1 APPLICABLE STANDARD ...................................................................................................................... 5 1.2 EUT INFORMATION▲: ........................................................................................................................ 5 1.3 MEASUREMENT RESULT ..................................................................................................................... 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230418098-00FM1 Page 4 of 6 DOCUMENT REVISION HISTORY Revision Number Report Number Description of Revision Date of Revision 1.0CR230529072-00EOriginal Report 202 3/7/5 2.0 CR230529072-00EM1 Update RF Exposure 2023/7/10 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230418098-00FM1 Page 5 of 6 FCC§1.1310 & §2.1093- RF Exposure 1.1 Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance v06: a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion (also illustrated in Appendix C): 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100/f (MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in c) 1) for 50 mm and 100 MHz is multiplied by ½ 3) SAR measurement procedures are not established below 100 MHz 1.2 EUT Information▲: Operation Modes Operation Frequency (MHz) Max Conducted output power including Tune-up Tolerance (dBm) Maximum Antenna Gain (dBi) Bluetooth BDR/EDR 2402-24803.5-1.27 Bluetooth LE 2402-24807-1.27 NFC 13.56-32.52/ Note: For Bluetooth BDR/EDR/LE modes, the above parameters were provided by the manufacturer. For NFC, field strength is 62.68BμV/m @ 3m = -32.52 dBm(0.0006mW) EIRP, which was used for RF expusre calculation. E[dB μV/m] = EIRP [dBm] + 95.2 for d = 3 m. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230418098-00FM1 Page 6 of 6 1.3 Measurement Result For blueto oth(BDR/EDR/LE): The max conducted power including tune-up tolerance is 7.5 dBm (5.62 mW). [(max. power of channel, mW)/(min. tes…

Text truncated - open the document above for the full version.

Model: moby5500 Manufacturer: Huizhou Linghangda Technology Co., Ltd. Test frequency Efficiency‐DBEfficiency‐%Gain(dBi) 2000‐15.606069472.750382228‐12.03479362 2010‐15.015021133.151359049‐11.78581503 2020‐14.435692053.601063628‐11.51326603 2030‐13.726324084.240016947‐10.48913341 2040‐13.236567424.746169653‐9.720274008 2050‐12.905923045.121624049‐9.164637156 2060‐12.614991025.476472329‐8.685486617 2070‐12.41982735.728188097‐8.331841278 2080‐12.1994746.026325703‐7.963194393 2090‐11.939094046.398683015‐7.474751732 2100‐11.651279696.837101559‐6.929383103 2110‐11.355785457.318489512‐6.450321639 2120‐11.11082327.743150127‐6.008366262 2130‐10.819038688.281254501‐5.561348552 2140‐10.47233818.969457791‐5.077656485 2150‐10.251949499.436371946‐4.795979313 2160‐10.019863979.95436597‐4.484494578 2170‐9.7568870910.5757528‐4.166358075 2180‐9.64512387510.85144597‐3.982068698 2190 ‐9.42819612611.40723497‐3.74552799 2200‐9.23003214611.93979267‐3.558878322 2210‐9.03935701812.47568205‐3.353406411 2220‐8.88144319112.93765843‐3.159906057 2230‐8.74251730813.35821008‐2.988852084 2240‐8.66047814713.61294799‐2.926202504 2250‐8.5472385913.97256508‐2.771988429 2260‐8.41976811914.38875402‐2.663448568 2270‐8.28964507414.82639248‐2.508978332 2280‐8.18215045215.19794802‐2.405692441 2290‐8.0833558215.54763792‐2.266161393 2300‐8.00881423215.81679831‐2.181740871 2310‐7.91342920616.168029‐2.027078633 2320‐7.94151222516.06381809‐2.003141082 2330‐7.9100096416.18076446‐1.972627683 2340‐7.91731284116.15357736‐1.982741482 2350‐7.97376350315.94496791‐2.023674266 2360‐8.01866834515.78095079‐1.899264551 2370‐8.12143612915.41190726‐1.891079309 2380‐8.20269128315.12623599‐1.834031269 2390‐ 8.27547866314.8748342‐1.803776801 2400‐8.30628488314.76969448‐1.73392182 2410‐8.36826366714.56041098‐1.69007524 2420‐8.40814895614.42730139‐1.622881282 2430‐8.47670486714.20134615‐1.583298474 2440‐8.48252027714.1823426‐1.473155829 2450‐8.54705436913.97315778‐1.43730002 2460‐8.5566225313.9424067‐1.338524084 2470‐8.61796304813.74686587‐1.32253602 2480‐8.63095792313.70579424‐1.26927638 2490‐8.60352082713.7926564‐1.196578034 2500‐8.65159933713.64080706‐1.21813686 2510‐8.7089128313.46197306‐1.243643954 2520‐8.70199615113.48343‐1.240563011 2530‐8.73712226713.37481468‐1.230425185 2540‐8.76165106213.29948714‐1.247614362 2550‐8.71857944613.43204244‐1.150533861 2560‐8.75211273913.32872864‐1.170189101 2570‐8.74937574113.33713127‐1.11884089 2580‐8.78329186513.23338091‐1.199310313 2590‐8.78899547213.21601287‐1.19819314 2600‐8.78297176513.23435632‐1.279507237 2610‐8.78321931113.23360199‐1.350794618 2620‐8.76384176213.29278021‐1.445367777 2630‐8.73021138713.39611482‐1.529605398 2640‐8.80750945513.1597929‐1.777100471 2650‐8.71839015113.43262791‐1.914263854 2660‐8.73102982813.39359052‐2.153337283 2670 ‐8.7364036413.377028‐2.409280775 2680‐8.72646573213.40767354‐2.618658788 2690‐8.72366184313.41633258‐2.834052881 2700‐8.79461614913.19891965‐3.105986886 2710‐8.76449392213.29078424‐3.313710785 2720‐8.85897776113.00475647‐3.620121658 2730‐8.99951228512.59066798‐3.972180024 2740‐9.24213197611.90657364‐4.386507562 2750‐9.6527243710.8324717‐4.935864374 2760‐10.000565349.998698344‐5.387782243 2770‐10.388196399.144929479‐5.788344237 2780‐10.734960268.443139686‐6.168297484 2790‐10.832531238.25556644‐6.373223369 2800‐10.754891288.404480469‐5.969503025 2810‐10.801961678.313881557‐5.949794362 2820‐10.917934058.094808801‐6.143374288 2830‐11.161896277.652623956‐6.600377512 2840‐11.422509847.206908635‐7.089493576 2850‐11.723229636.724763827‐7.634615118 2860‐12.038467436.253933468‐7.988227263 2870‐ 12.310211675.874607202‐8.272120223 2880‐12.577236055.524289061‐8.628416705 2890‐12.830758145.211037354‐8.934783263 2900‐12.978980755.036187901‐8.898433097

TEST REPORT A pplicant: Ingenico Inc. Address: 101 Federal St,Suite 700, 7th flr,Boston,MA 02110 United States FCC ID: 2ABY6-MOB55CL3 Product Name: Mobile Payment Terminal Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230529072-00B Date Of Issue: 2023/6/16 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230529072-00B Page 2 of 57 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230529072-00B Page 3 of 57 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATED SPURIOUS EMISSIONS ...................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 20 DB EMISSION BANDWIDTH ........................................................................................................... 16 3.3.1 Applicable Standard …

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
