2ABZV-WKEY-2000WIRELESS IDENTIFICATION KEY SYSTEM WITH ZIGBEE

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 TIMCO ENGINEERING INC. TCB & FCB 849 NW State Road 45 FCC Approvals Newberry, Florida 32669 Industry Canada Approvals http://www.timcoengr.com Notified Body for Europe 888.472.2424 F 352.472.2030 email: tei @timcoengr.com SUBJECT: UPLOAD FILES TO WEBSITE Applicant: CHANG SHIN INFOTEL CO.,LTD. Product: Wireless identification Key System Model: WKEY-2000 Dear Sir/Madam As appointed agent for CHANG SHIN INFOTEL CO.,LTD., we submit the application to Timco Engineering Inc, for certification of the above product. Please review all files uploaded to Timco web site. If you have any queries, please do not hesitate to contact us Best regards, KOSTEC Co., Ltd. Mi Young Lee / Test Engineer e-mail: [email protected]

Federal Communications Commission Authorization and Evaluation Division Applicant: CHANG SHIN INFOTEL CO.,LTD. Product: Wireless identification Key System Model: WKEY-2000 Address: 3F, Yonhap News Bldg, 64, Deadeok-Daero, 168beon-gil, seo-gu, Deajeon, South Korea SUBJECT: DoC for Wireless identification Key System To Whom It May Concern: We, the undersigned, hereby attest to the fact that we has been apply the Declaration of Conformity procedure to the class A, according to this product is a digital device (FCC ID: 2ABZV-WKEY-2000) of this composite filing. Sincerely, Date: 2014.03.17 Head Researcher: Han, Dong Soo

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ABZV-WKEY-2000 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block diagram Schematic diagram PCB Layout Part List Operation description Block diagram_WKEY-2000 Circuit Description_WKEY-2000 PCB Layout_WKEY-2000 Part list_WKEY-2000 Operation description_WKEY-2000 The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 and 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Date: 2014.03.17 Head Researcher: Han, Dong Soo

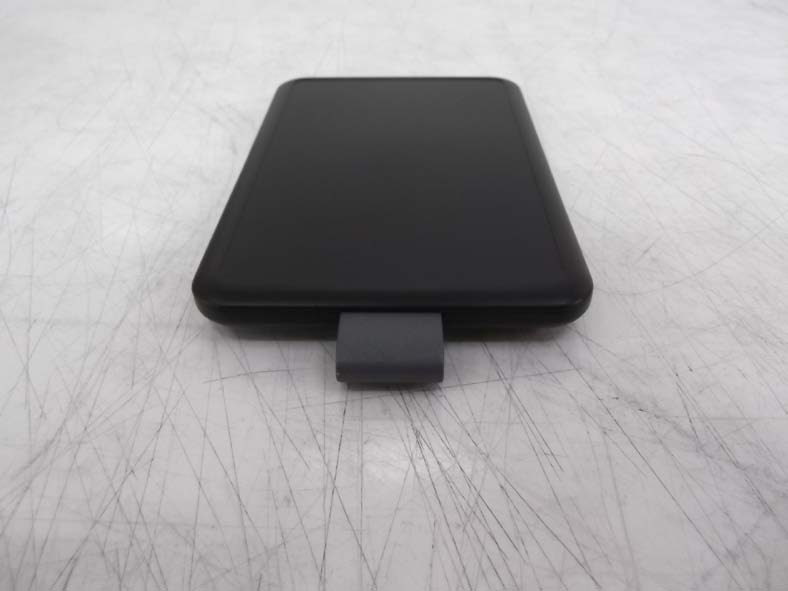

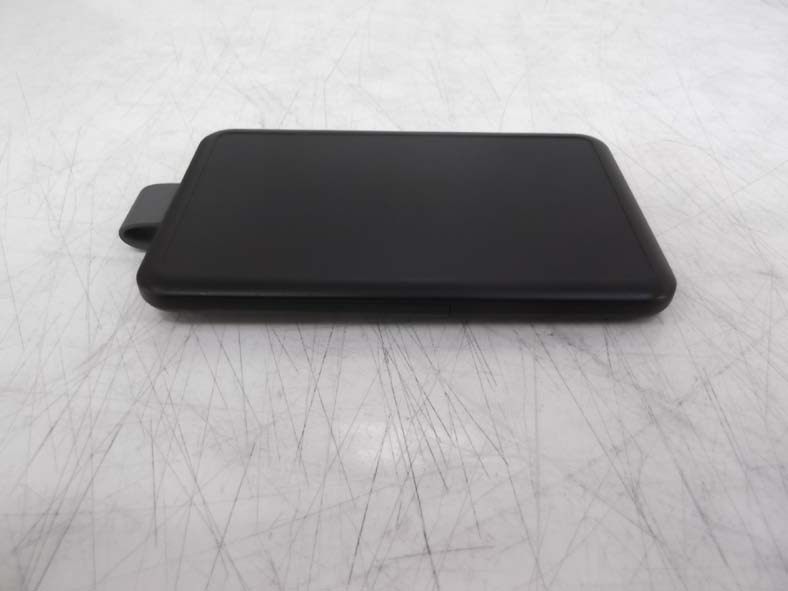

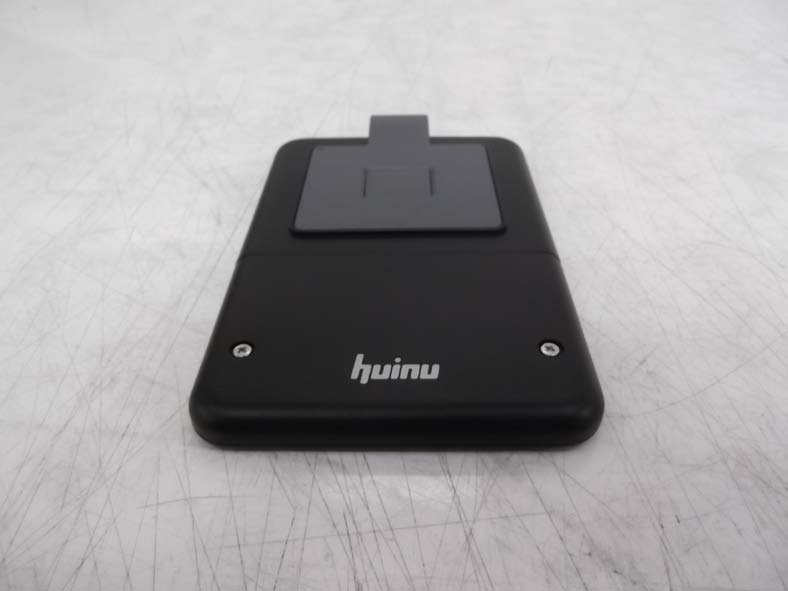

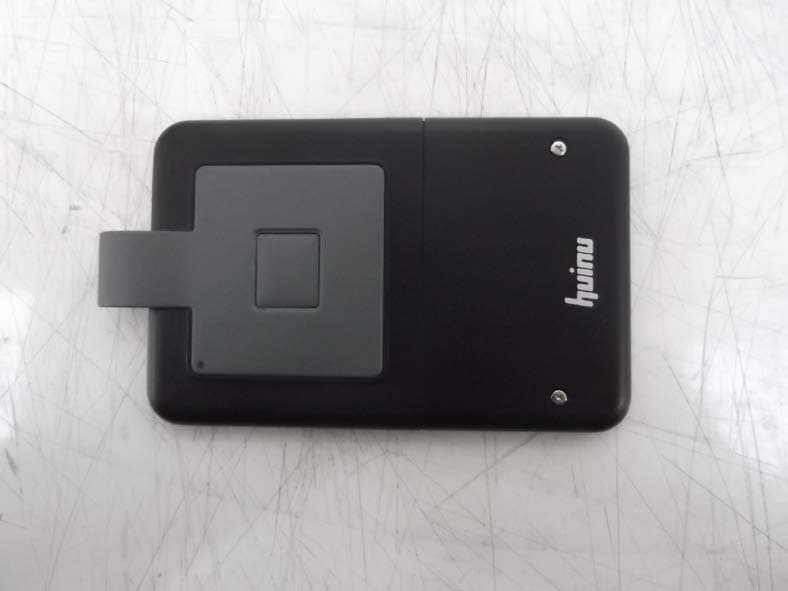

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140002 Page: 1 / 3 Appendix 2. Photographs of EUT [External View] Front Rear Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140002 Page: 2 / 3 [ Right View ] [ Left View ] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140002 Page: 3 / 3 [ Top View ] [ Bottom View ]

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140002 Page: 1 / 1 Appendix 4. Sample Label & Location Label Information The following is a sample copy of the label that will be placed on Bottom side of the product. The FCC ID is marked in the product label with model No. and below information is visible printed on the label. Label location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. The label is located here.

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140002 Page: 1 / 2 Appendix 3. Photographs of EUT [Internal View] [ Inside View ] Antenna Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140002 Page: 2 / 2 [Main board Front] [Main board Rear]

(X Axis)-Horizontal Angel Antenna Gain Angel Antenna Gain Angel Antenna Gain 0 -17.75 120 -21.62 240 -4.07 10 -10.17 130 -10.12 250 -5.82 20 -13.07 140 -5.55 260 -9.22 30 -20.10 150 -5.38 270 -5.72 40 -6.68 160 -8.56 280 -3.39 50 -4.50 170 -9.66 290 -2.73 60 -6.03 180 -2.49 300 -0.86 70 -5.73 190 -2.99 310 -1.28 80 -5.67 200 -9.99 320 -4.54 90 -6.88 210 -5.69 330 -12.05 100 -10.94 220 -11.51 340 -12.37 110 -22.14 230 -5.62 350 -9.74 (X Axis)-Vertical Angel Antenna Gain Angel Antenna Gain Angel Antenna Gain 0 -9.01 120 -10.79 240 -12.30 10 -5.98 130 -12.48 250 -9.74 20 -3.50 140 -13.48 260 -9.49 30 -8.28 150 -12.33 270 -12.83 40 -10.81 160 -8.56 280 -16.22 50 -13.67 170 -3.25 290 -14.33 60 -12.49 180 -5.82 300 -14.93 70 -12.76 190 -6.06 310 -14.13 80 -12.97 200 -8.11 320 -14.73 90 -14.25 210 -11.79 330 -15.86 100 -14.35 220 -13.87 340 -13.51 110 -9.30 230 -13.58 350 -10.75 (Y Axis)-Horizontal Angel Antenna Gain Angel Antenna Gain Angel Antenna Gain 0 -18.39 120 -8.75 240 -14.54 10 -12.49 130 -9.35 250 -12.10 20 -8.65 140 -6.03 260 -8.81 30 -6.50 150 -3.64 270 -7.03 40 -4.80 160 -5.74 280 -3.35 50 -3.85 170 -9.07 290 -2.08 60 -5.15 180 -11.82 300 -3.13 70 -5.13 190 -15.48 310 -3.27 80 -6.09 200 -10.07 320 -5.84 90 -3.23 210 -4.62 330 -9.72 100 -5.07 220 -11.42 340 -9.74 110 -6.02 230 -19.64 350 -9.14 (Y Axis)-Vertical Angel Antenna Gain Angel Antenna Gain Angel Antenna Gain 0 -2.62 120 -13.99 240 -9.71 10 -3.06 130 -12.91 250 -3.90 20 -8.87 140 -12.96 260 -1.87 30 -11.19 150 -16.05 270 -2.91 40 -8.77 160 -14.56 280 -4.22 50 -15.02 170 -6.07 290 -5.79 60 -16.08 180 -2.24 300 -8.79 70 -6.78 190 -1.44 310 -11.77 80 -5.21 200 -7.63 320 -14.07 90 -5.57 210 -10.37 330 -16.94 100 -6.95 220 -9.91 340 -20.42 110 -8.48 230 -16.06 350 -7.37 (Z Axis)-Horizontal Angel Antenna Gain Angel Antenna Gain Angel Antenna Gain 0 -7.48 120 -4.09 240 -6.30 10 -8.76 130 -4.88 250 -4.62 20 -11.12 140 -15.24 260 -7.72 30 -10.98 150 -10.19 270 -8.31 40 -11.26 160 -7.95 280 -9.82 50 -11.71 170 -11.77 290 -9.79 60 -19.54 180 -13.64 300 -10.94 70 -22.46 190 -13.13 310 -13.39 80 -11.29 200 -13.12 320 -12.94 90 -7.84 210 -7.31 330 -9.91 100 -4.91 220 -4.72 340 -7.42 110 -4.05 230 -7.86 350 -6.56 (Z Axis)-Vertical Angel Antenna Gain Angel Antenna Gain Angel Antenna Gain 0 -9.94 120 -9.97 240 -4.28 10 -15.97 130 -4.66 250 -9.50 20 -8.79 140 -1.99 260 -8.34 30 -3.53 150 -2.66 270 -19.31 40 -1.38 160 -1.71 280 -9.77 50 1.48 170 -0.91 290 -10.94 60 1.44 180 -4.04 300 -14.74 70 -1.05 190 -12.31 310 -6.96 80 0.39 200 -4.18 320 -1.97 90 -3.75 210 -2.71 330 -2.43 100 -2.46 220 -3.65 340 -3.26 110 -6.99 230 -3.84 350 -5.07

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 RF Exposure Applicant: CHANG SHIN INFOTEL CO.,LTD. Product: Wireless identification Key System Model: WKEY-2000 FCC ID : 2ABZV-WKEY-2000 Radio Frequency Human Exposure Evaluation: The highest RF output power of the EUT at 2440 MHz was measured -16.28 dBm(0.02 mW) which is less than 20mW. Since maximum peak output power of the transmitter is <60/f (GHz) mW, i.e. 0.02mW<24.59(=60/2.440)mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure.

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140002 Page: 2 / 23 KST-FCR-RFS-Rev.0.2 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. Table of Contents 1. GENERAL INFORMATION ............................................................................................................ 3 1.1 Test Facility ............................................................................................................................................... 3 1.2 Location .................................................................................................................................................... 3 2. EQUIPMENT DESCRIPTION ........................................................................................................ 4 3. SYSTEM CONFIGURATION FOR TEST ....................................................................................... 5 3.1 Characteristics of equipment .................................................................................................................... 5 3.2 Used peripherals list ................................................................................................................................. 5 3.3 Product Modification ................................................................................................................................. 5 3.4 Operating Mode ........................................................................................................................................ 5 3.5 Test Setup of EUT .................................................................................................................................... 5 3.6 Table for Carrier Frequencies ................................................................................................................... 6 3.7 Used Test Equipment List ......................................................................................................................... 7 4. SUMMARY TEST RESULTS ......................................................................................................... 9 5. MEASUREMENT RESULTS ........................................................................................................ 10 5.1 Max. Conducted peak output power ....................................................................................................... 10 5.2 Conducted peak power spectral density ................................................................................................ 11 5.3 6 ㏈ spectrum Bandwidth ...................................................................................................................... 14 5.4 Band-edge Compliance of RF Conducted emissions ............................................................................ 16 5.5 Spurious RF Radiated emissions ........................................................................................................... 18 5.6 Antenna requirement .............................................................................................................................. 23 Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140002 Page: 3 / 23 KST-FCR-RFS-Rev.0.2 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 1. GENERAL INFORMATION 1.1 Test Facility Test laboratory and address KOSTEC Co., Ltd. 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South Korea The open area field test site and conducted measurement facility are used for these testing. This site at was fully described in a reports submitted to the Federal Communications Commission (FCC). The details of these reports have been found to be in complies with the requirements of Section 2.948 of the FCC Rules on November 14, 2002. The facility also complies with the radiated and conducted test site criteria set forth in ANSI C 63.10-2009. The Federal Communications Commission (FCC) has the reports on file and KOSTEC Co., Ltd. is listed under FCC Registration No.525762. The test site has been approved by the FCC for public use and is List in the FCC Public Access Link CORES (Commission Registration System) Registration information KCC (Korea Communications Commission) Number : KR0041 KOLAS(Korea Laboratory Accreditation Scheme) Number : 232 FCC Registration Number(FRN) : 525762 VCCI Registration Number : R-1657 / C –1763 IC Registration Site Number : 8305A-1 1.2 Location KOSTEC Co., Ltd. Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140002 Page: 4 / 23 KST-FCR-RFS-Rev.0.2 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 2. EQUIPMENT DESCRIPTION The product specification described herein was declared by manufacturer. And refer to user’s manual for the details. 1) Equipment Name Wireless identification Key System 2) Model No WKEY-2000 3) Brand Name huinu 4) Usage Wireless identification Key System with ZIGBEE 5) Serial Number Prototype 6) ITU emission Code - 7) Oscillation Type PLL (Phase Local Loop) 8) Modulation Type CCK 9) Emission Type G1D 10) Maximum Power -16.28 ㏈m 11) Data Rate Max. 250 kbps 12) Operated Frequency 2 405 ㎒ ~ 2 480 ㎒ 13) Channel Number 16 14) Communication Type Half duplex 15) Final Amplifier U101 16) Operation temperature -20 °C - + 50 °C 17) Power Source LITHIUM Battery(CR2032) x 3 / 3Vdc, 0.3A 18) Antenna Description PCB antenna, Max. Gain: 1.48 ㏈i 19) FCC ID 2ABZV-WKEY-2000 ** it is maximum peak conducted power in band Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140002 …
