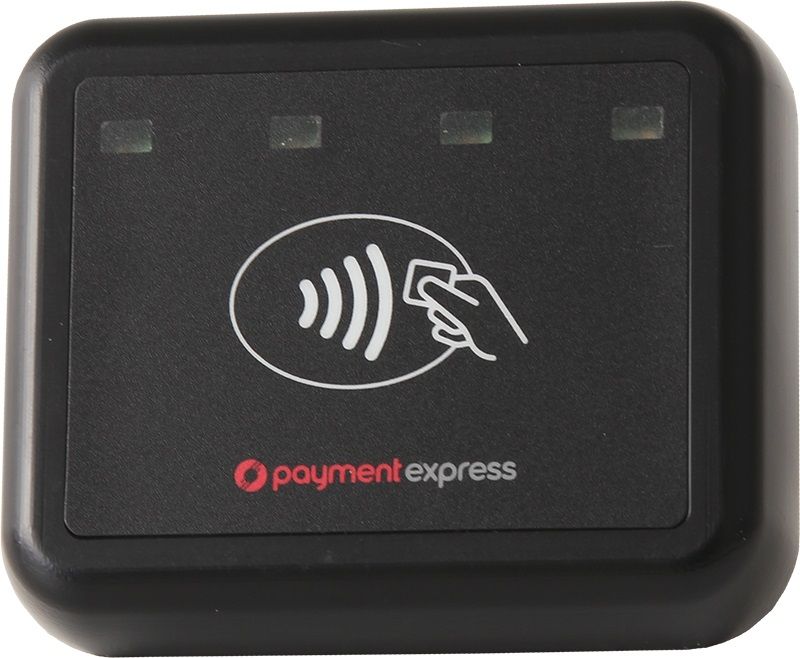

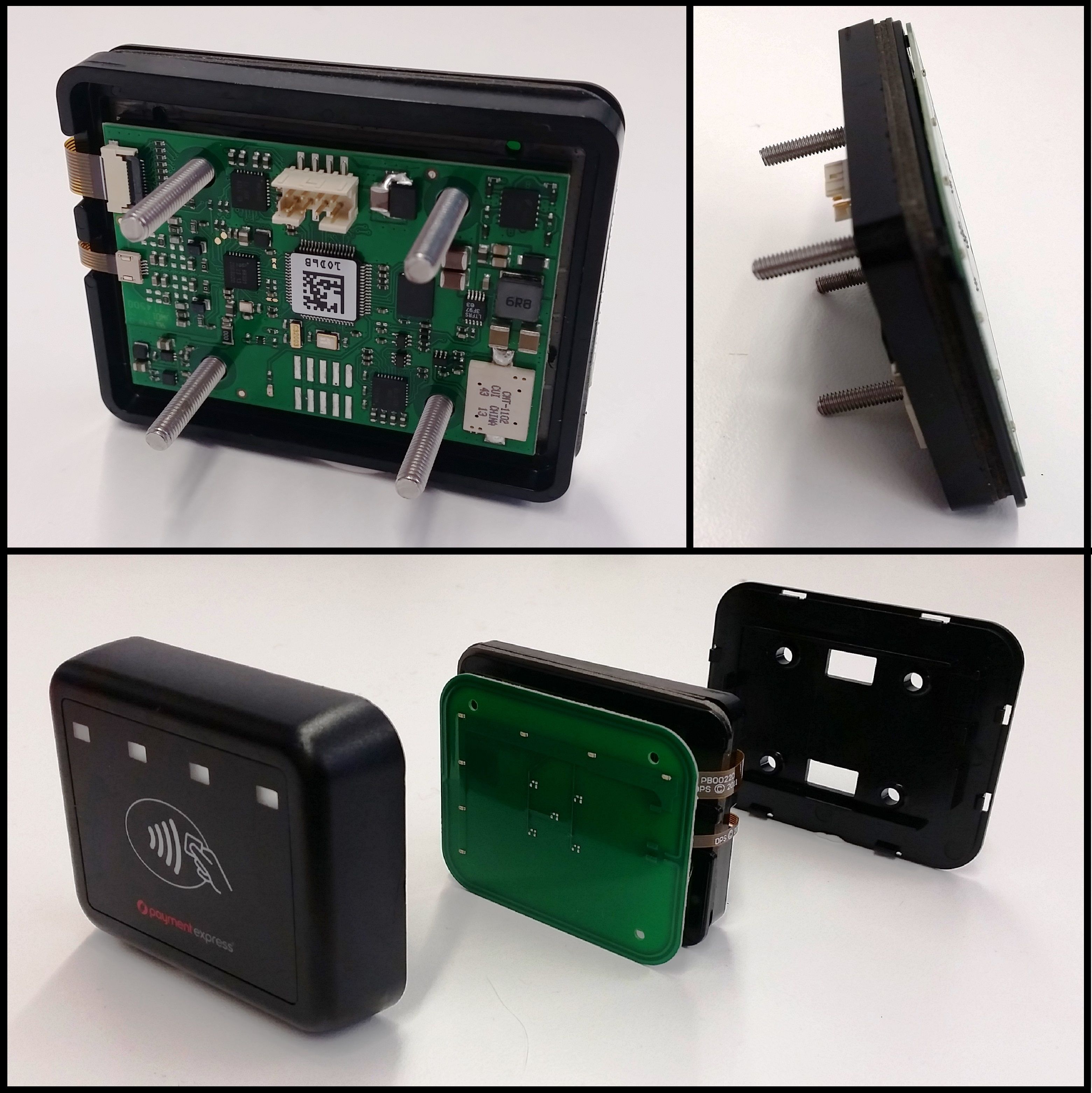

2AC2OBRF210-REV1BRF210 Rev 1 - Contactless Card Reader

BRF210 Hardware Installation Guide Version 0.1 DOCUMENT REVISION INFORMATION Version Date Revision Information 0.1 15/10/2014 Initial version. COPYRIGHT © Copyright 2014, Direct Payment Solutions (DPS) Limited 98 Anzac Avenue PO Box 8400 Auckland, 1035 New Zealand www.paymentexpress.com All rights are reserved. No part of this work may be reproduced or copied in any form or by any means, electronic or mechanical, including photocopying, without the express written permission of Direct Payment Solutions. PROPRIETARY NOTICE The information described in this document is proprietary and confidential to Direct Payment Solutions (DPS). Any unauthorised use of this material is expressly prohibited except as authorised by Direct Payment Solutions in writing. CONTENTS 1 Overview ...................................................................................................................................................................... 4 2 Unit Dimensions ........................................................................................................................................................... 5 3 Mounting Plate Dimensions ......................................................................................................................................... 6 4 Contact DPS ................................................................................................................................................................ 7 BRF210 – Hardware Installation Guide Version: 0.1 Page | 4 of 7 1 OVERVIEW Hardware Overview  The BRF contactless antenna is an optional receiver that can be plugged into the SCR to support contactless payments (e.g. Visa PayWave, MasterCard PayPass).  Supports closed loop proprietary payment cards (e.g MiFare)  32-Bit Cortex M3 120MHz processor  Display LEDs x4 Physical Link Interface Connection with the SCR unit is via the attached cable located on the back of the BRF unit. Power Requirements The device accepts DC regulated from +5V to +45V. SELV (Safety Extra Low Voltage) Standards Compliance  EMV Level 1 & 2  Visa PayWave v2.1  MasterCard PayPass v3.0  EMC Standards o AS/NZS 4268: 2012 o ETSI EN 302 291-2, V1.1.1, 2005 o EN 301 489-3 V1.4.1 o AS/NZS CISPR 22: 2009 + Amendment 1: 2009  Environmental Standards o IEC 60529 : 2013 (Ed 2.2) – Degrees of protection provided by enclosures – IP66 o IEC 60068-2-6 : 2007 (Ed. 7.0) – Sinusoidal Vibration o IEC 60068-2-64 : 2008 (Ed. 2.0) – Broadband Random Vibration BRF210 – Hardware Installation Guide Version: 0.1 Page | 5 of 7 2 UNIT DIMENSIONS BRF210 – Hardware Installation Guide Version: 0.1 Page | 6 of 7 3 MOUNTING PLATE DIMENSIONS BRF210 – Hardware Installation Guide Version: 0.1 Page | 7 of 7 4 CONTACT DPS Phone International +64 9 309 4693 Australia 1 800 006 254 or +61 2 8268 7700 Hong Kong +852 3 678 6766 New Zealand 0800 PAYMENT (729 6368) or 09 309 4693 Singapore +65 3 158 1353 South Africa +27 10 500 8784 United Kingdom +44 (0) 20 3176 5551 USA +1 310 670 7299 E-mail Sales [email protected] Support [email protected] Dev Support [email protected]

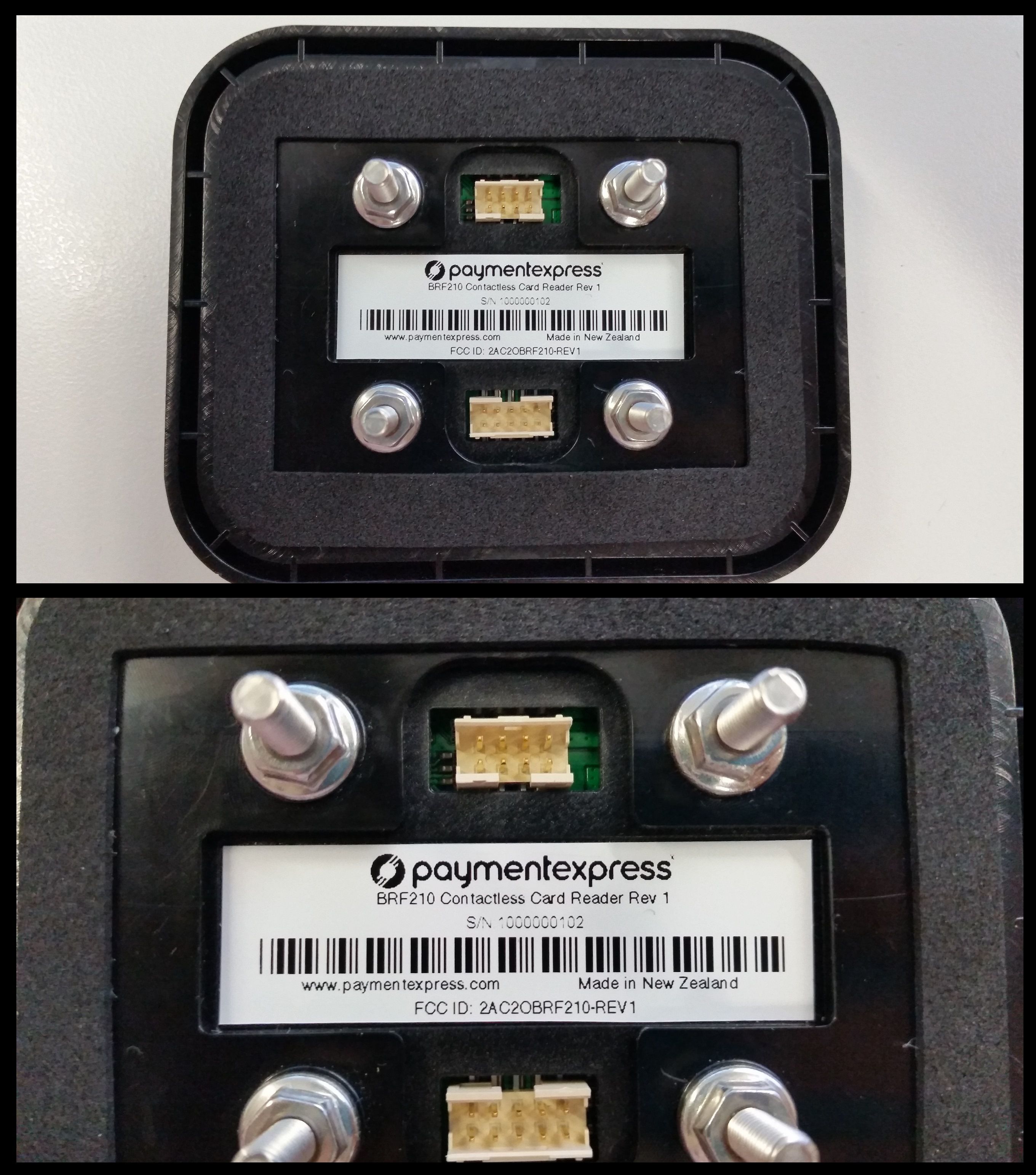

52.0 16.2 27.0 17.4 Label Back View REVISION REV.DATEECODESCRIPTIONREV BY CHK BY This document contains confidential and proprietary information and rights that belong to Direct Payment Solutions. Using or permitting the use of any of the information contained herein by copying or imaging all or part of this document by any means, or by permitting any such copying or imaging, or disclosing or permitting the disclosure of any of its content to third parties, is strictly forbidden without the express written consent of Direct Payment Solutions. © Copyright 2014 Direct Payment Solutions Ltd. D C B A 5 4 3 2 1 E TITLE: PART NO. REV. A4 SIZE: SHEET 1 OF 1 SCALE 1:1 FINISH: MATERIAL: DO NOT SCALE DRAWING P.O. Box 8400 Auckland City Auckland, New Zealand Tel: +64 9 3094693 UNLESS OTHERWISE STATED ALL DIMENSIONS ARE IN MILLIMETRES TOLERANCES: 0 = 0.2 0.0 = 0.1 0.00 = 0.05 ANGLES = 0.5 COMP. COLOUR: 103 BRF210-H-DC LANDSCAPE DOUBLE CONNECTOR LABEL LOCATION Refer to individual parts for detail AB0040 NOTES: DRAWING TO BE USED IN CONJUNCTION WITH 3D CAD DATA1. ALL PARTS, FINISHES AND PRODUCTION PROCESSES USED IN THE MANUFACTURE 2. OF THIS ITEM MUST MEET THE REQUIREMENTS OF RoHS (DIRECTIVE 2011/65/EU) THE PARTS LIST ON THIS DRAWING DOES NOT CONSTITUTE A FULL BILL OF 3. MATERIALS AND IS ONLY INCLUDED FOR COMPONENT IDENTIFICATION AND POSITIONAL RELATIONSHIPS. Refer to individual parts for detail Refer to individual parts for detail

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 23 Test Report No 130916.1 27 th November 2013 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland 1145 New Zealand Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT DPS BRF210 Rev 1 Contactless Card Reader tested to 47 Code of Federal Regulations Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators Section 15.225 Operation within the band 13.110 -14.010 MHz for Direct Payment Solutions Ltd This Test Report is issued with the authority of: ______________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 23 Test Report No 130916.1 27 th November 2013 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 4 4. CLIENT INFORMATION 4 5. DESCRIPTION OF TEST SAMPLE 4 6. SETUPS AND PROCEDURES 5 7. TEST EQUIPMENT USED 15 8. ACCREDITATIONS 15 9. PHOTOGRAPHS 16 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 23 Test Report No 130916.1 27 th November 2013 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The DPS BRF210 Rev 1 Contactless Card Reader complies with FCC Part 15 Subpart C Section 15.225 as an Intentional Radiator when the methods as described in ANSI C63.4 - 2003 are applied. 2. RESULTS SUMMARY The results from testing carried out in October and November 2013 are detailed in the following table: Clause Parameter Result 15.201 Equipment authorisation requirement Certification required. 15.203 Antenna requirement Complies. Antennas internal to the device. 15.204 External PA and antenna modifications Not applicable. No external devices. 15.205 Restricted bands of operation Complies. Device transmits on 13.560 MHz with an occupied bandwidth of 5.750 kHz. 15.207 Conducted limits Complies with a 9.1 dB margin at 13.5605 MHz (Average). 15.209 Radiated emission limits - Emissions < 30 MHz Complies with a 2.1 dB margin at 6.436 MHz (Loop). 15.209 Radiated emission limits – Emissions > 30 MHz Complies with a 2.4 dB margin at 40.690 MHz (Vertical). 15.225 Radiated emission limits - Fundamental Complies with a 44.8 dB margin (Loop). 15.225 Frequency stability Complies ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 23 Test Report No 130916.1 27 th November 2013 This report may not be reproduced except in full. 3. INTRODUCTION This report describes the tests and measurements performed for the purpose of determining compliance with the specification. The client selected the test sample. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. 4. CLIENT INFORMATION Company Name Direct Payment Solutions Ltd Address PO Box 8400 City Auckland 1150 Country New Zealand Contact Mr Ameer Ivoghlian 5. DESCRIPTION OF TEST SAMPLE Brand Name DPS Model Number Tested BFR210 Rev 1 Product Contactless Card Reader Manufacturer Direct Payment Solutions Ltd (DPS) Country of Origin New Zealand Serial Number 100000040 The device tested is a contactless card reader that is used with for financial transactions from credit cards. It operates on 13.560 MHz and uses digital modulation to interact with the credit card. ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 23 Test Report No 130916.1 27 th November 2013 This report may not be reproduced except in full. 6. SETUPS AND PROCEDURES Standard The sample was tested in accordance with 47 CFR Part 15 Subpart C. Methods and Procedures The measurement methods and procedures as described in ANSI C63.4 - 2003 were used. Section 15.201: Equipment authorisation requirement Certification as detailed in Subpart J of Part 2 is required for this device. Section 15.203: Antenna requirement The device has an internal antenna for the 13.560 MHz transmitter. Result: Complies. Section 15.204: External radio frequency power amplifiers and antenna modifications It is not possible to attach an external power amplifier to this transmitter. Result: Complies. ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 23 Test Report No 130916.1 27 th November 2013 This report may not be reproduced except in full. Section 15.205: Restricted bands of operation The transmitter transmits on 13.560 MHz. This device would fall into the 13.110 – 14.010 MHz band that is covered by Section 15.225. The device can be seen to have a 99% power bandwidth of 5.750 kHz Result: Complies. ____________________________________________________________________________________________________________________________________________________________________________ Page 7 of 23 Test Report No 130916.1 27 th November 2013 This report may not be reproduced except in full. Section 15.207: Conducted emissions testing Conducted Emissions testing was carried out over the frequency range of 150 kHz to 30 MHz which was carried out at the laboratory’s MacKelvie Street premi…
