2AC3T-B36S10RATemperature sensor

Temperature Sensor Product Manual Installation For optimal performance install the Sensor approximately 5 feet above the floor of an interior wall. Avoid installing the Sensor on an exterior wall, in areas that are close to heating or cooling vents, and areas that are exposed to direct sunlight. The Sensor is designed for indoor use only. 1. Remove the battery tab from the Sensor. 2. Mount the Sensor on the wall using the nail or double-sided adhesive tape provided. Including the Sensor (adding it to the network) TIP: For best results, we recommend having the Hub in the same room as the device you are Including. 1. Press the Pairing button on the Hub once to put the Hub in Inclusion mode. The light on the Hub will start flashing Green. • NOTE: If you are pairing this to the Hub36 the color of the flashing light will be Yellow. 2. Press the Pairing button on the Sensor to Include the Sensor to the network. • When the light on the Sensor turns solid White and the light on the Hub turns solid Green, the Sensor has been successfully Included. • NOTE: If you are pairing this to the Hub36 the color of the solid light will be Yellow. If you are using the first version of the Hub (Hub 36), see the notes below each instruction. Hub36 pairing button Box Contents: Temperature Sensor CR123 Battery Nail Double-sided Adhesive Tape instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. ii) IC NOTICE: Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. Troubleshooting If the Sensor is not communicating with the Hub 1. Try Excluding it from the network (see below) and Include it again. 2. If step 1 does not solve the issue, we recommend installing a Z-Wave Repeater nearby. • TIP: Any wall powered Z-Wave device will act as a Repeater and improve the range between the Hub and the Z-Wave device you are installing. Excluding the Sensor (removing it from the network) TIP: For best results, we recommend having the Hub in the same room as the device you are Excluding. 1. On the Hub, press and hold the Pairing button for 5 seconds until the light flashes Orange to put the Hub in Exclusion mode. While you’re holding Pairing button, the light will be flashing Green before it turns Orange. • NOTE: If you are using the Hub36 the color of the flashing light will be Red. 2. Press the Pairing button on the Sensor to Exclude it from the network. • The light on the Sensor will start flashing and the flashing Orange light on the Hub will turn solid to indicate the device has been successfully Excluded. • NOTE: If you are using the Hub36 the color of the solid light will be Red. Notices: i) FCC NOTICE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. –AND– 2. This device must accept any interference received, including Interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the www.Building36.com Copyright © 2015 Building 36 Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

022311%–%6%% Request for Confidentiality Date: _Aug 21, 2015____ Subject: Confidentiality Request for: ____2AC3T-B36S10RA___ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term √ Permanent Block Diagrams Short Term Permanent External Photos Short Term Permanent* 2 Internal Photos Short Term √ Permanent Operation Description/Theory of Operation Short Term √ Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term √ Permanent Schematics Short Term Permanent Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _ Building 36 Technologies, LLC __ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __0__ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, ________________________ ______________________________ (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

022311%–%6%% % % Authority to Act as Agent Date: _ Aug 21, 2015___ FCC ID American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: __ GUANGZHOU GRG METROLOGY&TEST CO.,LTD.__ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ____9 Months___ By: _______________________ ______________________________ (Signature 1 ) (Print name) ____________________ ___ On behalf of: _____________________________________ (Company Name)
1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

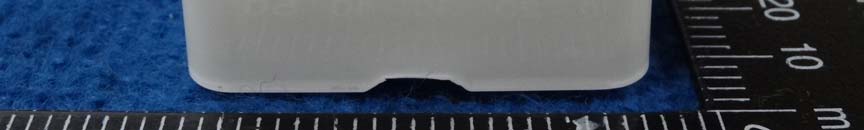

PHOTOGRAPH OF EUT

18.70mm 31.00mm

ANTENNA LOCATION

FCC ID: 2AC3T-B36S10RA TEST REPORT Report No.: E201507301661-1 Application No.: E201507301661 Client: Building 36 Technologies, LLC Address: 460 Hillside Avenue, Suite 300, Needham, MA 02494 Sample Description: Temperature sensor Model: B36-S10 FCC ID: 2AC3T-B36S10RA Test Specification: FCC Part 15,Subpart C:2015(15.249) Test Date: 2015-08-03 to 2015-09-21 Issue Date: 2015-09-21 Test Result: Pass. Prepared By: Reviewed By: Approved By: Brian Xiao/ Test Engineer Lynn Xiao / Technical ManagerYong Dai / Manager Date:2015-09-21 Date:2015-09-21 Date:2015-09-21 Other Aspects: None Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. GRG Metrology and Test Technology Co., Ltd. Address: 163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, P.R. China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com Ver.:2.0/ 01. Jan. 2011 Report No.: E201507301661-1 Application No.: E201507301661 Page 2 of 33 FCC ID: 2AC3T-B36S10RA DIRECTIONS OF TEST 1. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. Report No.: E201507301661-1 Application No.: E201507301661 Page 3 of 33 FCC ID: 2AC3T-B36S10RA TABLE OF CONTENTS 1. TEST RESULT SUMMARY .............................................................................................................................................. 4 2. GENERAL DESCRIPTION OF EUT ............................................................................................................................... 5 2.1 APPLICANT ...................................................................................................................................................................... 5 2.2 MANFACTURER .............................................................................................................................................................. 5 2.3 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ............................................................................................... 5 2.4 TEST OPERATION MODES ............................................................................................................................................ 5 2.5 LOCAL SUPPORTIVE INSTRUMENTS ......................................................................................................................... 5 3. LABORATORY AND ACCREDITATIONS .................................................................................................................... 6 3.1 LABORATORY ................................................................................................................................................................ 6 3.2 ACCREDITATIONS ........................................................................................................................................................ 6 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................................... 6 3.4 LIST OF USED TEST EQUIPMENT AT GRGT ........................................................................................................... 7 4. ANTENNA REQUIREMENT ............................................................................................................................................ 8 5. EMISSION TEST ................................................................................................................................................................ 9 5.1 INTENTIONAL RADIATORS FIELD STRENGTH .................................................................................................... 9 5.1.1 LIMITS ............................................................................................................................................................................. 9 5.1.2 TEST PROCEDURE ........................................................................................................................................................ 9 5.1.3 TEST SETUP ................................................................................................................................................................. 10 5.1.4 TEST RESULTS ............................................................................................................................................................. 11 5.2 RADIATED ELECTROMAGNETIC DISTURBANCE .................................................................................................. 14 5.2.1 LIMITS ........................................................................................................................................................................... 14 5.2.2 TEST PROCEDURES .................................................................................................................................................... 14 5.2.3 TEST SETUP ................................................................................................................................................................. 16 5.2.4 TEST RESULTS ............................................................................................................................................................. 17 5.3 OUT OF BAND EMISSIONS .......................................................................................................................................... 21 5.3.1 LI…

Text truncated - open the document above for the full version.

FCC ID: 2AC3T-B36S10RA TEST ARRANGEMENT Radiated Emission （Below 1GHZ） Radiated Emission (Above 1GHz)
