Water Sensor Installation Guide ADC-S40-W In the box • ADC-S40-W Water Sensor • Mounting bracket • CR123 battery • Installation guide • Screw (pan head x2) • Cable tie NOTE: The rope attachment and probe attachment are sold separately. Installation Installing the Alarm.com Water Sensor 1. Place the water sensor near the area where you want to detect water. a. The water sensor detects water on the top or bottom of the device. 2. Remove the battery tab from the water sensor (OPTIONAL) Installing the water sensor with rope attachment 1. Connect the rope attachment to the water sensor. 2. Remove the battery tab from the water sensor. 3. Mount the water sensor to a wall or pipe near the desired monitoring area using the mounting bracket or cable tie provided. 4. Place the rope attachment on the floor around the potential leak source or around the perimeter of the monitored area. The rope attachment can detect water along its entire length. (OPTIONAL) Installing the water sensor with probe attachment 1. Connect the probe attachment to the water sensor. 2. Remove the battery tab from the water sensor. 3. Mount the water sensor to a wall or pipe near the desired monitoring area using the mounting bracket or cable tie provided. 4. Place the end of the probe attachment in its desired location and mount it using the screw provided. Make sure the prongs on the end of the probe attachment are within the area where you want to detect water. Adding the water sensor to the Z-Wave network Adding using SmartStart NOTE: An Alarm.com account is required for this process. Power on and add devices one at a time. 1. Power on the Hub or panel. 2. Log in to MobileTech. 3. Find the customer account. 4. Add the device using SmartStart and follow the on-screen instructions. 5. Scan the device’s QR code (found on the box or sensor). 6. Remove the battery tab from the sensor. 7. If you have already removed the battery tab, press the button to wake up the device. a. When the network LED on the sensor turns solid green, the sensor has been successfully added. 8. Ensure you see the device on your account. a. It may take up to 2 minutes for the device to appear on your account. Adding manually TIP: For best results, we recommend having the Hub or panel in the same room as the water sensor you are adding. 1. Remove the battery tab from the water sensor. 2. Put the Hub or panel into Add mode. Refer to the Hub or panel documentation for more information. 3. Press the button on the sensor to add the device to the network. a. When the network LED on the sensor turns solid green, the sensor has been successfully added. 4. Name the device based on its application. a. This can be done on MobileTech, the Partner Portal, or the Customer Website. Troubleshooting If the water sensor is not communicating with the Hub or panel 1. Press the button on the device. a. The network LED should turn on and then turn off within a few seconds. If the LED stays on for 10 seconds, then the water sensor cannot communicate with the Hub or panel. Follow the steps below to fix the communication problems. 2. Install a Z-Wave repeater between the Hub and water sensor. TIP: Any AC-powered Z-Wave device will act as a repeater and improve the range between the Hub or panel and the Z-Wave device you are installing. 3. If step 2 does not resolve the issue, try deleting the sensor from the network (see below) and adding it again. Deleting the sensor from the network TIP: For best results, we recommend having the Hub or panel in the same room as the water sensor. 1. Put the Hub or panel into Delete mode. Refer to the Hub or panel documentation for more information. 2. Press the button on the sensor to delete it from the network. a. The network LED on the sensor will turn solid green and then blink to indicate the device has been successfully deleted. NOTE: If you added the device using SmartStart, the device will automatically add itself back to the network. To completely remove the device, deactivate the key in MobileTech or the Partner Portal, and then delete the device from the network. LED reference guide LED LED Status Description Network Solid for 5 seconds Add successful Blink 3 times Delete successful Solid for 3 seconds Device resetting Blink 10 times Problem detected Alert Solid for 3 seconds Sensor transitioned from dry to wet or wet to dry Blinks 3 times Attachment plugged in or attachment removed Both Flash twice Power up Notices FCC This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause Harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes and Modifications not expressly approved by Building 36 Technologies LLC can void your authority to operate this equipment under Federal Communications Commission’s rules. IC…

Text truncated - open the document above for the full version.

150 A Street, Suite 104 Needham, MA 02494 Building 36 Technologies, LLC 781-474-0500 / [email protected] 5/4/2021 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT – FCC FCC ID: 2AC3T-B36S40WRA On our behalf, I appoint Larry Stillings, Compliance Worldwide, Inc., to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Daniel Goodman

150 A Street, Suite 104 Needham, MA 02494 Building 36 Technologies, LLC 781-474-0500 / [email protected] 5/5/2021 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2AC3T-B36S40WRA Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Exhibit Type File Name Block Diagram Schematics Operational Description 2AC3T-B36S40WRA BlkDia.pdf 2AC3T-B36S40WRA Schem.pdf 2AC3T-B36S40WRA OpDes.pdf SHORT TERM CONFIDENTIALITY FOR A PERIOD OF 180 DAYS: Exhibit Type File Name Internal Photos 2AC3T-B36S40WRA IntPho.pdf When the device is marketed before the requested number of days listed above, the grantee will inform the TCB to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Daniel Goodman

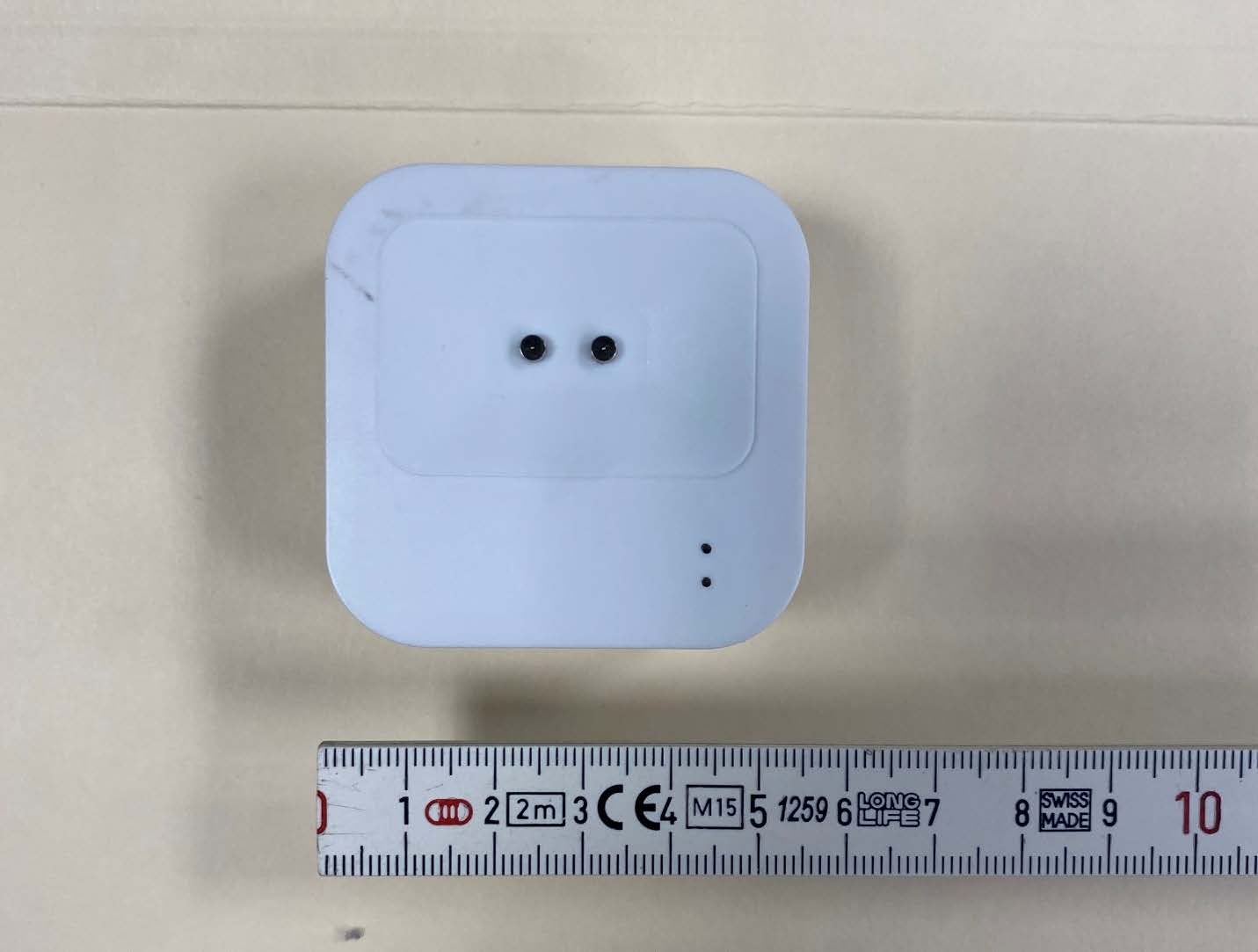

External photos 2AC3T-B36S40WRA and 12323A-B36S40WRA Front Back Sides: Sides:

SN: 0000000000000000 PIN Code: 00000

Internal Photos 2AC3T-B36S40WRA and 12323A-B36S40WRA Front cover open Transmitter – Front Transmitter – Back

Test Number: 180-21 Issue Date: 5/28/2021 Page 27 of 66 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 7. Measurement Data (continued) 7.12. Public Exposure to Radio Frequency Energy Levels ((1.1307 (b)(1)) RSS-GEN, ISSUE 5, RSS-102) 7.12.1. 1.1307 (b) (1) Public Exposure Requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. Frequency (MHz) MPE Distance (cm) DUT Output Power (dBm) DUT Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Result (mW/cm 2 ) (W/m 2 ) (1) (2) (3) (4) (5) 912.0000 20 13.16 -5.3 0.001215431 0.01215431 0.6080000 Compliant 920.0000 20 13.13 -5.3 0.001207064 0.01207064 0.6133333 Compliant • PD = Power Density (mW/cm 2 ) • OP = DUT Output Power (dBm) • AG = DUT Antenna Gain (dBi) • d = MPE Distance (cm) 1. Reference CFR 2.1091: For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. 2. Table 6.2 of this test report. 3. Estimated Antenna gain comparing radiated measurements to conducted measurements. 4. Power density is calculated from field strength measurement and antenna gain. 5. Reference CFR 1.1310, Table 1: Limits for Maximum Permissible Exposure (MPE), Section (B): Limits for General Population/Uncontrolled Exposure. Limit = f/1500, where f is in MHz. Results: Passed - The device under test meets the exclusion requirement detailed for a device with a separation distance of 20 cm. OP + AG (4 x π x d²) PD = Test Number: 180-21 Issue Date: 5/28/2021 Page 28 of 66 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 7. Measurement Data (continued) 7.12. Public Exposure to Radio Frequency Energy Levels ((1.1307 (b)(1)) RSS-GEN, ISSUE 5, RSS-102 continued) 7.12.2. RSS-102 Issue 5 Requirements Requirement: Requirement: RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: at or above 300 MHz and below 6 GHz and the source-based, time- averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 x ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz. Results: Compliant Frequency Separation Distance Maximum Power 1 RSS-102 Exemption Limit 2 Result (MHz) (cm) (mW) (Watts) (Watts) 912.00 ≥ 20 20.70 0.02070 1.38 Compliant 920.00 ≥ 20 20.56 0.02056 1.39 Compliant 1 Reference Section 6.2 of this report. 2 Reference RSS-102, § 2.5.2 Exemption Limits for Routine Evaluation – RF Exposure Evaluation for distances greater than 20 cm. The following formula was used to determine the exemption limit (W): 1.31 x 10 -2 x ƒ 0.6834 (ƒ = frequency (MHz))

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com COMPLIANCE WORLDWIDE INC. TEST REPORT 180-21 In Accordance with the Requirements of FCC PART 15.247, SUBPART C ISED Canada RSS-247, Issue 2 Issued to Building 36 Technologies 150 A Street – Suite 104 Needham, MA 02494 781-474-0500 for the ADC-S40-W Water Sensor Z-Wave LR Radio FCC ID: 2AC3T-B36S40WRA IC: 12323A-B36S40WRA Report Issued on May 28, 2021 Prepared by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. Test Number: 180-21 Issue Date: 5/28/2021 Page 2 of 66 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com Table of Contents 1. Scope ................................................................................................................................................................. 3 2 .Product Details ................................................................................................................................................... 3 2.1 Manufacturer ............................................................................................................................................... 3 2.2 Model Number ............................................................................................................................................. 3 2.3 Serial Number ............................................................................................................................................. 3 2.4 Description .................................................................................................................................................. 3 2.5 Power Source .............................................................................................................................................. 3 2.6 Hardware Revision ...................................................................................................................................... 3 2.7 Software Revision ....................................................................................................................................... 3 2.8 Modulation Type .......................................................................................................................................... 3 2.9 Operating Frequency ................................................................................................................................... 3 2.10 EMC Modifications .................................................................................................................................... 3 3. Product Configuration ......................................................................................................................................... 3 3.1 Operational Characteristics & Software ....................................................................................................... 3 3.2 EUT Hardware ............................................................................................................................................. 3 3.3 EUT Cables/Transducers ............................................................................................................................ 3 3.4 Support Equipment ...................................................................................................................................... 4 3.5 Block Diagram ............................................................................................................................................. 4 4. Measurements Parameters ................................................................................................................................ 4 4.1 Measurement Equipment Used to Perform Test ......................................................................................... 4 4.2 Measurement Software ............................................................................................................................... 5 4.3 Measurement & Equipment Setup ............................................................................................................... 5 4.4 Measurement Procedures ........................................................................................................................... 5 4.5 Measurement Uncertainty ........................................................................................................................... 6 5. Choice of Equipment for Test Suits .................................................................................................................... 6 5.1 Choice of Model .......................................................................................................................................... 6 5.2 Presentation ................................................................................................................................................ 6 5.3 Choice of Operating Frequencies ................................................................................................................ 6 5.4 EUT Positions for Emissions Measurements............................................................................................... 6 6. Measurement Summary ..................................................................................................................................... 7 7. Measurement Data ............................................................................................................................................. 8 7.1 Antenna Requirement ................................................................................................................................. 8 7.2 Minimum DTS Bandwidth .......................................................................................................…
