2AC6ACM7104UHF RFID Module

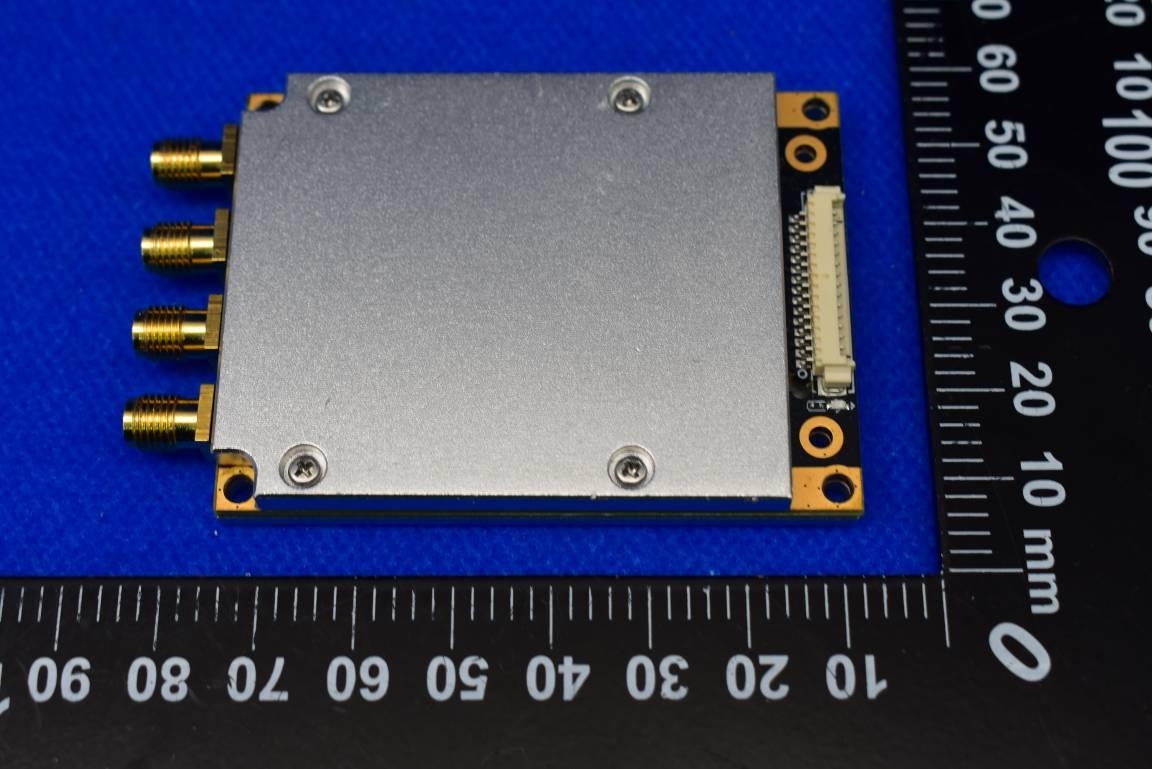

Chainway CM710-4 is a 4-port RFID module based on Impinj E710 chip that can be used in fixed RFID readers. This reliable module is small in size, low in power consumption, and high in stability. It is also resistant to electromagnetic interference and good at heat dispersion. The module appeals to challenging industries like warehousing, logistics, apparel, production lines and such. CM710-4 Dimensions 4-Port RFID Module Model 4-Ports RFID ModuleCM710-4 Development Board ModuleCM-X_EDCB Physical Characteristics Dimensions77.2 mm x 51.0 mm x 8.9 mm Weight 52.0 g / 1.83 oz. RFID Features RF Chip Impinj E710 Air Interface Protocol EPCglobal Gen2 (ISO18000-6C) Working Frequency 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) Output Power 5-30dBm adjustable; 1dB step interval; +/- 1dB precision Output Power Flatness+/- 0.2dB Antenna Interface 4-channel 50Ω RF connector SMA Receptacle Regions Supported FCC 902-928 MHz; ETSI 865.6-867.6 MHz; China 920-925 MHz; Others for customization (865-868, 902-928 MHz) Receive Sensitivity< -86 dBm Tag RSSISupported Antenna DetectorSupported Ambient Temp MonitorSupported Working ModeSingle/DRM Communication Interface Connector15 PIN W-TO-B Connector Host Communication UART 3.3V TTL Level Baud Rate: 115200bps Power Supply Input VoltageDC 3.5-5.25V Power Consumption in RF Output Mode 7.5W Power Consumption in Standby (EN high TTL level) 0.175W Power Consumption in Power Down (EN low TTL level) 42.5μW User Environment Operating Temp.-13 o F to 149 o F / -25 o C to 65 o C Storage Temp.-40 o F to 185 o F / -40 o C to 85 o C Humidity10% - 95% Reading Performance Fastest Read Rate950+ tags/s Reading RangeUp to 10m (with 4dBi antenna) Notice: Product specifications are subject to change without prior notice. / Model: CM710-4 / Update Date: 2023-11-29 Shenzhen Chainway Information Technology Co., Ltd Address: 9F, Building2, Phase 2, Gaoxinqi Industrial Park, Liuxian 1st Rd., Bao'an District, Shenzhen, Guangdong 518102, China Tel: 0086-755-23223316 Fax: 0086-755-23223310 Email: [email protected] Web: http://www.chainway.net Specification Interface Definition (15 PIN) Do not use the device in the environment at too high or too low temperature, never expose the device under strong sunshine or too wet environment. The suitable temperature for the product and accessories is -25°C~+65°C R F exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human bo d y. This product can be used across EU member states. EU Regulatory Conformance Hereby, Shenzhen Chainway Information Technology Co., Ltd declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.chainway.net FCC statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. Fed eral Communication Commission (FCC) Radiation Exposure Statement When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements. This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users. 2. The transmitter module may not be co-located with any other transmitter or antenna. As long as the two conditions above are met, additional transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required for the installed module. Important Note: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the Federal Communications Commission of the U.S. Government (FCC) and the Canadian Government authorizations are no longer considered valid and the FCC ID and IC ID cannot be used on the final product. In these circumstances, the OEM integrator shall be responsible for re-evaluating the end-product (including the transmitter) and obtaining a separate FCC and IC authorization in the U.S. and Canada. OEM Integrators - End Product Labeling Considerations.This transmiter module is authonzed only f…

Text truncated - open the document above for the full version.

Shenzhen Chainway Information Technology Co., Ltd Supplier’s Declaration Of Conformity for the FCC SDoC Procedure The following Equipment adapt FCC SDoC Procedure according to FCC part 2.906 : Product Name: Mobile Data Terminal Brand Name: CHAINWAY Model Number: CM710-4 Report Number: SZ23050083E01 FCC ID: 2AC6ACM7104 It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following importer / responsible party in United States: Not Available at Certification Stage Company Name: NA Company Address: NA Telephone:NA Fax: NA Person is responsible for marking this declaration:

FCC ID: 2AC6ACM7104 Model Name: CM710-4 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

Location:on the back

FCC ID: 2AC6ACM7104 Model Name: CM710-4 Internal Photos 1. EUT uncover view

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 8 REPORT No.：SZ23050083S01 RF EXPOSURE EVALUATION REPORT APPLICANT : Shenzhen Chainway Information Technology Co., Ltd PRODUCT NAME : UHF RFID Module MODEL NAME :CM710-4 BRAND NAME : CHAINWAY FCC ID :2AC6ACM7104 STANDARD(S) : 47 CFR Part 2(2.1091) RECEIPT DATE : 2023-05-25 TEST DATE :2023-06-06 to 2023-06-29 ISSUE DATE : 2023-11-29 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23050083S01 Page2of 8 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. Maximum Average Power Summary ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 Change History Version Date Reason for change 1.0 2023-11-29 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23050083S01 Page3of 8 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Shenzhen Chainway Information Technology Co., Ltd Applicant Address: 9F Building 2, Daqian Industrial Park, District 67, XingDong Community, Xin'an Street, Bao'an District, Shenzhen, Guangdong, China Manufacturer: Shenzhen Chainway Information Technology Co., Ltd Manufacturer Address: 9F Building 2, Daqian Industrial Park, District 67, XingDong Community, Xin'an Street, Bao'an District, Shenzhen, Guangdong, China 1.2 Equipment under Test (EUT) Description Product Name: UHF RFID Module Sample No.: 3# Hardware Version: CM710-4 _Hardware_version Software Version: CM710-4_Software_version Modulation Technology: FHSS Equipment Type: RFID Operating Frequency Range: 902.75MHz–927.25MHz Antenna Type: PCB Antenna Antenna Gain: 0dBi Note 1: The product will not sell with antenna. The antennas we use for all radiated test were just for test. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23050083S01 Page4of 8 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method Determination /Remark 47 CFR Part 2(2.1091) Radio Frequency Radiation Exposure Assessment: mobile devices No deviation KDB 447498 D01v06 General RF Exposure Guidance No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% confidence intervals. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23050083S01 Page5of 8 2. Device Category and RF Exposure Limit Per user manual, based on 47 CFR 2.1091, this device belongs to mobile device category with General Population/Uncontrolled exposure. Mobile Devices: 47 CFR 2.1091(b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimeter separation requirement. General Population/Uncontrolled Exposure: The general population…

Text truncated - open the document above for the full version.

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 42 REPORT No.：SZ23050083W01 TEST REPORT APPLICANT : Shenzhen Chainway Information Technology Co., Ltd PRODUCT NAME : UHF RFID Module MODEL NAME :CM710-4 BRAND NAME : CHAINWAY FCC ID : 2AC6ACM7104 STANDARD(S) :47 CFR Part 15 Subpart C RECEIPT DATE : 2023-05-25 TEST DATE :2023-06-06 to 2023-06-29 ISSUE DATE : 2023- 11-29 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 42 REPORT No.：SZ23050083W01 DIRECTORY 1. Technical Information ····················································································· 3 1.1. Applicant and Manufacturer Information ························································ 3 1.2. Equipment Under Test (EUT) Description ······················································· 3 1.3. The Channel Number and Frequency ····························································· 4 1.4. Test Standards and Results ·········································································· 5 1.5. Environmental Conditions ············································································ 6 2. 47 CFR Part 15C Requirements ······································································· 7 2.1. Antenna Requirement ·················································································· 7 2.2. Hopping Mechanism ···················································································· 7 2.3. Number of Hopping Frequency ····································································· 8 2.4. Duty Cycle of Test Signal ············································································ 10 2.5. Maximum Peak Conducted Output Power ····················································· 11 2.6. Maximum Average Conducted Output Power ················································· 14 2.7. 20 dB Bandwidth ························································································ 15 2.8. Carried Frequency Separation ····································································· 18 2.9. Time of Occupancy (Dwell time) ··································································· 20 2.10. Conducted Spurious Emissions ································································· 23 2.11. Conducted Emission ················································································· 28 2.12. Radiated Emission ··················································································· 32 Annex A Test Uncertainty ················································································ 39 Annex B Testing Laboratory Information ··························································· 40 Change History Version Date Reason for change 1.0 2023-11-29 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 42 REPORT No.：SZ23050083W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Shenzhen Chainway Information Technology Co., Ltd Applicant Address: 9F Building 2, Daqian Industrial Park, District 67, XingDong Community, Xin'an Street, Bao'an District, Shenzhen, Guangdong, China Manufacturer: Shenzhen Chainway Information Technology Co., Ltd Manufacturer Address: 9F Building 2, Daqian Industrial Park, District 67, XingDong Community, Xin'an Street, Bao'an District, Shenzhen, Guangdong, China 1.2. Equipment Under Test (EUT) Description Product Name: UHF RFID Module Sample No.: 3# Hardware Version: CM710-4 _Hardware_version Software Version: CM710-4_Software_version Modulation Technology: FHSS Equipment Type: RFID Operating Frequency Range: 902.75MHz–927.25MHz Antenna Type: PCB Antenna Antenna Gain: 0dBi Note 1: The product will not sell with antenna. The antenna we use for all radiated test was just for test. Note 2: We use the dedicated software to control the EUT continuous transmission. Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 42 REPORT No.：SZ23050083W01 1.3. The Channel Number and Frequency Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 902.75 16 910.25 31 917.25 46 925.25 2 903.25 17 910.75 32 918.25 47 925.75 3 903.75 18 911.25 33 918.75 48 926.25 4 904.25 19 911.75 34 919.25 49 926.75 5 904.75 20 912.25 35 919.75 50 927.25 6 905.25 21 912.75 36 920.25 7 905.75 22 913.25 37 920.75 8 906.25 23 913.75 38 921.25 9 906.75 24 914.25 39 921.75 10 907.25 25 914.75 40 922.25 11 907.75 26 915.25 41 9…

Text truncated - open the document above for the full version.

Add：9F, Building 2, Phase 2, Gaoxinqi Industrial Park, Liuxian 1st Rd., Shenzhen, China Page 1 of 4 UHF RFID Antenna Specification Part NumberCUAP0CA ANT TYPCircular Polarization ANT material FR4 Operating frequency902-928 MHz Add：9F,Building2,Phase2,GaoxinqiIndustrialPark,Liuxian1stRd.,Shenzhen,China Page 2 of 4 1ANTtestequipment 1.1Microwavechamberdiagram Figure1Wiringdiagramofassemblytestformicrowavechambersystem 样机 网络分析仪 同轴电缆 支撑架 Figure2ANTstatictestconnectionmethod 2Specifications Antenna（天线） 1 Antennamodel(天线规格) 100mm*100mm*2mm 2 FrequencyRange(频率范围) 902-928MHz 3 V.S.W.R（驻波比） 1.3Max 4 Bandwidth@10dB(10dB带宽) 20MHzMin 5 Gain(增益) 0dBi 6 Impedance（阻抗）50Ω 7 Polarization（极化方式） RHCP 8 WorkingTemp（工作温度）-40°C～+85°C 9 StorageTemp（贮存温度）-40°C～+85°C Add：9F,Building2,Phase2,GaoxinqiIndustrialPark,Liuxian1stRd.,Shenzhen,China Page 3 of 4 3Antennatestresult 3.1Gain&Efficiency Gain&Efficiency Frequency 频率 (MHz) Gain 增益 (dBi) Efficiency 效率 Frequency 频率 (MHz) Gain 增益 (dBi) Efficiency 效率 902.75 -0.1768.32% 915.25 068.86% 903.25-0.1768.32%915.75068.86% 903.75 -0.1768.35% 916.25 068.86% 904.25 -0.1668.35%916.75068.86% 904.75 -0.1668.42%917.75068.86% 905.25 -0.1668.42%918.25068.82% 905.75 -0.1668.46%918.75068.82% 906.25 -0.1568.47%919.25-0.168.81% 906.75 -0.1568.48%919.75-0.168.81% 907.25 -0.1568.50%920.25-0.1268.80% 907.75 -0.1568.53%920.75-0.1268.80% 908.25 -0.1468.55%921.25-0.1368.76% 908.75 -0.1468.56%921.75-0.1368.76% 909.25 -0.1468.60%922.25-0.1468.69% 909.75 -0.1468.60%922.75-0.1468.69% 910.25 -0.1368.65%923.25-0.1468.62% 910.75 -0.1368.65%923.75-0.1568.62% 911.25 -0.1268.71%924.25-0.1568.56% 911.75 -0.1268.72%924.75-0.1568.56% 912.25-0.1268.74%925.25-0.1568.50% 912.75 -0.1268.75% 925.75 -0.1668.50% 913.25 -0.1068.80% 926.25 -0.1668.42% 913.75 -0.168.80% 926.75 -0.1668.42% 914.25 068.84% 927.25 -0.1668.40% 914.75 068.84% Add：9F,Building2,Phase2,GaoxinqiIndustrialPark,Liuxian1stRd.,Shenzhen,China Page 4 of 4 3.2Radiation
