2AC6AMC95Mobile Data Terminal with BT, WIFI, GSM, WCDMA, LTE and NFC

ShenZhen Chainway Information Technology Co., Ltd Mobile Data Terminal MC95 User Manual 1 2 Content Content .......................................................................................... 2 Statement .......................................................................................... 4 Chapter 1 Product intro ..................................................................... 5 1.1 Intro ..................................................................................... 5 1.2 Precaution before using battery ........................................... 6 1.3 Notes ................................................................................... 7 Chapter 2 Installation instructions...................................................... 8 2.1 Appearance ............................................................................. 8 2.2 Install Micro SD and SIM cards ................................................ 8 2.3 Battery charge ....................................................................... 10 2.4 Buttons and function area display .......................................... 11 Chapter 3 Call function .................................................................... 12 3.1 Calling numbers ..................................................................... 12 3.2 Contacts ................................................................................ 12 3.3 5G Function ....................................................................... 12 3.4 SMS and MMS ....................................................................... 12 Chapter 4 Barcode reader-writer ..................................................... 13 Chapter 5 RFID reader .................................................................... 15 5.1 NFC ....................................................................................... 15 Chapter 6 Other functions ............................................................... 16 6.1 PING tool ............................................................................... 16 6.2 Bluetooth ............................................................................... 17 6.3 GPS ....................................................................................... 18 6.4 Volume setup ......................................................................... 19 6.5 Sensor ................................................................................... 20 3 6.6 Keyboard ............................................................................... 21 6.8 Network ................................................................................. 22 6.8 Keyboard emulator ................................................................ 23 4 Statement 2013 by ShenZhen Chainway Information Technology Co., Ltd. All rights reserved. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission written from Chainway. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice. The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. Chainway grants to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Chainway. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from Chainway. Chainway reserves the right to make changes to any software or product to improve reliability, function, or design. Chainway does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any Chainway intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in Chainway products. 5 Chapter 1 Product intro 1.1 Intro Chainway MC95 is a new high-performance and highly durable mobile computer. With Android 12 operating system, high- performance octa-core processor, optional large memory, 5.45-inch HD screen, 5000mAh removable battery, the excellent configuration delivers highly efficient operation. It supports optional barcode scanning, NFC, front and rear cameras, and features IP68 protection rating, 1.5 meters drop resistance. This device perfectly adapts to applications for retail, logistics, warehousing, electricity, finance, transportation, manufacturing, etc. 6 1.2 Precaution before using battery  Do not leave battery unused for long time, no matter it is in device or inventory. If battery has been used for 6 months already, it should be check for charging function or it should be disposed correctly.  The lifespan of Li-ion battery is around 2 to 3 years, it can be circularly charged for 300 to 500 times. (One full battery charge period means completely charged and completely discharged.)  When Li-ion battery is not in used, it will continue discharge slowly. Therefore, battery charging status should be checked frequently and take reference of the related battery charging information on the manuals.  Observe and record the information of a new unused and non- fully charged battery. On the basis of operating time of new battery and compare with a battery that has been used for long time. According to product configuration and application program, the operat…

Text truncated - open the document above for the full version.

Shenzhen Chainway Information Technology Co., Ltd. 9F Building 2, Daqian Industrial Park, District 67, XingDong Community, Xin'an Street, Bao'an District Shenzhen, Guangdong China Date: 2023/04/12 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columb 旧 ， MD 21046 FCC ID: 2AC6AMC95 US Agent - Attestation Statement I Part 2.911(d)(7) Shenzhen Chainway Information Technology Co., Ltd. ce呻es,that as of 2023/04/10, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AC6AMC95 Shenzhen Chainway Information Technology Co., Ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Shenzhen Chainway Information Technology Co., Ltd. for FCC ID: 2AC6AMC95 Designated Agent Information: Company Name: FCC US Agent, LLC FRN:0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely,

Shenzhen Chainway Information Technology Co., Ltd. Date: 2023/04/12 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: 2AC6AMC95 To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules (CFR 47), and Section 552(b)(4) of the Freedom of Information Act, Shenzhen Chainway Information Technology Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days from grant date as outlined in Public Notice DA04-1705. This provision will give Shenzhen Chainway Information Technology Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM 5 Tune up SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of Shenzhen Chainway Information Technology Co., Ltd. the Grant for this application. Signatory： Contact name: Karen Xu Title: Manager Tel: +86 755 23223301 Email: [email protected] Company name: Shenzhen Chainway Information Technology Co., Ltd.

Shenzhen Chainway Information Technology Co., Ltd Supplier’s Declaration Of Conformity for the FCC SDoC Procedure The following Equipment adapt FCC SDoC Procedure according to FCC part 2.906: Product Name: Mobile Data Terminal Brand Nam: CHAINWAY Model Number: MC95 Report Number:SZ22110259E01 FCC ID: 2AC6AMC95 It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following importer / responsible party in United States: Not Available at Certification Stage Company Name: NA Company Address: NA Telephone:NA Fax: NA Person is responsible for marking this declaration: Karen Xu Manager Shenzhen Chainway Information Technology Co., Ltd ____________________________________ ______________________________________ Name (Full name ) Position / Title 2023/04/24 ____________________________________ ______________________________________ Legal Signature Date

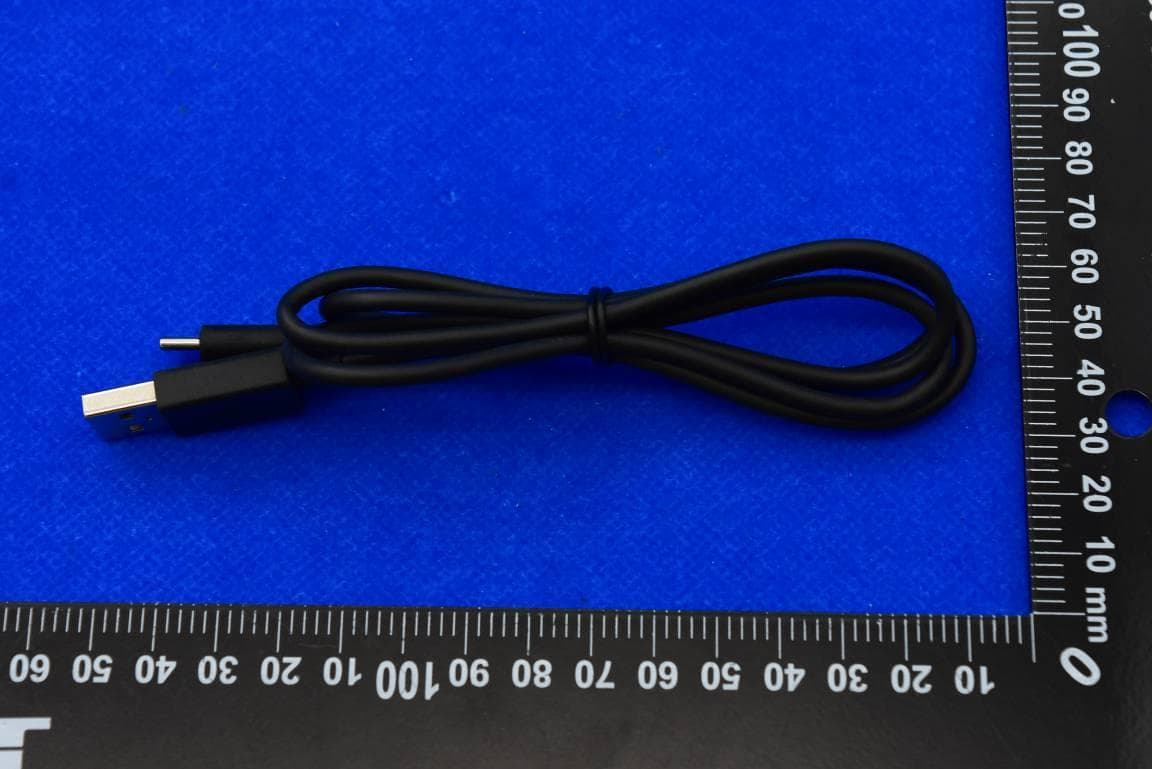

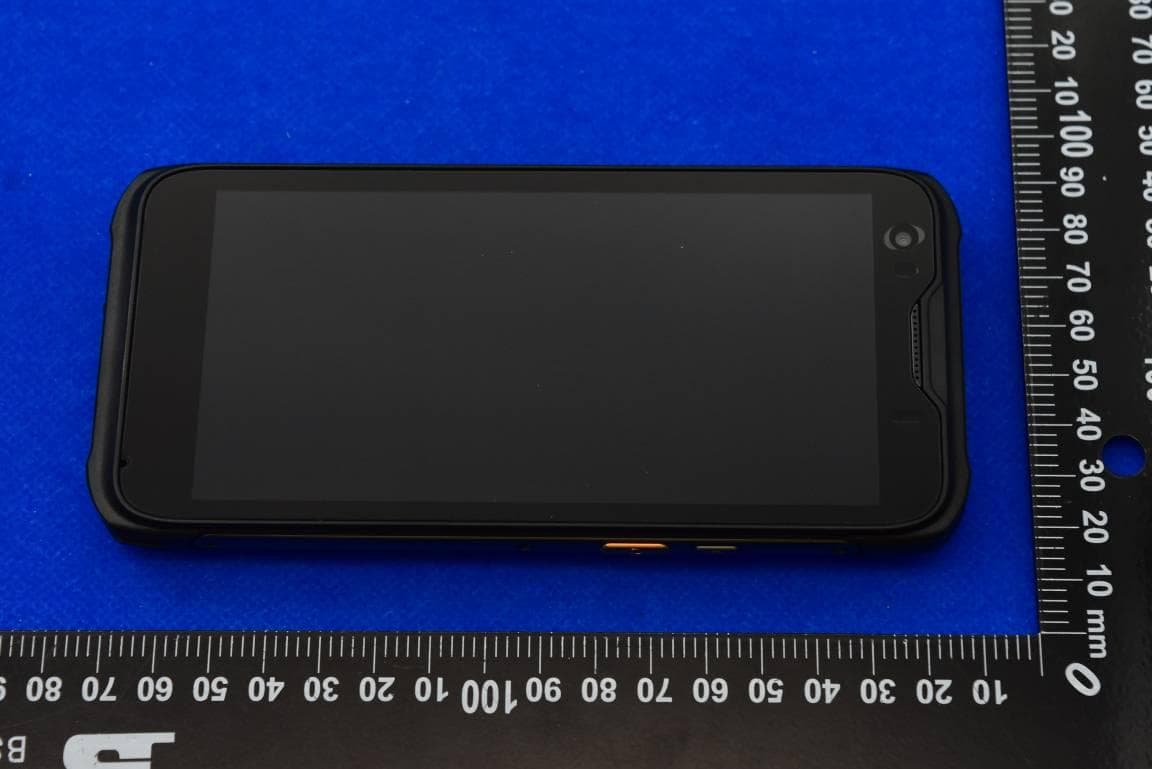

FCC ID: 2AC6AMC95 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

1. Label 2. Label Location

FCC ID: 2AC6AMC95 Internal Photos 1. EUT uncover view 2. Antenna view Aux Ant BT-WIFI-GPS Ant Main Ant

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.03 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.886 S/m; ε r = 41.823; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7624; ConvF(10.43, 10.43, 10.43) @ 750 MHz; Calibrated: 2022.03.31 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW750/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.61 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.96 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 4.13 W/kg SAR(1 g) = 2.21 W/kg; SAR(10 g) = 1.36 W/kg Maximum value of SAR (measured) = 3.46 W/kg 0 dB = 3.61 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.06 System Check_900MHz_Head Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 900 MHz; σ = 0.944 S/m; ε r = 41.953; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7624; ConvF(10.1, 10.1, 10.1) @ 900 MHz; Calibrated: 2022.03.31 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW900/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 4.37 W/kg CW900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 61.03 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 5.16 W/kg SAR(1 g) = 2.77 W/kg; SAR(10 g) = 1.85 W/kg Maximum value of SAR (measured) = 4.34 W/kg 0 dB = 4.37 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.02.06 System Check_1800MHz_Head Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1800 MHz; σ = 1.409 S/m; ε r = 40.313; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7624; ConvF(8.6, 8.6, 8.6) @ 1800 MHz; Calibrated: 2022.03.31 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW1800/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.5 W/kg CW1800/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 90.77 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10.21 W/kg; SAR(10 g) = 5.23 W/kg Maximum value of SAR (measured) = 13.8 W/kg 0 dB = 14.5 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.02.07 System Check_2000MHz_Head Communication System: UID 0, CW (0); Frequency: 2000 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 2000 MHz; σ = 1.418 S/m; ε r = 40.259; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7624; ConvF(8.27, 8.27, 8.27) @ 2000 MHz; Calibrated: 2022.03.31 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2000/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 18.6 W/kg CW2000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.5 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 23.0 W/kg SAR(1 g) = 10.89 W/kg; SAR(10 g) = 5.39 W/kg Maximum value of SAR (measured) = 17.9 W/kg 0 dB = 18.6 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.05 System Check_2300MHz_Head Communication System: UID 0, CW (0); Frequency: 2300 MHz;Duty Cycl…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.02.06 GSM850_GPRS(4 TX slots)_Right Cheek_Ch189 Communication System: UID 0, GSM850(class 12) (0); Frequency: 836.4 MHz;Duty Cycle: 1:2.08 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; σ = 0.943 S/m; ε r = 42.978; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7624; ConvF(10.1, 10.1, 10.1) @ 836.4 MHz; Calibrated: 2022.03.31 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch189/Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.345 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.484 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.376 W/kg SAR(1 g) = 0.291 W/kg; SAR(10 g) = 0.232 W/kg Maximum value of SAR (measured) = 0.333 W/kg 0 dB = 0.333 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.02.07 GSM1900_GPRS(4 TX slots)_Right Cheek_Ch661 Communication System: UID 0, GSM1900(class 12) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.08 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; σ = 1.366 S/m; ε r = 40.167; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7624; ConvF(8.27, 8.27, 8.27) @ 1880 MHz; Calibrated: 2022.03.31 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch661/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.193 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.419 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.206 W/kg SAR(1 g) = 0.149 W/kg; SAR(10 g) = 0.100 W/kg Maximum value of SAR (measured) = 0.177 W/kg 0 dB = 0.177 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.02.06 WCDMA Band II_RMC 12.2Kbps_Right Cheek_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1880 MHz; σ = 1.366 S/m; ε r = 40.167; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7624; ConvF(8.6, 8.6, 8.6) @ 1880 MHz; Calibrated: 2022.03.31 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch9400/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.196 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.078 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.212 W/kg SAR(1 g) = 0.152 W/kg; SAR(10 g) = 0.102 W/kg Maximum value of SAR (measured) = 0.183 W/kg 0 dB = 0.183 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.02.06 WCDMA Band IV_RMC 12.2Kbps_Right Cheek_Ch1413 Communication System: UID 0, UMTS-FDD (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1733 MHz; σ = 1.412 S/m; ε r = 39.814; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7624; ConvF(8.6, 8.6, 8.6) @ 1732.6 MHz; Calibrated: 2022.03.31 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch1413/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.140 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.736 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.147 W/kg SAR(1 g) = 0.107 W/kg; SAR(10 g) = 0.076 W/kg Maximum value of SAR (measured) = 0.128 W/kg 0 dB = 0.128 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Test Laboratory: Shenzhen Mor…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Annex E Conducted Power Note: Conducted power unit: dBm The target power was recorded in the manufacture document. 128189251128189251 824.2836.4848.8824.2836.4848.8 33.0833.1033.0634.0024.0824.1024.0625.00 33.0533.0733.0534.0024.0524.0724.0525.00 32.2332.2632.1933.0026.2326.2626.1927.000.07 30.4230.4530.4031.0026.1626.1926.1426.740.05 29.2129.2729.2430.0026.2126.2726.2427.000.06 25.4025.4425.3826.0016.4016.4416.3817.000.06 24.3724.3924.3625.0018.3718.3918.3619.000.03 22.3822.4222.3723.0018.1218.1618.1118.740.05 21.3321.4121.3522.0018.3318.4118.3519.000.08 Max.33.10Max.26.27 512661810512661810 1850.218801909.81850.218801909.8 29.6329.6529.6230.5020.6320.6520.6221.50 29.6029.6129.5930.5020.6020.6120.5921.50 28.7328.7628.7129.5022.7322.7622.7123.500.05 26.9026.9526.9327.5022.6422.6922.6723.240.05 25.8525.8725.8426.5022.8522.8722.8423.500.03 27.4027.4227.4128.0018.4018.4218.4119.000.02 26.4926.5426.5027.5020.4920.5420.5021.500.05 24.5524.6124.5825.5020.2920.3520.3221.240.06 23.6423.7023.6624.5020.6420.7020.6621.500.06 Max.29.65Max.22.87 926294009538131214131513413241824233 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99RMC 12.2Kbps22.2922.3122.1123.0022.4022.4322.3923.0022.1522.1722.1123.00 3GPP Rel 6HSDPA Subtest-121.4921.7521.5722.5022.0721.9222.0923.0021.8221.9021.5922.50 3GPP Rel 6HSDPA Subtest-221.4821.7421.5522.5022.0721.9122.0523.0021.8321.9021.6022.50 3GPP Rel 6HSDPA Subtest-321.4821.6921.6822.0022.0721.9122.0522.5021.8421.9021.6222.50 3GPP Rel 6HSDPA Subtest-421.4721.8321.6822.0022.0821.9322.0822.5021.8221.9221.6122.50 3GPP Rel 6HSUPA Subtest-118.4718.7518.7019.5019.1518.9519.0820.0018.9118.9318.6819.50 3GPP Rel 6HSUPA Subtest-218.5018.7418.7019.5019.0918.9419.0920.0018.9018.9318.6719.50 3GPP Rel 6HSUPA Subtest-319.5719.7619.6620.5020.0819.9320.0821.0019.8819.9619.6720.50 3GPP Rel 6HSUPA Subtest-418.0818.2818.1919.0018.6418.4618.6019.5018.4018.5018.1619.50 3GPP Rel 6HSUPA Subtest-519.5719.7419.7320.5020.1119.9420.0821.0019.8719.8919.6620.50 3GPP Rel 7 HSPA+ (16QAM) Subtest-120.4020.4220.0421.0020.6620.7420.7321.5020.3520.3520.3421.00 Cable Loss0.8Cable Loss0.8Cable Loss0.6 Max.22.31Max.22.43Max.22.17 Tune-up Limit (dBm) Attenuator Mode Tune-up Limit (dBm) Tune-up Limit (dBm) Tune-up Limit (dBm) BandWCDMA Band II (dBm)WCDMA Band IV (dBm)WCDMA Band V (dBm) TX Channel Frequency (MHz) Mode AttenuatorCable Loss : 0.8 EDGE 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots GPRS 2 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots GSM1900Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot Tune-up Limit (dBm) Ch Delta > 0.5 0.06 Mode AttenuatorCable Loss : 0.6 EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot GPRS 2 Tx slots Tune-up Limit (dBm) Tune-up Limit (dBm) Ch Delta > 0.5 0.05 GSM850 Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Conducted Power MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 BW [MHz]Modulation RB Size RB Offset Low Channel Middle Channel High Channel BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel 187001890019100200502017520300 18601880190017201732.51745 20QPSK1023.1323.1823.1220QPSK1023.0723.3023.14 20QPSK14922.9523.0522.9820QPSK14923.1023.0923.19 20QPSK19923.1322.9423.0320QPSK19923.1623.1023.20 20QPSK50022.1822.2022.1320QPSK50022.2622.3322.16 20QPSK502422.0322.1622.0320QPSK502422.2722.3122.24 20QPSK505022.1222.1122.1520QPSK505022.1022.1922.13 20QPSK100022.0722.0822.0920QPSK100022.2022.2422.14 2016QAM1022.0922.2521.982016QAM1022.3922.4122.31 2016QAM14922.0922.2422.092016QAM14922.3222.3522.21 2016QAM19922.0222.0722.062016QAM19922.0522.2322.26 2016QAM50021.1321.2521.182016QAM50021.0921.3121.32 2016QAM502421.1121.0621.052016QAM502421.3521.2321.32 2016QAM505021.0621.0521.082016QAM505021.0621.0521.27 2016QAM100021.0621.0821.102016QAM100021.2721.1621.10 2064QAM1021.0921.3021.172064QAM1021.2921.2921.32 2064QAM14921.1221.1920.992064QAM14921.3721.2521.23 2064QAM19921.0221.0321.062064QAM19921.0721.2021.30 2064QAM50020.2220.2720.182064QAM50020.1620.1820.22 2064QAM502420.0920.1620.062064QAM502420.2220.2920.18 2064QAM505020.1320.0820.102064QAM505020.2220.1520.37 2064QAM100020.1220.1520.112064QAM1000 20.0920.1920.26 18675 1890019125200252017520325 1857.518801902.51717.51732.51747.5 15QPSK1022.9923.1523.1115QPSK1023.0423.2623.06 15QPSK13722.9823.1123.0515QPSK13723.1123.1723.16 15QPSK17423.0723.0823.0915QPSK17423.2323.2423.18 15QPSK36022.0822.3522.3215QPSK36022.3122.2722.29 15QPSK362022.1822.1022.0715QPSK362022.0222.0822.29 15QPSK363922.2522.3322.0315QPSK363922.1022.1322.18 15QPSK75022.0822.0622.1115QPSK75022.0722.3722.29 1516QAM1022.2122.2522.061516QAM1022.3422.3422.17 1516QAM13722.0822.0622.071516QAM13722.3322.2722.25 1516QAM17422.0521.9821.921516QAM17422.1822.0822.19 1516QAM36021.3021.3221.281516QAM36021.1921.3921.31 1516QAM362021.1821.1721.181516QAM362021.3121.4121.25 1516QAM363921.2821.3021.311516QAM363921.1621.1021.33 1516QAM75021.0321.2721.031516QAM75021.1821.1121.15 1564QAM1021.0921.2121.051564QAM1021.0521.3121.21 1564QAM13721.1221.0521.041564QAM13721.2421.1921.31 1564QAM17421.0121.0721.151564QAM17421.1021.2321.06 1564QAM36020.2920.3020.281564QAM36020.3720.4120.23 1564QAM362020.1720.3420.261564QAM362020.3920.4320.36 1564QAM363920.2420.2820.111564QAM363920.2320.2120.14 1564QAM75020.3120.1220.291564QAM75020.3720.2720.36 186501890…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22110259S01 Annex F DASY Calibration Certificate

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2022.12.15 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D900V2-SN: 1d064 Antenna Parameters with Head TSL Impedance, transformed to feed point 48.406Ω-1.16jΩ Return Loss -33.947dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matc…
