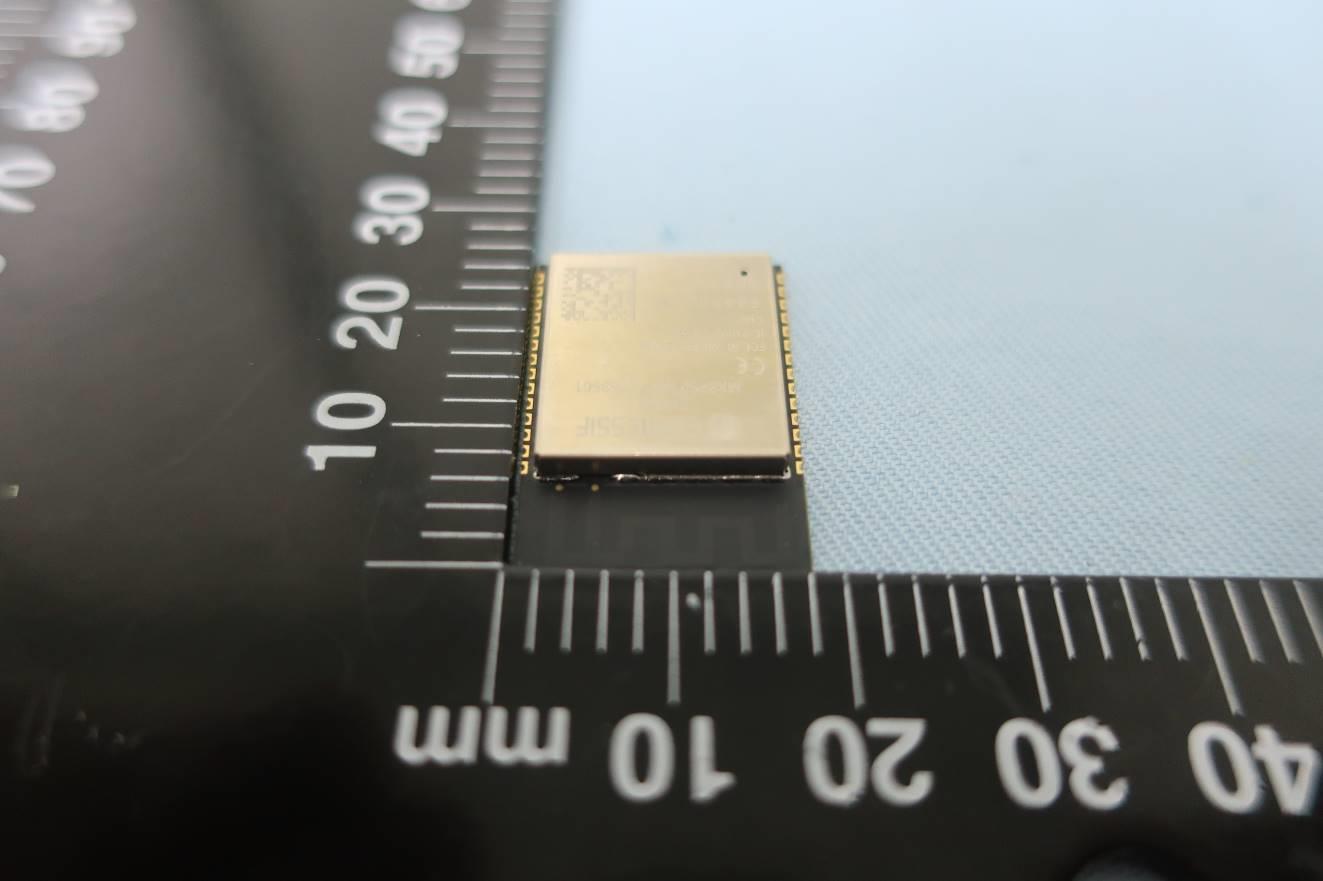

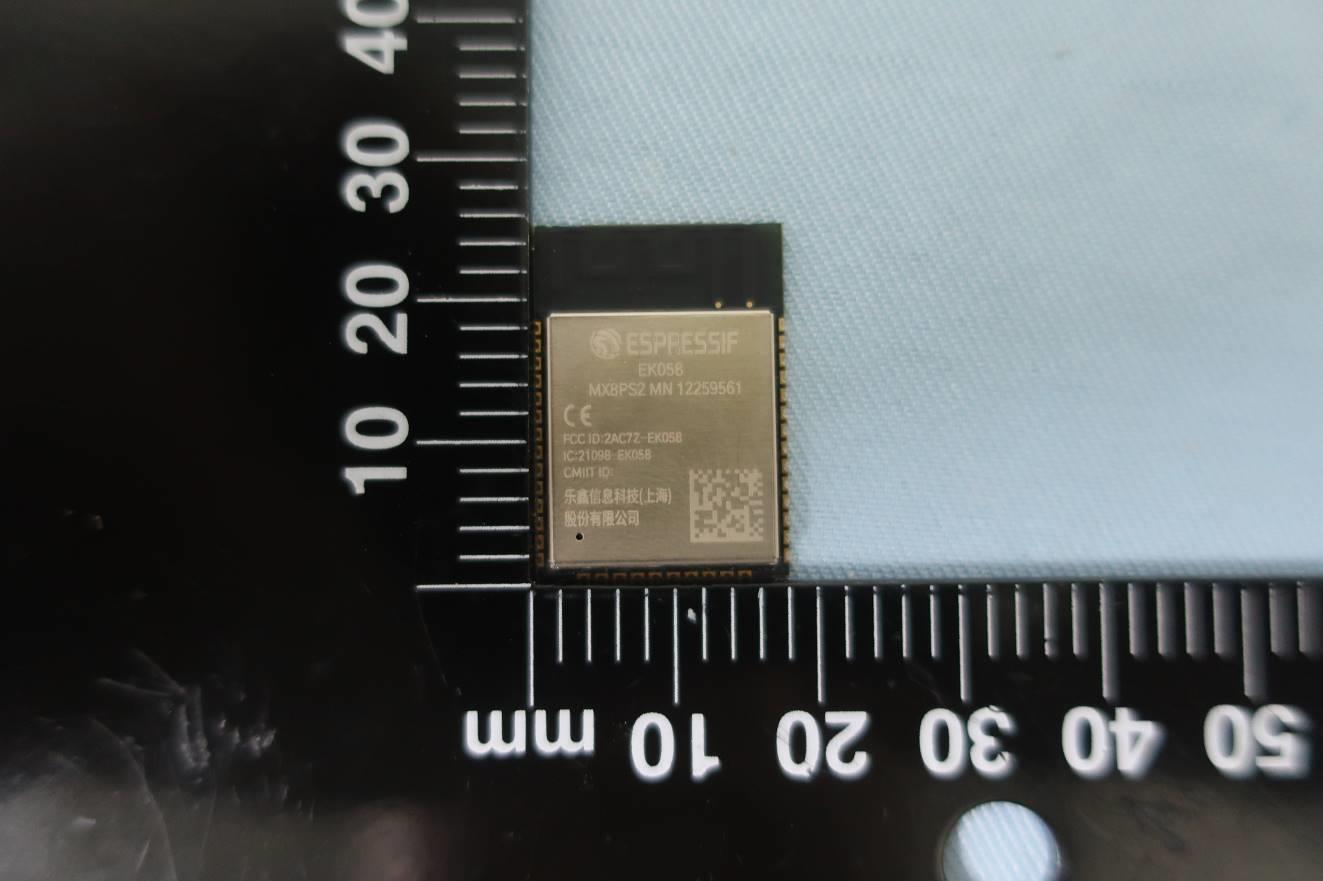

2AC7Z-EK0582.4G Wi-Fi & Bluetooth IoT Module

EK058 User Manual 2.4 GHz Wi­Fi + Bluetooth ® + Bluetooth LE module Built around ESP32 series of SoCs, Xtensa ® dual­core 32­bit LX6 microprocessor Flash up to 8 MB, PSRAM up to MB 25 GPIOs, rich set of peripherals On­board PCB antenna EK058 Pre-release v0.5 Espressif Systems Copyright © 2022 www.espressif.com About This Document This user manual shows how to get started with the EK058 module. Document Updates Please always refer to the latest version onhttps://www.espressif.com/en/support/download/documents. Revision History For revision history of this document, please refer to thelast page. Documentation Change Notification Espressif provides email notifications to keep you updated on changes to technical documentation. Please sub- scribe atwww.espressif.com/en/subscribe. Certification Download certificates for Espressif products fromwww.espressif.com/en/certificates. Contents Contents 1 Overview4 1.1 Module Overview4 2 Get Started on EK0585 2.1 What You Need5 2.2 Hardware Connection5 2.3 Set up Development Environment6 2.3.1 Install Prerequisites6 2.3.2 Get ESP-IDF6 2.3.3 Set up Tools7 2.3.4 Set up Environment Variables7 2.4 Create Your First Project7 2.4.1 Start a Project7 2.4.2 Connect Your Device7 2.4.3 Configure7 2.4.4 Build the Project8 2.4.5 Flash onto the Device9 2.4.6 Monitor10 3 U.S. FCC Statement11 4 Industry Canada Statement15 5 Related Documentation and Resources18 Revision History19 Espressif Systems3EK058 User Manual v0.5 1 Overview 1Overview 1.1Module Overview EK058 is a customized Wi-Fi + Bluetooth + Bluetooth LE MCU module, and comes with a PCB antenna and an 8 MB SPI flash. At the core of EK058 is the ESP32-D0WDR2-V3. The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz. The chip also has a low-power coprocessor that can be used instead of the CPU to save power while performing tasks that do not require much computing power, such as monitoring of peripherals. This ESP32 chip integrates a rich set of peripherals, ranging from SD card interface, capacitive touch sensors, ADC, DAC, Two-Wire Automotive Interface, to Ethernet, high-speed SPI, UART, I2S, I2C, etc. The power supply voltage range of this module is 3.0 V~3.6 V, and the center frequency range of operating channel is 2412 MHz~2462 MHz. For more information about the hardware and pins, please refer to EK058 Datasheet. Espressif Systems4EK058 User Manual v0.5 2 Get Started on EK058 2Get Started on EK058 2.1What You Need To develop applications for module you need: •1 x EK058 module •1 x Espressif RF testing board •1 x USB-to-Serial board •1 x Micro-USB cable •1 x PC running Linux In this user guide, we take Linux operating system as an example. For more information about the configuration on Windows and macOS, please refer toESP-IDF Programming Guide. 2.2Hardware Connection 1.Solder the EK058 module to the RF testing board as shown in Figure1. Figure 1: Hardware Connection 2.Connect the RF testing board to the USB-to-Serial board via TXD, RXD, and GND. 3.Connect the USB-to-Serial board to the PC. 4.Connect the RF testing board to the PC or a power adapter to enable 5 V power supply, via the Micro-USB cable. 5.During download, connect IO0 to GND via a jumper. Then, turn “ON” the testing board. 6.Download firmware into flash. For details, see the sections below. 7.After download, remove the jumper on IO0 and GND. Espressif Systems5EK058 User Manual v0.5 2 Get Started on EK058 8.Power up the RF testing board again. EK058 will switch to working mode. The chip will read programs from flash upon initialization. Note: IO0 is internally logic high. If IO0 is set to pull-up, the Boot mode is selected. If this pin is pull-down or left floating, the Download mode is selected. For more information on EK058, please refer to EK058 Datasheet. 2.3Set up Development Environment The Espressif IoT Development Framework (ESP-IDF for short) is a framework for developing applications based on the Espressif ESP32. Users can develop applications with ESP32 in Windows/Linux/macOS based on ESP-IDF. Here we take Linux operating system as an example. 2.3.1Install Prerequisites To compile with ESP-IDF you need to get the following packages: •CentOS 7: sudo yum install git wget flex bison gperf python cmake ninja-build ccache dfu-util •Ubuntu and Debian (one command breaks into two lines): sudo apt-get install git wget flex bison gperf python python-pip python-setuptools cmake ninja-build ccache libffi-dev libssl-dev dfu-util •Arch: sudo pacman -S --needed gcc git make flex bison gperf python-pip cmake ninja ccache dfu-util Note: •This guide uses the directory~/esp on Linux as an installation folder for ESP-IDF. •Keep in mind that ESP-IDF does not support spaces in paths. 2.3.2Get ESP­IDF To build applications for EK058 module, you need the software libraries provided by Espressif inESP-IDFrepository. To get ESP-IDF, create an installation directory (~/esp) to download ESP-IDF to and clone the repository with ‘git clone’: mkdir -p ~/esp cd ~/esp git clone --recursive https://github.com/espressif/esp-idf.git ESP-IDF will be downloaded into~/esp/esp-idf. ConsultESP-IDFVersionsfor information about which ESP-IDF version to use in a given situation. Espressif Systems6EK058 User Manual v0.5 2 Get Started on EK058 2.3.3Set up Tools Aside from the ESP-IDF, you also need to install the tools used by ESP-IDF, such as the compiler, debugger, Python packages, etc. ESP-IDF provides a script named ‘install.sh’ to help set up the tools in one go. cd ~/esp/esp-idf ./install.sh 2.3.4Set up Environment Variables The installed tools are not yet added to the PATH environment variable. To make the tools usable from the command line, some environment variables must be set. ESP-IDF provides another script ‘export.sh’ which does that. In the terminal where you are going to use ESP-IDF, run: . $HOME/esp/esp-idf/export.sh Now everything…
