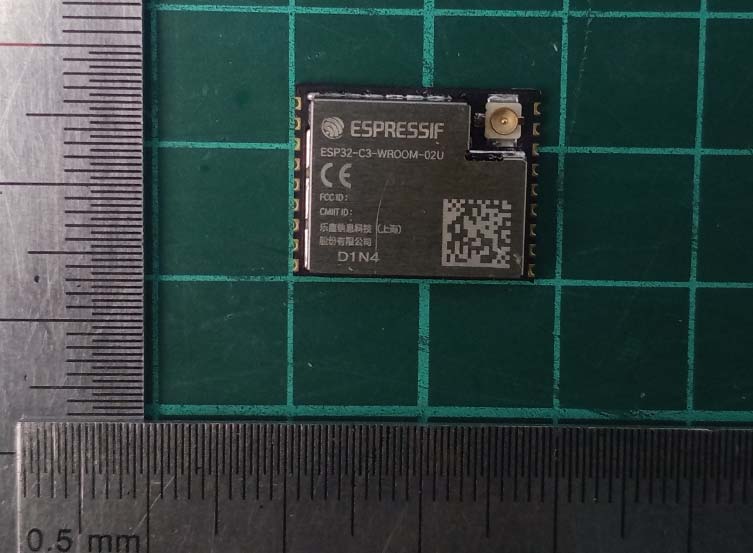

2AC7Z-ESPC3WROOMUWi-Fi & Bluetooth Internet of Things Module

ESP32­C3­WROOM­02U User Manual Pre-release v0.1 Espressif Systems Copyright © 2023 www.espressif.com About This Document This user manual shows how to get started with the ESP32-C3-WROOM-02U module. Document Updates Please always refer to the latest version onhttps://www.espressif.com/en/support/download/documents. Revision History For revision history of this document, please refer to thelast page. Documentation Change Notification Espressif provides email notifications to keep you updated on changes to technical documentation. Please sub- scribe atwww.espressif.com/en/subscribe. Certification Download certificates for Espressif products fromwww.espressif.com/en/certificates. Contents Contents 1 Overview4 1.1 Module Overview4 1.2 Pin Description5 2 Get Started on ESP32­C3­WROOM­02U7 2.1 What You Need7 2.2 Hardware Connection7 2.3 Set up Development Environment8 2.3.1 Install Prerequisites8 2.3.2 Get ESP-IDF8 2.3.3 Set up Tools9 2.3.4 Set up Environment Variables9 2.4 Create Your First Project9 2.4.1 Start a Project9 2.4.2 Connect Your Device9 2.4.3 Configure10 2.4.4 Build the Project10 2.4.5 Flash onto the Device11 2.4.6 Monitor12 3 U.S. FCC Statement14 4 Learning Resources18 4.1 Must-Read Documents18 4.2 Important Resources18 Revision History19 Espressif Systems3ESP32-C3-WROOM-02U User Manual v0.1 1 Overview 1Overview 1.1Module Overview ESP32-C3-WROOM-02U is a general-purpose Wi-Fi and Bluetooth LE module. The rich set of peripherals and a small size make this module an ideal choice for smart homes, industrial automation, health care, consumer electronics, etc. Table 1: ESP32­C3­WROOM­02U Specifications CategoriesParametersSpecifications Wi-Fi Protocols802.11 b/g/n (up to 150 Mbps) Frequency range2412~2462 MHz Bluetooth ® ProtocolsBluetooth ® LE: Bluetooth 5 and Bluetooth mesh Radio Class-1, class-2 and class-3 transmitter AFH AudioCVSD and SBC Hardware Module interfaces GPIO, SPI, UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI ® controller (compatible with ISO 11898-1), temperature sensor, SAR ADC Integrated crystal40 MHz crystal Integrated SPI flash4 MB Operating voltage/Power supply3.0 V~3.6 V Operating currentAverage: 80 mA Minimum current delivered by power supply 500 mA Ambient temperature 85 °C version: –40 °C~+85 °C; 105 °C version: –40 °C~+105 °C Moisture sensitivity level (MSL)Level 3 Espressif Systems4ESP32-C3-WROOM-02U User Manual v0.1 1 Overview 1.2Pin Description 1 2 3 4 5 6 7 8 9 3V3 EN IO4 IO5 IO6 IO7 IO8 IO9 GND 18 17 16 15 14 13 12 11 10 IO0 IO1 IO2 IO3 IO19 IO18 TXD RXD IO10 Pin 19 GND Keepout Zone GND GNDGNDGND GND GNDGNDGND Figure 1: Pin Layout (Top View) The module has 19 pins. See pin definitions in Table2. For peripheral pin configurations, please refer toESP32-C3 Series Datasheet. Table 2: Pin Definitions NameNo.TypeFunction 3V31PPower supply EN2I High: on, enables the chip. Low: off, the chip powers off. Note: Do not leave the EN pin floating. IO43I/O/TGPIO4, MTMS, ADC1_CH4, FSPIHD IO54I/O/TGPIO5, MTDI, ADC2_CH0, FSPIWP IO65I/O/TGPIO6, MTCK, FSPICLK IO76I/O/TGPIO7, MTDO, FSPID IO87I/O/TGPIO8 IO98I/O/TGPIO9 GND9, 19PGround IO1010I/O/TGPIO10, FSPICS0 RXD011I/O/TU0RXD, GPIO20 Cont’d on next page Espressif Systems5ESP32-C3-WROOM-02U User Manual v0.1 1 Overview Table 2 – cont’d from previous page NameNo.TypeFunction TXD012I/O/TU0TXD, GPIO21 IO1813—GPIO18, USB_D- IO1914I/O/TGPIO19, USB_D+ IO315I/O/TGPIO3, ADC1_CH3 IO216I/O/TGPIO2, ADC1_CH2, FSPIQ IO117I/O/TGPIO1, ADC1_CH1, XTAL_32K_N (32.768 kHz crystal output) IO018I/O/TGPIO0, ADC1_CH0, XTAL_32K_P (32.768 kHz crystal input) Espressif Systems6ESP32-C3-WROOM-02U User Manual v0.1 2 Get Started on ESP32-C3-WROOM-02U 2Get Started on ESP32­C3­WROOM­02U 2.1What You Need To develop applications for ESP32-C3-WROOM-02U module you need: •1 x ESP32-C3-WROOM-02U module •1 x Espressif RF testing board •1 x USB-to-Serial board •1 x Micro-USB cable •1 x PC running Linux In this user guide, we take Linux operating system as an example. For more information about the configuration on Windows and macOS, please refer toESP-IDF Programming Guide. 2.2Hardware Connection 1.Solder the ESP32-C3-WROOM-02U module to the RF testing board as shown in Figure2. Figure 2: Hardware Connection 2.Connect the RF testing board to the USB-to-Serial board via TXD, RXD, and GND. 3.Connect the USB-to-Serial board to the PC. 4.Connect the RF testing board to the PC or a power adapter to enable 5 V power supply, via the Micro-USB cable. 5.During download, connect IO9 to GND via a jumper, and pull up IO2 and IO8. Then, turn ”ON” the testing board. Espressif Systems7ESP32-C3-WROOM-02U User Manual v0.1 2 Get Started on ESP32-C3-WROOM-02U 6.Download firmware into flash. For details, see the sections below. 7.After download, remove the jumper on IO0 and GND, and the jumper wire to pull up IO8. 8.Power up the RF testing board again. ESP32-C3-WROOM-02U will switch to working mode. The chip will read programs from flash upon initialization. Note: IO9 is internally logic high. If IO9 is pulled low, and IO2 and IO8 is pulled high, the Boot mode is selected. In other cases, the Download mode is selected. For more information on ESP32-C3-WROOM-02U, please refer to ESP32-C3-WROOM-02 & ESP32-C3-WROOM-02U Datasheet. 2.3Set up Development Environment The Espressif IoT Development Framework (ESP-IDF for short) is a framework for developing applications based on the Espressif chips. Users can develop applications with ESP chips in Windows/Linux/macOS based on ESP-IDF. Here we take Linux operating system as an example. 2.3.1Install Prerequisites To compile with ESP-IDF you need to get the following packages: •CentOS 7: 1sudo yum install git wget flex bison gperf python cmake ninja-build ccache dfu- util •Ubuntu and Debian (one command breaks into two lines): 1sudo apt-get install git wget flex bison gperf python python-pip python- setuptools cmake 2ninja-build ccache libffi-dev libssl-dev dfu-util •Arch: 1sudo pacman -S --needed gc…
