Gotham / Book—6.5 PT Gotham / Light—5.5 PT/5PT 英 Amazfit Bip U A2017 01 Package Contents03 Pairing the Watch 04 Charging the Watch 02 About the Watch Smartwatch with band × 1 Charging base × 1 Instruction Manual × 1 Power button Charging plates Heart rate sensor Note: Press and hold the power button to power on the watch. If the watch cannot be turned on, please charge it first. 12 1. 2. 3. 4. Scan the QR code on the Instruction Manual with your mobile phone to download the app to your mobile phone. You can also download the latest version of App from the Google Play Store or Apple App store. Open the APP, register an account and log in. Follow the steps in the app to pair your watch correctly. Once pairing is complete, the watch will display the correct time. You can set the other watch functions as needed. Download Zepp App Note: 1. 2. 3. For a better user experience, please use the most recent version of the app. The operating system needs to be Android 5.0, iOS 10.0, or above. Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the steps in the app to pair your watch correctly. 1. 2. 3. Note: 1. 2. Please use the charging base that comes with the watch. Make sure that the charging base is dry before charging. Please use a 1A or above power adapter. Connect the USB port of the watch charging cable to a mobile phone charger or a computer USB port. Put the watch into the charging base. Pay attention to the direction and position of the watch, and make sure that the metal contacts on the back of the watch fit closely with the charging base. When charging starts, the watch screen displays the charging progress. 05 Disassembly and Assembly of the Watch Strap 06 Wearing the Watch 10 Certifications and Safety Approvals 07 Basic Parameters 34 Please refer to the illustrations to disassemble or assemble the watch strap. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications that are not expressly approved by the party responsible for the compliance may void the user’s authority to operate the device. Note: Once the strap is assembled, pull the strap properly to ensure it is installed successfully. 1. 2. 3. Wear the watch strap not too tightly or too loosely, and leave enough space for the skin to breathe. This makes you feel comfortable and allows the sensor to function. When measuring blood oxygen saturation, wear the watch correctly. Avoid wearing the watch on the wrist joint, keep your arm flat, maintain comfortable (appropriately tight) fitting between the watch and the skin of your wrist, and keep your arm still throughout the measurement process. When aected by external factors (arm sag, arm sway, arm hair, tattoo, etc.), the measurement result may be inaccurate or the measurement may fail and provide no output. We recommend that you tighten the watch strap during exercise and loosen it afterwards. 11 Battery Safety 1. 2. 3. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Product model: A2017 Input: 5V d.c. 500mA MAX Bluetooth version: BLE V5.0 BLE output power: <5 dBm Operating temperature: 0°C to 45°C View product certification information on the watch's Settings > System > Supervision page. Wa ter resistance rating: 5 ATM Bluetooth frequency: 2402–2480 MHz Device requirements: Devices installed with Android 5.0 or iOS 10.0 or above OS versions The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Anhui Huami Information Technology Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners. 08 Regulatory Notice FCC ID: 2AC8UA2017 09 Disposal and Recycling Information 56 Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or re…

Text truncated - open the document above for the full version.

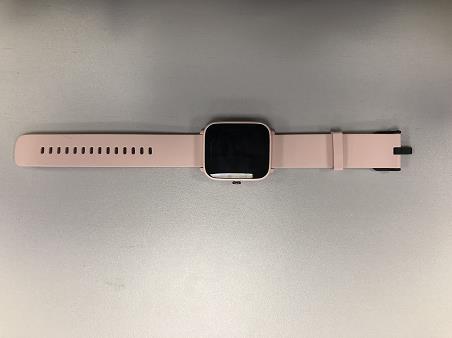

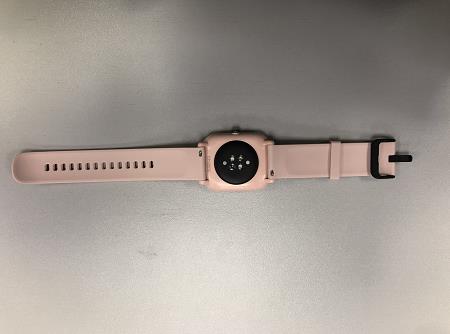

FCC ID: 2AC8UA2017 IC: 21806-A2017 Page 1 of 3 External Picture FCC ID: 2AC8UA2017 IC: 21806-A2017 Page 2 of 3 FCC ID: 2AC8UA2017 IC: 21806-A2017 Page 3 of 3 Charging wire
