2AC9MDSL100FNT1V2Modem BHS MINI Mitrastar

DSL-100FNT1 v2 Version 1.0 Date 2015.04.01 Quick Installation Guide Copyright@2014 Mitrastar Network Technology Incorporation Product Description de productos Verde con control inalambrico para el ahorro de energia destacados con la programacion inalambrica, el DSL-100FNT1 v2igurar para desactivar de acuerdo a su patron de uso inalambrico. Se puede ahorrar consumo de energia innecesario y reducir la radiacion inalambrica cuando la conexion inalambrica no esta en uso. ModelList: 1. How to Use the Devices? The device can be used in two types: Standing type: a) Standing type (Vertically stand as below) 2. Hardware Connections VDSL puertoWAN Conector RJ-11 * 1 Puerto con un espesor minimo de oro de 30μ Color: Gris, Gris frio 3U (mate) Puerto Fast Ethernet LAN 2 uertos RJ-45 (8p4c) conector * 1 Color: Amarillo 114C Puertos telefonicos FXS puerto RJ-11(6p2c) *1 puerto con un espesor minimo de oro de 30μ Color: Gris, Gris frio 3U (mate) 3. Configurations Step1: In your browser, go to http://192.168.1.1 , the following screen appears, enter the default username and password: admin/adminand click Login . Step2: After Log into the Web GUI, click Quick Start , then configure the device for Internet Connection and Wireless connection. Step 3: Click Connect to Internet, Configure the Connection Type and DNS that ISP assigned. Step 4: Click Configure Wireless Network , Enable the wireless and configure the SSID as you like, the wireless WPA/WPA2 password will be generated automatically. Search the SSID CXNK12345678, type the correct WiFi password, then your Notebookcan be connected tothedevice via WiFi for the internet. Certifications Federal Communications Commission (FCC) Interference Statement The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operations. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement • This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. •• IEEE 802.11b, 802.11g or 802.11n (20MHz) operation of this product in the U.S.A. is firmware-limited to channel 1 through 11. IEEE 802.11n (40MHz) operation of this product in the U.S.A. is firmware-limited to channel 3 through 9. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Notices Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Radiation Exposure Statement This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Declaration deposition aux radiations: Cet equipments est conformed aux limits deposition aux rayonnements IC establish pour un environment non controle. Cet equipement doit etre installe et utilise avec un minimum de 20cm de distance entre la source de rayonnement et voter corps. Safety Warnings .Do NOT use this product near water, for example, in a wet basement or near a swimming pool. . Do NOT expose your device to dampness, dust or corrosive liquids. . Do NOT store things on the device. .Caution! Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. . Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. . Connect ONLY suitable accessories to the device. . Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. . Make sure to connect the cables to the correct ports. . Place connecting cables carefully so that no one will step on them or stumble over them. . Always disconnect all cables from this device before servicing or disassembling. . Use ONLY an appropriate power adaptor or cord for your device. . Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). . Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord. . Do NOT use the device if the power adaptor or cord is damaged as i…

Text truncated - open the document above for the full version.

Wuxi Mitrastar Technology Co., Ltd 60#-E Minshan Road,High and New Technology Industrial Development Zone,Wuxi, Jiangsu Province, China ------------------------------------------------------------------------------------------------------- Date: 2015-04-30 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AC9MDSL100FNT1V2 To Whom It May Concern: This letter is to ascertain that the following information of applicant, proudct with model(s) have been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. Applicant: Wuxi Mitrastar Technology Co., Ltd Product Name: Modem BHS MINI Mitrastar Model: DSL-100FN-T1 v2 Brand: MitraStar If you have any question or concerns, pls. contact us. Sincerely, Name: Forest Xue Position: Manager Wuxi MitraStar Technology Co., Ltd.

Wuxi Mitrastar Technology Co., Ltd 60#-E Minshan Road,High and New Technology Industrial Development Zone,Wuxi, Jiangsu Province, China ----------------------------------------------------------------------------------------------------------------------------------- Declaration of Authorization We Name: Wuxi Mitrastar Technology Co., Ltd Address: 60#-E Minshan Road,High and New Technology Industrial Development Zone,Wuxi, Jiangsu Province, China Declare that: Name Representative of agent: Robin Wu Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Modem BHS MINI Mitrastar FCC ID: 2AC9MDSL100FNT1V2 Model: DSL-100FN-T1 v2 Brand: MitraStar on our behalf. Name: Forest Xue Position: Manager Wuxi MitraStar Technology Co., Ltd. Date: 2015-04-30

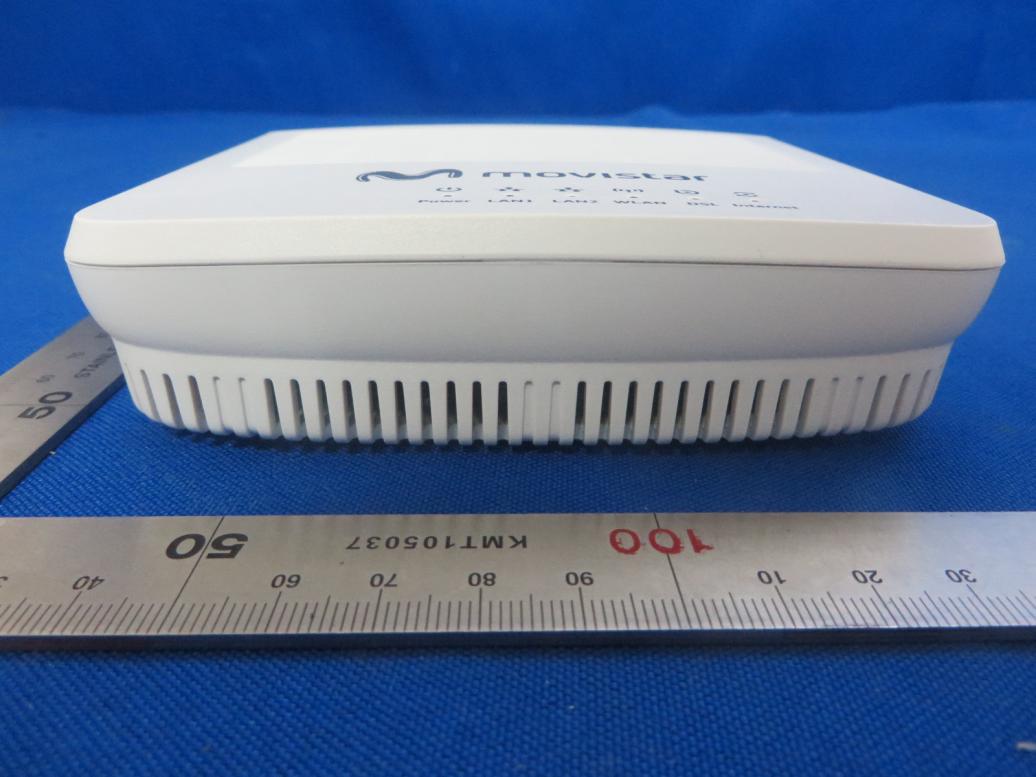

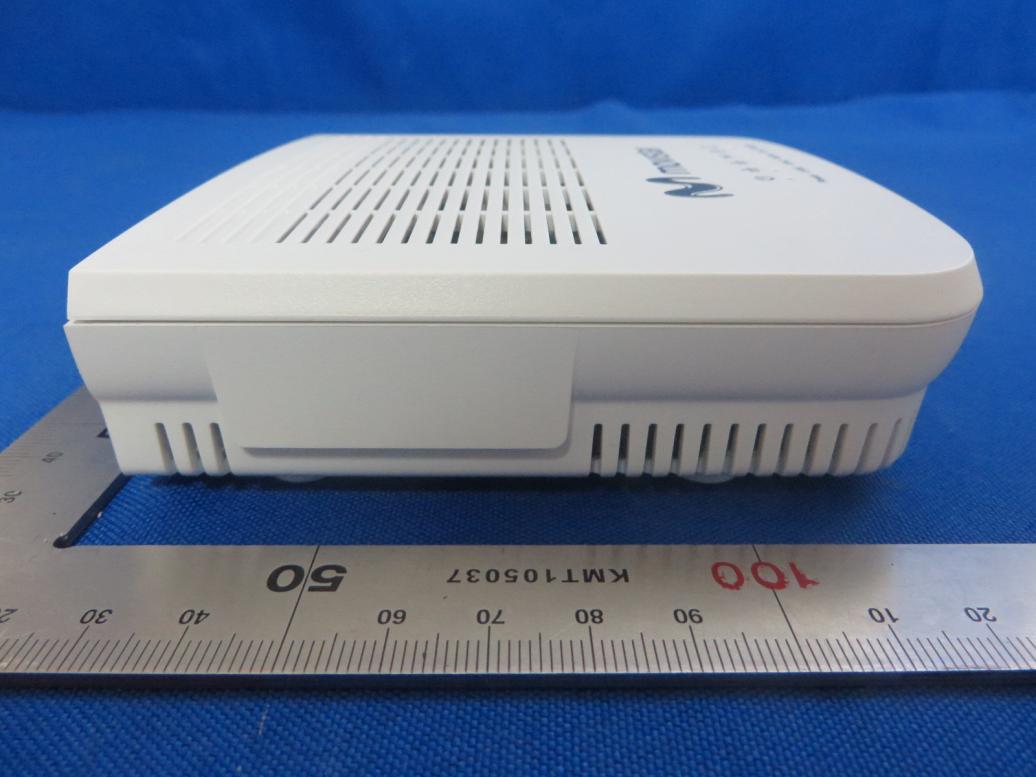

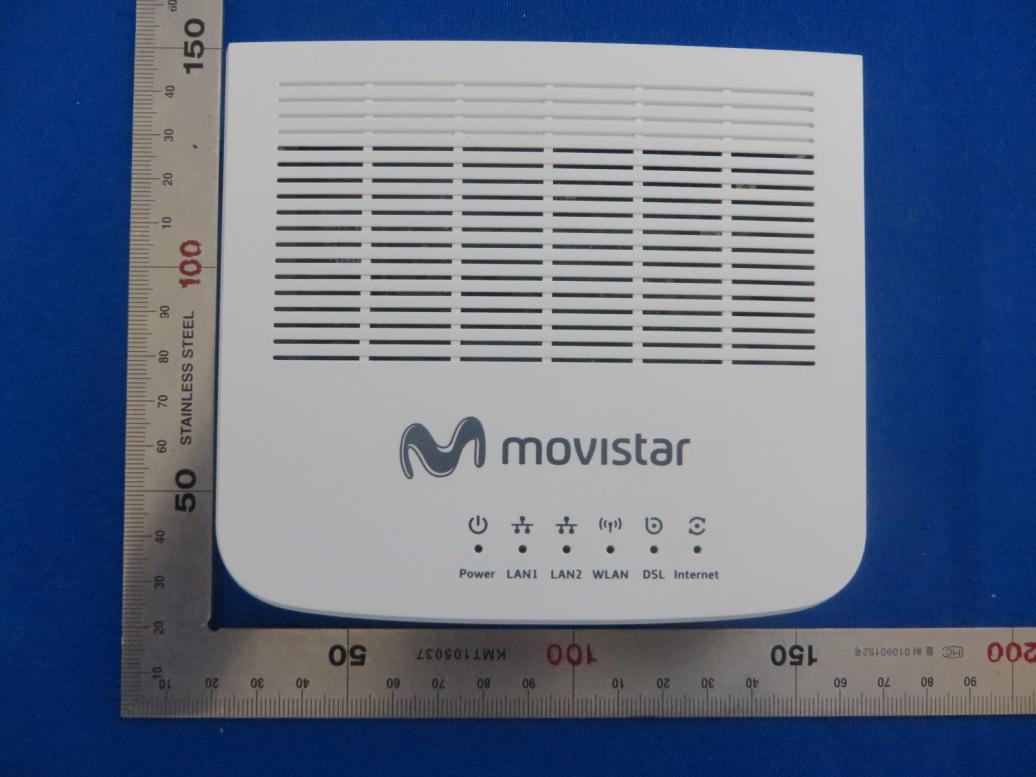

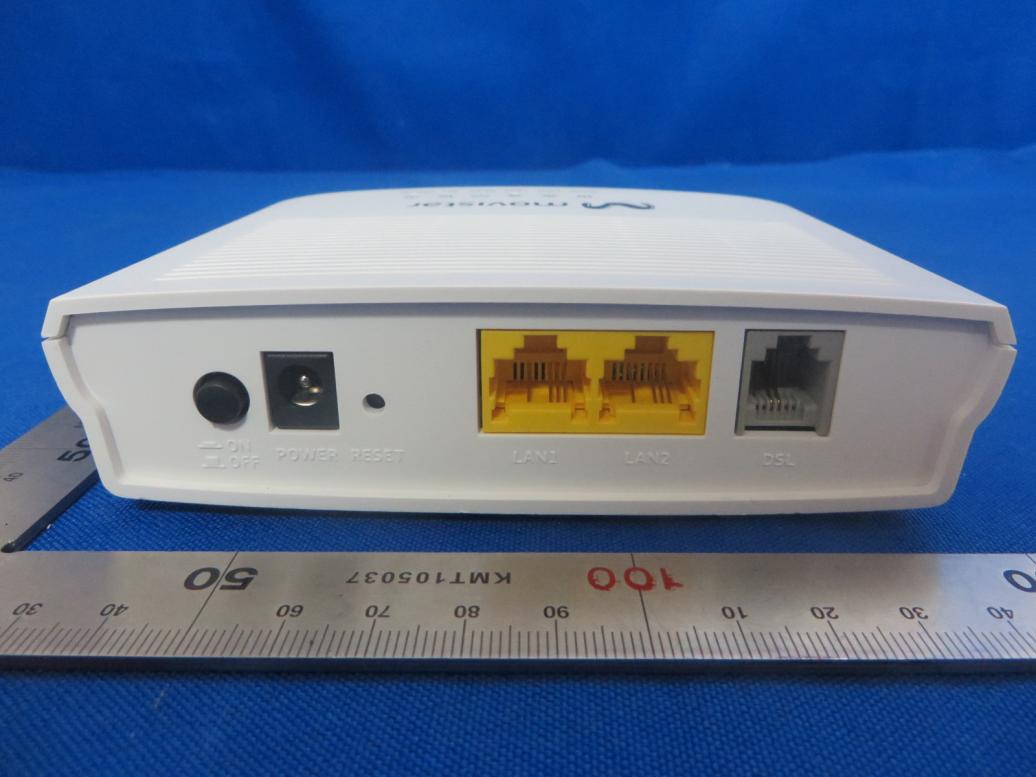

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo

Label Label Location

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1504RSU03002 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 05-18-2015 Web: www.mrt-cert.com FCC ID: 2AC9MDSL100FNT1V2 Page Number: 1 of 6 RF Exposure Evaluation Declaration FCC ID: 2AC9MDSL100FNT1V2 APPLICANT: Wuxi Mitrastar Technology Co., Ltd Application Type: Certification Product: Modem BHS MINI Mitrastar Model No.: DSL-100FN-T1 v2 Trademark: MitraStar FCC Classification: Digital Transmission System (DTS) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1504RSU03002 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 2 of 6 Revision History Report No. Version Description Issue Date 1504RSU03002 Rev. 01 Initial report 05-18-2015 Report No.: 1504RSU03002 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 3 of 6 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Antenna Description Antenna Type Frequency Band (GHz) T X Paths Max Peak Gain (dBi) Directional Gain (dBi) PCB Antenna 2.4 2 Ant 0: 3.2 Ant 1: 3.1 3.2 Note: Directional gain = 10 log[(10 G1/10 + 10 G2/10 + ... + 10 GN/10 )/N ANT ] dBi [Note the “20”s in the denominator of each exponent and the square of the sum of terms; the object is to combine the signal levels coherently.] Product Name Modem BHS MINI Mitrastar Model No. DSL-100FN-T1 v2 Frequency Range 802.11b/g/n-HT20: 2412 ~ 2462 MHz 802.11n-HT40: 2422 ~ 2452 MHz Maximum Output Power 802.11b: 19.49dBm 802.11g: 17.89dBm 802.11n-HT20: 20.36dBm 802.11n-HT40: 19.73dBm Type of Modulation 802.11b: DSSS 802.11g/n: OFDM Report No.: 1504RSU03002 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 4 of 6 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1504RSU03002 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 5 of 6 2.2. Test Result of RF Exposure Evaluation Product Modem BHS MINI Mitrastar Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.2dBi for 2.4GHz in logarithm scale. Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 802.11b 2412 ~ 2462 19.49 0.0370 1 802.11g 2412 ~ 2462 17.89 0.0256 1 802.11n-HT20 2412 ~ 2462 20.36 0.0452 1 802.11n-HT40 2422 ~ 2452 19.73 0.0391 1 Report No.: 1504RSU03002 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 6 of 6 CONCULISON: The WLAN 2.4GHz Band can transmit simultaneously. Therefore, the Max Power Density at R (20 cm) = 0.0452mW/cm 2 < 1mW/cm 2 . So the EUT complies with the requirement. The End

Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 141 of 205 Site: AC1 Time: 2015/05/07 - 16:15 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: Modem BHS MINI Mitrastar Power: AC 120V/60Hz Test Mode: Transmit at channel 2412MHz by 802.11n-HT20 Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 53.182 21.979 -0.818 54.000 31.203 AV 2 * 2412.536 93.810 62.641 N/A N/A 31.169 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 142 of 205 Site: AC1 Time: 2015/05/07 - 16:16 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Modem BHS MINI Mitrastar Power: AC 120V/60Hz Test Mode: Transmit at channel 2462MHz by 802.11n-HT20 Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2463.208 99.675 68.537 N/A N/A 31.137 PK 2 2483.500 62.848 31.655 -11.152 74.000 31.194 PK 3 2484.064 64.377 33.182 -9.623 74.000 31.195 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 143 of 205 Site: AC1 Time: 2015/05/07 - 16:18 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Modem BHS MINI Mitrastar Power: AC 120V/60Hz Test Mode: Transmit at channel 2462MHz by 802.11n-HT20 Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2463.904 85.412 54.273 N/A N/A 31.139 AV 2 2483.500 48.231 17.038 -5.769 54.000 31.194 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 144 of 205 Site: AC1 Time: 2015/05/07 - 16:33 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: Modem BHS MINI Mitrastar Power: AC 120V/60Hz Test Mode: Transmit at channel 2462MHz by 802.11n-HT20 Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2460.904 108.052 76.919 N/A N/A 31.133 PK 2 2483.500 71.375 40.182 -2.625 74.000 31.194 PK 3 2484.328 72.907 41.711 -1.093 74.000 31.195 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 145 of 205 Site: AC1 Time: 2015/05/07 - 16:37 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: Modem BHS MINI Mitrastar Power: AC 120V/60Hz Test Mode: Transmit at channel 2462MHz by 802.11n-HT20 Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2462.584 93.455 62.319 N/A N/A 31.137 AV 2 2483.500 52.655 21.462 -1.345 54.000 31.194 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 146 of 205 Site: AC1 Time: 2015/05/07 - 16:38 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Modem BHS MINI Mitrastar Power: AC 120V/60Hz Test Mode: Transmit at channel 2422MHz by 802.11n-HT40 Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2389.464 65.744 34.540 -8.256 74.000 31.204 PK 2 2390.000 64.572 33.369 -9.428 74.000 31.203 PK 3 * 2420.352 96.029 64.874 N/A N/A 31.155 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 147 of 205 Site: AC1 Time: 2015/05/07 - 16:40 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Modem BHS MINI Mitrastar Power: AC 120V/60Hz Test Mode: Transmit at channel 2422MHz by 802.11n-HT40 Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 48.743 17.540 -5.257 54.000 31.203 AV 2 * 2418.966 79.295 48.137 N/A N/A 31.157 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 148 of 205 Site: AC1 Time: 2015/05/07 - 16:41 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: Modem BHS MINI Mitrastar Power: AC 120V/60Hz Test Mode: Transmit at channel 2422MHz by 802.11n-HT40 Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2389.596 73.176 41.973 -0.824 74.000 31.204 PK 2 2390.000 73.385 42.182 -0.615 74.000 31.203 PK 3 * 2425.104 104.197 73.050 N/A N/A 31.147 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 149 of 205 Site: AC1 Time: 2015/05/07 - 16:44 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: Modem BHS MINI Mitrastar Power: AC 120V/60Hz Test Mode: Transmit at channel 2422MHz by 802.11n-HT40 Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 52.634 21.431 -1.366 54.000 31.203 AV 2 * 2423.652 84.723 53.574 N/A N/A 31.149 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB…

Text truncated - open the document above for the full version.

Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 71 of 205 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 72 of 205 802.11n-HT40 Out-of-Band Emissions - Ant 2 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 73 of 205 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 74 of 205 802.11n-HT20 Out-of-Band Emissions - Ant 1 / Ant 1 + 2 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 75 of 205 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 76 of 205 802.11n-HT40 Out-of-Band Emissions - Ant 1 / Ant 1 + 2 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 77 of 205 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 78 of 205 802.11n-HT20 Out-of-Band Emissions - Ant 2 / Ant 1 + 2 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 79 of 205 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 80 of 205 802.11n-HT40 Out-of-Band Emissions - Ant 2 / Ant 1 + 2 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 81 of 205 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 82 of 205 7.6. Radiated Spurious Emission Measurement 7.6.1. Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2. Test Procedure Used KDB 558074 D01v03r02 - Section 12.2.3 (quasi-peak measurements) KDB 558074 D01v03r02 - Section 12.2.4 (peak power measurements) KDB 558074 D01v03r02 - Section 12.2.5 (average power measurements) 7.6.3. Test Setting Peak Field Strength Measurements 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = as specified in Table 1 3. VBW = 3MHz 4. Detector = peak Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 83 of 205 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000 MHz 1 MHz Average Field Strength Measurements 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW ≥ 1/T 4. De As an alternative, the instrument may be set to linear detector mode. Ensure that video filtering is applied in linear voltage domain (rather than in a log or dB domain). Some instruments require linear display mode in order to accomplish this. Others have a setting for Average-VBW Type, which can be set to “Voltage” regardless of the display mode 5. Detector = Peak 6. Sweep time = auto 7. Trace mode = max hold 8. Allow max hold to run for at least 50 times (1/duty cycle) traces Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 84 of 205 7.6.4. Test Setup 9kHz ~ 30MHz Test Setup: 30MHz ~ 1GHz Test Setup: Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 85 of 205 1GHz ~ 18GHz Test Setup: 18GHz ~25GHz Test Setup: Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 86 of 205 7.6.5. Test Result Test Mode: 802.11b - Ant 1 Test Site: AC1 Test Channel: 01 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4825.0 46.8 2.7 49.5 74.0 -24.5 Peak Horizontal * 7239.0 41.3 7.8 49.1 78.7 -29.6 Peak Horizontal 9125.6 35.0 9.7 44.7 74.0 -29.3 Peak Horizontal * 9653.7 34.5 11.0 45.5 78.7 -33.2 Peak Horizontal 4825.0 45.1 2.7 47.8 74.0 -26.2 Peak Vertical * 7239.0 43.9 7.8 51.7 78.7 -27.0 Peak Vertical 9152.4 35.2 9.8 45.0 74.0 -29.0 Peak Vertical * 9655.4 35.4 11.0 46.4 78.7 -32.3 Peak Vertical Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (108.7dBμV/m) or 15.209 which is higher. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 87 of 205 Test Mode: 802.11b - Ant 1 Test Site: AC1 Test Channel: 06 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4876.0 49.2 2.7 51.9 74.0 -22.1 Peak Horizontal * 6426.0 35.9 5.6 41.5 78.4 -36.9 Peak Horizontal 7307.0 40.0 8.0 48.0 74.0 -26.0 Peak Horizontal * 9653.3 34.8 11.0 45…

Text truncated - open the document above for the full version.

Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 46 of 205 802.11b AVGPSD - Ant 2 Channel 01 (2412MHz) Channel 06 (2437MHz) Channel 11 (2462MHz) Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 47 of 205 802.11g AVGPSD - Ant 2 Channel 01 (2412MHz) Channel 06 (2437MHz) Channel 11 (2462MHz) Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 48 of 205 802.11n-HT20 AVGPSD - Ant 2 Channel 01 (2412MHz) Channel 06 (2437MHz) Channel 11 (2462MHz) Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 49 of 205 802.11n-HT40 AVGPSD - Ant 2 Channel 03 (2422MHz) Channel 06 (2437MHz) Channel 09 (2452MHz) Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 50 of 205 802.11n-HT20 AVGPSD - Ant 1 / Ant 1 + 2 Channel 01 (2412MHz) Channel 06 (2437MHz) Channel 11 (2462MHz) Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 51 of 205 802.11n-HT40 AVGPSD - Ant 1 / Ant 1 + 2 Channel 03 (2422MHz) Channel 06 (2437MHz) Channel 09 (2452MHz) Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 52 of 205 802.11n-HT20 AVGPSD - Ant 2 / Ant 1 + 2 Channel 01 (2412MHz) Channel 06 (2437MHz) Channel 11 (2462MHz) Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 53 of 205 802.11n-HT40 AVGPSD - Ant 2 / Ant 1 + 2 Channel 03 (2422MHz) Channel 06 (2437MHz) Channel 09 (2452MHz) Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 54 of 205 7.5. Conducted Band Edge and Out-of-Band Emissions 7.5.1. Test Limit The limit for out-of-band spurious emissions at the band edge is 30dB below the fundamental emission level, as determined from the in-band power measurement of the DTS channel performed in a 100kHz bandwidth per the PSD procedure. 7.5.2. Test Procedure Used KDB 558074 D01v03r02 - Section 11.2 & Section 11.3 7.5.3. Test Settitng 1. Reference level measurement (a) Set instrument center frequency to DTS channel center frequency (b) Set the span to ≥ 1.5 times the DTS bandwidth (c) Set the RBW = 100 kHz (d) Set the VBW ≥ 3 x RBW (e) Detector = peak (f) Sweep time = auto couple (g) Trace mode = max hold (h) Allow trace to fully stabilize 2. Emission level measurement (a) Set the center frequency and span to encompass frequency range to be measured (b) RBW = 100kHz (c) VBW = 300kHz (d) Detector = Peak (e) Trace mode = max hold (f) Sweep time = auto couple (g) The trace was allowed to stabilize Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 55 of 205 7.5.4. Test Setup Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 56 of 205 7.5.5. Test Result Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) Limit Result Ant 1 802.11b 1 01 2412 30dBc Pass 802.11b 1 06 2437 30dBc Pass 802.11b 1 11 2462 30dBc Pass 802.11g 6 01 2412 30dBc Pass 802.11g 6 06 2437 30dBc Pass 802.11g 6 11 2462 30dBc Pass 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Ant 2 802.11b 1 01 2412 30dBc Pass 802.11b 1 06 2437 30dBc Pass 802.11b 1 11 2462 30dBc Pass 802.11g 6 01 2412 30dBc Pass 802.11g 6 06 2437 30dBc Pass 802.11g 6 11 2462 30dBc Pass 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 57 of 205 Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) Limit Result Ant 1 / Ant 1 + 2 802.11n-HT20 13.0 01 2412 30dBc Pass 802.11n-HT20 13.0 06 2437 30dBc Pass 802.11n-HT20 13.0 11 2462 30dBc Pass 802.11n-HT40 27.0 03 2422 30dBc Pass 802.11n-HT40 27.0 06 2437 30dBc Pass 802.11n-HT40 27.0 09 2452 30dBc Pass Ant 2 / Ant 1 + 2 802.11n-HT20 13.0 01 2412 30dBc Pass 802.11n-HT20 13.0 06 2437 30dBc Pass 802.11n-HT20 13.0 11 2462 30dBc Pass 802.11n-HT40 27.0 03 2422 30dBc Pass 802.11n-HT40 27.0 06 2437 30dBc Pass 802.11n-HT40 27.0 09 2452 30dBc Pass Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 58 of 205 802.11b Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 59 of 205 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 60 of 205 802.11g Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 61 of 205 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 62 of 205 802.11n-HT20 Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 63 of 205 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 64 of 205 802.11n-HT40 Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 65 of 205 Channel 9 (2452MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 66 of 205 802.11b Out-of-Band Emissions - Ant 2 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 67 of 205 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1504RSU03001 FCC ID: 2AC9MDSL100FNT1V2 Page Number: 68 of 205 802.11g Out-of-Band Emissions - Ant 2 100kHz PS…

Text truncated - open the document above for the full version.
