2AC9MDSL2401HNT1CBHS VDSL VoIP

DSL-2401HN-T1C Version 1.0 Date 2015.04.01 Quick Installation Guide Copyright@2014 Mitrastar Network Technology Incorporation Product Description de productos Verde con control inalámbrico para el ahorro de energía destacados con la programación inalámbrica, el DSL-2401HN-T1C se pueden configurar para desactivar de acuerdo a su patrón de uso inalámbrico. Se puede ahorrar consumo de energía innecesario y reducir la radiación inalámbrica cuando la conexión inalámbrica no está en uso.Model List: 1. How to Use the Devices? The device can be used in two types: Standing type and Wall mount type: a) Standing type (Vertically stand as below) 2. Hardware Connections VDSL puerto WAN Conector RJ-11 * 1 Puerto con un espesor mínimo de oro de 30μ Color: Gris, Gris frío 3U (mate) Puerto Fast Ethernet LAN 4 puertos RJ-45 (8p4c) conector * 1 Color: Amarillo 114C Puertos telefó nicos FXS puerto RJ-11(6p2c) *1 puerto con un espesor mínimo de oro de 30μ Color: Gris, Gris frío 3U (mate) 3. Configurations Step1: In your browser, go to http://192.168.1.1, the following screen appears, enter the default username and password: admin/admin and click Login. Step2: After Log into the Web GUI, click Quick Start, then configure the device for Internet Connection and Wireless connection. Step 3: Click Connect to Internet, Configure the Connection Type and DNS that ISP assigned. Step 4: Click Configure Wireless Network, Enable the wireless and configure the SSID as you like, the wireless WPA/WPA2 password will be generated automatically. Search the SSID CXNK12345678, type the correct WiFi password, then your Notebook can be connected to the device via WiFi for the internet. Certifications Federal Communications Commission (FCC) Interference Statement The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operations. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement • This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. • IEEE 802.11b, 802.11g or 802.11n (20MHz) operation of this product in the U.S.A. is firmware-limited to channel 1 through 11. IEEE 802.11n (40MHz) operation of this product in the U.S.A. is firmware-limited to channel 3 through 9. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Notices Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device complies with the essential requirements of the R&TTE Directive 1995/5/EC. Radiation Exposure Statement This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. National Communications Commission (NCC) Article 12 Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristics and functions of the original design of the certified lower power frequency electric machinery. Article 14 The application of low power frequency electric machineries shall not affect the navigation safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists. Industry Canada (IC) CAN ICES-3 (B)/NMB-3(B) This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-192 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. Safety Warnings . Do NOT use this p…

Text truncated - open the document above for the full version.

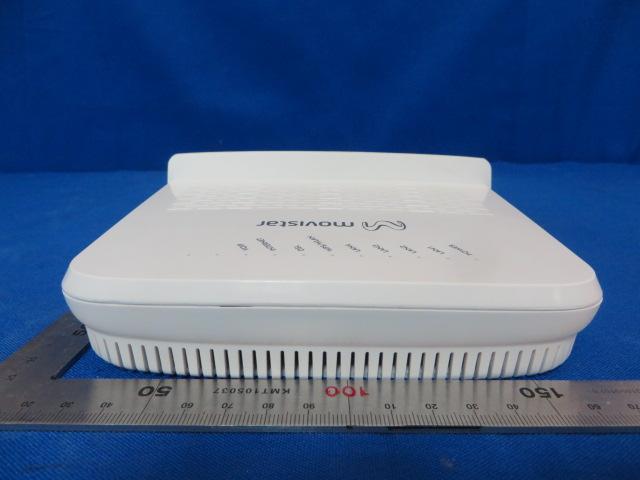

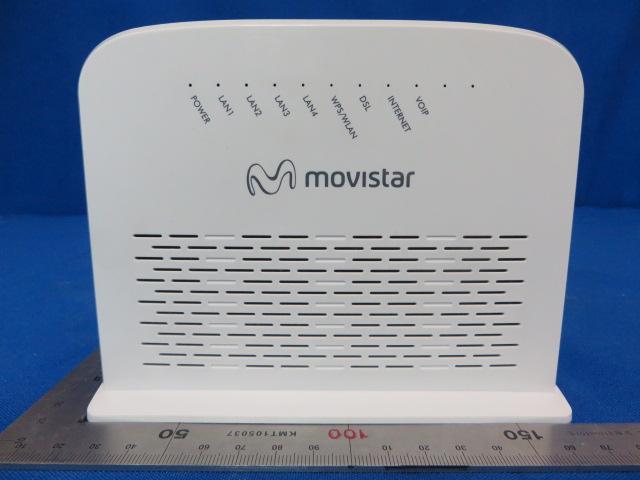

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

Label Label Location

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1504RSU00102 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 04-22-2015 Web: www.mrt-cert.com FCC ID: 2AC9MDSL2401HNT1C Page Number: 1 of 6 RF Exposure Evaluation Declaration FCC ID: 2AC9MDSL2401HNT1C APPLICANT: Wuxi Mitrastar Technology Co., Ltd Application Type: Certification Product: BHS VDSL VoIP Model No.: DSL-2401HNU-T1C, DSL-2401HN-T1C Trademark: MitraStar FCC Classification: Digital Transmission System (DTS) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1504RSU00102 FCC ID: 2AC9MDSL2401HNT1C Page Number: 2 of 6 Revision History Report No. Version Description Issue Date 1504RSU00102 Rev. 01 Initial report 04-21-2015 1504RSU00102 Rev. 02 Corrected the direction gain 04-22-2015 Report No.: 1504RSU00102 FCC ID: 2AC9MDSL2401HNT1C Page Number: 3 of 6 1. PRODUCT INFORMATION 1.1. Equipment Description Note: There are different of USB Port between models, and evaluated the different models in “FCC DoC report” 1.2. Antenna Description Antenna Type Frequency Band (GHz) T X Paths Max Peak Gain (dBi) Directional Gain (dBi) PCB Antenna 2.4 2 Ant 0: 3.5 Ant 1: 3.7 3.6 Note: Directional gain = 10 log[(10 G1/10 + 10 G2/10 + ... + 10 GN/10 )/N ANT ] dBi [Note the “20”s in the denominator of each exponent and the square of the sum of terms; the object is to combine the signal levels coherently.] Product Name BHS VDSL VoIP Model No. DSL-2401HNU-T1C, DSL-2401HN-T1C Frequency Range 802.11b/g/n-HT20: 2412 ~ 2462MHz 802.11n-HT40: 2422 ~ 2452MHz Type of Modulation 802.11b: DSSS 802.11g/n: OFDM Maximum Average Output Power 802.11b: 19.45dBm 802.11g: 17.87dBm 802.11n-HT20: 20.35dBm 802.11n-HT40: 19.90dBm Report No.: 1504RSU00102 FCC ID: 2AC9MDSL2401HNT1C Page Number: 4 of 6 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1504RSU00102 FCC ID: 2AC9MDSL2401HNT1C Page Number: 5 of 6 2.2. Test Result of RF Exposure Evaluation Product BHS VDSL VoIP Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.6dBi for 2.4GHz in logarithm scale. Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 802.11b 2412 ~ 2462 19.45 0.0402 1 802.11g 2412 ~ 2462 17.87 0.0279 1 802.11n-HT20 2412 ~ 2462 20.35 0.0494 1 802.11n-HT40 2422 ~ 2452 19.90 0.0445 1 Report No.: 1504RSU00102 FCC ID: 2AC9MDSL2401HNT1C Page Number: 6 of 6 CONCULISON: The WLAN 2.4GHz Band can transmit simultaneously. Therefore, the Max Power Density at R (20 cm) = 0.0494mW/cm 2 < 1mW/cm 2 . So the EUT complies with the requirement. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1504RSU00101 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 04-22-2015 Web: www.mrt-cert.com FCC ID: 2AC9MDSL2401HNT1C Page Number: 1 of 173 FCC ID: 2AC9MDSL2401HNT1C APPLICANT: Wuxi Mitrastar Technology Co., Ltd Application Type: Certification Product: BHS VDSL VoIP Model No.: DSL-2401HNU-T1C, DSL-2401HN-T1C Trademark: MitraStar FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v03r02, KDB 662911 D01v02r01 Test Date: Apr. 09 ~ 12, 2015 MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g/n Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r02. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 2 of 173 Revision History Report No. Version Description Issue Date 1504RSU00101 Rev. 01 Initial report 04-21-2015 1504RSU00101 Rev. 02 Corrected the direction gain 04-22-2015 Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 3 of 173 CONTENTS Description Page §2.1033 General Information ............................................................................................................ 5 1. INTRODUCTION ........................................................................................................................ 6 1.1. Scope .............................................................................................................................. 6 1.2. MRT Test Location .......................................................................................................... 6 2. PRODUCT INFORMATION ........................................................................................................ 7 2.1. Equipment Description .................................................................................................... 7 2.2. Applicable Standards ...................................................................................................... 7 2.3. Working Frequencies ...................................................................................................... 8 2.4. Description of Available Antennas .................................................................................. 8 2.5. Description of Antenna RF Port ...................................................................................... 9 2.6. Test Mode ....................................................................................................................... 9 2.7. Test Software .................................................................................................................. 9 2.8. Device Capabilities ....................................................................................................... 10 2.9. Test Configuration ......................................................................................................... 11 2.10. EMI Suppression Device(s)/Modifications ..................................................................... 11 2.11. Labeling Requirements ................................................................................................. 11 3. DESCRIPTION of TEST .......................................................................................................... 12 3.1. Evaluation Procedure .................................................................................................... 12 3.2. AC Line Conducted Emissions...................................................................................... 12 3.3. Radiated Emissions ...................................................................................................... 13 4. ANTENNA REQUIREMENTS .................................................................................................. 14 5. TEST EQUIPMENT CALIBRATION DATE .............................................................................. 15 6. MEASUREMENT UNCERTAINTY ........................................................................................... 16 7. TEST RESULT ......................................................................................................................... 17 7.1. Summary ....................................................................................................................... 17 7.2. 6dB Bandwidth Measurement ....................................................................................... 18 7.2.1. Test Limit ................................................................................................................... 18 7.2.2. Test Procedure used ................................................................................................. 18 7.2.3. Test Setting ............................................................................................................... 18 7.2.4. Test Setup ................................................................................................................. 18 7.2.5. Test Result ................................................................................................................ 19 7.3. Output Power Measurement ......................................................................................... 31 Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 4 of 173 7.3.1. Test Limit ................................................................................................................... 31 7.3.2. Test Procedure Used ..................................................................…

Text truncated - open the document above for the full version.

Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 101 of 173 Site: AC1 Time: 2015/04/09 - 15:35 Limit: FCC_Part15.209_RE(3m) Engineer: Milo Li Probe: VULB9162_0.03-8GHz Polarity: Vertical EUT: BHS VDSL VoIP Power: AC 120V/60Hz Note: There is the worst case within frequency range 30MHz~1GHz. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 36.130 30.812 17.690 -9.188 40.000 13.122 QP 2 43.630 33.263 18.730 -6.737 40.000 14.532 QP 3 * 50.430 35.299 20.400 -4.701 40.000 14.899 QP 4 56.720 33.337 18.950 -6.663 40.000 14.386 QP 5 385.370 34.918 18.580 -11.082 46.000 16.339 QP 6 600.030 37.302 17.340 -8.698 46.000 19.962 QP Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 102 of 173 Site: AC1 Time: 2015/04/09 - 09:44 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: FMZB1519_0.009-30MHz Polarity: Face on EUT: BHS VDSL VoIP Power: AC 120V/60Hz Note: There is the ambient noise within frequency range 9kHz~30MHz. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 0.029 56.893 35.844 -61.463 118.356 21.049 QP 2 * 0.061 52.853 32.542 -59.045 111.898 20.311 QP Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 103 of 173 Site: AC1 Time: 2015/04/09 - 09:44 Limit: FCC_Part15.209_RE(3m) Engineer: Roy Cheng Probe: FMZB1519_0.009-30MHz Polarity: Face on EUT: BHS VDSL VoIP Power: AC 120V/60Hz Note: There is the ambient noise within frequency range 9kHz~30MHz. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 0.502 34.370 13.947 -39.220 73.590 20.423 QP 2 * 1.334 31.595 11.104 -33.530 65.125 20.491 QP Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 104 of 173 Site: AC1 Time: 2015/04/09 - 10:21 Limit: FCC_Part15.209_RE(1m) Engineer: Roy Cheng Probe: BBHA9170_18-40GHz Polarity: Horizontal EUT: BHS VDSL VoIP Power: AC 120V/60Hz Note: There is the ambient noise within frequency range 18GHz~25GHz. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 23943.000 49.776 35.866 -33.724 83.500 13.910 PK 2 * 24741.000 52.375 37.681 -31.125 83.500 14.694 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 105 of 173 Site: AC1 Time: 2015/04/09 - 10:21 Limit: FCC_Part15.209_RE(1m) Engineer: Roy Cheng Probe: BBHA9170_18-40GHz Polarity: Vertical EUT: BHS VDSL VoIP Power: AC 120V/60Hz Note: There is the ambient noise within frequency range 18GHz~25GHz. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 23999.000 50.379 36.435 -33.121 83.500 13.944 PK 2 * 24846.000 52.503 37.735 -30.997 83.500 14.768 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 106 of 173 7.7. Radiated Restricted Band Edge Measurement 7.7.1. Test Result Site: AC1 Time: 2015/04/03 - 13:18 Limit: FCC_Part15.209_RE(3m) Engineer: Milo Li Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: BHS VDSL VoIP Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2412MHz Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2389.856 59.950 28.747 -14.050 74.000 31.203 PK 2 2390.000 58.475 27.272 -15.525 74.000 31.203 PK 3 * 2413.488 100.286 69.119 N/A N/A 31.167 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 107 of 173 Site: AC1 Time: 2015/04/03 - 13:35 Limit: FCC_Part15.209_RE(3m) Engineer: Milo Li Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: BHS VDSL VoIP Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2412MHz Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 45.318 14.115 -8.682 54.000 31.203 AV 2 * 2411.360 96.284 65.113 N/A N/A 31.170 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 108 of 173 Site: AC1 Time: 2015/04/03 - 13:36 Limit: FCC_Part15.209_RE(3m) Engineer: Milo Li Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: BHS VDSL VoIP Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2412MHz Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 67.824 36.621 -6.176 74.000 31.203 PK 2 * 2413.264 110.224 79.057 N/A N/A 31.167 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1504RSU00101 FCC ID: 2AC9MDSL2401HNT1C Page Number: 109 of 173 Site: AC1 Time: 2015/04/03 - 13:40 Limit: FCC_Part15.209_RE(3m) Engineer: Milo Li Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: BHS VDSL VoIP Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2412MHz Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 47.057 15.854 -6.943 54.000 31.203 AV 2 * 2411.248 10…

Text truncated - open the document above for the full version.

Test Setup Photo Description: Front View of the Conducted Emission Test Setup for 0.15kHz ~ 30MHz Description: Back View of the Conducted Emission Test Setup for 0.15kHz ~ 30MHz Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 25GHz
