2ACCBMS3398Bluetooth Barcode Reader

MS3398 Mobile Scanner User Manual Version: MS3398_UM_EN_V1.1.11 i Notice Before operating this mobile scanner, please make sure you carefully read the following information to ensure that your scanner is able to perform at the level for which it is designed. 1. All software, including firmware, furnished to the user is on a licensed basis. 2. The right is reserved to make changes to any software or product to improve reliability, function, or design. 3. The contents of this manual are subject to change without notice. 4. The manufacturer assumes no responsibility for any loss or claims by third parties which may arise from the use of this manual. 5. Do not throw or drop the scanner or otherwise subject it to strong impact, which can damage the scanner, interrupt program execution, corrupt memory contents, or otherwise interfere with proper operation. 6. A standard packing includes a mobile scanner, a USB cable and a CD (containing software and electrical manuals). Accessory includes a Bluetooth USB adapter BA2118 which supports reliable wireless data transmission and an AC/DC adaptor for battery charge. 7. Please charge the battery before the first time of use. 8. The term “scanner” as used in this manual denotes the MS3398 mobile scanner unless otherwise noted. ii Contents Notice.............................................................................................................................................................. i 1 Specifications............................................................................................................................................ 1 1-1 Technical specifications............................................................................................................... 1 1-2 Default settings for each barcode............................................................................................... 3 1-3 Decode zone.................................................................................................................................. 4 1-4 Dimensions.................................................................................................................................... 5 1-5 Parts of the scanner...................................................................................................................... 6 1-6 Parts of the Bluetooth USB adapter BA2118............................................................................ 7 1-7 Keys, actions and features.......................................................................................................... 8 2 Introduction to installation........................................................................................................................ 9 2-1 Installing a USB HID keyboard wired scanner.......................................................................... 9 2-2 Installing a USB virtual COM wired scanner............................................................................. 9 2-3 Attaching the neck/wrist strap................................................................................................... 10 2-4 Replacing the Lithium-ion battery............................................................................................. 10 3 Getting started......................................................................................................................................... 11 3-1 Power on/off scanner.................................................................................................................. 11 3-2 Charge battery............................................................................................................................. 11 3-3 Enter/Exit sleep mode................................................................................................................ 11 3-4 Power on/off Bluetooth............................................................................................................... 11 4 Introduction to LCD display................................................................................................................... 13 4-1 LCD display icons....................................................................................................................... 13 4-2 LCD display menu....................................................................................................................... 14 5 Operations of the scanner..................................................................................................................... 16 5-1 Scan.............................................................................................................................................. 16 5-2 Data Transfer...............................................................................................................................18 5-3 System Setting - Bluetooth........................................................................................................ 20 5-3-1 Bluetooth functionalities.................................................................................................. 20 5-3-2 Configure Bluetooth HID keyboard profile communication....................................... 21 5-3-3 Configure Bluetooth SPP slave profile communication............................................. 24 5-3-4 Configure Bluetooth SPP master profile communication.......................................... 26 5-3-5 Configure Bluetooth USB adapter BA2118................................................................. 27 5-3-6 Configure the profile of BA2118.................................................................................... 28 5-4 System Setting - General........................................................................................................... 28 5-5 System Information..................................................................................................................... 29 6 Barc…

Text truncated - open the document above for the full version.

Shenzhen Unique Electronic Int’l Limited Rm 1608, Bld B Zhantao science and Technology, Rd Minzhi Longhua Av., Bao'an, Shenzhen 518131, China ----------------------------------------------------------------------------------------------------------------------------------- Declaration of Authorization We Name: Shenzhen Unique Electronic Int’l Limited Address: Rm 1608, Bld B Zhantao science and Technology, Rd Minzhi Longhua Av., Bao'an, Shenzhen 518131, China Declare that: Name Representative of agent: Wu Jian Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description:Bluetooth Barcode Reader FCC ID:2ACCBMS3398 Model:MS3398 Brand Name:Postech on our behalf. --------------------------------------------------- Signature: Yihua Yu / Manager Date: 2014-08-15

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen Unique Electronic Int’l Limited Date: Aug-15-2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACCBMS3398 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title : Yihua Yu/Manager Contact information / address: Shenzhen Unique Electronic Int’l Limited Rm 1608, Bld B Zhantao science and Technology, Rd Minzhi Longhua Av., Bao'an, Shenzhen 518131, China

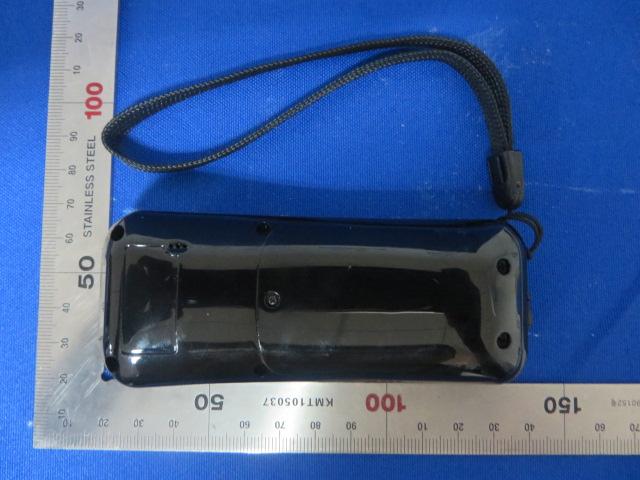

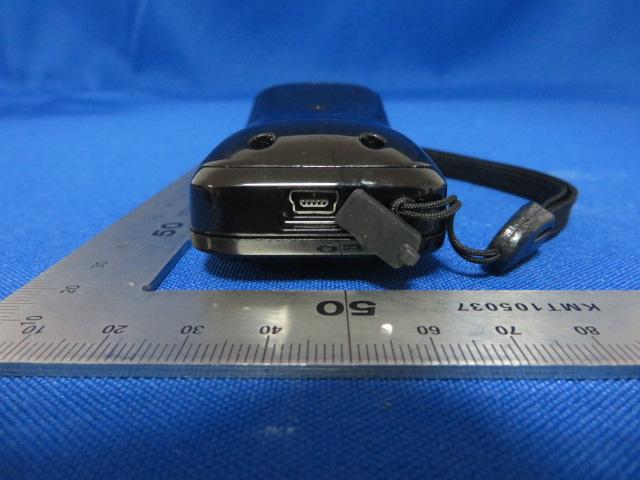

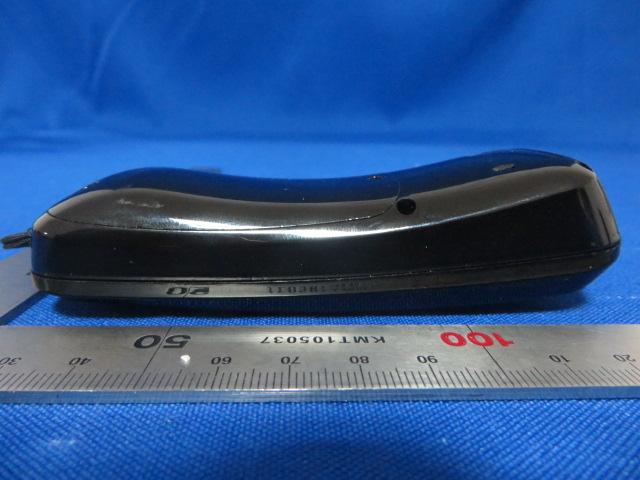

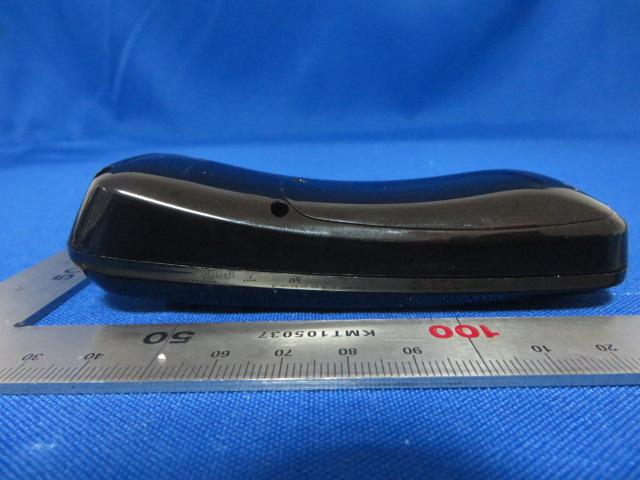

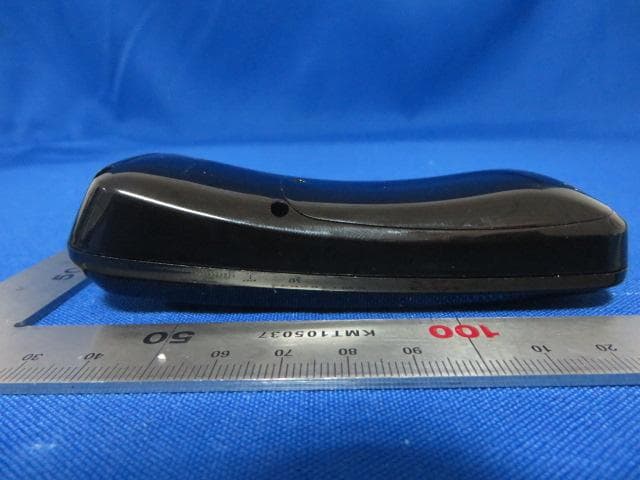

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

Label Label Location FCC ID: 2ACCBMS3398 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1408RSU02702 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 08-27-2014 Web: www.mrt-cert.com FCC ID: 2ACCBMS3398 Page Number: 1 of 5 RF Exposure Evaluation Declaration FCC ID: 2ACCBMS3398 APPLICANT: Shenzhen Unique Electronic Int’l Limited Application Type: Certification Product: Bluetooth Barcode Reader Model No.: MS3398 Brand Name: Postech FCC Classification: FCC Part 15 Spread Spectrum Transmitter(DSS) Test Date: August 20 ~ 26, 2014 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1408RSU02702 FCC ID: 2ACCBMS3398 Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 1408RSU02702 Rev. 01 Initial report 08-27-2014 Report No.: 1408RSU02702 FCC ID: 2ACCBMS3398 Page Number: 3 of 5 1. RF Exposure Evaluation 1.1. Limits SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The equation and threshold in Note 1 must be applied to determine SAR test exclusion. MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Report No.: 1408RSU02702 FCC ID: 2ACCBMS3398 Page Number: 4 of 5 Note :The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison  3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°C and 78% RH. Report No.: 1408RSU02702 FCC ID: 2ACCBMS3398 Page Number: 5 of 5 1.3. Test Result of RF Exposure Evaluation Product Bluetooth Barcode Reader Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi for 2.4GHz in logarithm scale. Output Power into Antenna: Test Mode Frequency Band (MHz) Maximum output power to antenna (mW) SAR Test Exclusion Threshold (mW) Bluetooth 2402~2480 3.31 10 Per FCC KDB 447498 D01v05r02, the SAR exclusion threshold for distances<50mm is defined by the following equation: Based on the maximum conducted power of Bluetooth and the antenna to use separation distance, Bluetooth SAR was not required; [(3.31mW/5)* √2.441] = 1.03 < 3.0. Note: When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1408RSU02701 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 08-29-2014 Web: www.mrt-cert.com FCC ID: 2ACCBMS3398 Page Number: 1 of 72 FCC ID: 2ACCBMS3398 APPLICANT: Shenzhen Unique Electronic Int’l Limited Application Type: Certification Product: Bluetooth Barcode Reader Model No.: MS3398 Brand Name: Postech FCC Classification: FCC Part 15 Spread Spectrum Transmitter(DSS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009, DA 00-705 Test Date: August 20 ~ 26, 2014 MEASUREMENT REPORT FCC PART 15.247 Bluetooth Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and DA 00-705. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 2 of 72 Revision History Report No. Version Description Issue Date 1408RSU02701 Rev. 01 Initial report 08-27-2014 1408RSU02701 Rev. 02 Added the Environmental Condition 08-29-2014 Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 3 of 72 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Frequency / Channel Operation .................................................................................... 9 2.3. Pseudorandom Frequency Hopping Sequence ........................................................... 10 2.4. Device Capabilities ..................................................................................................... 10 2.5. Test Configuration ...................................................................................................... 10 2.6. Test Software ............................................................................................................. 10 2.7. Description of Support Units ........................................................................................ 11 2.8. EMI Suppression Device(s)/Modifications .................................................................... 11 2.9. Labeling Requirements ................................................................................................ 11 2.10. Test Environmental Condition ...................................................................................... 11 3. DESCRIPTION OF TEST ...................................................................................................... 12 3.1. Evaluation Procedure ................................................................................................. 12 3.2. AC Line Conducted Emissions ................................................................................... 12 3.3. Radiated Emissions .................................................................................................... 13 4. ANTENNA REQUIREMENTS ................................................................................................ 14 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 15 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ...................................................................................................................... 17 7.1. Summary .................................................................................................................... 17 7.2. 20dB Bandwidth Measurement ................................................................................... 18 7.2.1. Test Limit ................................................................................................................ 18 7.2.2. Test Procedure used ............................................................................................... 18 7.2.3. Test Setting ............................................................................................................. 18 7.2.4. Test Setup ............................................................................................................... 19 7.2.5. Test Result .............................................................................................................. 20 7.3. Output Power Measurement ....................................................................................... 23 7.3.1. Test Limit ................................................................................................................ 23 7.3.2. Test Procedure Used .............................................................................................. 23 7.3.3. Test Setting ............................................................................................................. 23 Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 4 of 72 7.3.4. Test Setup ............................................................................................................... 24 7.3.5. Test Result .............................................................................................................. 2…

Text truncated - open the document above for the full version.

Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 38 of 72 7.6.5. Test Result Test Mode Channel No. Frequency (MHz) Time of Occupancy (ms) Limit (ms) Result 3DH1 39 2441 134.40 < 400 Pass 3DH3 39 2441 260.80 < 400 Pass 3DH5 39 2441 322.56 < 400 Pass 3DH1 Time of Occupancy Channel 39(2441MHz) Channel 39(2441MHz) Note: Test Time Period: 0.4*79=31.6sec, Hopping Times Within 1sec: 40/50msec=800 hops/sec. The Maximum Occupancy Time within 31.6sec: [(0.420ms*800)/79]*31.6 =134.40 msec. 3DH3 Time of Occupancy Channel 39(2441MHz) Channel 39(2441MHz) Note: Test Time Period: 0.4*79=31.6sec, Hopping Times Within 1sec: 20/50msec=400hops/sec. The Maximum Occupancy Time within 31.6sec: [(1.63ms*400)/79]*31.6 =260.80 msec. Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 39 of 72 3DH5 Time of Occupancy Channel 39(2441MHz) Channel 39(2441MHz) Note: Test Time Period: 0.4*79=31.6sec, Hopping Times Within 1sec: 14/50msec=280 hops/sec. The Maximum Occupancy Time within 31.6sec: [(2.880ms*280)/79]*31.6 =322.56 msec. Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 40 of 72 7.7. Band-edge Compliance Measurement 7.7.1. Test Limit The maximum permissible emission level is 20dBc. Any emission lying outside of the emission bandwidth and in a restricted band is subject to a field strength limit specified in Section 15.209 of the Title 47 CFR. 7.7.2. Test Procedure Used ANSI C63.10-2009 - Section 7.7.9 7.7.3. Test Setting 1. Span = wide enough to capture the peak level of the emission operating on the channel closest to the band edge, as well as any modulation products which fall outside of the authorized band of operation. 2. RBW ≥ 1% of spectrum analyzer display span 3. VBW ≥ RBW 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Allow the trace to stabilize. Set the marker on the emission at the band edge, or on the highest modulation product outside of the band, if this level is greater than that at the band edge. Enable the marker-delta function, than use the marker-to-peak function to move the marker to the peak of the in-band emission. Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 41 of 72 7.7.4. Test Setup Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 42 of 72 7.7.5. Test Result Test Mode Channel No. Frequency (MHz) Limit Result DH5 00 2402 20dBc Pass DH5 78 2480 20dBc Pass 2DH5 00 2402 20dBc Pass 2DH5 78 2480 20dBc Pass 3DH5 00 2402 20dBc Pass 3DH5 78 2480 20dBc Pass DH5 Band-edge Compliance Channel 00 (2402MHz) Channel 78 (2480MHz) 2DH5 Band-edge Compliance Channel 00 (2402MHz) Channel 78 (2480MHz) Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 43 of 72 3DH5 Band-edge Compliance Channel 00 (2402MHz) Channel 78 (2480MHz) DH5 Band-edge Compliance within Hopping Mode Channel 00 (2402MHz) Channel 78 (2480MHz) 2DH5 Band-edge Compliance within Hopping Mode Channel 00 (2402MHz) Channel 78 (2480MHz) Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 44 of 72 3DH5 Band-edge Compliance within Hopping Mode Channel 00 (2402MHz) Channel 78 (2480MHz) Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 45 of 72 7.8. Conducted Spurious Emissions Measurement 7.8.1. Test Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. 7.8.2. Test Procedure Used ANSI C63.10-2009 - Section 7.7.10 7.8.3. Test Setting 1. Span = wide enough to capture the peak level of the in-band emission and all spurious emissions (e.g., harmonics) from the lowest frequency generated in the EUT up through the 10 th harmonic. Typically, several plots are required to cover this entire span. 2. RBW = 100 KHz 3. VBW ≥ RBW 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Set the marker on the peak of any spurious emission recorded. The level displayed must comply with the limit specified in this section. Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 46 of 72 7.8.4. Test Setup Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 47 of 72 7.8.5. Test Result Test Mode Channel No. Frequency (MHz) Limit (MHz) Result DH5 00 2402 20dBc Pass DH5 39 2441 20dBc Pass DH5 78 2480 20dBc Pass 2DH5 00 2402 20dBc Pass 2DH5 39 2441 20dBc Pass 2DH5 78 2480 20dBc Pass 3DH5 00 2402 20dBc Pass 3DH5 39 2441 20dBc Pass 3DH5 78 2480 20dBc Pass DH5 Conducted Spurious Emissions Channel 00 (2402MHz) Channel 39 (2441MHz) Channel 78 (2480MHz) Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 48 of 72 2DH5 Conducted Spurious Emissions Channel 00 (2402MHz) Channel 39 (2441MHz) Channel 78 (2480MHz) Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 49 of 72 3DH5 Conducted Spurious Emissions Channel 00 (2402MHz) Channel 39 (2441MHz) Channel 78 (2480MHz) Report No.: 1408RSU02701 FCC ID: 2ACCBMS3398 Page Number: 50 of 72 7.9. Radiated Spurious Emission Measurement 7.9.1. Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 – 0.490 2400/F (kHz) 300 0.490 – 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 …

Text truncated - open the document above for the full version.

Test Setup Photo Description: Front View of Conducted Emission Test Setup for 0.15kHz ~ 30MHz Description: Back View of Conducted Emission Test Setup for 0.15kHz ~ 30MHz Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 25GHz
