2ACD5AIRCRYPT-WAG1Wireless audio gateway with wireless PTT for communication radios

WAG KIT QUICK GUIDE This Quick guide contains information regariding these devices. 1. Portable radio 2. Gateway 3. Wireless FingerPTT 4. Headset 1234 Turn off your radio. Take the Gateway and place the hook on the on top right side of the radio. Place a screwdriver and turn clock- wise to tighten the Gateway. Push and hold the PTT button on the Gateway and then turn on your radio simutaneously. The LED indicator will light constant, when the LED flashes, its paired with your radio. Take your Wireless FingerPTT and press and hold down both volume buttons for 5 seconds, until the LED flashes red 2 times. The LED on the FingerPTT is located on the inside. Press and hold the answer key for 6 seconds on your headset until the blue and red light flashes. Turn your radio off and then on again, and now all the devieces are paired. NOTE 1: Any changes or modifications to this unit not expressly approved by the party FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. responsible for compliance could void the user's authority to operate the equipment.

Example of Agents letter (for TCB – TCB approval): Titan Communications systems Aps Date (31 July. 2014) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, (Titan Communications systems Aps ; Address: Skovlytoften 26B, st. DK - 2840 Holte ) hereby authorize John Zhi (TUV-SUD China; Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 51805) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 31 December 2014 Sincerely, Company Officer: Tom Dornov Telephone Number: +45 32 12 40 02 Email: [email protected]

Titan Communications systems Aps August 4, 2014 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ACD5AIRCRYPT-WAG1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Titan Communications systems Aps hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation Titan Communications systems Aps also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180) days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: (signed by FCC listed Grantee contact) Address: Skovlytoften 26B, st. DK - 2840 Holte Telephone Number: +45 32 12 40 02 Fax Number: +45 32 12 40 02 Email: [email protected]

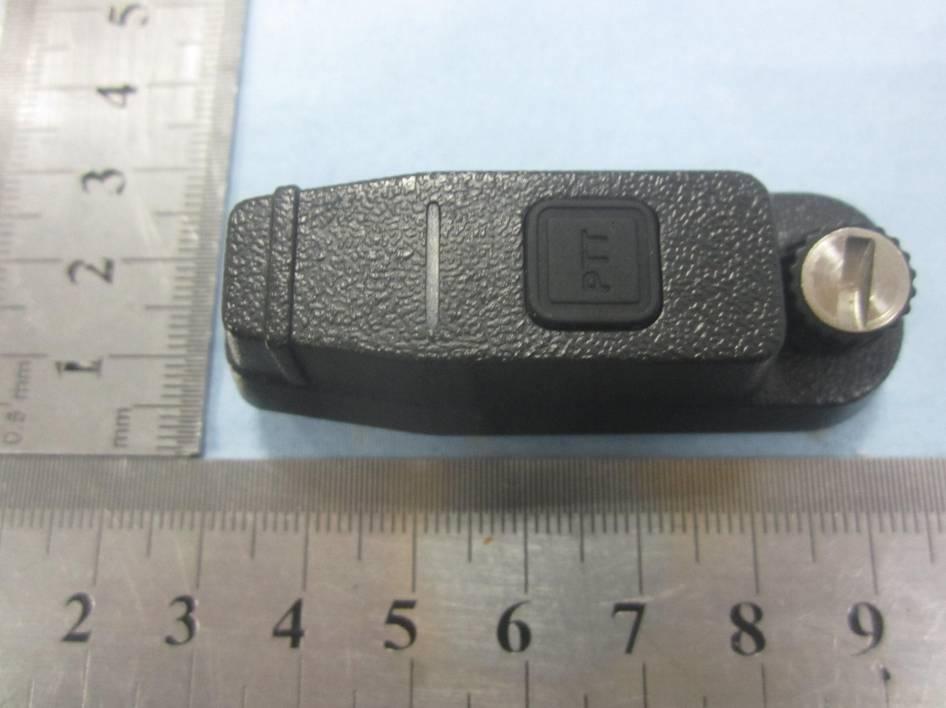

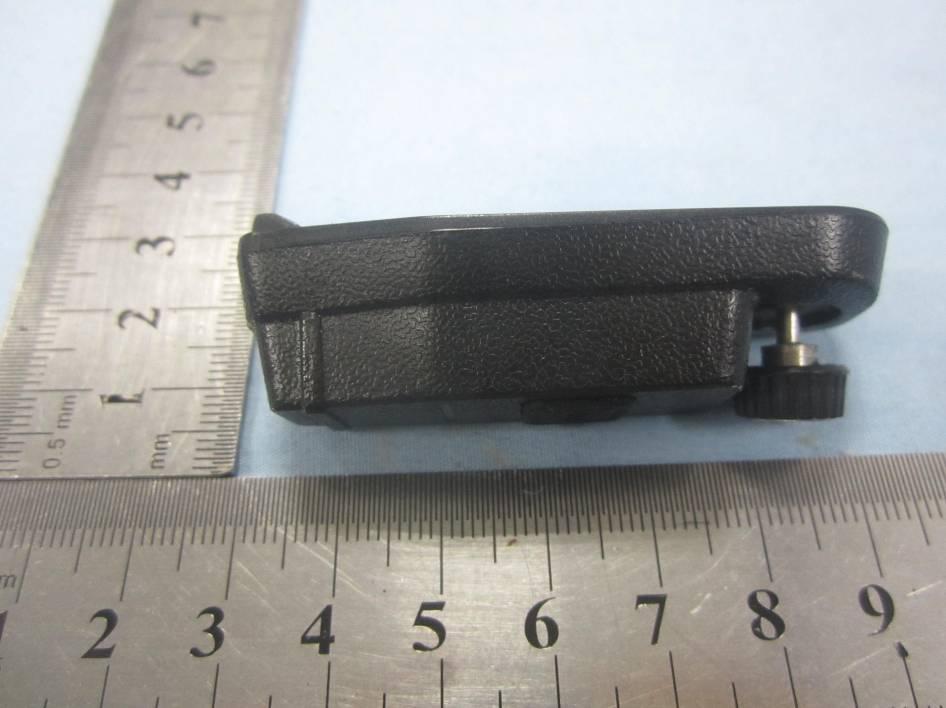

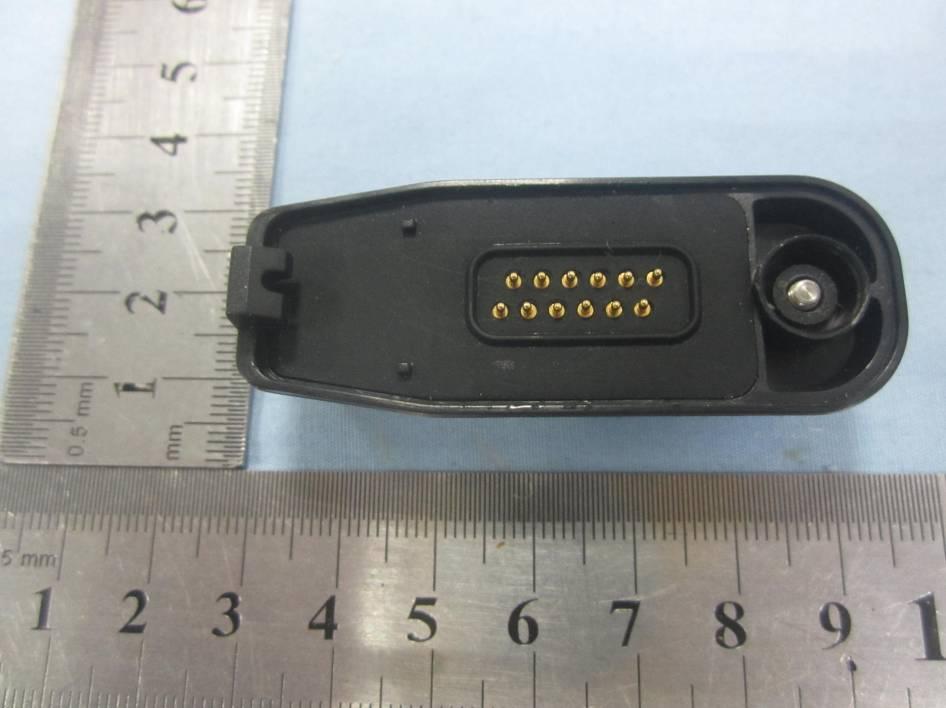

APPENDIX B – External of EUT Page 1 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 APPENDIX B – External of EUT Page 2 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052

Finger PTT M12 以下字体都为镭雕在产品上的。

APPENDIX C – Internal of EUT Page 1 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 APPENDIX C – Internal of EUT Page 2 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 APPENDIX C – Internal of EUT Page 3 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 BT4.0 Antenna BT3.0 Antenna

Report Number: 68.760.14.226.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 37 FCC/IC - TEST REPORT Report Number : 68.760.14.226.01 Date of Issue: August 4, 2014 Model : WAG 126 & WAG 127 Product Type : Wireless audiogateway with wireless PTT for communication radios Applicant : Titan Communications systems Aps Address : Skovlytoften 26B, st. DK - 2840 Holte Manufacturer : Vintech Corporation Address : 12B,Jinshun Building ,No.287, Ruyi Road ,Longgang District, Shenzhen. Test Result :  Positive  Negative Total pages including Appendices : 37 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.760.14.226.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 37 1 Table of Contents 1 Table of Contents .................................................................................................................. 2 2 Details about the Test Laboratory ......................................................................................... 3 3 Description of the Equipment Under Test .............................................................................. 4 4 Summary of Test Standards .................................................................................................. 5 5 Summary of Test Results ...................................................................................................... 6 6 General Remarks .................................................................................................................. 7 7 Test Setups ........................................................................................................................... 8 8 Systems test configuration .................................................................................................... 9 9 Technical Requirement ....................................................................................................... 10 9.1 Conducted peak output power ...................................................................................... 10 9.2 20 dB bandwidth and 99% Occupied Bandwidth .......................................................... 12 9.3 Carrier Frequency Separation ...................................................................................... 17 9.4 Number of hopping frequencies .................................................................................... 20 9.5 Dwell Time .................................................................................................................... 22 9.6 Spurious RF conducted emissions ............................................................................... 25 9.7 Band edge testing ......................................................................................................... 29 9.8 Spurious radiated emissions for transmitter and receiver ............................................. 32 10 Test Equipment List ............................................................................................................ 36 11 System Measurement Uncertainty ...................................................................................... 37 Report Number: 68.760.14.226.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 37 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Test Site 2 Company name: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C. FCC Registration No.: 934118 Telephone: 86 755 3366 3308 Fax: 86 755 3366 3309 Report Number: 68.760.14.226.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 …

Text truncated - open the document above for the full version.

APPENDIX A – Photos of Test Setup Page 1 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Radio Emission (Below 30MHz) Radio Emission (30MHz-1GHz) APPENDIX A – Photos of Test Setup Page 2 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Radio Emission (Above 1GHz)
