2ACD5WPTT-HDLBWireless Handlebar PTT

TITANWirelessAudioGateway Userguide GATEWAY+WirelessBodyPTT +WirelessHandlebarPTT 2 INTRODUCTION TheWirelessGatewayallowsyoufreedomtomakeand receivecallsthroughyourmobileradiowhileonthemoveor inanoffice.YoucanconnecttheGatewaytoacompatible radioandenablesupportforWirelesscommunication.Please readtheusermanualtomakethebestuseofthisdeviceand itsmanyfeatures. GETSTARTED 3 Gatewayoverview TheGatewaycontainsthefollowingfeatures asshowninthefigure: •1.PTTbutton/Pairingbutton •2.Ledindicator(blue) •3.+/-buttonforpairingawirelessdevice •4.Cablefortheradio 4 WirelessBodyPTToverview TheWirelessBodyPTTcontainsthefollowing featuresasshowninthefigure: •1.PTTbutton •2.Logo •3.Pairing/LED •4.Pairing/LED 5 WirelessHandlebarPTToverview TheWirelessHandlebarPTTcontainsthe followingfeaturesasshowninthefigure: •1.Pairing/PTTbutton 6 PairtheGatewaywiththeHeadset 1.TurnofftheradioandplacetheGatewaywireintothe rearconnectoronthebacksidesideofyourradio. 2.PressandholdthePTTbuttonontheGatewayboxfor5-10 secondswhileturningontheradio. 3.TheLEDindicatorwilllightconstantlywheninpairing mode. 4.WhentheLEDstartsflashing,pairingwiththeheadsethas succeeded. 7 PairtheGatewaywiththe WirelessBodyPTT (orWirelessHandlebarPTT) 1.ForpairingawirelessPTT,turnoffyourradioagain. 2.Pressandholdthevolume+/-buttonsonthe WirelessBodyPTTfor5seconds.TheLEDonthe frontsideoftheWirelessBodyPTTwillflashred1time shortly.TheWirelessBodyPTTiisnowinpairingmode. (OrpressthePTTbuttonofthewirelessHandlebarPTT 3times,thenholdonfor5S,ThewirelesshandlebarPTT isinpairingmodel.) 8 BASICUSE-CALLHANDLING Tomakeacall(Pushtotalk) UseeithertheWirelessBodyPTT,theGatewayssidePTTor ThewirelesshandlebarPTTtoactivateacall.Youcanalsousea specificTITANapprovedheadset(liketheHCD)toactivatea PTT. Tohearanincomingcall TheGatewaywillautomaticallydetectanincomingcalland bringthesoundtoyourheadset/HCDdevice

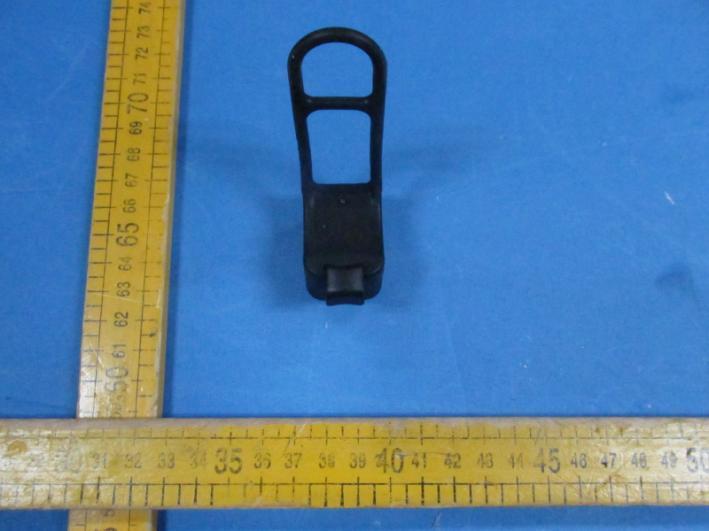

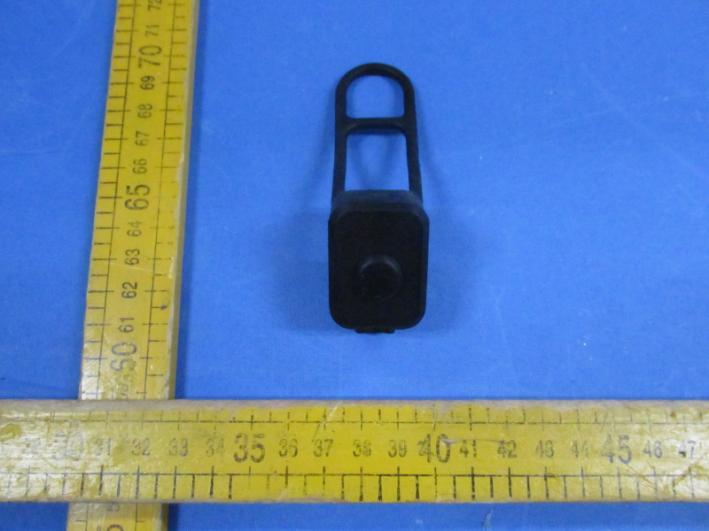

APPENDIX B – External of EUT Page 1 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 APPENDIX B – External of EUT Page 2 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052

FCC ID: 2ACD5WPTT-HDLB

APPENDIX C – Internal of EUT Page 1 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 BT Antenna APPENDIX C – Internal of EUT Page 2 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Battery View

TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China RF exposure Estimation for WPTT 1. Introduction WPTT-HDLB is Wireless Body PTT, which contain Bluetooth Low Energy function inside. FCC ID: 2ACD5WPTT-HDLB 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r02, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Conducted Power + tune up tolerance = 0.745mW Distance = 5 mm f = 2.480 GHz [0.745/5] * SQRT(2.480) =0.23 0.23 ≤ 3.0 Therefore, excluded from SAR testing. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Reviewed by: Prepared By: John Zhi/ EMC Project Manager Alan Xiong/EMC Project Engineer Date: 2015-05-14 Date: 2015-05-14

Report Number: 68.960.15.024.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 23 FCC/IC- TEST REPORT Report Number : 68.960.15.024.01 Date of Issue: April 22, 2015 Model : WPTT-HDLB Product Type : Wireless Handlebar PTT Applicant : Titan Communication systems Aps Address : Skovlytoften 26B, st. DK – 2840 Holte Denmark. Production Facility : Vintech Corp. Address : 12B Jinshun Building, No.287, Ruyi Road, Longgang, Shenzhen, China Test Result :  Positive  Negative Total pages including Appendices : 23 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 68.960.15.024.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 23 1 Table of Contents 1 Table of Contents .............................................................................................................................. 2 2 Details about the Test Laboratory ..................................................................................................... 3 3 Description of the Equipment under Test .......................................................................................... 4 4 Summary of Test Standards .............................................................................................................. 5 5 Summary of Test Results .................................................................................................................. 6 6 General Remarks .............................................................................................................................. 7 7 Test Setups ....................................................................................................................................... 8 8 Systems test configuration ................................................................................................................ 9 9 Technical Requirement ................................................................................................................... 10 9.1 Conducted peak output power ................................................................................................. 10 9.2 6dB bandwidth and 99% Occupied Bandwidth ......................................................................... 11 9.3 Power spectral density ............................................................................................................. 13 9.4 Spurious RF conducted emissions ........................................................................................... 14 9.5 Band edge ............................................................................................................................... 18 9.6 Spurious radiated emissions for transmitter ............................................................................. 20 10 Test Equipment List ..................................................................................................................... 22 11 System Measurement Uncertainty ............................................................................................... 23 Report Number: 68.960.15.024.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 23 2 Details about the Test Laboratory Details about the Test Laboratory Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China FCC Registration Number: 502708 Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Report Number: 68.960.15.024.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 4 of 23 3 Description of the Equipment under Test Description of the Equipment Under Test Product: Wireless Handlebar PTT Model no.: WPTT-HDLB FCC ID: 2ACD5WPTT-HDLB Rating Voltage: DC 3.0V By CR1632 battery RF Transmission Frequency: 2402-2480MHz No. of Operated Channel: 40 Modulation: GFSK Duty…

Text truncated - open the document above for the full version.

APPENDIX A – Photos of Test Setup Page 1 of 1 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Radio Emission (30MHz-1GHz) Radio Emission (Above 1GHz)
