2ACD5AIRCRYPT-WPTT1Wireless finger PTT

User guide WIRELESS FINGERPTT INSTRUCTIONS Thank you for purchasing the N2W Wireless FingerPTT.The device makes it easy to communicate wireless with Two-way radios and other communication devices, while on the move or in an office. You can connect the PTT to a compatible phone that supports Bluetooth wireless technology. Please read the user manual to make the best use of this Fin- gerPTT and its many features. 2 GET STARTED Overview The FingerPTT contains the following parts as shown in the figure: 1. PTT button 2. Volume + 3. Volume - 4. Finger strap 1. 2. 3. 4. Before you can start using the product, you must charge the battery and pair the headset with a compatible phone. 3 PAIRING THE RADIO, SPEAKERMIC AND THE WIRELESS FINGER PTT 1. Take the wireless FingerPTT. 2. Press the + and - volume buttons at the same time. 3. Hold it for 5 seconds until you can see the LED flashes 2 times red. 4 NOTE 1: Any changes or modifications to this unit not expressly approved by the party FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. responsible for compliance could void the user's authority to operate the equipment.

Example of Agents letter (for TCB – TCB approval): Titan Communications systems Aps Date (31 July. 2014) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, (Titan Communications systems Aps ; Address: Skovlytoften 26B, st. DK - 2840 Holte ) hereby authorize John Zhi (TUV-SUD China; Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 51805) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 31 December 2014 Sincerely, Company Officer: Tom Dornov Telephone Number: +45 32 12 40 02 Email: [email protected]

Titan Communications systems Aps August 4, 2014 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ACD5AIRCRYPT-WPTT1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Titan Communications systems Aps hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation Titan Communications systems Aps also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180) days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: (signed by FCC listed Grantee contact) Address: Skovlytoften 26B, st. DK - 2840 Holte Telephone Number: +45 32 12 40 02 Fax Number: +45 32 12 40 02 Email: [email protected]

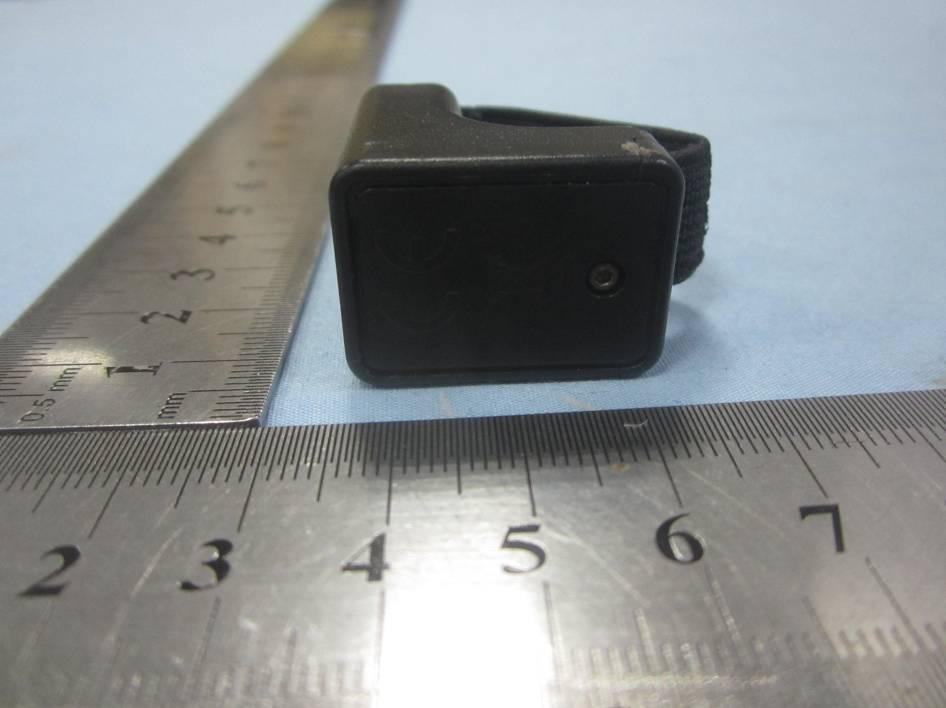

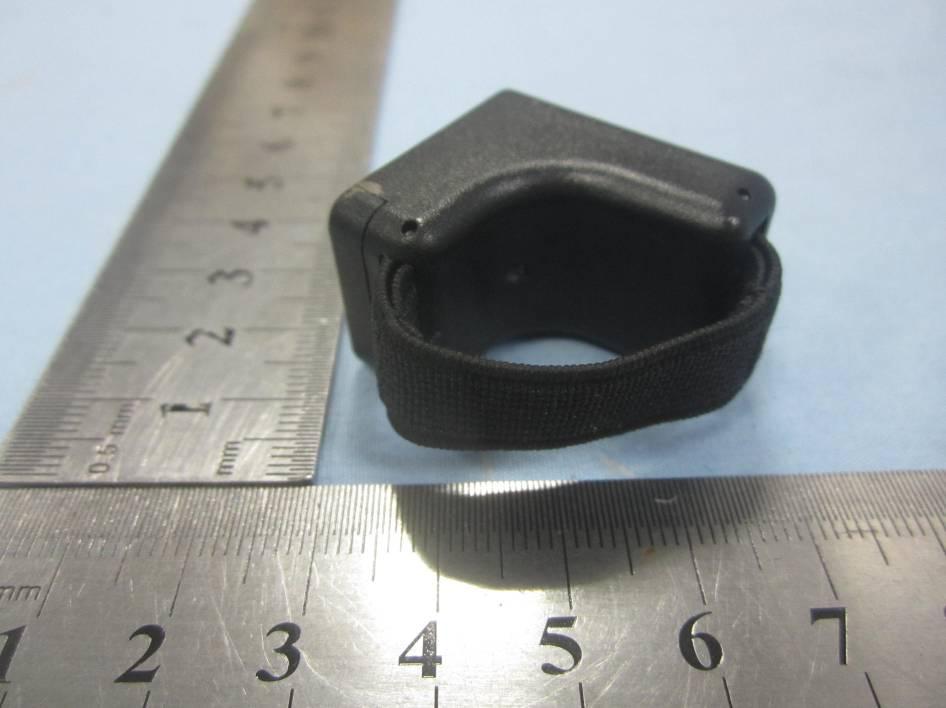

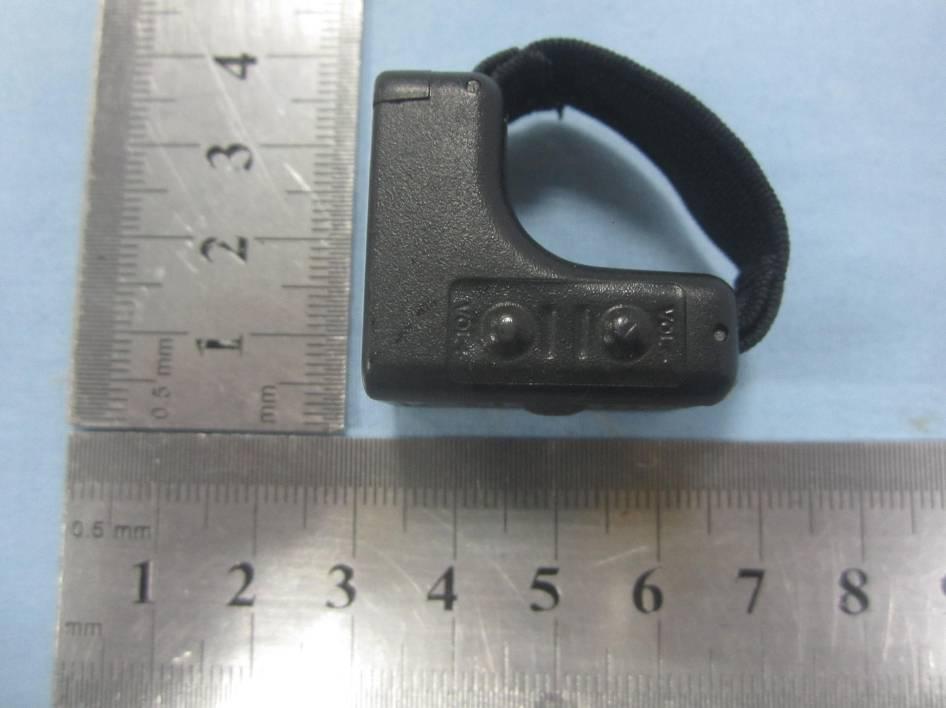

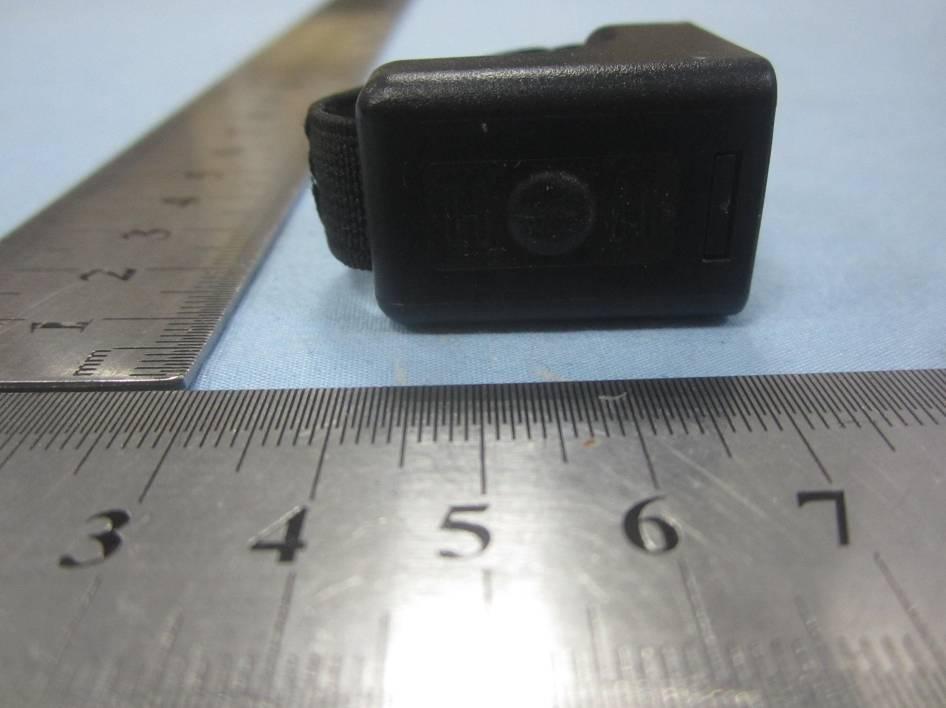

Report No.: 68.760.14.134.01 APPENDIX B – External of EUT Page 1 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Report No.: 68.760.14.134.01 APPENDIX B – External of EUT Page 2 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Report No.: 68.760.14.134.01 APPENDIX B – External of EUT Page 3 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052

Finger PTT M12 以下字体都为镭雕在产品上的。

Report No.: 68.960.14.134.01 APPENDIX C – Internal of EUT Page 1 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Report No.: 68.960.14.134.01 APPENDIX C – Internal of EUT Page 2 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 BT Antenna Report No.: 68.960.14.134.01 APPENDIX C – Internal of EUT Page 3 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052

TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China RF exposure Estimation for WPTT 1.Introduction WPTT is Wireless finger PTT, which contain Bluetooth function inside. 2.Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r02, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ” 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [¥f(GHz)] ” 3.0 for 1-g SAR and ” 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ” 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3.Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[¥f(GHz)] ” 3.0 Conducted Power + tune up tolerance = 0.349mW Distance = 5 mm f = 2.480 GHz TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China [0.349/5] * SQRT(2.480) =0.11 0.11 ” 3.0 Therefore, excluded from SAR testing. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Reviewed by: Prepared By: John Zhi/ EMC Project Manager Alan Xiong/EMC Project Engineer Date: 2014-8-21 Date: 2014-8-21

Report Number: 68.760.14.134.01 Page 1 of 24 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China FCC- TEST REPORT Report Number : 68.760.14.134.01 Date of Issue: 4 August 2014 Model : WPTT Product Type : Wireless finger PTT Applicant : Titan Communications systems Aps Address : Skovlytoften 26B, st. DK - 2840 Holte Production Facility : Vintech Corporation Address : 12B,Jinshun Building ,No.287, Ruyi Road ,Longgang District,Shenzhen. Test Result :  Positive  Negative Total pages including Appendices : 24 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.760.14.134.01 Page 2 of 24 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China 1 Table of Contents 1 Table of Contents .................................................................................................................. 2 2 Details about the Test Laboratory ......................................................................................... 3 3 Description of the Equipment under Test .............................................................................. 4 4 Summary of Test Standards .................................................................................................. 5 5 Summary of Test Results ...................................................................................................... 6 6 General Remarks .................................................................................................................. 7 7 Test Setups ........................................................................................................................... 8 8 Systems test configuration .................................................................................................... 9 9 Technical Requirement ....................................................................................................... 10 9.1 Conducted peak output power ...................................................................................... 10 9.2 6dB bandwidth .............................................................................................................. 11 9.3 Power spectral density .................................................................................................. 13 9.4 Spurious RF conducted emissions ............................................................................... 14 9.5 Band edge .................................................................................................................... 18 9.6 Spurious radiated emissions for transmitter .................................................................. 20 10 Test Equipment List ......................................................................................................... 23 11 System Measurement Uncertainty ................................................................................... 24 Report Number: 68.760.14.134.01 Page 3 of 24 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Test Site 2 Company name: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C. FCC Registration No.: 934118 Telephone: 86 755 3366 3308 Fax: 86 755 3366 3309 Report Number: 68.760.14.134.01 Page 4 of 24 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China 3 Description of the Equipment under Test Description of the Equipment Under Test Product: Wireless finger PTT Model no.: WPTT FCC ID: 2ACD5AIRCRYPT-WPTT1 Options and accessories: NIL Rating: DC3.0V supplied by CR2032 Cell battery RF Transmission Frequency: 2402-2480MHz No. of Operated Channel: 40 Modulation: GFSK Duty Cycle: 63.5% Antenna Type: Integral Antenna Antenna Gain: 2.12dBi Description of the EUT: The Equipment Under Test (EUT) is a wireless finger PTT with Bluetooth 4.0 function operating at 2.4GHz Report Number: 68.760.14.134.01 Page 5 of 24 TÜV SÜD Certification and Testing (China) Co.,…

Text truncated - open the document above for the full version.

Report No.: 68.760.14.134.01 APPENDIX A – Photos of Test Setup Page 1 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Radio Emission (Below 30MHz) Radio Emission (30MHz-1GHz) Report No.: 68.760.14.134.01 APPENDIX A – Photos of Test Setup Page 2 of 2 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 Radio Emission (Above 1GHz)
