2ACEY-GW-915TS Gateway

YW2024 1 TownSteel TSE Home Wi-Fi Gateway YW2024 2 Introduction The TownSteel Wi-Fi Gateway works with your series 5000 Wi-Fi lock, which includes e-Elite 5000RF, e-Smart 5000RF, and e-Genius 5000RF. After setting up the Wi-Fi Gateway, you can use the TSE Home app to control your lock from anywhere. Before you get started Before setting up the Wi-Fi Gateway, install your TownSteel Smart lock first. Before programming anything with the APP it is recommended you change the lock’s Master Code (see- Change Your Master Code in programming guide) to avoid any unauthorized entry or operation of the lock. The new Master Code will be your administrator password (do not share). YW2024 3 GENERAL LOCK INFORMATION FOR THE Wi-Fi FUNCTION The 5000-RF Series lock is a versatile lock- it can be operated by a 6-10 digit PIN code, RFID card/FOB or through your smart phone APP via Wi-Fi. The APP is called TSE Home- it is available for Android and IOS. The lock is operable without the APP (can use PIN codes and RFID credentials), the APP provides access to the Wi-Fi features. The lock and APP require a Gateway to be used to interface between the lock-router-cloud-smartphone. 1. APP- download the TSE Home APP. Create a login. An email with a link will be sent to your login email. To activate your account, you must click on the link within five minutes. If the account is not activated the previous steps must be repeated. The link will activate your account and allow you to login. Once you have registered and log in successfully you can use the APP to pair with your Smart lock. 2. When you are ready to pair with the Gateway plug the Gateway into a wall socket. It should be placed within range of your Wi-Fi router and a place not likely to be unplugged. In order to pair the Gateway with the Smartphone they must be on the same Wi-Fi connection. You will need your Wi-Fi password. The APP is not compatible with 5G networks. Click on the upper left corner of the APP to access the menu. Click on “Gateway Management”> “Add Gateway”> “Wi-Fi Gateway”. Your Gateway is plugged in and the LED should be flashing- if flashing click “Next Step” on the APP- enter Wi-Fi password> “Next YW2024 4 Step”- APP will pair with the Gateway. If the Gateway LED is not flashing- Reset the Gateway- use a small paperclip to press and hold the reset button on the Gateway- Gateway will beep 5 times- release the reset button and in about 10 seconds the LED will start flashing indicating the Gateway is in search mode. You can now pair with the Gateway. After the Gateway is paired you can now pair with the lock. 3. Pairing with your Smart lock: Only 1 smartphone can be the administrator (paired with the lock and Gateway), multiple smart phones can be added as users. If someone else has paired with the Gateway and lock and they wish to turn it over to another administrator they can unbind (disconnect) the Gateway and lock through their APP or you can reset the lock (see- Reset Lock to Factory Default Settings) and Gateway (see this section). Add a lock- click on the upper left on the APP to access the menu. Click on “Add Network Connected Device”- “Gateway Door Lock”- the screen will come up to “Add Door Lock”- press the reset button on the back of the battery tray (see page 10)- click “Add Door Lock”- lock will pair with your Smart Phone and Gateway- name the device in your APP and click “Completed”. The APP will go back to the home screen. You can now unlock the lock using the APP. See the APP for additional features of adding additional Users, codes, etc. YW2024 5 How to reset the Wi-Fi Gateway hold the reset button on the Gateway- Gateway will beep 5 times- release the reset button and in about 10 seconds the LED will start flashing indicating the Gateway has been reset. Pairing Button Reset Button LED YW2024 6 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) Reorient or relocate the receiving antenna. 2) Increase the separation between the equipment and receiver. 3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4) Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2018-11-19> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ACEY-GW-915 GW-RF For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name/Title: Steven Cima / Quality Director Company: TownSteel Inc. Address: 17901 Railroad Street, City of Industry, California, United States Phone: 626-965-8917 Fax: 626-965-8919 E-Mail: [email protected]

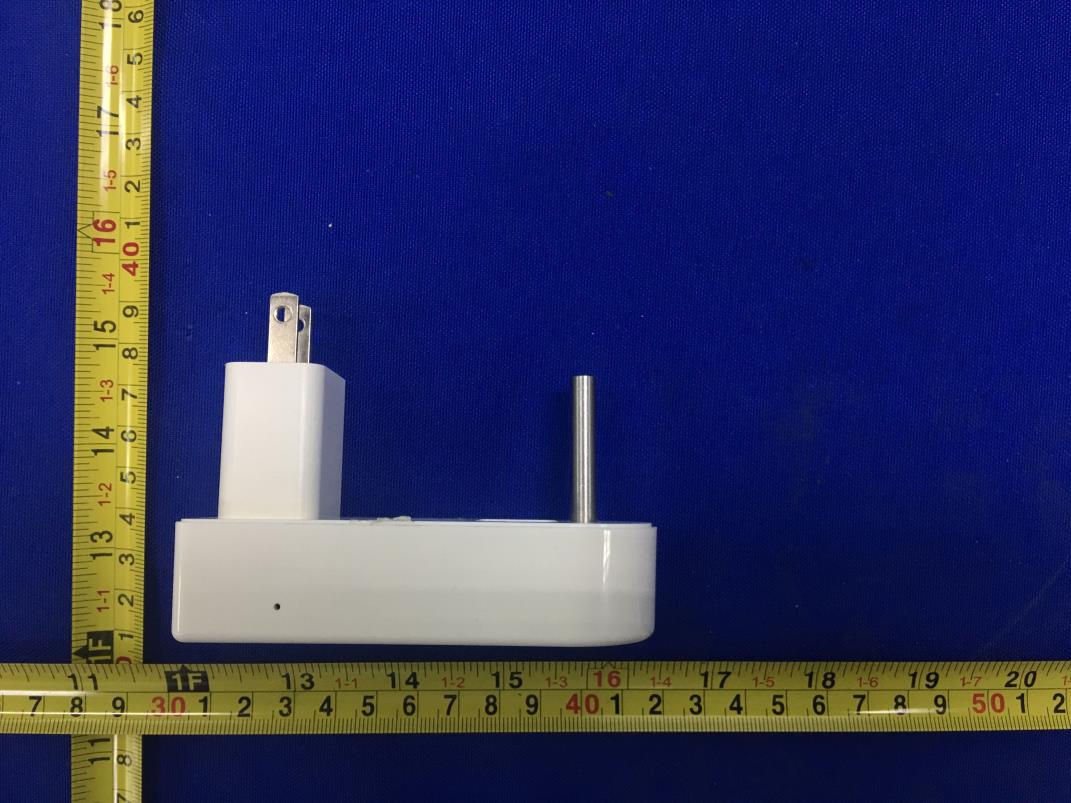

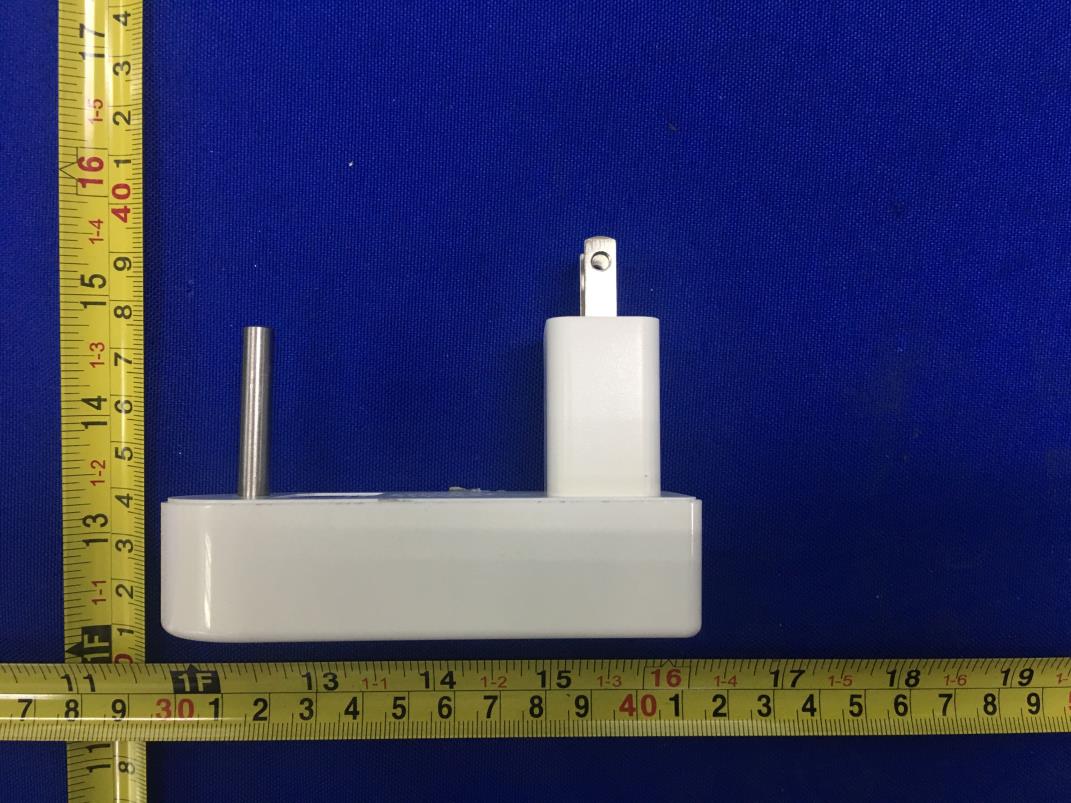

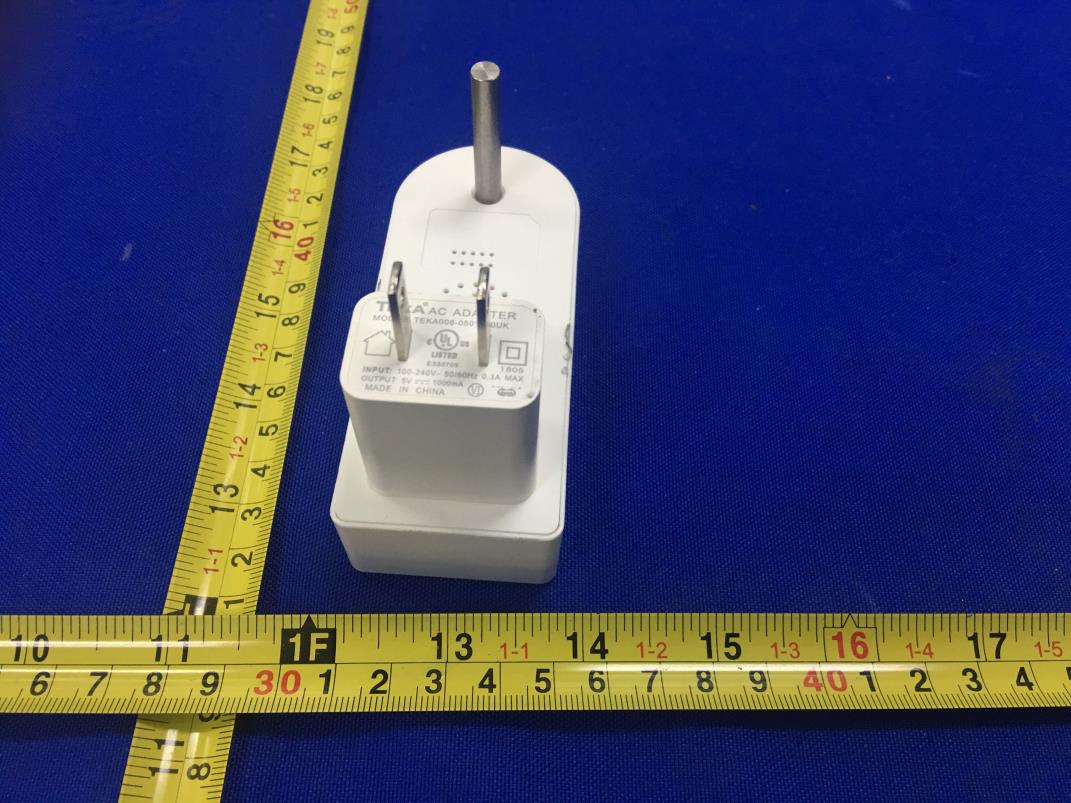

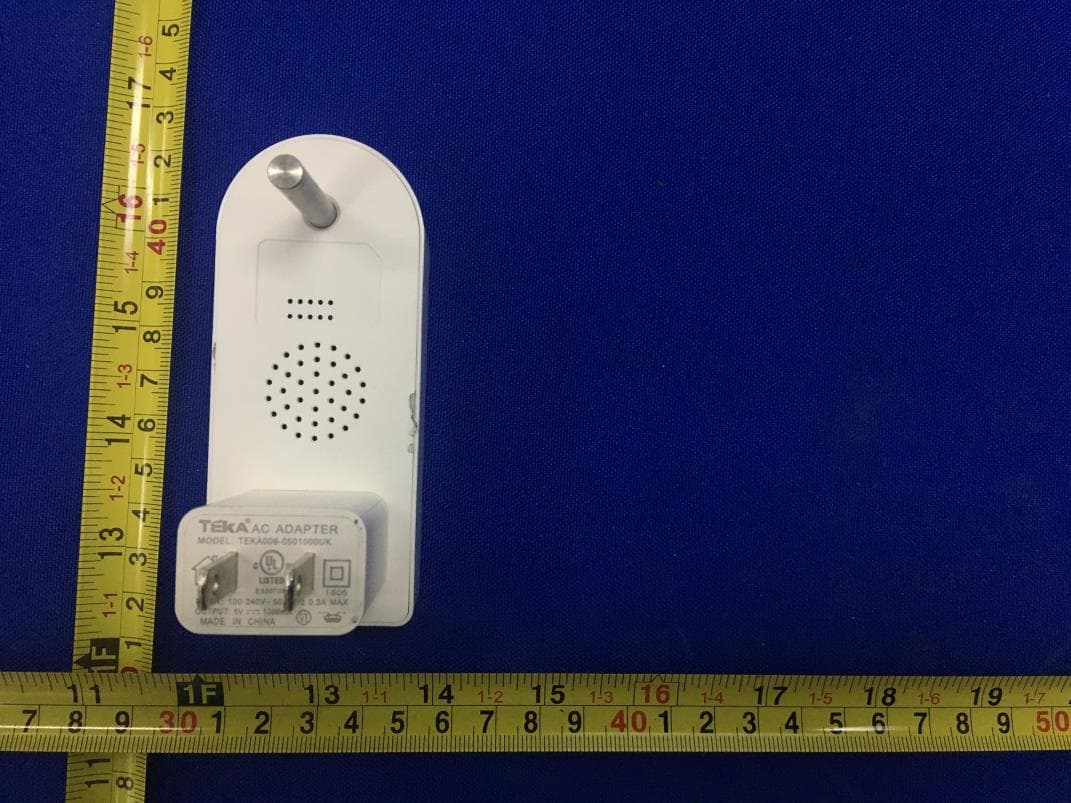

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ACEY-GW-915 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ACEY-GW-915 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ACEY-GW-915 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACEY-GW-915 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L20mm*W10mm Label Location FCC ID: 2ACEY-GW-915 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ACEY-GW-915 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ACEY-GW-915 Fig. 3 WIFI Antenna 915MHz Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACEY-GW-915 Report No.: LCS181012062AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 29 FCC TEST REPORT For TownSteel Inc. TS Gateway Test Model: GW-RF Prepared for : TownSteel Inc. Address : 17901 Railroad Street, City of Industry, California, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 22, 2018 Number of tested samples : 1 Serial number : Prototype Date of Test : October 22, 2018~ November 19, 2018 Date of Report : November 19, 2018 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACEY-GW-915 Report No.: LCS181012062AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 29 FCC TEST REPORT FCC CFR 47 PART 15 C(15.249) Report Reference No. ................ : LCS181012062AEB Date of Issue .................................. : November 19, 2018 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : TownSteel Inc. Address .......................................... : 17901 Railroad Street, City of Industry, California, United States Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.249) / ANSI C63.10: 2013 Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : TS Gateway Trade Mark ..................................... : N/A Test Model...................................... : GW-RF Ratings ........................................... : Input: AC 100-240V 50/60Hz 0.3A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Dick Su/ Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACEY-GW-915 Report No.: LCS181012062AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 29 FCC -- TEST REPORT Test Model.............................. : GW-RF EUT......................................... : TS Gateway Applicant............................... : TownSteel Inc. Address.................................. : 17901 Railroad Street, City of Industry, California, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : TownSteel Inc. Address................................... : 17901 Railroad Street, City of Industry, California, United States Telephone............................... : / Fax.......................................... : / Factory................................... : TownSteel Inc. Address................................... : 17901 Railroad Street, City of Industry, California, United States Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS181012062AEB November 19, 2018 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACEY-GW-915 Report No.: LCS181012062AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 29 Revision History Revision Issue Date Revisions Revised By 000 November 19, 2018 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACEY-GW-915 Report No.: LCS181012062AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 29 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 6 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .....…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ACEY-GW-915 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ACEY-GW-915 _______________________________________________________________________________________________ 1.1. Photo of Conducted Emissions Measurement Fig. 3
