2ACEY-GW2-915TS Gateway

YW2024 1 TownSteel TSE Home TS Gateway YW2024 2 Introduction The TownSteel TS Gateway works with your series 5000 Wi-Fi lock, which includes e-Elite 5000RF, e- Smart 5000RF, and e-Genius 5000RF. After setting up the TS Gateway, you can use the TSE Home app to control your lock from anywhere. Before you get started Before setting up the TS Gateway, install your TownSteel Smart lock first. Before programming anything with the APP it is recommended you change the lock’s Master Code (see- Change Your Master Code in programming guide) to avoid any unauthorized entry or operation of the lock. The new Master Code will be your administrator password (do not share). YW2024 3 GENERAL LOCK INFORMATION FOR THE Wi-Fi FUNCTION The 5000-RF Series lock is a versatile lock- it can be operated by a 6-10 digit PIN code, RFID card/FOB or through your smart phone APP via Wi-Fi. The APP is called TSE Home- it is available for Android and IOS. The lock is operable without the APP (can use PIN codes and RFID credentials), the APP provides access to the Wi-Fi features. The lock and APP require a Gateway to be used to interface between the lock-router-cloud-smartphone. 1.APP- download the TSE Home APP. Create a login. An email with a link will be sent to your login email. To activate your account, you must click on the link within five minutes. If the account is not activated the previous steps must be repeated. The link will activate your account and allow you to login. Once you have registered and log in successfully you can use the APP to pair with your Smart lock. 2.When you are ready to pair with the Gateway plug the Gateway into a wall socket. It should be placed within range of your Wi-Fi router and a place not likely to be unplugged. In order to pair the Gateway with the Smartphone they must be on the same Wi-Fi connection. You will need your Wi-Fi password. The APP is not compatible with 5G networks. Click on the upper left corner of the APP to access the menu. Click on “Gateway Management”> “Add Gateway”> “Wi-Fi Gateway”. Your Gateway is plugged in and the LED should be flashing- if flashing click “Next Step” on the APP- enter Wi-Fi password> “Next YW2024 4 Step”- APP will pair with the Gateway. If the Gateway LED is not flashing- Reset the Gateway- use a small paperclip to press and hold the reset button on the Gateway- Gateway will beep 5 times- release the reset button and in about 10 seconds the LED will start flashing indicating the Gateway is in search mode. You can now pair with the Gateway. After the Gateway is paired you can now pair with the lock. 3.Pairing with your Smart lock: Only 1 smartphone can be the administrator (paired with the lock and Gateway), multiple smart phones can be added as users. If someone else has paired with the Gateway and lock and they wish to turn it over to another administrator they can unbind (disconnect) the Gateway and lock through their APP or you can reset the lock (see- Reset Lock to Factory Default Settings) and Gateway (see this section). Add a lock- click on the upper left on the APP to access the menu. Click on “Add Network Connected Device”- “Gateway Door Lock”- the screen will come up to “Add Door Lock”- press the reset button on the back of the battery tray (see page 10)- click “Add Door Lock”- lock will pair with your Smart Phone and Gateway- name the device in your APP and click “Completed”. The APP will go back to the home screen. You can now unlock the lock using the APP. See the APP for additional features of adding additional Users, codes, etc. YW2024 5 How to reset the TS Gateway hold the reset button on the Gateway- Gateway will beep 5 times- release the reset button and in about 10 seconds the LED will start flashing indicating the Gateway has been reset. Pairing Button Reset Button LED YW2024 6 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) Reorient or relocate the receiving antenna. 2) Increase the separation between the equipment and receiver. 3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4) Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

TownSteel Inc. 17901 Railroad Street, City of Industry, CA 91748, United States Date: December 03, 2021 FCC ID: 2ACEY-GW2-915 Model Number: GW-RF To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, TownSteel Inc. declare that this EUT (FCC ID: 2ACEY-GW2-915) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Steven Cima / Quality Director Company: TownSteel Inc. Address: 17901 Railroad Street, City of Industry, CA 91748, United States Phone: 626-965-8917 Fax: 626-965-8919 E-Mail: [email protected]

TownSteel Inc. Agent Authorization Company: TownSteel Inc. Address: 17901 Railroad Street, City of Industry, CA 91748, United States Product Name: TS Gateway Trade Mark: N/A Model Number: GW-RF FCC ID: 2ACEY-GW2-915 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-12-03 Name: Steven Cima Title: Quality Director Company: TownSteel Inc.

TownSteel Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-12-03 Subject; Request for Confidentiality FCC ID: 2ACEY-GW2-915 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Steven Cima Title: Quality Director

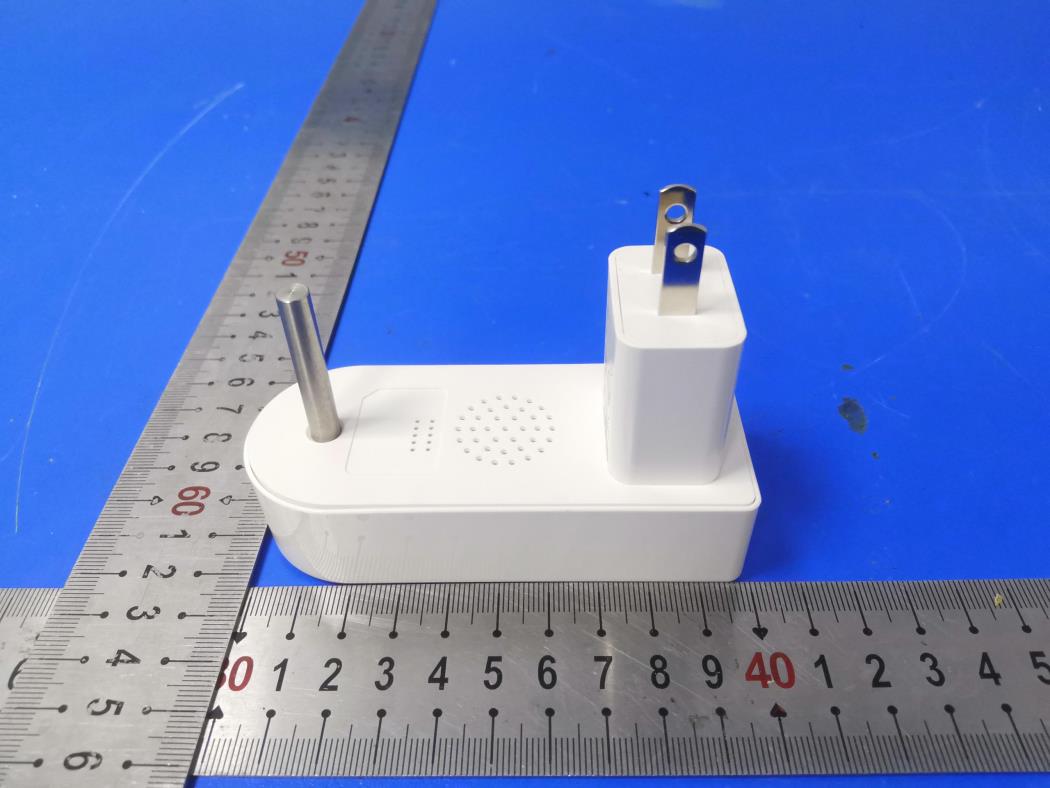

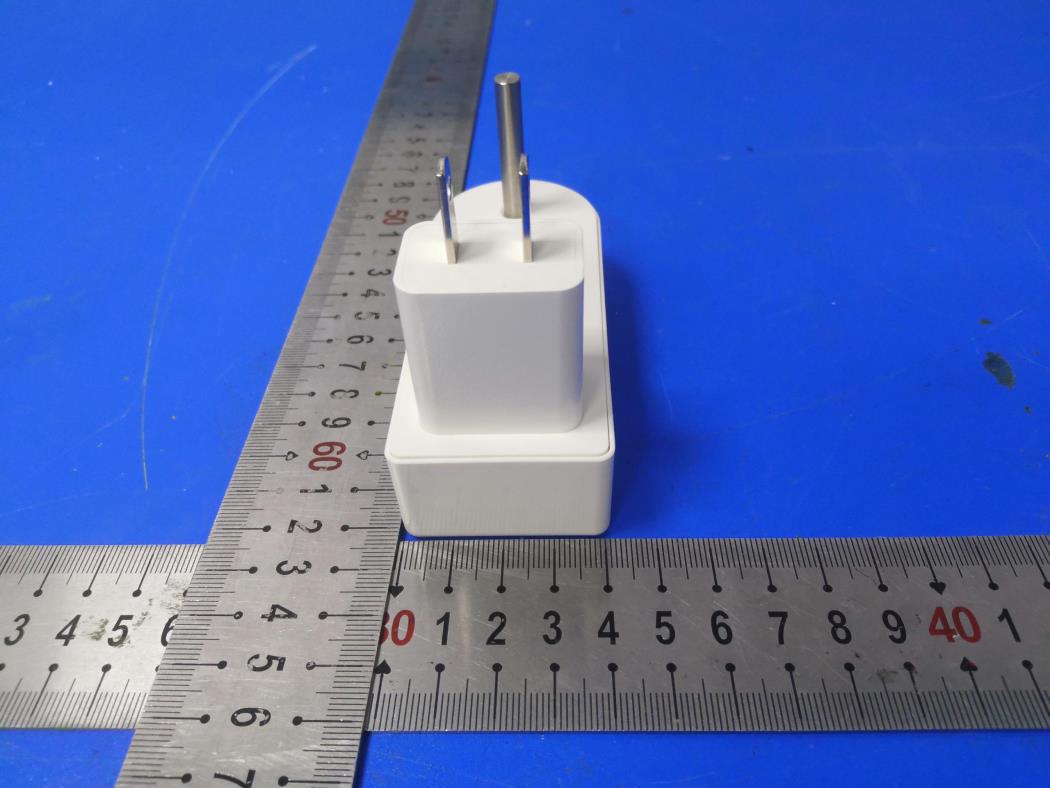

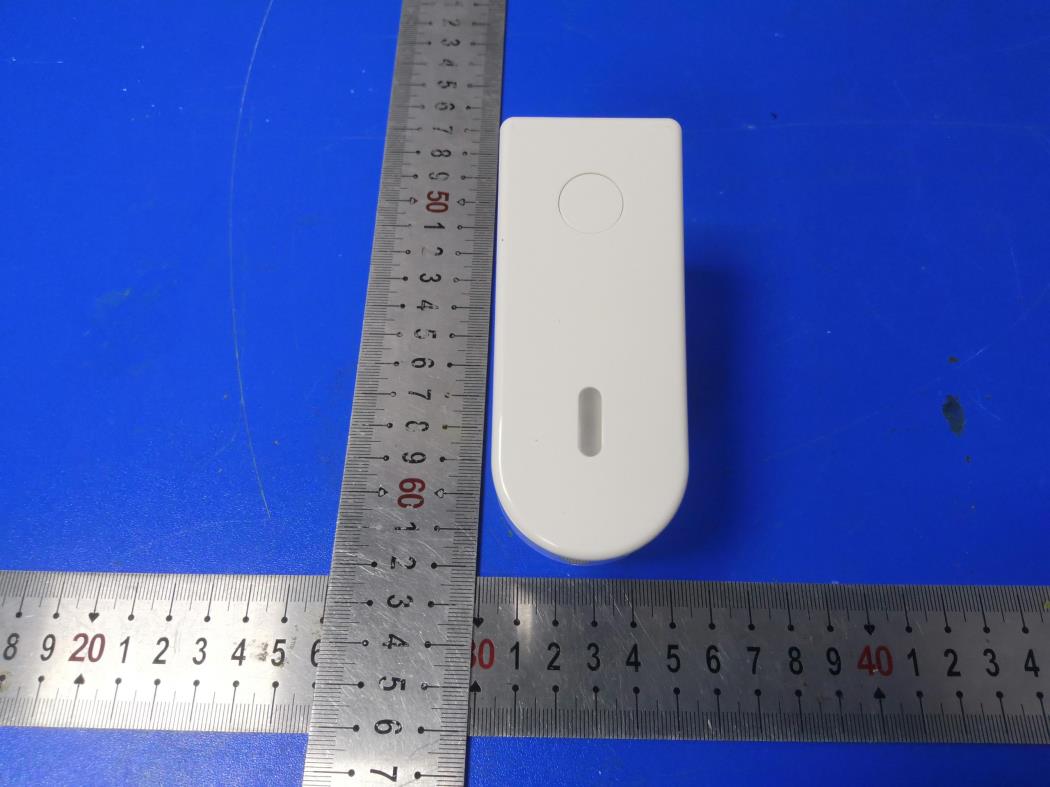

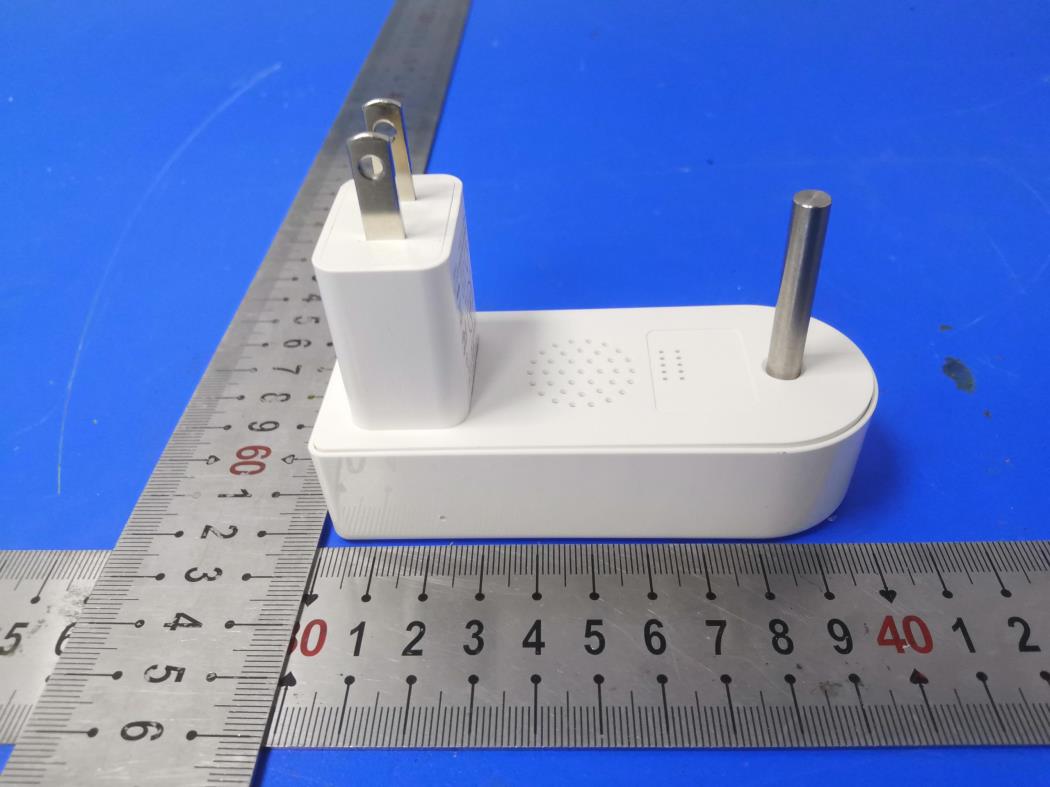

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5 Fig.6

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L4.0cm x 0.5cm) Material: Tagboard Glue: adhesive sticker Font color: Blue Label color: White Label Location TS Gateway Model: GW-RF FCC ID: 2ACEY-GW2-915 Input: AC 100-240V, 50/60Hz, 0.3A

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna(915) 2.4G WIFI Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID 2ACEY-GW2-915 Product name TS Gateway Model number GW-RF Power supply Input: AC 100-240V, 50/60Hz, 0.3A 2.4G WIFI Operation frequency 2412MHz-2462MHz Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type Internal antenna for 2.4G WLAN(DTS) Antenna Gain 3.0 dBi (maximum) for 2.4G WLAN(DTS) Hardware version HX221201 Software version 01000426 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information GW-RF Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note 2.4G WIFI Antenna Internal Antenna 2412MHz-2462MHz 3.0dBi 2.4G WIFI Antenna 6. Conducted Power <2.4GWLAN Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 15.44 6 2437 14.17 11 2462 13.44 IEEE 802.11g 1 2412 19.11 6 2437 20.27 11 2462 20.02 IEEE 802.11n HT20 1 2412 19.73 6 2437 20.06 11 2462 19.89 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 7. Manufacturing Tolerance <2.4G WIFI> 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 15.0 14.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 19.0 20.0 20.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 19.0 20.0 19.0 Tolerance ±(dB) 1.0 1.0 1.0 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. Band/Mode RF output power Antenna Gain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBm mW IEEE 802.11b 16.0 39.8107 3.0 0.0158 1.0000 IEEE 802.11g 21.0 125.8925 3.0 0.0500 1.0000 IEEE 802.11n HT20 21.0 125.8925 3.0 0.0500 1.0000 Remark: 1. O…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 1 / 44 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: TS Gateway Test Model: GW-RF Environmental Conditions Temperature: 23.7 C Relative Humidity: 52.3% ATM Pressure: 100.0 kPa Test Engineer: Supervised by: Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 2 / 44 A.1 6dB Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.160 2407.880 2416.040 0.5 PASS 2437 8.640 2432.400 2441.040 0.5 PASS 2462 8.640 2457.880 2466.520 0.5 PASS 11G Ant1 2412 16.120 2404.000 2420.120 0.5 PASS 2437 15.840 2429.040 2444.880 0.5 PASS 2462 16.120 2454.000 2470.120 0.5 PASS 11N20SISO Ant1 2412 15.760 2404.160 2419.920 0.5 PASS 2437 16.120 2428.800 2444.920 0.5 PASS 2462 16.360 2453.760 2470.120 0.5 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 3 / 44 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 4 / 44 11G_Ant1_2412 11G_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 5 / 44 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 6 / 44 11N20SISO_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 7 / 44 A.2 Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 15.44 ≤30 PASS 2437 14.17 ≤30 PASS 2462 13.44 ≤30 PASS 11G Ant1 2412 19.11 ≤30 PASS 2437 20.27 ≤30 PASS 2462 20.02 ≤30 PASS 11N20SISO Ant1 2412 19.73 ≤30 PASS 2437 20.06 ≤30 PASS 2462 19.89 ≤30 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 8 / 44 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 9 / 44 11G_Ant1_2412 11G_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 10 / 44 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 11 / 44 11N20SISO_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 12 / 44 A.3 Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -9.3 ≤8 PASS 2437 -9.85 ≤8 PASS 2462 -9.82 ≤8 PASS 11G Ant1 2412 -12.02 ≤8 PASS 2437 -11.72 ≤8 PASS 2462 -11.85 ≤8 PASS 11N20SISO Ant1 2412 -12.14 ≤8 PASS 2437 -11.52 ≤8 PASS 2462 -11.94 ≤8 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 13 / 44 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 14 / 44 11G_Ant1_2412 11G_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 15 / 44 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 16 / 44 11N20SISO_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 17 / 44 A.4 Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.70 -35.77 ≤-15.3 PASS High 2462 4.76 -39.39 ≤-15.24 PASS 11G Ant1 Low 2412 2.03 -29.69 ≤-17.97 PASS High 2462 2.35 -41.86 ≤-17.65 PASS 11N20SISO Ant1 Low 2412 2.14 -27.5 ≤-17.86 PASS High 2462 2.37 -41.46 ≤-17.63 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 18 / 44 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 19 / 44 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 20 / 44 11N20SISO_Ant1_High_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 21 / 44 A.5 Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 4.76 4.76 --- PASS 30~1000 4.76 -61.4 ≤-15.24 PASS 1000~26500 4.76 -19.87 ≤-15.24 PASS 2437 Reference 4.59 4.59 --- PASS 30~1000 4.59 -59.8 ≤-15.41 PASS 1000~26500 4.59 -19.98 ≤-15.41 PASS 2462 Reference 4.82 4.82 --- PASS 30~1000 4.82 -61.64 ≤-15.18 PASS 1000~26500 4.82 -21.22 ≤-15.18 PASS 11G Ant1 2412 Reference 1.96 1.96 --- PASS 30~1000 1.96 -59.41 ≤-18.04 PASS 1000~26500 1.96 -30.49 ≤-18.04 PASS 2437 Reference 2.66 2.66 --- PASS 30~1000 2.66 -61.09 ≤-17.34 PASS 1000~26500 2.66 -30.09 ≤-17.34 PASS 2462 Reference 2.04 2.04 --- PASS 30~1000 2.04 -60.51 ≤-17.96 PASS 1000~26500 2.04 -31.97 ≤-17.96 PASS 11N20SISO Ant1 2412 Reference 1.69 1.69 --- PASS 30~1000 1.69 -61.06 ≤-18.31 PASS 1000~26500 1.69 -29.24 ≤-18.31 PASS 2437 Reference 2.47 2.47 --- PASS 30~1000 2.47 -60.84 ≤-17.53 PASS 1000~26500 2.47 -28.51 ≤-17.53 PASS 2462 Reference 2.19 2.19 --- PASS 30~1000 2.19 -59.42 ≤-17.81 PASS 1000~26500 2.19 -31.94 ≤-17.81 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 22 / 44 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA 23 / 44 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 Shenzhen LCS Compliance Testing La…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT For TownSteel Inc. TS Gateway Test Model: GW-RF Prepared for : TownSteel Inc. Address : 17901 Railroad Street, City of Industry, CA 91748, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : November 02, 2021 Number of tested samples : 2 Sample number : 211026001A-1, 211026001A-2 Serial number : Prototype Date of Test : November 02, 2021 ~ December 03, 2021 Date of Report : December 03, 2021 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................ : LCS211026001AEA Date of Issue ................................. : December 03, 2021 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ........................ : TownSteel Inc. Address ......................................... : 17901 Railroad Street, City of Industry, CA 91748, United States Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.247) Test Report Form No................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ......................... : TS Gateway Trade Mark .................................... : N/A Test Model ..................................... : GW-RF Ratings .......................................... : Input: AC 100-240V, 50/60Hz, 0.3A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Lh Li /Administrator Jin Wang/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT EUT......................................... : TS Gateway Test Model............................... : GW-RF Applicant............................... : TownSteel Inc. Address.................................. : 17901 Railroad Street, City of Industry, CA 91748, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : TownSteel Inc. Address................................... : 17901 Railroad Street, City of Industry, CA 91748, United States Telephone............................... : / Fax.......................................... : / Factory................................... : TownSteel Inc. Address................................... : 17901 Railroad Street, City of Industry, CA 91748, United States Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS211026001AEA December 03, 2021 Date of issue Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 December 03, 2021 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 Report No.: LCS211026001AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 7 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 7 1.5. STATEMENT OF THE MEASUREME…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ACEY-GW2-915 ______________________________________________…
