2ACFF-WD1401ARXHDMI WIFI DONGLE

Transmitter Connection: 1. Connect the transmitter to mobiles/tablet s/lap t ops(USB-C devices should support video output) 2. USB 2.0 : Data transfer Receiver Connection: 1. Connect the receiver to the monitors with HDMI cables 2. Supply power delivery to the receiver via USB-C port 3. It t akes around 10 seconds t o display video aut omatically after connecting a. Why is there no video output? 1. Pls check the connection is good 2. Pls use standard HDMI cable 3. The automatic screen casting link will take about 10 sec onds, please wait patiently 4. Mobile phone/computer supports video output 5. Pls make sure the HDMI or VGA monitor has selec ted the correct input source 6. The product is well-matched in factory. If e verything’s good with the above 5points, pls r e-pair to use b. Why is there no audio output from HDMI port? 1. Pls make sure that there is audio output function on the monit or 2. Pls set the external monitor as default audio output de vice C. How to re-pair ? 1. Supply power to the receiver and press 5 sec onds t o enter pairing mode, then the screen will show "w ait for pairing" 2. After connecting the transmitter to devices for 10 sec onds, press 5 seconds to enter pairing mode 3. It takes 5-15 seconds to match automatically when tr ansmitter and receiver enter pairing mode simult aneously 4. After the pairing is successful, you will be prompt ed tha t the pairing is successful Transmitter: 1. Function Key Single click : s top/Restart video display L ong press 5s : Enter pairing mode L ong press 10s : Factory reset 2. USB 2.0: 480Mbps data transfer, 5V/[email protected] 3. WiFi supports wireless dual frequency Pr otocol standard 802.11a/b/g/n/ac Receiver: 1. Function key: L ong press 5s : Enter pairing mode 2. USB-C: P ower supply to the receiver, 5V/2A 3. HDMI: Support max 4K@30Hz Support max tr ansmission distance 10 meters No need any settings Plug and Play， Mirror directly. This is a USB-C multi-function adapter with wireless display, composed of transmitter and receiver. The built-in conversion chip inside the transmitter converts the DP signal of USB-C to MIPI signal and I2S signal, and encodes the MIPI signal and I2S signal together to audio and video stream, then this stream is sent to the adaptive receiver via 5G WiFi by its private protocol. Support USB-C devices with video output includes mobiles, tablets and Notebooks. And HDMI output is up to 4k/30Hz resolution. USB-C adapter with Wirelss Display Transmitter + Receiver Connectivity: 1. Don't splash liquid into the connector in case of aff ecting its performance 2. The product should be placed in a dry environment r ather than a wet place 3. The pr oduct is well-matched in factory, if there’s any ac cident occurs, pls re-pair it according to the FAQ 4. Please supply 5V2A power, NOT the USB fr om TV or lo wer than 5V2A. Note: Receiver ： 1. Function key Long press 5s : Enter pairing mode 2. USB-C（Power supply to receiver） 3. Transmitter ： 1. Function Key Single click : stop/Restart video display L ong press 5s : Enter pairing mode Long press 10s : Factory reset 2. USB 2.0 2 1 1 2 3 USB2.0 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Statement （Receiving） To maintain compliance with FCC's RF Exposure guidelines, This equipment should be installed and operated with minimum distance of 20cm the radiator your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. SAR statement （Transmitting） This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The SAR limit set by the FCC is 1.6W/Kg. For body-worn operation, this device has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and positions the device a minimum of 0mm from the body. RF exposure compliance with any body-worn accessory that contains metal was not tested and certified. and use of such body-worn accessory should be avoided. Accessory available in market and must be used to keep use distance 0mm from EUT to body-worn operation.

C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED Model Difference Declaration To Whom It May Concern, We, C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED ( HDMI WIFI DONGLE) ; Model Number: WD1401A, HUC-WP101, WD1401, WD1401B, WD1401C, WD1401D, WD1402, WD1402A, WD1402B, WD1402C, WD1402D; All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: WD1401A. Please contact me if you have any question. Signature: Date: Jan. 10, 2023 Name: jon Zhang Title: Engineer

FCC Software Configuration Control Declaration Rev1.0.docx C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED FCC Software Configuration Control Declaration Date: Jan. 10, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product: HDMI WIFI DONGLE Model No.:WD1401A, HUC-WP101, WD1401, WD1401B, WD1401C, WD1401D, WD1402, WD1402A, WD1402B, WD1402C, WD1402D Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Date: Jan. 10, 2023 Name:jon Zhang Title: Engineer Signature of applicant

C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED Agent Authorization Company: C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED Address: 101 to 501, Factory Building 1, No. 91 Hengping Road, Baoan Community, Yuanshan Street, Longgang District, Shenzhen, China Product Name: HDMI WIFI DONGLE Model Number(s): WD1401A, HUC-WP101, WD1401, WD1401B, WD1401C, WD1401D, WD1402, WD1402A, WD1402B, WD1402C, WD1402D Product Description: HDMI WIFI DONGLE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 10, 2023 Name: jon Zhang Title: Engineer Company: C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED

C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jan. 10, 2023 Subject; Request for Confidentiality FCC ID: 2ACFF-WD1401ARX To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SOFTWARE SECURITY DESCRIPTION In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: jon Zhang Title: Engineer

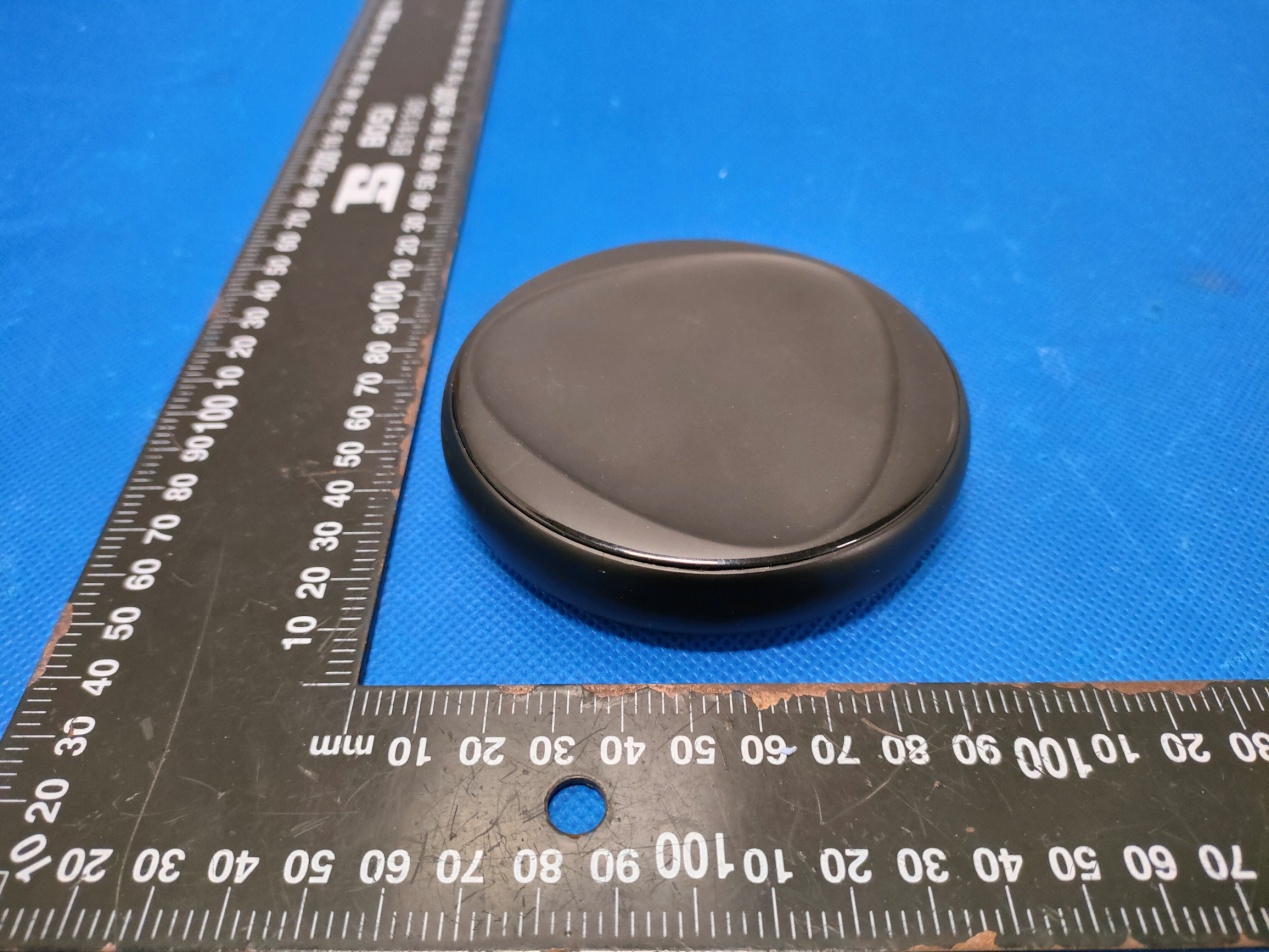

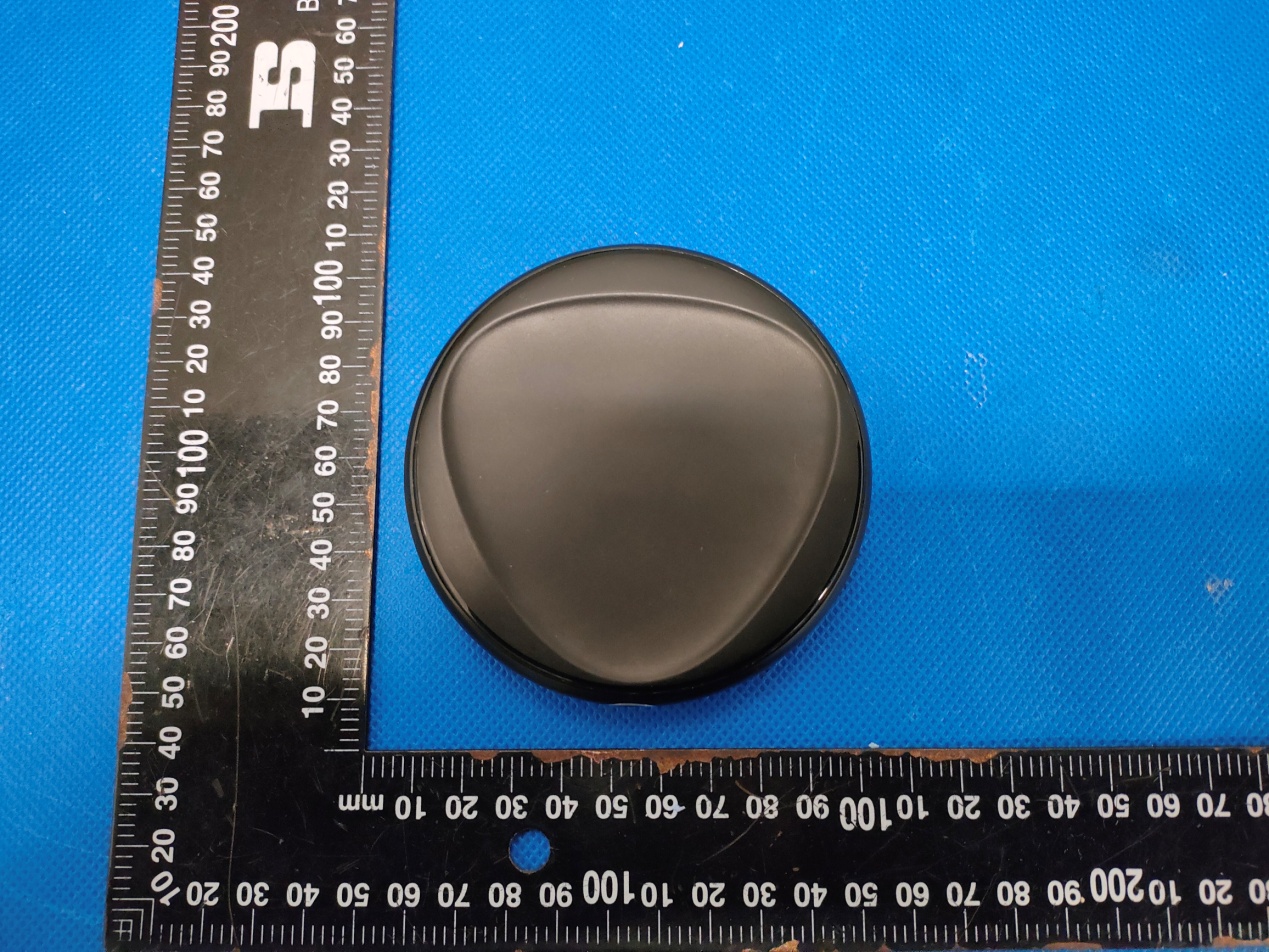

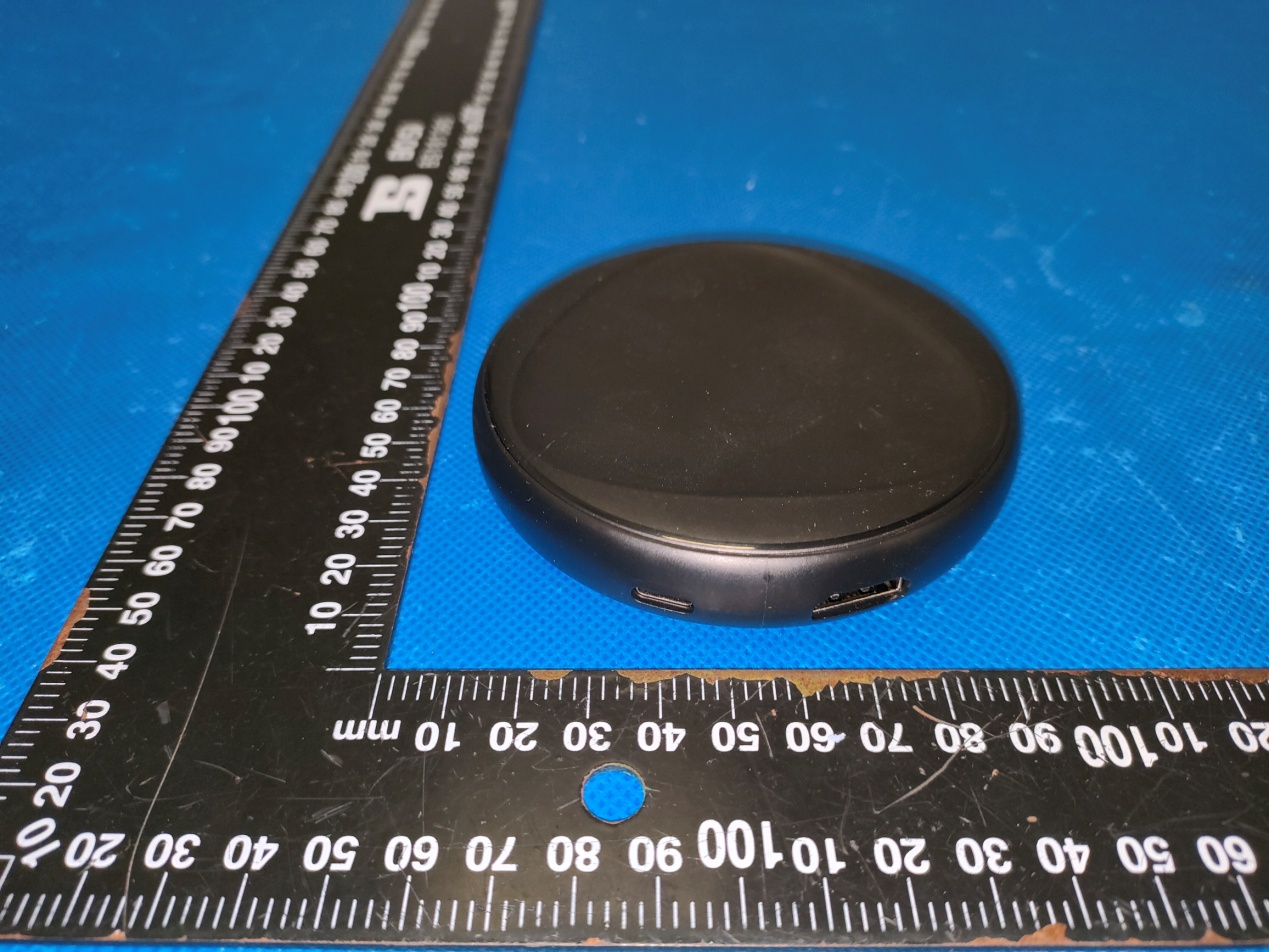

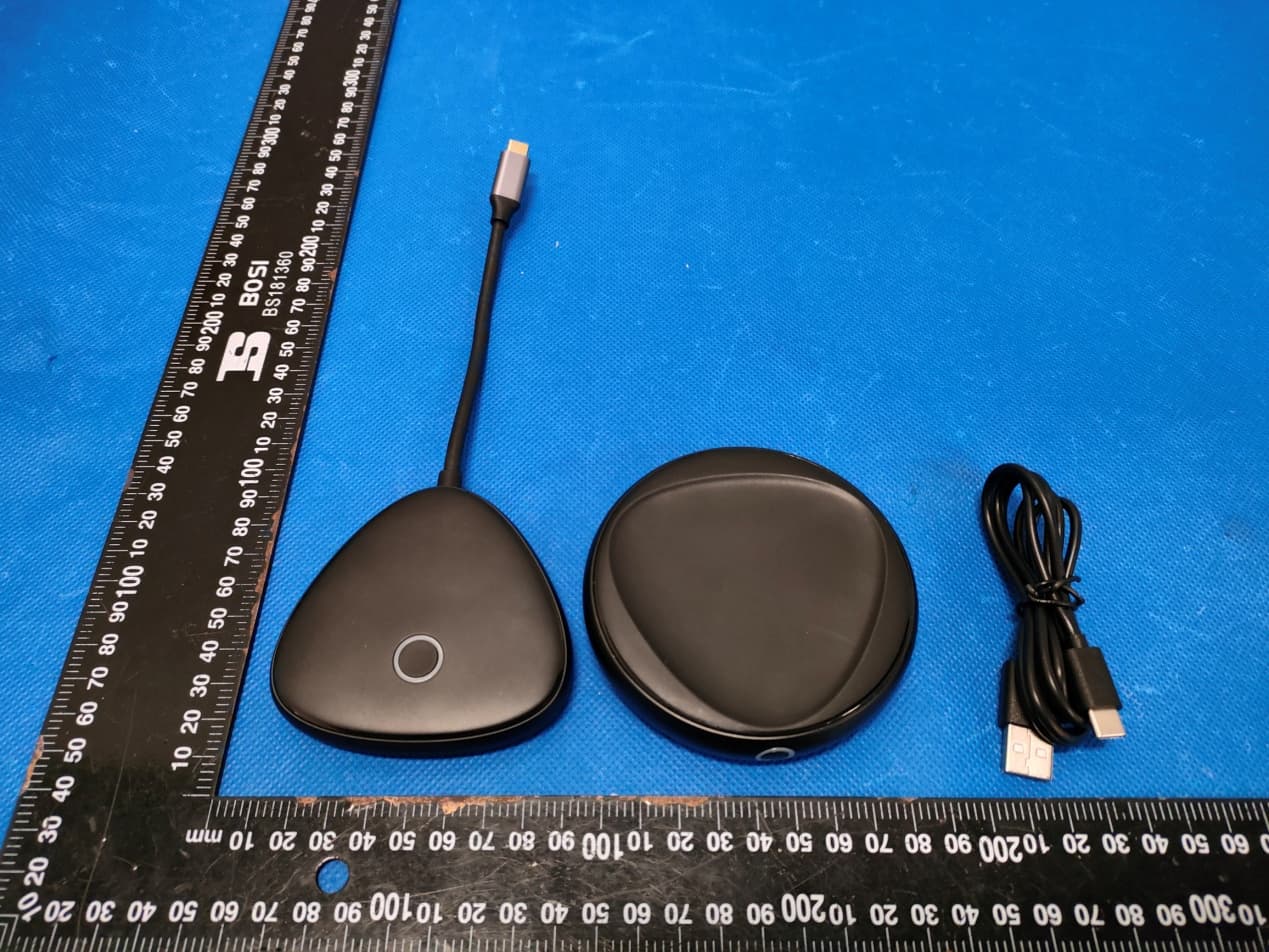

Annex A External Photos Report No.:HK2212065505-1E/2E/3E Page 1 of 4 Report No.:HK2212065505-1E/2E/3E Page 2 of 4 Report No.:HK2212065505-1E/2E/3E Page 3 of 4 Report No.:HK2212065505-1E/2E/3E Page 4 of 4

FCC ID LABEL: Ca. 10mm x 20mm Label Location FCC ID: 2ACFF-WD1401ARX

Annex B Internal Photo Report No.:HK2212065505-1E/2E/3E Page 1 of 3 2.4G/5G WIFI Antenna Report No.: HK2212065505-1E/2E/3E Page 2 of 3 Report No.: HK2212065505-1E/2E/3E Page 3 of 3

MPE ESTIMATION FCC ID: 2ACFF-WD1401ARX 1,Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result For 2.4G/5G: Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 2.4G WIFI 19.07 18.5±1(19.5)89.13 2.12 1.63 0.02890 5.2G WIFI 13.48 13±1(14) 25.12 2.1 1.62 0.00811 5.8G WIFI 13.34 13±1(14) 25.12 2.1 1.62 0.00811 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2212065505-1E/2E/3E 2.4G antenna gain=2.12dBi 5G antenna gain=2.1dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.02890 which is< 1.0, RF Exposure testing is not required. -------The End------- Note: the device could not transmit simultaneously in 2.4G and 5G.

1 Shenzhen Yuchen Technology Co., LTD SPECIFICATION FOR ：CUSTOMER Xu lian ：CUSTOMER P/N MS-ANT-WD1401-R03 ：OUR MODEL NO A1022M0006.WI-AR ：SPECIFICATIONS The WD1401 / WD1402A receiving end antenna QTY ： 1 Date: 2022-05-18 Shenzhen Yuchen Technology Co., Ltd Customer Customer admission RF Structural Approved Signature (seal) Wang Jiaxi Zhou Lei Dai Wen zhen Add: 2F 3Building of Xinwei Second Industrial Zone ，Huaning Road ，Longhua District ，Shenzhen, China Tel: +86-0755-21031026 E mail:[email protected] 2 catalogue 1. One cover (Cover) ................................. 1 2. Catalogue (Index) .................................. 2 3. Basic Parameters (The basic parameters) .............. 3 4 Engineering Drawing (Product Drawing) ............... 4 5. Test Equipment (The Equipment & Conditions) ......... 5 6. Performance Test Report (The Report) ............. 7 7. Environmental Test (environmental testing) ............ 12 8. VIII Installation method (installation method) .......... 14 9. Packaging (packaging) ............................. 15 3 3 basic parameters: The basic parameters the key technical indexes Main technical specifications frequency range （MHz） 2400-2500 5150-5850 Frequency Range (MHz) 2400-2500 5150-5850 characteristi c impedance (Ω) 50 Impedance(Ω) 50 Peak Gain (dBi) ＞2.1 Peak Gain(dBi) ＞2.1 voltage standing- wave ratio ≤3.0 VSWR ≤3.0 maximum power 10W Admitted Power 10W Polarizatio n mode linear polarization Polarization Linear polarization attended mode weld Connector Type welding physical property Physical Properties Antenna ontology material metal Antenna Base metal Antenna size 26*6.90*9.29mm Antenna Dimensions 26*6.90*9.29mm working temperature -20°C~+85°C Operating Temp -20°C~+85°C 4 4 Engineering drawing Product Drawing 5 Test the equipment The Equipment & Conditions 5 6 Agilent 8960、Agilent E5515C 、R&S CMW500、Anritsu MT8820C 、 Agilent5071C 、R&S ZVB 8、HP 8753D 、HP-8594E 7 6 Performance Test Report (The Report) 6.1 In the wave 6.2 Passive gain, efficiency-2.4G Frequency ID 1 2 3 Frequency (MHz) 2400.0 2450.0 2500.0 Efficiency (dBi) -2.39 -3.17-2.73 Gain (dBi) 2.67 1.972.12 Efficiency (%) 57.61 48.2053.30 Directivity (dB) 5.06 5.144.86 Peak Gain Position (Theta) 115.00 142.00 140.00 Peak Gain Position (Phi) 299.00 142.00 136.00 Efficiency ThetaPol (%) 43.79 34.1236.97 Efficiency PhiPol (%) 13.82 14.0816.32 Upper Hem.Efficiency (%) 19.09 14.3018.06 Lower Hem.Efficiency (%) 38.52 33.9035.24 VER7 T90 (H) circle degree 4.32 8.947.47 Gain 15deg (dBi) 8 E1 (XZ) lobe width 47.00 43.0047.00 E1 (XZ) ratio 0.00 0.000.00 E2 (YZ) lobe width 27.00 26.0037.00 E2 (YZ) ratio 2.41 1.611.39 Axis ratio at maximum gain (P) 15.04 8.046.62 Elevation angle of 10 degrees, worst (large) axis ratio (P) 55.73 38.3046.51 Hc (XY) lobe width 96.00 142.00 207.00 Hc (XY) before-after ratio 0.73 2.881.65 Left-handed circular polarization efficiency (%) 35.68 29.6732.78 Right-handed circular polarization efficiency, (%) 21.94 18.5320.52 Empty 6.3 Plot-2.4G 9 10 6.4 field pattern-2.4G 6.5 Passive gain, efficiency-5.8G Frequency ID 1 2 3 4 5 Frequency (MHz) 5150.0 5390.0 5630.0 5770.0 5830.0 Efficiency (dBi) -2.67 -2.77-2.59-3.28-3.38 Gain (dBi) 1.90 2.102.001.640.98 Efficiency (%) 54.06 52.8655.1346.9645.94 Directivity (dB) 4.57 4.874.584.924.36 Peak Gain Position (Theta) 121.00 122.0076.0082.00 150.00 Peak Gain Position (Phi) 114.00 153.00 187.00 157.00 114.00 Efficiency ThetaPol (%) 35.95 36.7234.8526.0324.63 Efficiency PhiPol (%) 18.11 16.1320.2820.9321.31 Upper Hem.Efficiency (%) 25.71 27.1429.1422.6521.91 Lower Hem.Efficiency (%) 28.35 25.7225.9924.3124.02 VER7 T90 (H) circle degree 10.23 10.919.1310.548.34 Gain 15deg (dBi) E1 (XZ) lobe width 23.00 36.0031.0038.0038.00 E1 (XZ) ratio 6.79 5.326.132.872.75 E2 (YZ) lobe width 64.00 52.0044.0045.0046.00 E2 (YZ) ratio 2.89 1.110.450.110.05 Axis ratio at maximum gain (P) 29.04 5.1316.4932.6911.91 Elevation angle of 10 58.04 64.9953.4363.7557.64 11 degrees, worst (large) axis ratio (P) 12 Hc (XY) lobe width 83.00 114.0072.0042.0064.00 Hc (XY) before-after ratio 4.04 5.364.403.953.63 Left-handed circular polarization efficiency (%) 28.43 28.6427.0421.1121.39 Right-handed circular polarization efficiency, (%) 25.63 24.2228.0825.8524.54 Empty 6.6 Plot-5.8G 13 6.7 field pattern-5.8G 14 7. Environmental reliability test report: environmental testing 1. Reliability test report is Reliadility test report test item test method ask bear fruit C1 V.S.W.R. Electric station Bobby Netanalyzer parameters are tested According to the specifications to be tested pass M1 antenna gain The antenna dark chamber parameters were tested According to the specifications to be tested pass M2 Vibration Shake GB / T2423.48-2008 Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz3 directions; 2 hours for each direction amplitude: 1.5mm; frequency: 20~80~20Hz; 3 2H in each direction 1. No Visual Damage 2. Frequency Tol.5% has no obvious poor appearance; frequency offset 5% pass M6 Random Drop Drop- off GB / T2423.8-1995 Single: Height: 1.0 Meter; 3 directions; 1 time for each direction single antenna, 1m high; 3, once in each direction 1. No parts separated 、fracture 2. Frequency Tol.≤5% No falling off or fracture; frequency offset of 5% pass E3 Dimension Size Inspection of dimension, color, material, package, surface process. Check the dimensions, color, materials, packaging, and surface treatment Directive DUT specification According to the specifications to be tested pass E4 Temperature and Humidity Chamber Constant temperature and humidity GB / T 2423.3-2006 Temp: 80°C / 12 H; - 40 ° C / 12 HRH: 90%; Time: 24H temperature 80°C test 12H to-40°C test 12H; humidity 90%; time 24H After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol. After 5% recovery of 2H, no obvious poor appearance; frequency offset 5% pass E5 Thermal Shock Cold and cold shock GB / T 2423.22 - 2008 - 40°C (30 minutes) t O + 80°C (30 minutes); Cycles: 2440°C Test 30 minutes to 80°C Test 30 minutes per cyc…

Text truncated - open the document above for the full version.

Page 1 of 63 Report No.: HK2212065505-2E FCC Test Report Test report On Behalf of C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED For HDMI WIFI DONGLE Model No.: WD1401A, HUC-WP101, WD1401, WD1401B, WD1401C, WD1401D, WD1402, WD1402A, WD1402B, WD1402C, WD1402D FCC ID: 2ACFF-WD1401ARX Prepared For : C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED 101 to 501, Factory Building 1, No. 91 Hengping Road, Baoan Community, Yuanshan Street, Longgang District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Dec. 05, 2022 ~Jan. 04, 2023 Date of Report: Jan. 04, 2023 Report Number: HK2212065505-2E Page 2 of 63 Report No.: HK2212065505-2E TEST RESULT CERTIFICATION Applicant’s name .................. : C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED Address .................................. : 101 to 501, Factory Building 1, No. 91 Hengping Road, Baoan Community, Yuanshan Street, Longgang District, Shenzhen, China Manufacture's Name ............. : C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED Address .................................. : 101 to 501, Factory Building 1, No. 91 Hengping Road, Baoan Community, Yuanshan Street, Longgang District, Shenzhen, China Product description Trade Mark: N/A Product name ............................ : HDMI WIFI DONGLE Model and/or type reference . : WD1401A, HUC-WP101, WD1401, WD1401B, WD1401C, WD1401D, WD1402, WD1402A, WD1402B, WD1402C, WD1402D Standards .............................. : FCC Rules and Regulations Part 15 Subpart E Section 15.407 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Dec. 05, 2022 ~Jan. 04, 2023 Date of Issue ........................................... : Jan. 04, 2023 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 63 Report No.: HK2212065505-2E TABLE OF CONTENTS 1. TEST RESULT SUMMARY ........................................................................ 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................ 5 1.3. MEASUREMENT UNCERTAINTY ..................................................................................................... 6 2. EUT DESCRIPTION ................................................................................... 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. OPERATION FREQUENCY EACH OF CHANNEL ............................................................................ 8 2.3. OPERATION OF EUT DURING TESTING .......................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. GENERA INFORMATION ........................................................................ 10 3.1. TEST ENVIRONMENT AND MODE ................................................................................................. 10 3.2. DESCRIPTION OF SUPPORT UNITS .............................................................................................. 11 4. TEST RESULTS AND MEASUREMENT DATA ...................................... 12 4.1. CONDUCTED EMISSION ................................................................................................................. 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 16 4.3. 6DB EMISSION BANDWIDTH .......................................................................................................... 19 4.4. 26DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH .............................................................. 20 4.5. POWER SPECTRAL DENSITY ........................................................................................................ 27 4.6. BAND EDGE ..................................................................................................................................... 34 4.7. SPURIOUS EMISSION ..................................................................................................................... 49 4.8. FREQUENCY STABILITY MEASUREMENT ................................................................................... 57 4.9. ANTENNA REQUIREMENT ............................................................................................................. 60 5. PHOTOGRAPHS OF TEST SETUP ......................................................... 61 6. PHOTOS OF THE EUT ............................................................................ 63 Page 4 of 63 Report No.: HK2212065505-2E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Jan. 04, 2023 Jason Zhou Page 5 of 63 Report No.: HK2212065505-2E 1. TEST RESULT SUMMARY 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(e) N/A 26dB Emission Bandwidth& 99% Occupied Bandwidth §1…

Text truncated - open the document above for the full version.

Page 1 of 61 Report No.: HK2212065505-3E FCC Test Report Test report On Behalf of C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED For HDMI WIFI DONGLE Model No.: WD1401A, HUC-WP101, WD1401, WD1401B, WD1401C, WD1401D, WD1402, WD1402A, WD1402B, WD1402C, WD1402D FCC ID: 2ACFF-WD1401ARX Prepared For : C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED 101 to 501, Factory Building 1, No. 91 Hengping Road, Baoan Community, Yuanshan Street, Longgang District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Dec. 05, 2022 ~Jan. 04, 2023 Date of Report: Jan. 04, 2023 Report Number: HK2212065505-3E Page 2 of 61 Report No.: HK2212065505-3E TEST RESULT CERTIFICATION Applicant’s name .................. : C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED Address .................................. : 101 to 501, Factory Building 1, No. 91 Hengping Road, Baoan Community, Yuanshan Street, Longgang District, Shenzhen, China Manufacture's Name ............. : C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED Address .................................. : 101 to 501, Factory Building 1, No. 91 Hengping Road, Baoan Community, Yuanshan Street, Longgang District, Shenzhen, China Product description Trade Mark: N/A Product name ............................ : HDMI WIFI DONGLE Model and/or type reference . : WD1401A, HUC-WP101, WD1401, WD1401B, WD1401C, WD1401D, WD1402, WD1402A, WD1402B, WD1402C, WD1402D Standards .............................. : FCC Rules and Regulations Part 15 Subpart E Section 15.407 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Dec. 05, 2022 ~Jan. 04, 2023 Date of Issue ........................................... : Jan. 04, 2023 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 61 Report No.: HK2212065505-3E TABLE OF CONTENTS 1. TEST RESULT SUMMARY ........................................................................ 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................ 5 1.3. MEASUREMENT UNCERTAINTY ..................................................................................................... 6 2. EUT DESCRIPTION ................................................................................... 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. OPERATION FREQUENCY EACH OF CHANNEL ............................................................................ 8 2.3. OPERATION OF EUT DURING TESTING .......................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. GENERA INFORMATION ........................................................................ 10 3.1. TEST ENVIRONMENT AND MODE ................................................................................................. 10 3.2. DESCRIPTION OF SUPPORT UNITS .............................................................................................. 11 4. TEST RESULTS AND MEASUREMENT DATA ...................................... 12 4.1. CONDUCTED EMISSION ................................................................................................................. 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 16 4.3. 6DB EMISSION BANDWIDTH .......................................................................................................... 18 4.4. 26DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH .............................................................. 25 4.5. POWER SPECTRAL DENSITY ........................................................................................................ 26 4.6. BAND EDGE ..................................................................................................................................... 33 4.7. SPURIOUS EMISSION ..................................................................................................................... 48 4.8. FREQUENCY STABILITY MEASUREMENT ................................................................................... 56 4.9. ANTENNA REQUIREMENT ............................................................................................................. 58 5. PHOTOGRAPHS OF TEST SETUP ......................................................... 59 6. PHOTOS OF THE EUT ............................................................................ 61 Page 4 of 61 Report No.: HK2212065505-3E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Jan. 04, 2023 Jason Zhou Page 5 of 61 Report No.: HK2212065505-3E 1. TEST RESULT SUMMARY 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(e) PASS 26dB Emission Bandwidth& 99% Occupied Bandwidt…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emissions
