2ACFF1361-001HDMI WiFi Dongle

HDMI WiFi Dongle This HDMI DONGLE is small and beautifully designed, with popular Linux intelligent operating system. You can switch the mode between MIRACAST and DLNA system by press-key as it without display screen and touch screen. It can play the digital media program on smartphones or tablets to HDTV with 1080p resolution by WIFI. 1. PRODUCT DESCRIPTION 2. PRODUCT PERFORMANCE 3. FEATURE ŸSupport Miracast wireless display, Android 4.2 above systems, ŸSupport online movies, online TV channels, online webcasts, web browsing ŸPicture and sound are synchronized transmission, without affecting the normal phone WIFI Internet ŸProducts can support two modes: Miracast DLNA Specification Operating system C P U Memory Memory Wireless transmission Transmission delay Interface Devices Video Format Power supply Mechanical Dimensions Packing Accessories Parameter Linux smartphone operating system Single-core ARM Cortex-A9, clocked at 1.2 GHZ DDR3, frequency 400MHZ, memory capacity is 2Gb (256M) 32MB Wireless transmission 2.4G, transmission speed is 150MBit, transmission distance of 5M-10M 8nS Gold-plated HDMI WMV AVI 3GP RMVB MP4 MVC USB 5V/500mA 75mmx30mmx11mm Host, USB power cable, manual, certificate 4.INSTRUCTIONS FOR USE Products connected to the power system enters Miracast page Use the button to switch to the Miracast page: Virsion:0.98 Miracast Dvice Name: Status: Local IPO: AP SSID: Local IP1: C-SMARTLINK-15482E Disconnected from AP Open SCREEN MIRRORING function of the phone: Connect the device to a WIFI network, such as Dongle-7ACC13 TV display shown above Said that it has successfully connected phone model After a successful connection, switch screen to HDMI mode and then it can mirror the contents on smartphone Real shooting Virsion:0.98 Miracast Dvice Name: Status: Local IPO: AP SSID: Local IP1: C-SMARTLINK CENTER Ready to display 192.168.49.211 Opem Wi-Fi and connrct to C-SMARTLINK-15432E(pwd:12345678) And then open web browser on your device and visit http://192.168.49.211/index.html Galaxy S4 192.168.49.1.7236 AirPlay Mirroring is a new technology that explored by APPLE, which can transfer music, video and images from iPhone, iPad or iPad Touch to Apple TV. Apple TV can integrate with several APPLE devices in a good way by AirPlay mirroring. It’s a great function for APPLE users. Family can share happiness together. 5.Instructions: Miracast is a project that start by WIFI ALLIANCE on 19th, Sep., 2012. Miracast simplify searching and setting, users can transfer video in different devices very quickly. Users can enjoy the pictures on TV from smartphone, share the contents on laptop, and watch live TV program on tablets. Miracast make connection by Wi-Fi CERTIFIED Wi-Fi Direct, no need to connect with WIFI. If the S4 contract phone can not use SCREEN MIRRORING, please download plug-ins from our website. Disconnect may happen for Samsung, it’s the problem of Samsung system. All Miracast devices have the same problem. All smartphone with Android system 4.2 or above can use this dongle. If you can search these words(such as Miracast, wifi display, screen mirroring) from your phone, it means your phone support this dongle. You can download Mirrorop software from our website when connect to computer. CONNECTION Projector Display TV HDMI output Android Miracast (Support Installation System 4.2 or later version) equipment to be switched to Miracast mode, as long as the phone is 4.2 installed, you can use the device, The following phone only represent other models of mobile phones, please contact customer service Millet : m 2 / m 2S / m 2A / m 3 / red rice Samsung Mobile: S3 Series / S4 Series / NOT2 Series / NOT3 Series OPPO Mobile: X909T/R809T/R815T/R821T Lenovo Mobile: S898T/K910/S920/P780 LG Mobile: Nexus5/Nexus4/OF200K/GL-01E SONY Mobile: Lh35 Series / Lh36 Series / Lh39 Series HTC Mobile: HTC ONEX / HTC ONES Huawei Mobile: Glory 3C / glory 3X/A199/Mate/B199 Jin Li Mobile: E3/E6/X805/X817 ZTE Mobile: N986/V879/V9631/V818 TCL Mobile: S950/J900/J720/J620 Cool Pad Mobile: Grand 4/9080W/8908/7296 Mobile Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC ID: 2ACFF1361-001 C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED Model No.: 1361-001(HDM-WIFI-AD01) Model name: HDMI WiFi Dongle This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, C -SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： HDMI WiFi Dongle Model Name： 1361-001(HDM-WIFI-AD01), 1361-005 (HDM-WIFI- AD01B)；1361-020(HDM-WIFI-AD02)；1361-030(HDM- WIFI-AD02B)；1361-040(HDM-WIFI-AD03)；1361- 050(HDM-WIFI-AD03B)；1361-060(HDM-WIFIBX- AD01)；1361-070(HDM-WIFIBX-AD01B)； 1361- 080(HDM-WIFIAV-AD01)； 1361-090(HDM-WIFIAV- AD01B) FCC ID： 2ACFF1361-001 Trade Name: N/A We affirm that between SIEMIC and ___ C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Name: jon Zhang Title: Engineer Tel: 0755-84260841 Company: C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED Address: Floor 2 & 3, No. 43 Factory Building, Guangda Road, 189 Industrial Area, Henggang Town, Longgang District, Shenzhen, China SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0

C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED 2014/05/20 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACFF1361-001 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Date: 2014/05/20 Name: jon Zhang Title: Engineer Tel: 0755-84260841 Company: C -SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0

C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED Date: 2014-05-20 FCC ID: 2ACFF1361-001 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Date:2014/05/20 Tel: 0755-84260841 Client’s name / title : jon Zhang/Engineer Fax: 0755-84260640 Company: C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED Contact information / address : Floor 2 & 3, No. 43 Factory Building, Guangda Road, 189 Industrial Area, Henggang Town, Longgang District, Shenzhen, China

C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for ( FCC ID: 2ACFF1361-001) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to -government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Signature Date: 2014/05/20 Name: jon Zhang Title: Engineer Tel: 0755-84260841 Company: C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED

Differences Description We C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED state: Product name: HDMI WiFi Dongle Model: 1361-001(HDM-WIFI-AD01), 1361-005(HDM-WIFI-AD01B), 1361-020(HDM-WIFI-AD02), 1361-030(HDM-WIFI-AD02B),1361-040(HDM-WIFI-AD03), 1361-050(HDM-WIFI-AD03B), 1361-060(HDM-WIFIBX-AD01),1361-070(HDM-WIFIBX-AD01B), 1361-080(HDM-WIFIAV-AD01), 1361-090(HDM-WIFIAV-AD01B) All model’s the function, software and electric circuit are the same , only with a product color and model named different. Signatory Signature Date: 2014/05/20 Name: jon Zhang Title: Engineer Tel: 0755-84260841 Company: C-SMARTLINK INFORMATION TECHNOLOGY CO., LIMITED

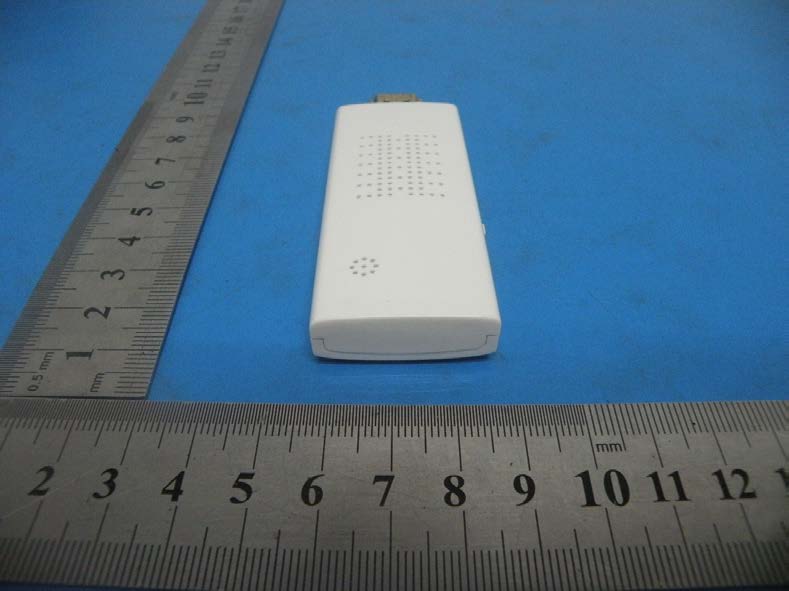

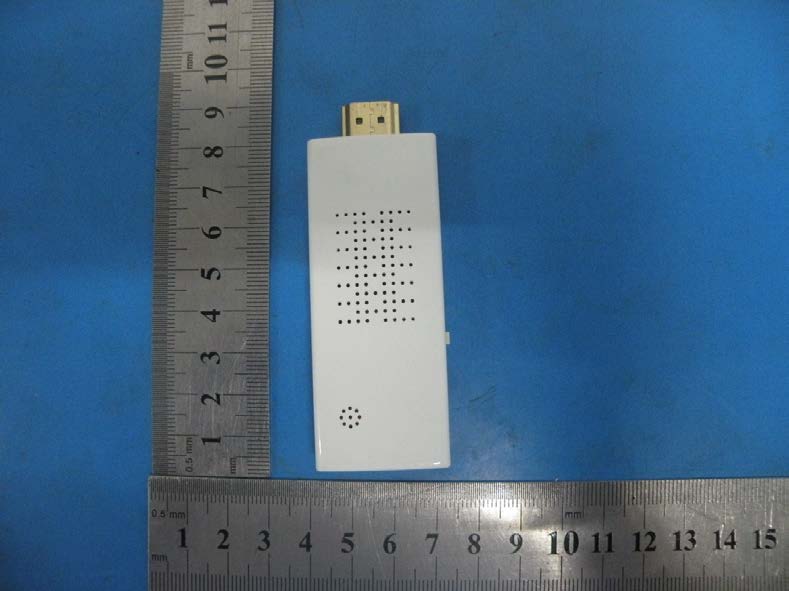

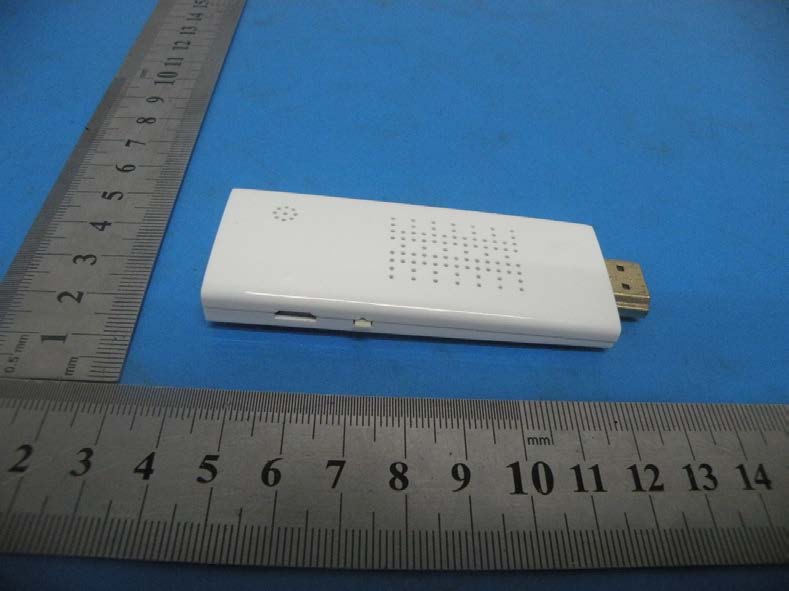

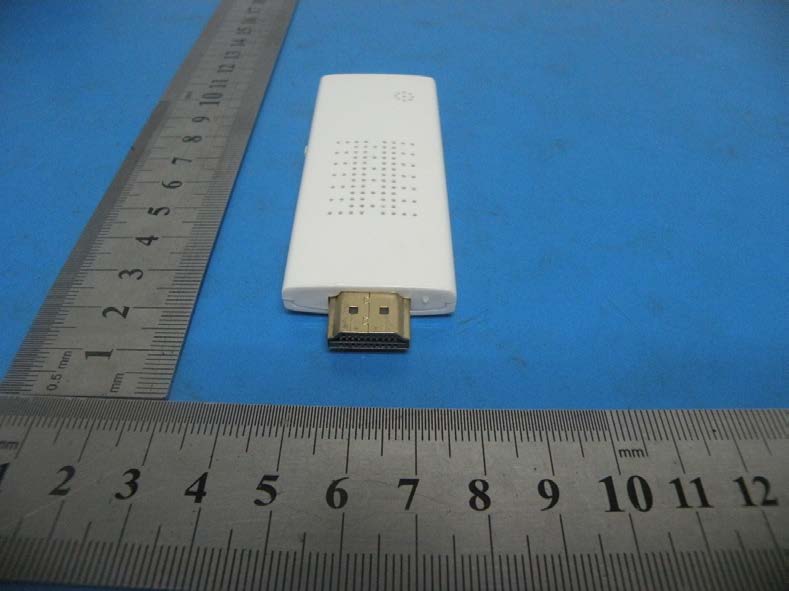

Full View Top View Bottom View Rear View Left View Right View Front View

Label: FCC ID: 2ACFF1361-001 C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED Model No.: 1361-001(HDM-WIFI-AD01) Model name: HDMI WiFi Dongle This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label: Label Location FCC ID: 2ACFF1361-001 C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED Model No.: 1361-001(HDM-WIFI-AD01) Model name: HDMI WiFi Dongle This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

To p Vi e w To p Vi e w Antenna Bottom View

FCC ID: 2ACFF1361-001 RF EXPOSURE TEST FCC ID: 2ACFF1361-001 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2ACFF1361-001 Maximum measured transmitter power. 802.11B frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power (mW) 2412 9.43 8.77 2437 9.19 8.30 2462 9.26 8.43 802.11G frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power (mW) 2412 8.89 7.74 2437 8.74 7.48 2462 8.85 7.67 802.11N20 frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power (mW) 2412 8.53 7.13 2437 8.48 7.05 2462 8.29 6.75 FCC ID: 2ACFF1361-001 802.11N 40M frequency range Peak Conducted Output Power (dBm) Maximum Conducted Output Power (mW) 2422 8.04 6.37 2437 7.95 6.24 2452 7.86 6.11 For 802.11 B The max.output power is 9.43dBm=8.77mW, Frequency is 2.412GHz So (8.77/5)* √2.412=2.724≤ 3.0 Note: √2.412 =1.553 The max.output power is 9.19dBm=8.30mW, Frequency is 2.437GHz So (8.30/5)* √2.437=2.591≤ 3.0 Note: √2.437 =1.561 The max.output power is 9.26dBm=8.43mW, Frequency is 2.462GHz So (8.43/5)* √2.462=2.645≤ 3.0 Note: √2.462 =1.569 For 802.11 G The max.output power is 8.89dBm=7.74mW, Frequency is 2.412GHz So (7.74/5)* √2.412=2.404≤ 3.0 Note: √2.412 =1.553 The max.output power is 8.74dBm=7.48mW, Frequency is 2.437GHz So (7.48/5)* √2.437=2.335≤ 3.0 Note: √2.437 =1.561 The max.output power is 8.85dBm=7.67mW, Frequency is 2.462GHz So (7.67/5)* √2.462=2.407≤ 3.0 Note: √2.462 =1.569 FCC ID: 2ACFF1361-001 For 802.11 N20 The max.output power is 8.53dBm=7.13mW, Frequency is 2.412GHz So (7.13/5)* √2.412=2.215≤ 3.0 Note: √2.412 =1.553 The max.output power is 8.48dBm=7.05mW, Frequency is 2.437GHz So (7.05/5)* √2.437=2.010≤ 3.0 Note: √2.437 =1.561 The max.output power is 8.29dBm=6.75mW, Frequency is 2.462GHz So (6.75/5)* √2.462=2.118≤ 3.0 Note: √2.462 =1.569 For 802.11 N40 The max.output power is 8.04dBm=6.37mW, Frequency is 2.422GHz So (6.37/5)* √2.422=1.982≤ 3.0 Note: √2.422 =1.556 The max.output power is 7.95dBm=6.24mW, Frequency is 2.437GHz So (6.24/5)* √2.437=1.948≤ 3.0 Note: √2.437 =1.561 The max.output power is 7.86dBm=6.11mW, Frequency is 2.52GHz So (6.11/5)* √2.452=1.914≤ 3.0 Note: √2.452 =1.566 Conclusion: No SAR is required.

FCC RADIO TEST REPORT FCC ID: 2ACFF1361-001 Product： HDMI WiFi Dongle Trade Name： N/A Model Name： 1361-001(HDM-WIFI-AD01) Serial Model： 1361-005(HDM-WIFI-AD01B),1361-020(HDM-WIFI-AD02), 1361-030(HDM-WIFI-AD02B),1361-040(HDM-WIFI-AD03), 1361-050(HDM-WIFI-AD03B),1361-060(HDM-WIFIBX-AD01), 1361-070(HDM-WIFIBX-AD01B),1361-080(HDM-WIFIAV-AD01) , 1361-090(HDM-WIFIAV-AD01B) Report No.： BZT-2014NT0511016F Prepared for C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED Floor 2 & 3, No. 43 Factory Building, Guangda Road, 189 Industrial Area, Henggang Town, Longgang District, Shenzhen, China Prepared by BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. Page 2 of 74 Report No.: BZT-2014NT0511016F TEST RESULT CERTIFICATION Applicant’s name .............. C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED Address .............................. Floor 2 & 3, No. 43 Factory Building, Guangda Road, 189 Industrial Area, Henggang Town, Longgang District, Shenzhen, China Manufacture's Name ......... C-SMARTLINK INFORMATION TECHNOLOGY CO.,LIMITED Address .............................. Floor 2 & 3, No. 43 Factory Building, Guangda Road, 189 Industrial Area, Henggang Town, Longgang District, Shenzhen, China Product description Product name ....................... HDMI WiFi Dongle Model and/or type reference ........................... 1361-001(HDM-WIFI-AD01) Serial Model .......................... 1361-005(HDM-WIFI-AD01B),1361-020(HDM-WIFI-AD02), 1361-030(HDM-WIFI-AD02B),1361-040(HDM-WIFI-AD03), 1361-050(HDM-WIFI-AD03B),1361-060(HDM-WIFIBX-AD01), 1361-070(HDM-WIFIBX-AD01B),1361-080(HDM-WIFIAV-AD01), 1361-090(HDM-WIFIAV-AD01B) DIFF ....................................... All model’s the function, software and electric circuit are the same , only with a product color and model named different. The test mode is 1361-001(HDM-WIFI-AD01). Standards .......................... FCC Part15.247 Test procedure ...................... ANSI C63.4-2 003 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT, this document may be altered or revised by BZT , personal only, and shall be noted in the revision of the document. Date of Test .......................................... Date (s) of performance of tests ........... 12 May. 2014 ~18 May. 2014 Date of Issue ......................................... 19 May. 2014 Test Result ............................................. Pass Testing Engineer : (Lynn Chen) Technical Manager : (Carlen Liu) Authorized Signatory : (Tommy zhang) Page 3 of 74 Report No.: BZT-2014NT0511016F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 36 4 . POWER SPECTRAL DENSITY TEST 52 4.1 APPLIED PROCEDURES / LIMIT 52 4.1.1 TEST PROCEDURE 52 4.1.2 DEVIATION FROM STANDARD 52 4.1.3 TEST SETUP 52 4.1.4 EUT OPERATION CONDITIONS 52 4.1.5 TEST RESULTS 53 5 . BANDWIDTH TEST 61 5.1 APPLIED PROCEDURES / LIMIT 61 Page 4 of 74 Report No.: BZT-2014NT0511016F Table of Contents Page 5.1.1 TEST PROCEDURE 61 5.1.2 DEVIATION FROM STANDARD 61 5.1.3 TEST SETUP 61 5.1.4 EUT OPERATION CONDITIONS 61 5.1.5 TEST RESULTS 62 6 . PEAK OUTPUT POWER TEST 70 6.1 APPLIED PROCEDURES / LIMIT 70 6.1.1 TEST PROCEDURE 70 6.1.2 DEVIATION FROM STANDARD 70 6.1.3 TEST SETUP 70 6.1.4 EUT OPERATION CONDITIONS 70 6.1.5 TEST RESULTS 71 7 . ANTENNA REQUIREMENT 72 7.1 STANDARD REQUIREMENT 72 7.2 EUT ANTENNA 72 8 . EUT TEST PHOTO 73 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 74 Report No.: BZT-2014NT0511016F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 74 Report No.: BZT-2014NT0511016F 1.1 TEST FACILITY BZT Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.: 701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 74 Report No.: BZT-2014NT0511016F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment HDMI WiFi Dongle Trade Name …
