Wireless Video Transmitter & Receiver User Manual Model Name：TT­WM01 Brand Name：TaoTronics FCC ID:2ACIP­TT­WM 1. Wireless Video Transmitter & Receiver 2. Transmitter 3. Receiver 4.Specifications DC Characteristics POWER SUPPLY 12.0V Current Consumption 50mA , Max Environmental Specification Operating Temperature -10~+65 ºC Storing Temperature -30~+85 ºC Operating humidity 85%RH RF Transmitting frequency 2414-2468MHz Demodulation system FM/DLL Video input impedance 75Ω, Typ. Video input Level 1±0.2Vp-p Video Polarity NEGATIVE S/N 38dB, Min Input port） RCA In Dimension:61mm(L)*30mm(W)*14.5mm(H) 4. Aplication 5. FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Importer: ZBT International Trading GmbH Lederstr.21a D‐22525 Hamburg Germany Manufacture: Shenzhen Hetaihe Electronics Co.,Ltd 4th floor,new yongfeng tianxin industrial park Shenzhen,China

Jun.26, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ACIP-TT-WM Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hootoo.com Inc. Contact person: Lion Liao Title: manager

External Photos VIEW OF EUT-1 (TRANSMITTER) VIEW OF EUT-2 (TRANSMITTER) VIEW OF EUT-3 (TRANSMITTER)

FCC ID Label Location Wireless Video Transmitter Model name:TT‐MV01 Brand name:TaoTronics FCC ID:2ACIP‐TT‐WM TT‐WM02,TT‐WM03, TT‐WM04, TT‐WM05,TT‐WM06, TT‐WM07, TT‐WM08

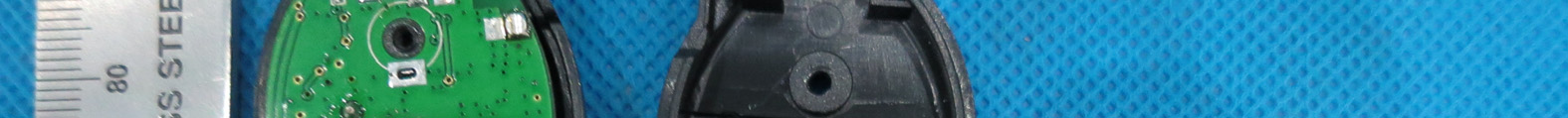

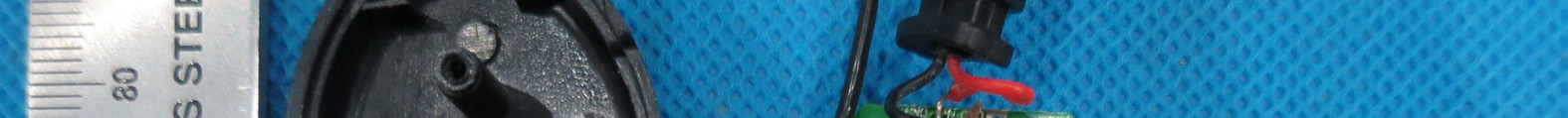

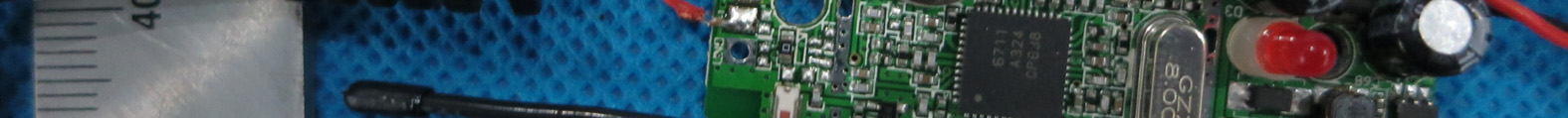

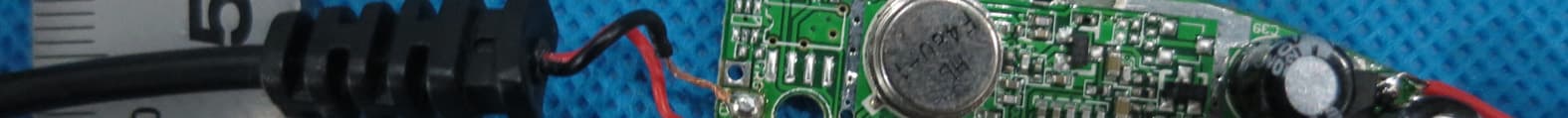

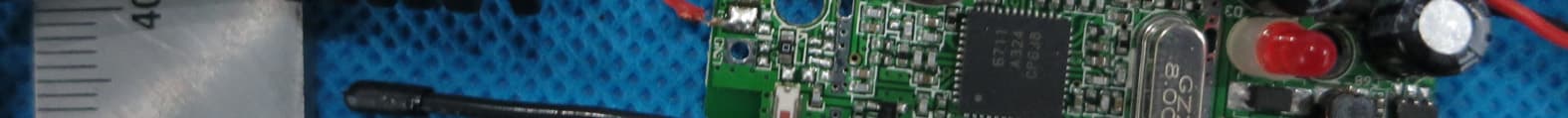

Internal Photos OPEN VIEW OF EUT-1(TRANSMITTER) OPEN VIEW OF EUT-2 (TRANSMITTER) INTERNAL VIEW OF EUT-1(TRANSMITTER) INTERNAL VIEW OF EUT-2(TRANSMITTER) Antenna

Report No.: AGC01892140501FE03 Page 1 of 24 FCC Test Report Report No.: AGC01892140501FE03 FCC ID : 2ACIP‐TT‐WM APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Video Transmitter BRAND NAME : TaoTronics MODEL NAME : TT‐WM01, TT‐WM02, TT‐WM03, TT‐WM04, TT‐WM05, TT‐WM06, TT‐WM07, TT‐WM08 CLIENT : Hootoo.com Inc. DATE OF ISSUE : Jun.23, 2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01892140501FE03 Page 2 of 24 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Jun.23, 2014Valid Original Report Report No.: AGC01892140501FE03 Page 3 of 24 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 2.3. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 6 2.4. TEST METHODOLOGY................................................................................................................ 6 2.5. SPECIAL ACCESSORIES ............................................................................................................ 6 2.6. EQUIPMENT MODIFICATIONS ................................................................................................... 6 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES ........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 8 6. TEST FACILITY .................................................................................................................... 9 7. RADIATED EMISSION ....................................................................................................... 10 7.1. MEASUREMENT PROCEDURE ................................................................................................ 10 7.2. TEST SETUP .............................................................................................................................. 12 7.3. TEST RESULT ............................................................................................................................ 13 8. BAND EDGE EMISSION .................................................................................................... 18 8.1. MEASUREMENT PROCEDURE ................................................................................................ 18 8.2. TEST SET-UP ............................................................................................................................. 18 8.3. TEST RESULT ............................................................................................................................ 18 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 20 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 21 Report No.: AGC01892140501FE03 Page 4 of 24 1. VERIFICATION OF CONFORMITY Applicant Hootoo.com Inc. Address 2880 Zanker Road STE 203 San Jose, CA95134 Manufacturer Hootoo.com Inc. Address 2/F,Block D, Minle Industrial Park, Meiban RD,Longhua District,SZ, China. 518131 Product Designation Wireless Video Transmitter Brand Name TaoTronics Test Model TT-WM01 Series Model TT-WM02, TT-WM03, TT-WM04, TT-WM05, TT-WM06, TT-WM07, TT-WM08 Difference description All the same except for the model name. Date of test Jun.17, 2014 to Jun.21, 2014 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF (2013-03-01) We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Freddie Duan Jun.23, 2014 Checked By Kidd Yang Jun.23, 2014 Authorized By Solger Zhang Jun.23, 2014 Report No.: AGC01892140501FE03 Page 5 of 24 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION The EUT is “Wireless Video Transmitter” designed as a “Communication Device”. It is designed by way of utilizing the FHSS technology to achieve the system operation. A major technical description of EUT is described as following Operation Frequency 2.414 GHz to 2.468GHz Field Strength 88.60dBuV/m(Max) Modulation FM/DLL Number of channels 4 Hardware Version N/A Software Version N/A Antenna Designation Integrated Antenna Antenna Gain 0dBi Power Supply DC12.0V 2.2. TABLE OF CARRIER FREQUENCYS Frequency Band Channel Number Frequency 2414~2468MHZ 1 2414MHz 2 2432MHz 3 2450MHz 4 2468 MHz Report No.: AGC01892140501FE03 Page 6 of 24 2.3. RELATED SUBMITTAL(S) / GRANT (S)…
