TAOTRONICS TT-SK06 Bluetooth speaker User manual Distinguished Customers, Thank you for purchasing this Bluetooth speaker TT-SK06. Before getting started, please read the user's manual carefully so as to ensure proper operation and optimized performance of this product. With stylish outer appearance, compact structure, high fidelity sound and multi-functionality, it has obtained patents concerning its outer appearance and adopted advanced electric and sound technology in the industry, ultimately making itself the best choice to hook up with your devices such as tablet, cellphone and digital music player etc. perfectly by presenting you exceptional stereo effect either you are at home, on vacation or at work. I. Precautions Please store and use this product at the ambient temperature; Do not expose this product to the rain or damp surroundings; Prevent this product from falling that could result in serious damage; Do not dismantle, repair or modify this product on your own; In order to avoid any risk, do not dispose this product inappropriately or toss it into the fire as there is a built-in lithium battery. II. Considerate Hints 1) Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or impair your hearing; 2) When encountering any fault during operation, please cut off the power supply and disconnect the USB cable to prevent further damage to the speaker or other components; 3) The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please recharge immediately. III. Outer Appearance and Function Buttons /Upward: Press and hold the button to decrease volume, press is to select songs upwards while playing music. /Downward: Press and hold the button to increase volume; press is to select songs downwards. /：/play/pause/ Pick up the call/hang up the call: Press this button to pause, to resume normal operation or pick up the incoming calls in the Bluetooth playback mode. /： Power On and Off: Long Press to start after power supply is connected and long press to shut down in operation. IV: Product parameter Model Number: TT-SK06 Bluetooth spec：Bluetooth 4.0 Transmission distance：≤10M Power: DC 5V--500mA～1.5A Battery: 2000mAh Speaker standard： 8Ω、1.7inch Frequencey response：90Hz-18KHz Sensitivity：80db±2db SNR：≥80dB Distortion factor：≤0.3% product standard：210x60x66MM V.System composition: 1.speaker 1 2. USB charge cable 1 3． user manual 1 VI: Common function description Power-on Status: Long press the Power Button to turn the speaker on and it beeps simultaneously with the blue indicator Appear. Bluetooth Connection: Once switched on, the speaker starts searching for other Bluetooth devices automatically and at the same time, the bluetooth indicator goes on and off. When found a Bluetooth device, the speaker prompts whether to pair up or not. If selected Yes, it pairs up with the device and meanwhile, the blue indicator flashes slowly and a beep is also generated by the speaker. If failed to detect any other Bluetooth device within 5minutes, the speaker will shut itself down. Turn it back on again to start search. All the paired devices will engage in automatic connection when the speaker is turned on. Hints: Please recharge when the battery loses its power considerably or the connection is failed. Bluetooth music playback: When connected, the speaker plays music immediately. Press and to select tracks upwards or downwards. Press and hold and to adjust the volume. While playing music, press to pause and to resume Call Pick-up: After connected with the cellphone successfully, the speaker beeps when a call comes in. Press / to pick it up and to terminate conversation, press /one more time. Intelligent Quick Recharge: Recharge can be performed in the standby mode or power-off situation. Before recharging, plug the mini-USB end of the supplied USB cable to the speaker's USB port and the other end to the USB port of the computer or the USB recharger. VII: Compatibility Bluetooth V4.0 consists of protocols like A2DP, AVRCP and HFP and so on. III. Touble shooting Faults Phenomena Solutions Unable to pair up with other devices 1. Check whether the speaker is still in the process of search or switch it off and then on. 2. There are too many Bluetooth devices in the proximity that cause difficulty in connection. Please turn them off. The sound is rather low or distorted 1. Check the Bluetooth device’s volume and then adjust it to a proper level. 2. Recharge the battery The music stops from time to time 1. Check whether the speaker’s effective transmission range is exceeded or there is an obstacle standing between the speaker and other Bluetooth devices. The Bluetooth indicator remains off 1. It suggests the battery power drops quite low and retry once being recharged. 2. Turn it on again. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the part…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 DATE 2015-08-03 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ACIP-TTSK40 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Hootoo.com Inc. Contact person: Lion Liao Title: Manager

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/3/2015 Request for Confidentiality Company name: Hootoo.com Inc. FCC ID: 2ACIP-TTSK40 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Hootoo.com Inc. hereby requests confidentiality of following attachments: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation These documents contain detailed system and equipment description and related information about the product which Hootoo.com Inc. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Hootoo.com Inc. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Company Officer: Lion Liao Telephone Number: (86) 13751001423 Email: [email protected]

August 03, 2015 Eurofins Product Service GmbH Storkower Str. 38c 15526 Reichenwalde GERMANY Subject: Explanation of differences between product types FCC ID : 2ACIP-TTSK40 Model Number: TT-SK06, TT-SK05, TT-SK07, TT-SK08, TT-SK10, TT- SK11, TT-SK12, TT-SK09 To Whom It May Concern: We, The Hootoo.com Inc. hereby declare that the model : TT-SK05, TT-SK07, TT-SK08, TT-SK10, TT-SK11, TT-SK12, TT-SK09 is identical with the model : TT-SK06, except the model name and appearance color. Except for the different above, no other modification is performed. Sincerely, Signature: Company Officer: Lion Liao Telephone Number: (86) 13751001423 Email: [email protected]

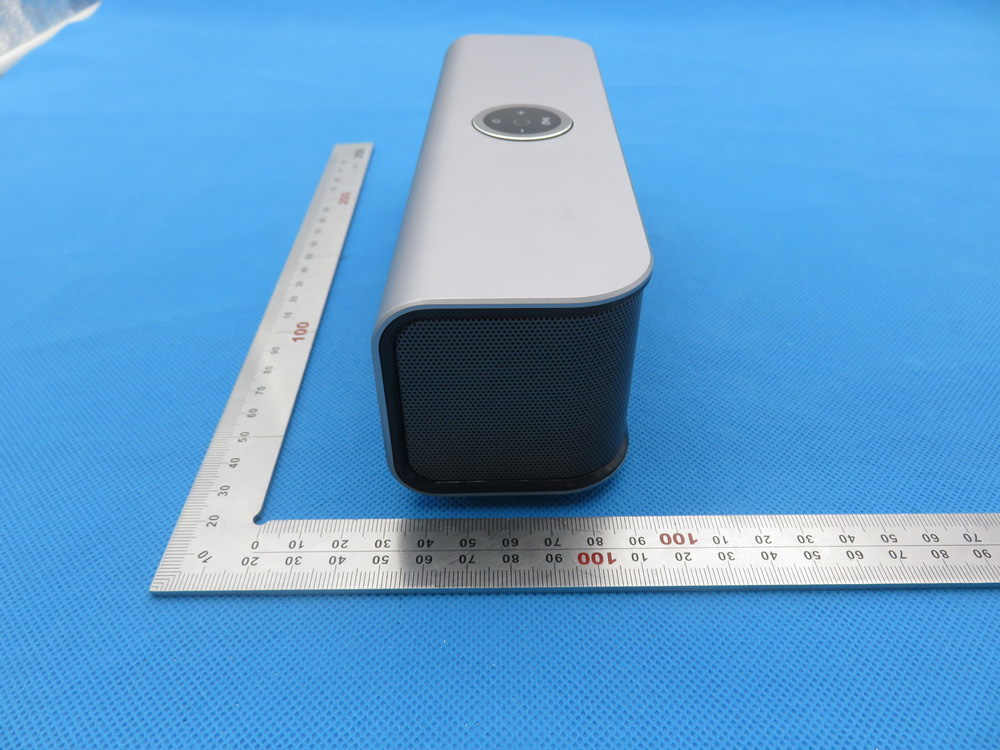

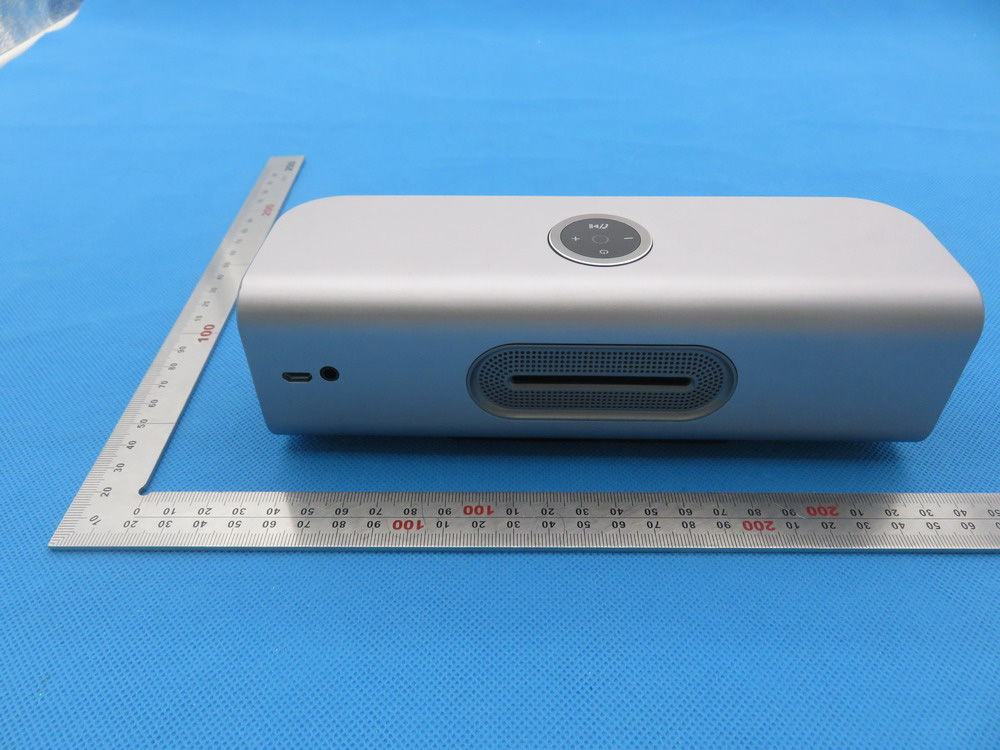

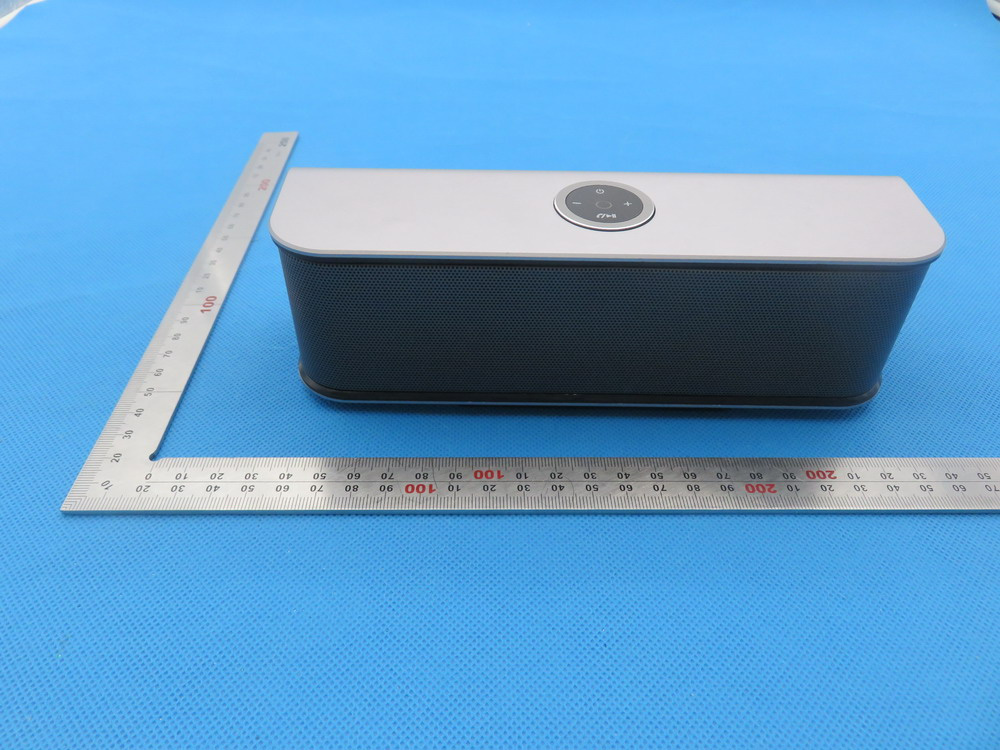

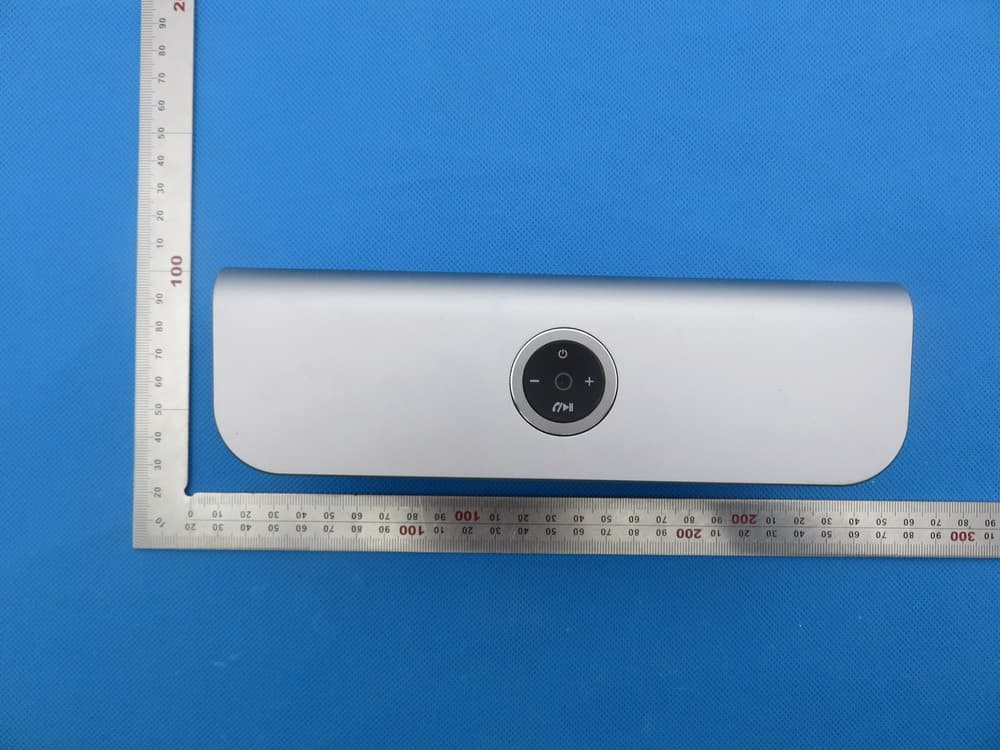

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2ACIP-TTSK40 Model: TT-SK06 TT‐SK05, TT‐SK07, TT‐SK08, TT‐SK10, TT‐SK11, TT‐SK12, TT‐SK09

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Antenna

RF Exposure evaluation Product Description:Bluetooth Speaker Model Number: TT-SK06 FCC ID: 2ACIP-TTSK40 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=98.28dBuv/m=0.082V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.082x3) 2 /(30x1)=0.002017W=2.02mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -2.02mW output power] (2.02mW /5mm) .[√2.480(GHz)]= 0.636<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 73 FCC Test Report Report No.: AGC01892150601FE03 FCC ID : 2ACIP-TTSK40 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Speaker BRAND NAME : TAOTRONICS MODEL NAME : TT-SK06,TT-SK05, TT-SK07, TT-SK08, TT-SK10, TT-SK11, TT-SK12, TT-SK09 CLIENT : Hootoo.com Inc. DATE OF ISSUE : July 31,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01892150601FE03 Page 2 of 73 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / July 31,2015 Valid Original Report Note: This EUT is same with the FCC ID: OYCBT079(Report NO.AGC00931150703), same data. Report No.: AGC01892150601FE03 Page 3 of 73 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES ........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 8 6. TEST FACILITY .................................................................................................................... 9 7 ALL TEST EQUIPMENT LIST ............................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT ................................................................................................................................... 10 8.2. MEASUREMENT PROCEDURE ................................................................................................ 11 8.3. TEST SETUP .............................................................................................................................. 13 8.4. TEST RESULT ............................................................................................................................ 15 9. BAND EDGE EMISSION .................................................................................................... 41 9.1. MEASUREMENT PROCEDURE ................................................................................................ 41 9.2 TEST SETUP ............................................................................................................................... 41 9.3 RADIATED TEST RESULT .......................................................................................................... 42 10. 20DB BANDWIDTH .......................................................................................................... 50 10.1. MEASUREMENT PROCEDURE .............................................................................................. 50 10.2. TEST SET-UP ........................................................................................................................... 50 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 50 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 59 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 59 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 59 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 60 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 60 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 61 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 65 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 67 Report No.: AGC01892150601FE03 Page 4 of 73 1. VERIFICATION OF CONFORMITY Applicant Hootoo.com Inc. Address 2880 Zanker Road STE 203 San Jose, CA95134 Manufacturer Shenzhen NearbyExpress Technology Development Company Limited Address 2/F,Block D, Minle Industrial Park, Meiban RD,Longhua District,Shenzhen,China. Product Designation Bluetooth Speaker Brand Name TAOTRONICS Test Model TT-SK06 Series Model TT-SK05, TT-SK07, TT-SK08, TT-SK10, TT-SK11, TT-SK12, TT-SK09 Different Description All the same except for the appearance color Date of test July 29,2015 to July 30,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT teste…

Text truncated - open the document above for the full version.

Test Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
