User Manual Bluetooth Hands‐free car kit TaoTronics Model: TT-BR03 FCC ID: 2ACIP-TTBR03 Thank you for choosing the TT-BR03 Bluetooth Hands-Free Car Kit from TaoTronics. Please read the user manual carefully, and keep the manual for future reference. If in doubt, please contact our customer support team by email at [email protected] with the details. Feature The TaoTronics TT-BR03 Bluetooth Hands-Free Car Kit instantly adds Bluetooth receiving capability to your car audio system. By doing so, you will be able to stream audio, music and phone calls via Bluetooth. y High quality audio brings premium music experience; y CVC noise cancelling technology eliminates disturbing sounds to ensure clear and crisp phone calls; y Bluetooth fast pairing, no complicated installation; y Simultaneous connection to 2 phones; y Built-in USB cable to charge your devices; y Removable suction cup base that can be placed anywhere you like. Package Contents y 1 x TT-BR03 Bluetooth Hands-Free Car Kit y 1 x User Manual Specifications Bluetooth Version Bluetooth V4.0 Bluetooth Profile A2DP, AVRCP Audio Coding aptX Range 33 feet (10 m) Charging Power USB 5V Working Current 60mA Audio Output 3.5mm audio connector Dimension (L*W*H) 1.7*1.7*0.8inch Weight 1.5oz * LED Indicators: The LED indicators communicate what the device is doing. LED indicator Status LED indicator flashes red and blue alternately In Pairing Mode LED indicator flashes blue once every 10 seconds Paired (but no action from your mobile device) LED indicator flashes red once every 4 seconds Standby (no device is paired) LED indicator stays blue Playing LED indicator stays red. In mute phone call mode ** Buttons Function Operation LED Indicator Power ON Switch the power button to the ON position after connecting the device to the power supply Turns blue Power OFF Switch to OFF position or turn off the power supply Turns red Pairing Mode Press and hold the MFB button for Flashes red and blue about 3 seconds alternately Pause/Play Press the MFB one time When paused, the indicator flashes blue once every 10 seconds. Volume ± Press the volume button to turn up/down the volume N/A Play Previous/Next Press and hold the volume button for 2 seconds N/A Answer/Hang up Phone call Press the MFB one time N/A Refuse a Phone Call Press and hold the MFB for 2 seconds N/A Mute a Phone Call During a phone call, press and hold the volume button for 2 seconds to turn on/off mute mode Mute: solid red Redial double press the MFB to redial the latest phone number N/A Clear the paired list When in pairing mode, double press the MFB Flashes blue & red twice ***USB cable Charging Connect your device with the USB cable. Once the car starts, it will start to charge your device automatically. ▲Note: y The unit will not automatically connect to a Bluetooth device when switched on; please read the next section on how to connect to your Bluetooth device. y If the device fails to pair with your phone, please try to clear the paired list and re-pair again. How to Use 1. Cable Connection 1) Plug the 3.5mm audio connector into the AUX interface of your car; 2) Set the audio source of your car audio system to LINE IN or AUX. ▲Note: y Please make sure your car supports AUX as this car kit only supports AUX audio input; y In addition to the car charger, you can use another DC 5V power source to supply power to the TT-BR03. 2. Bluetooth Pairing Method One To connect the TT-BR03 with another Bluetooth device, you must first bring it into pairing mode. 1) Ensure the TT-BR03 and your Bluetooth device are in close proximity to each other (within 3 feet); 2) If it’s the first time using this device, the TT-BR03 will automatically enter pairing mode when the power switch is turned “ON”. If you have previously used the TT-BR03, please press and hold the MFB for 3 seconds. In both cases, the LED indicator will flash red and blue alternately. 3) Activate Bluetooth function on your device and search for the nearby Bluetooth connection y For iPhone® : Settings > Bluetooth > On y For Android™ : Settings > Bluetooth: On > Scan for devices 4) “TaoTronics TT-BR03” should be listed in the search results. Select the name to connect. Once connected, the LED will be solid blue. ▲Note: y While bringing the device into pairing mode, the LED will flash blue once; then red once; then will flash blue and red alternately until paired. y After successfully pairing, the LED indicator will flash blue once every 10 seconds if there is no action from your mobile phone; if an action is performed the LED indicator will stay blue. y If a PIN code is required for pairing, please try “0000” or “8888” (4 zero or 4 eight); 3. Pair Two Devices Simultaneously The TT-BR03 supports pairing two devices simultaneously. Please note that only one device can stream audio at a time. To pair with two devices: 1) Follow the “Bluetooth Pairing” instructions to pair the TT-BR03 with your first device; 2) Turn OFF the Bluetooth of your first device, and TT-BR03 will switch into pairing mode automatically; 3) Connect your second device with TT-BR03; 4) Turn ON the Bluetooth of your first device and select “TaoTronics TT-BR03” on your phone, now both device are paired with the TT-BR03; 5) To play music between the two devices, simply pause the music on the first device and play music on the second device or vice versa. 4. Re-connect The TT-BR03 Bluetooth hands-free car kit can remember previously paired devices. If you have previously paired it with a device, simply turn on your device and the hands-free car kit, then they will connect automatically without going back into pairing mode. Trouble shooting Q: My TT-BR03 Bluetooth Hands-Free Car Kit will not switch on. A: Please check whether it has proper power supply (car charger or another USB power source) and make sure the power switch has been turned “ON”. Q: The device is turned on, but I cannot find it from my smartphone/tablet. A: In order for the receiver to be found, you must first …

Text truncated - open the document above for the full version.

Dec.22, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ACIP-TTBR03 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hootoo.com Inc. Contact person: Lion Liao Title: manager

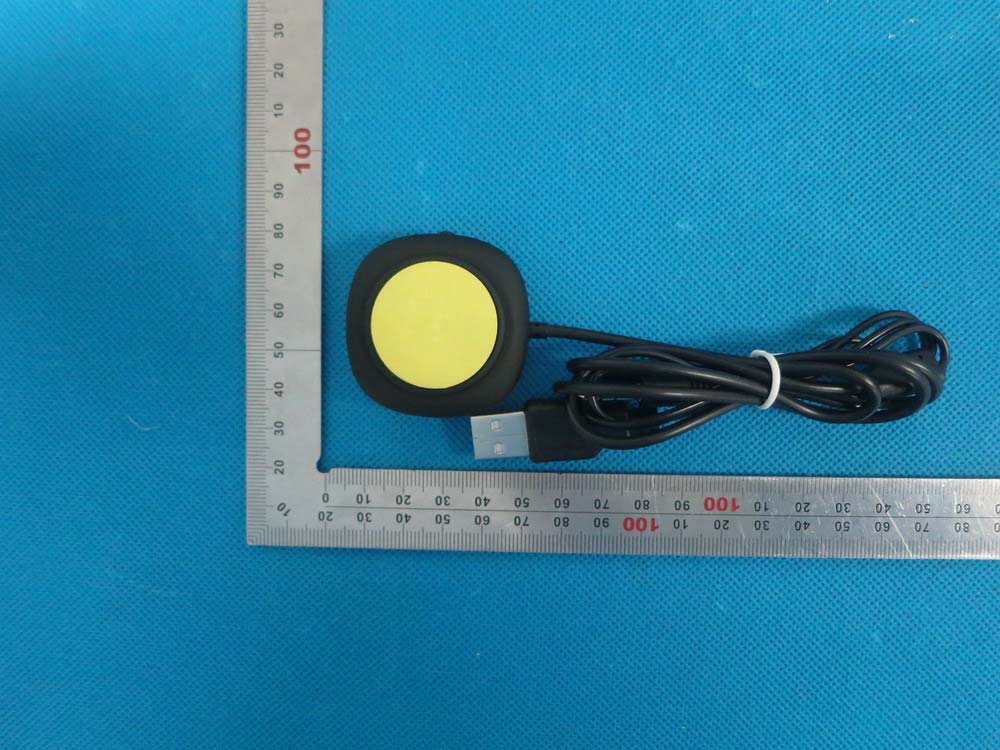

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2ACIP-TTBR03

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

Page 1 of 47 FCC Test Report Report No.: AGC01892141201FE08 FCC ID : 2ACIP‐TTBR03 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Hands‐free car kit BRAND NAME : TaoTronics MODEL NAME : TT‐BR03,TT‐BRXX(XX=02‐07), TT‐BA05 CLIENT : Hootoo.com Inc. DATE OF ISSUE : Dec.16,2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01892141201FE08 Page 2 of 47 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Dec.16,2014 Valid Original Report Report No.: AGC01892141201FE08 Page 3 of 47 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE......................................................................................................... 5 2.GENERAL INFORMATION ...................................................................................................................... 6 2.1PRODUCT DESCRIPTION ............................................................................................................... 6 2.2 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................. 6 2.3TEST METHODOLOGY .................................................................................................................... 6 2.4 TEST FACILITY ................................................................................................................................ 6 2.5 SPECIAL ACCESSORIES ................................................................................................................ 6 2.6 EQUIPMENT MODIFICATIONS ....................................................................................................... 7 2.7 MEASUREMENT UNCERTAINTY ................................................................................................... 7 3. SYSTEM TEST CONFIGURATION ......................................................................................................... 8 3.1 CONFIGURATION OF TESTED SYSTEM ....................................................................................... 8 3.2 EQUIPMENT USED IN TESTED SYSTEM ...................................................................................... 8 3.3. SUMMARY OF TEST RESULTS ..................................................................................................... 8 4. DESCRIPTION OF TEST MODES .......................................................................................................... 9 5. ANTENNA REQUIREMENT .................................................................................................................... 9 5.1. STANDARD APPLICABLE .............................................................................................................. 9 5.2. TEST RESULT ................................................................................................................................ 9 6. TEST FACILITY ..................................................................................................................................... 10 7. RADIATED EMISSION .......................................................................................................................... 11 7.1 MEASUREMENT PROCEDURE .................................................................................................... 11 7.2 TEST SETUP .................................................................................................................................. 12 7.3 LIMITS AND MEASUREMENT RESULT ........................................................................................ 13 7.4 TEST RESULT (WORST MODULATION: GFSK) ................................................................................ 13 8. BAND EDGE EMISSION ....................................................................................................................... 26 8.1. MEASUREMENT PROCEDURE ................................................................................................... 26 8.2. TEST SET-UP ............................................................................................................................... 26 8.3. TEST RESULT .............................................................................................................................. 27 9. 6DB BANDWIDTH ................................................................................................................................ 31 9.1. TEST PROCEDURE ...................................................................................................................... 31 9.2. SUMMARY OF TEST RESULTS/PLOTS ...................................................................................... 31 10. CONDUCTED OUTPUT POWER ....................................................................................................... 33 10.1. MEASUREMENT PROCEDURE ................................................................................................. 33 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................................ 33 10.3. LIMITS AND MEASUREMENT RESULT ..................................................................................... 34 11. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ................................................ 36 11.1 MEASUREMENT PROCEDURE .................................................................................................. 36 Report No.: AGC01892141201FE08 Page 4 of 47 11.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ......................................................... 36 11.3 LIMITS AND MEASUREMENT RESULT ...................................................................................... 36 12. FCC LINE CONDUCTED EMISSION TEST ........................…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC RADIATED EMISSION TEST SETUP
