2ACJAPLT7100GTablet PC

eeesssaaaeeelllPPPdddaaaeeerrreeessseeehhhtttsssnnnoooiiitttcccuuurrrtttsssnnniiirrrooofffeeesssuuudddnnnaaaeeevvvaaahhhaaadddoooooogggkkkoooooollltttaaaeeehhhtttnnnoooiiitttaaarrrtttsssuuulllllliiieeerrrooofffeeebbb ...gggnnniiisssuuu User Manual FCC ID: 2ACJAPLT7100G Shenzhen Harmony Technolugy Co.,Ltd. Block 2, Jiayuan Industrial Zone, Heping Communit high-tech park, No 2 Fuyuan Road, Fuyong, Bao'an, Shenzhen , China   Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.    NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † †† † Reorient or relocate the receiving antenna. † †† † Increase the separation between the equipment and receiver. † †† † Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. † †† † Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.    Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. 1 This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Dear customer, At the first beginning, thank you for choosing our products. Read all the information provided before usage. For your convenience, designed to introduce you the functions of the product, the manual will help you acquire more on the introduction and usage for a better use. For loss and damage of personal data caused by misoperation of software/ hardware, maintenance or other unexpected conditions, we take no responsibilities, nor are responsible for other indirect consequent loss. Meanwhile, misunderstanding to the manual is possible and uncontrollable by us. Herein, for unexpected loss in using the manual, we take no charge, nor take the charge of third-party claim. Information in the manual is specially designed for current products without prior notice to updating of new functions. Copyright reserved. No photocopy or copy is permitted prior to written authorization by us. We hold the final power of interpretation to the manual, guarantees and related data. (Note: We ask your allowance for faults and omission which may exist in making the manual and welcome your criticism and corr ection. For the problems in usage, please contact our service line (please add your own service line). Thanks for your support and cooperation. ) Again we show our thanks for choosing our products. Please keep attention to other products of our company. Notices: Notices: Notices: Notices: 1. Keep the product away from high magnetic fields, which may cause damage to it. The equipment is not waterproof. Please keep it dry. 2. Care the machine not to fall down or hit against hard things, otherwise surface damage, data loss or other hardware damage is likely to be resu lted in. 3. Not expose the machine in wet condition or rain. Water or damp in the machine may cause equipment failure, so far as to unrepairable 4. Neither the chemical reagent nor the cleaning reagent is permitted to clean the machine. Surface may be damaged and paint may be corroded. 5. Not to use the machine continuously with earphones under high volume. Adjust it to a suitable securable volume. For your hearing, control your usage time. Usage under over-high volume may cause permanent injur etohearing. 6. Not turn off the machine during software updating or uploading & downloading. Data loss or program errors may be resulted. 7. Overload power, bending forcefully or extrusion of the lines against weight are not allowed. Heat may cause fire. 8. Some films, music or pictures may be preserved with copyright. U npermitted broadcasting of those is against the copyright law. 9. Not use the machine at gas station. Nor use the machine near fuel or chemicals. 10. Only qualified maintainers is allowed to fit or repair t he machine 11. Use original accessories. Not use unmatched products 12. Save a copy of the important information of the machine or keep a manuscript in case of losing. 13. Read the user manual for detailed instruction of securable usage when link with other devices. Not link with unmatched products. 2 Enviroment Enviroment Enviroment Enviroment friendly friendly friendly friendly disposal disposal disposal disposal You can help protect the enviroment! Please remember to respect the local regulations: Hand-in the non-working electrical equipments to an appropriate waste disposal.

Ersteller:D.BrandhorstRevision:00 Erstelldatum:02.01.2012Datum:00.00.0000Seite1von1 Long/Short-termConfidentialityRequest PHOENIXTESTLABGmbHDate:21July2014 ProductCertification Königswinkel10 D32825Blomberg FCCID:2ACJAPLT7100G ToWhomitmayconcerns, Pursuanttosections0.457(d)and0.459ofCFR47andtoavoidprematurerelease ofsensitiveinformationpriortomarketingorreleaseoftheproducttothepublic,we herebyrequestslong-termconfidentialtreatmentofinformationaccompanyingthis applicationasoutlinedbelow: SchematicsPartsList BlockDiagramTune-UpInfo OperationalDescription Inadditionweherebyrequestthefollowingexhibitscontainedinthisapplicationtobe temporarily(short-termconfidentilality)withheldfromthepublicdisclosure foraninitialperiodofdaysuntil:not applicable ExternalPhotosTestSetupPhotos InternalPhotosUsersManual Theabovematerialscontaintradesecretsandproprietaryinformationnot customarilyreleasedtothepublic.Thepublicdisclosureofthesemattersmightbe harmfultotheapplicantandprovideunjustifiedbenefitstoitscompetitors. Theapplicantunderstandsthatpursuanttorule0.457(d),disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateof theGRANTforthisapplication. Thankyouforyourattentioninthismatter. Applicant’sCompanyShenzhenHarmonyTechnologyCo.,Ltd address:Block2,JiayuanIndustrialZone,HepingCommunityhigh-techpark,No2Fuyuan Road,Fuyong,Bao'an,Shenzhen,China Signature: TitleandDept.: Generamanager/CertificationDept.

ShenzhenHarmonyTechnologyCo.,Ltd AdHocModeDeclaration We,theundersigningcompany CompanyName:ShenzhenHarmonyTechnologyCo.,Ltd Address:Block2,JiayuanIndustrialZone,HepingCommunityhigh-techpark,No2 FuyuanRoad,Fuyong,Bao'an,Shenzhen,China Herebyconfirmthatthefollowingproducts: Productdescription:TabletPC Typedesignation:PLT7100G Brand:PROSCAN TheEUTdoesn’thaveAdHocModefunctionon‘non-USfrequencies’. Inaddition,thefrequencyselectionfeatureisdisabledbyfirmwarefordevices marketedtotheUS. Forthisproduct,onlychannels1~11willbeusedinUSA.Countrycodeselectionis disabled. Nameandtitle:LoganLuo/GeneraManager

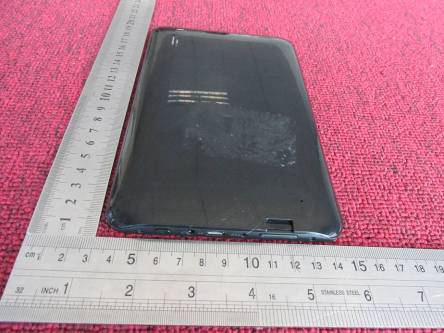

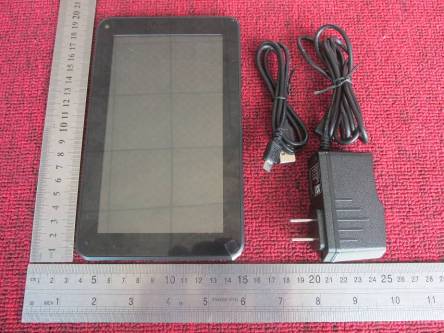

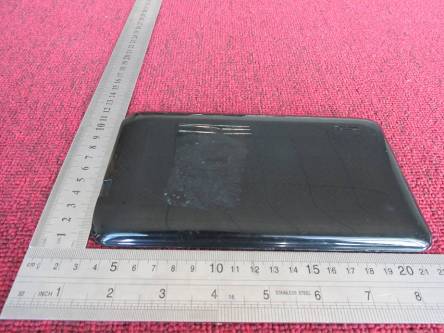

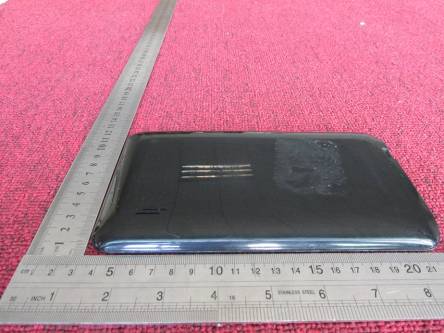

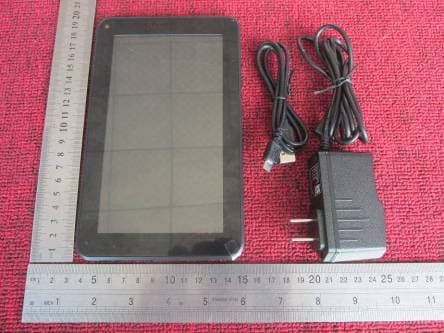

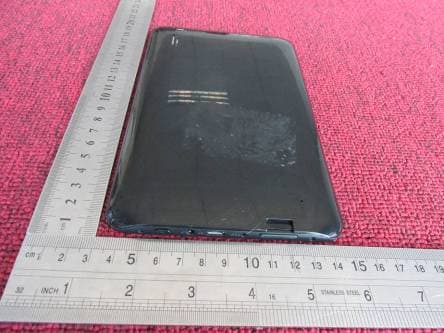

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT

FCC ID: 2ACJAPLT7100G Label Location on EUT FCC ID Label: Size: 20mm * 38 mm Table t PC M/N: PLT7100G FCC ID: 2ACJAPLT7100G Shenzhen Harmony Technology Co., Ltd. Made in China

Internal photograph of EUT Internal photograph of EUT WIFI Antenna Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT

RF Exposure (FCC ID: 2ACJAPLT7100G) 1.1 Applicable Standard KDB 447498 D01 General RF Exposure Guidance v05r02 1.2 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. 1.3 Maximum measured transmitter Conducted Power Channel Frequency (MHz) Data Rate (Mbps) Conducted Power (dBm) Mode Low 2412 1 8.65 802.11b Mid 2437 1 8.20 High 2462 1 9.27 Low 2412 6 7.77 802.11g Mid 2437 6 7.71 High 2462 6 6.29 Low 2412 6.5 7.67 802.11n HT20 Mid 2437 6.5 7.67 High 2462 6.5 5.78 Low 2422 13.5 6.79 802.11n HT40 Mid 2437 13.5 6.61 High 2452 13.5 6.15 1.4 measured conclusion Refer to KDB 447498 D01 General RF Exposure Guidance v05r02 Appendix A, We can draw the conclusion that: The Maximum measurement Conducted Output Power is 9.27dBm <10dBm (10mW), and the Maximum Output Power is 9.5dBm < 10dBm (10mW). So SAR evaluation is not required.

Report No: FCC1407049 Page 6 of 82 Date: 2014-07-11 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 2.0 Test Equipments Instrument Type Manufacturer Model Serial No. Date of Cal.Due Date ESPI Test Receiver ROHDE&SCHWARZ ESPI 3 100379 2013-08-232014-08-22 TWO Line-V-NETW ROHDE&SCHWARZ EZH3-Z5 100294 2013-08-232014-08-22 TWO Line-V-NETW ROHDE&SCHWARZ EZH3-Z5 100253 2013-08-232014-08-22 Ultra Broadband ANT ROHDE&SCHWARZ HL562 100157 2013-08-252014-08-24 ESDV Test Receiver ROHDE&SCHWARZ ESDV 100008 2013-08-232014-08-22 Impuls-Begrenzer ROHDE&SCHWARZ ESH3-Z2 100281 2013-08-242014-08-23 System Controller CT SC100 - -- -- Printer EPSON PHOTO EX3CFNH234850 -- -- Computer IBM 8434 1S8434KCE99BLXL O* - - Loop Antenna EMCO 6502 00042960 2013-08-232014-08-22 ESPI Test Receiver ROHDE&SCHWARZ ESI26 838786/013 2013-08-232014-08-22 3m OATS -- -- N/A 2013-08-222014-08-21 Horn Antenna SCHWARZBECK BBHA 9170 BBHA9170265 2013-08-242014-08-23 Horn Antenna SCHWARZBECK BBHA 9120D9120D-631 2013-08-242014-08-23 Power meter Anritsu ML2487A 6K00003613 2013-08-242014-08-23 Power sensor Anritsu MA2491A 32263 2013-08-242014-08-23 Bilog Antenna Schwarebeck VULB9163 9163/340 2013-08-212014-08-20 LISN AFJ LS16C 10010947251 2013-08-212014-08-20 LISN (Three Phase) Schwarebeck NSLK 8126 8126453 2013-08-232014-08-22 9*6*6 Anechoic -- -- N/A 2013-08-222014-08-21 EMI Test Receiver RS ESCS30 100139 2013-08-232014-08-22 RF Cable Timeway TW213 N/A 2013-08-222014-08-21 Report No: FCC1407049 Page 7 of 82 Date: 2014-07-11 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 3. DESCRIPTION OF TEST MODES IEEE 802.11b, 802.11g, 802.11n (HT20) mode The EUT had been tested under operating condition. There are three channels have been tested as following: Channel Frequency (MHz) Low 2412 Middle 2437 High 2462 IEEE 802.11b mode: 1Mbps data rate (worst case) was chosen for full testing. IEEE 802.11g mode: 6Mbps data rate (worst case) was chosen for full testing. IEEE 802.11n (HT20) mode: 6.5Mbps data rate (worst case) were chosen for full testing The worst-case data rates are determined according to the description above, based on the investigations by measuring the PSD and average power across all the data rates, bandwidths, modulations and spatial stream modes. IEEE 802.11n (HT40) mode The EUT had been tested under operating condition. There are three channels have been tested as following: Channel Frequency (MHz) Low 2422 Middle 2437 High 2452 IEEE 802.11n (HT40) mode: 13.5Mbps data rate (worst case) were chosen for full testing The worst-case data rates are determined according to the description above, based on the investigations by measuring the PSD and average power across all the data rates, bandwidths, modulations and spatial stream modes. Note: The EUT was programmed to be in continuously transmitting mode and the transmit duty cycle is not less than 98%. Report No: FCC1407049 Page 8 of 82 Date: 2014-07-11 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 3.0 Technical Details 3.1 Summary of test results The EUT has been tested according to the following specifications: Standard Test Type Result Notes FCC Part 15, Paragraph 15.107 & 15.207 Conducted Emission Test PASS Complies FCC Part 15 Subpart C Paragraph 15.247(a)(2) Limit Spectrum bandwidth of a Orthogonal Frequency Division Multiplex System Limit: 6dB bandwidth>500kH…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION TEST RADIATED EMISSION TEST BELOW 1GHZ RADIATED EMISSION TEST ABOVE 1GHZ
