2ACQM-EDG3-0420-AVUSION 4.2

SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz-Mellach - AUSTRIA CR: FN350927w I Commercial court: Graz I UID : ATU65936017 T. +43 (0) 5 94604-00 I E. [email protected] I www.ses-imagotag.com VUSION - Electronic Shelf Labels Read all documents and system instructions carefully to minimize the risk of injuring persons and to avoid damage to the system or damage to the environment. Always keep all documents and guidance accessible. If necessary, the content of this document will be updated. You can request the latest version of the document via [email protected]. Register at the https://portal.imagotag.com to get access to the latest software and documentation. An electronic shelf label is a device that shows article data and price information on its display. In comparison to printed labels the information is automatically updated if price or article data changes. The SES-imagotag electronic shelf label family offers high-quality display options, operating with a replaceable battery, thus working without any external power supply. The SES-imagotag VUSION (2.4GHz) electronic shelf label family can change all pixels to black, white or red/yellow. The current line-up has display sizes from 1.6 inch to 12.2 inch. They may be used in landscape and portrait mode and can be configured in terms of radio, theft protection, display protection and LED flash. General Key Features 2.4 GHz proprietary radio protocol Radio coverage: up to 25 meters Bi-directional communication 11 available communication channels Ultra-low power consumption Customer-replaceable battery Full graphical e-Ink display with paper-like readability e-ink displays are available (Black/White, Black/White/Red, Black/White/Yellow) Different configurations available (theft protection, display protection, LED flash) Label versions for deep-freezing environments Super wide viewing angle (nearly 180 degrees) Flexible mounting options available May be used in landscape and portrait mode Fast response time 128-bit AES encryption with secure key exchange Multiple pages support with preloading and fast page switching Integrated Passive NFC tag The installation instructions are intended for trained electricians who can exhibit the following qualifications: Knowledge of the use of tools and work instructions. Knowledge of the usable conditions of the tool. Knowledge of the electrical safety instructions. Knowledge of the electrical building regulations. Knowledge of the relevant standards. Knowledge of the assembly schedule. SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz-Mellach - AUSTRIA CR: FN350927w I Commercial court: Graz I UID : ATU65936017 T. +43 (0) 5 94604-00 I E. [email protected] I www.ses-imagotag.com The power supply are cell-button batteries. The following table will give you a short overview about all kinds of labels and their batteries. Caption Model Display Resolution Active Display Area (mm) Display colors Usable pages Battery Type Operati ng Voltage Nominal capacity Wake up (seco nds) Battery lifetime 5 years with N updates per day VUSION 1.6 EDG2-0160-A EDG3-0160-A EJP1-0160-A 152x152 27.5 x 27.5 b/w/r b/w/y 4 1xCR2450 3V 550 mAh 30 1 VUSION 2.2 EDG2-0220-A EDG3-0220-A EDG3-0220-B EDB1-0220-A 212x104 48.6 x 23.8 b/w/r b/w/y 4 2xCR2450 3V 1100 mAh 15 2 VUSION 2.2 F EDG2-0220-A 212x104 48.6 x 23.8 b/w 4 2xCR2450 3V 1100 mAh 30 1 VUSION 2.6 EDG2-0260-A EDG3-0260-A EJP1-0260-A 296x152 60.1 x 30.7 b/w/r b/w/y 4 2xCR2450 3V 1100 mAh 15 2 VUSION 2.6 F EDG2-0260-A 296x152 60.1 x 30.7 b/w 4 2xCR2450 3V 1100 mAh 30 1 VUSION 2.7 EDG2-0270-A EDG2-0270-B 264x176 57.3 x 38.2 b/w/r 4 2xCR2450 3V 1100 mAh 15 2 VUSION 2.9 EDG3-0290-A 384 x 168 67,6 x 29,6 b/w/r 4 2xCR2450 3V 1100 mAh 15 2 VUSION 2.9 F EDG3-0290-A 384 x 168 67,6 x 29,6 b/w 4 2xCR2450 3V 1100 mAh 15 1 VUSION 3.7 EDG2-0370-A 416x240 81.54 x 47.04 b/w/r 4 3xCR2450 3V 1650 mAh 15 2 VUSION 4.2 EDG2-0420-A EDG2-0420-B EDG3-0420-A 400x300 84.8 x 63.6 b/w/r b/w/y 4 3xCR2450 3V 1650 mAh 15 2 VUSION 4.5 EDG2-0450-A 480x176 104.2 x 38.2 b/w/r b/w/y 4 3xCR2450 3V 1650 mAh 15 2 VUSION 5.9 EDG2-0590-A EDG3-0590-A EDG4-0590-A 720x256 138.96 x 49.40 b/w/r 4 5xCR2450 3V 2750 mAh 15 2 VUSION 6.0 EDG3-0600-A 600x448 114.9 x 85.8 b/w/r 4 3xCR2450 3V 1650 mAh 15 2 Page 3 VUSION 7.4 EDG2-0740-A EDG3-0740-A 480x800 97 x 161.6 b/w/r b/w/y 4 4xCR2450 3V 2200 mAh 15 2 VUSION 9.7 EDG2-0970-A EDG3-0970-A EDG4-0970-A 960x672 201.60 x 141.12 b/w/r 4 8xCR2450 3V 4400 mAh 15 2 VUSION 12.2 EDG2-1220-A EDG3-1220-A 768x960 190.08 x 237.6 b/w/r b/w/y 6 6xCR2450 3V 3300 mAh 15 1 VUSION Sway 2.6 EDF3-0260-A 296 x 152 60.0 x 31.0 b/w/r 4 1×CR2450 3V 550 mAh - Up to 3 years with 1 update per day VUSION Sway 2.6 EDF3-0260-B 296 x 152 60.0 x 31.0 b/w/r 4 1×CR2450 3V 550 mAh - Up to 3 years with 1 update per day VUSION 2.3 DYN LCG3-0230-A 256x128 51.7 x 25.4 b/w 4 2xCR2450 3V 1100 mAh - 5 years Note: battery lifetime can vary depending on the operating conditions of the labels (temperature, radio usage etc...). SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz-Mellach - AUSTRIA CR: FN350927w I Commercial court: Graz I UID : ATU65936017 T. +43 (0) 5 94604-00 I E. [email protected] I www.ses-imagotag.com General remarks The SES-imagotag VUSION Labels must be installed according to the mounting instructions of the producer. In rare cases it may occur that the usage of wireless appliances is restricted by the building owner (e.g. Airport or Hospital). Please contact the appropriate authorities before installing the SES-imagotag VUSION Labels. Environmental General E-Paper displays are moisture and UV sensitive. The absolute rating operating environments describes the boundary conditions for updating the display while the absolute rating storage environment (see Storage and warehousing) describes the boundary conditions for a display not updating. BW BW (Freezer) BWR R1.2 BWR R2.0 BWY Y1.2 Operating temperature 0° C to +45° C -25° C to +10° C 10° C to +40°…

Text truncated - open the document above for the full version.

Coverletter: SES-Imagotag GmbH wants to get FCC-Certification for the following device: EDG3-0420-A. The unit will get the following FCC-ID: 2ACQM-EDG3-0420-A Regarding the “URGENT CLARIFICATION - FCC Area of Concern-Antenna Gain Information” from 2022-08-26: Field strength measurements are applicable for this device. Antenna construction information is provided as operational description exhibit. List of documents: Exhibit Thema File Exhibit 01 Label and placement label_and_placement.pdf Exhibit 02 Not needed -------------------- ° Exhibit 03 External Photos photos_external.pdf * Exhibit 04 Block Diagrams RFRTx038D0Ax_BlockDiagram_v1.0.pdf * Exhibit 05 Schematic Diagrams RFRTx038D0AA_Schematics_v1.0.pdf Exhibit 06 Testreport 2022-IN-AT-TICL-E-EX-000328-FG- 002_signed_2x_noPhotos.pdf ° Exhibit 07 Test Set-up Photos photos_setup.pdf ° Exhibit 08 User Manual VUSION_Certification_manual_EN_20221011.pdf ° Exhibit 09 Internal Photos photos_internal.pdf Exhibit 10 Informations -------------------- Exhibit 11 RF exposure see test report * Exhibit 12 Operational Description Transmission Protocol Antenna information for Urgent Clarification Operational Description VUSION_20221011.pdf FCC Protocol Timing Specification.pdf Antenna construction information.pdf Exhibit 13 Cover letter Request for confidentiality This file Long Term - Short Term Confidentiality Request_FCC_EDG3-0420- A_20221006_signed.pdf For the Exhibits marked with ‘*’ SES-imagotag GmbH requested Long-Term Confidentiality and for exhibits marked with ‘°’ SES-imagotag GmbH requested Short-Term Confidentiality according to 47 CFR 0.457 and 0.459 of the FCC rules because these are sensitive parts owned by this company and include much of know-how or sensitive data, it will not be provided to the public. The labelling on some photos may be not the actual status. The correct labelling is shown on the label photo in Exhibit 1.

Page 1/1 CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 October 6 th , 2022 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, SES-imagotag GmbH (FRN: 0023782022) requests confidentiality for the following products: FCC ID Number Product: Title/Model o Product Code: EDG3-0420-A / FCC: 2ACQM-EDG3-0420-A For the product stated above, we request that the following information be held Long-Term confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: “folder: Hardware” 2. Block diagram, Operational description submitted as Equipment Authorization For the product stated above, we request that the following information be held Short-Term confidential: 1. External photos 2. Test setup photos 3. Internal photos 4. User ́manual The above exhibits contain SES-imagotag GmbH trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our Smart Tagging System. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Philipp Jauck, Head of IP Management & Regulatory Compliance SES-imagotag GmbH Kalsdorfer Strasse 12 8072 Fernitz-Mellach, Austria Mobil: +43 664 88252901 [email protected] www.ses-imagotag.com

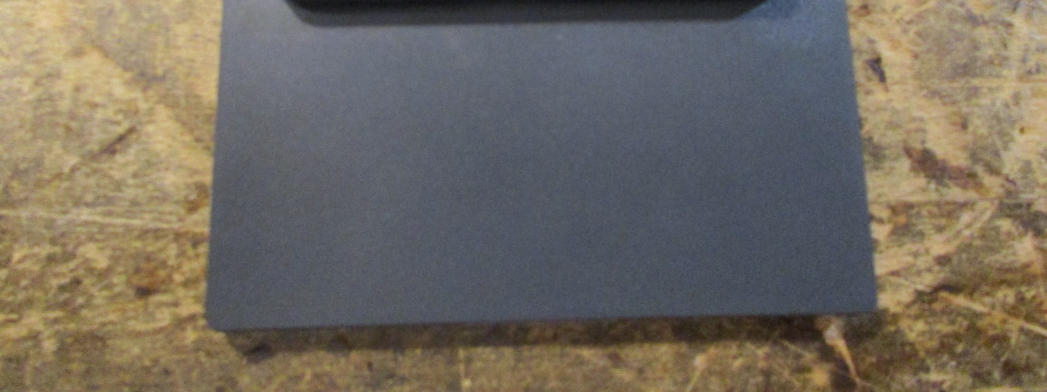

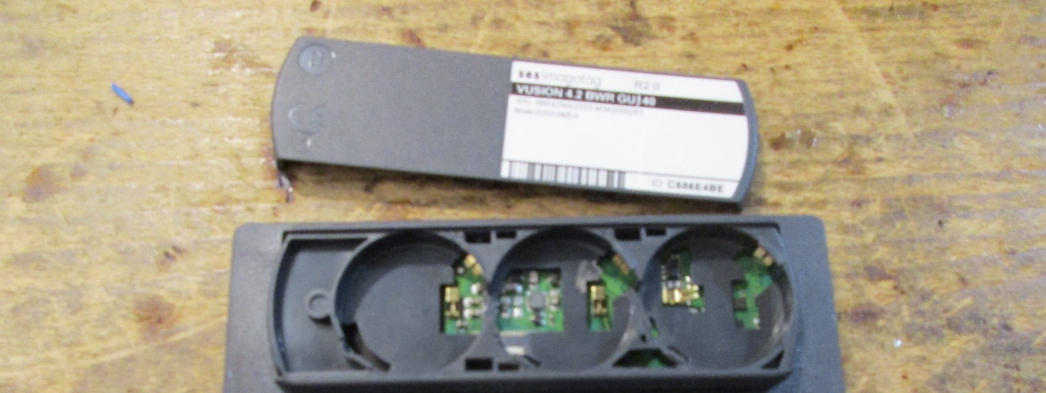

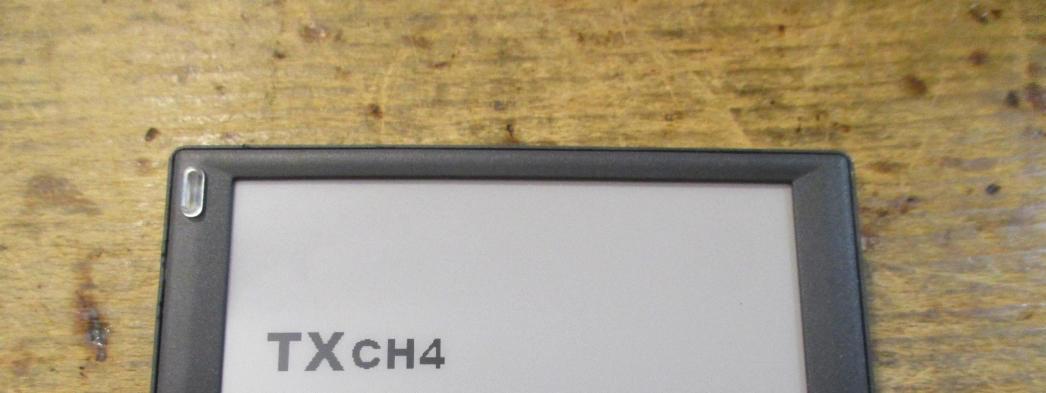

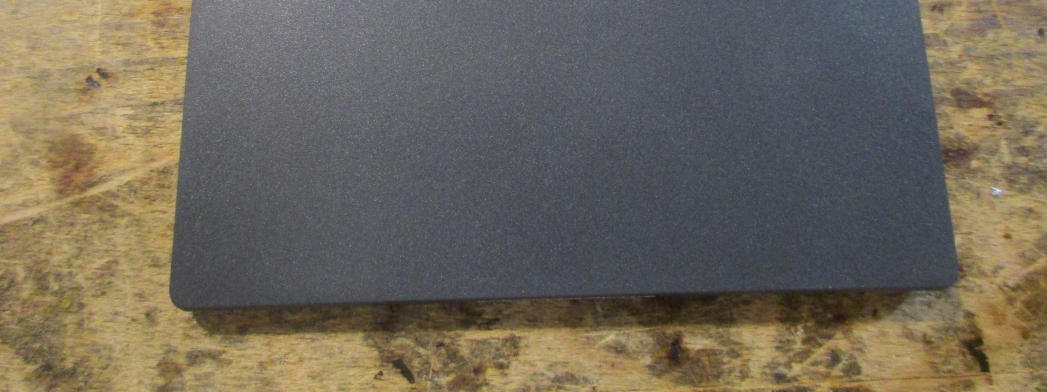

www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Front view Division: Industry & Energy Test report reference: 2022-IN-AT-TICL-E-EX- 000328-FG-002 Page: 1 of 10 Date: 12.10.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Rear view Division: Industry & Energy Test report reference: 2022-IN-AT-TICL-E-EX- 000328-FG-002 Page: 2 of 10 Date: 12.10.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Battery compartment opened Division: Industry & Energy Test report reference: 2022-IN-AT-TICL-E-EX- 000328-FG-002 Page: 3 of 10 Date: 12.10.2022

www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Case opened Division: Industry & Energy Test report reference: 2022-IN-AT-TICL-E-EX- 000328-FG-002 Page: 4 of 10 Date: 12.10.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Internal view Division: Industry & Energy Test report reference: 2022-IN-AT-TICL-E-EX- 000328-FG-002 Page: 5 of 10 Date: 12.10.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: PCB view #1 Division: Industry & Energy Test report reference: 2022-IN-AT-TICL-E-EX- 000328-FG-002 Page: 6 of 10 Date: 12.10.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: PCB view #2 Division: Industry & Energy Test report reference: 2022-IN-AT-TICL-E-EX- 000328-FG-002 Page: 7 of 10 Date: 12.10.2022

www.tuv.at | [email protected] | TÜV ® DN: FM-INE-EMV-EMC-0100a_en Page 1 of 19 2022-IN-AT-TICL-E-EX-000328-FG-002.docx Rev04 TEST REPORT of the accredited test laboratory TÜV Nr.: 2022-IN-AT-TICL-E-EX-000328-FG-002 Applicant: SES-imagotag GmbH Kalsdorfer Strasse 12 A – 8072 Fernitz-Mellach Tested Product: Electronic shelf labelling system Product Name: VUSION 4.2 Model: EDG3-0420-A FCC-ID: 2ACQM-EDG3-0420-A IC-ID: 12154A-EDG30420A Manufacturer: SES-imagotag GmbH Kalsdorfer Strasse 12 A – 8072 Fernitz-Mellach Output power / field strength: 1,82 mV/m average @ 3m distance power supply: 3V DC internal battery Frequency range: 2404,053 - 2479,285 MHz Channel separation: 0,35 MHz Standard: FCC: 47 CFR Part 15 (eCFR 04.10.2022) RSS-102 Issue 5, March 2015 RSS-210 Issue 10, December 2019 TÜV AUSTRIA SERVICES GMBH Test laboratory for EMC Ing. Andreas Malek examined by / Testing Laboratory TÜV AUSTRIA SERVICES GMBH Official seal 12.10.2022 Ing. Michael Emminger approved by / Testing Laboratory TÜV AUSTRIA SERVICES GMBH A publication of this test report is only permitted literally. Copying or reproduction of partial sections needs a written permission of TÜV AUSTRIA SERVICES GMBH. The results of this test report only refer to the provided equipment. TÜV AUSTRIA SERVICES GMBH Office: Deutschstrasse 10 1230 Vienna/Austria T: +43 5 0454-0 F: +43 5 0454-6505 E: [email protected] W: www.tuv.at Business Area Industry & Energy Austria Technik TÜV ® Testing Laboratory, Inspection Body, Certification Body, Calibration Laboratory, Verifizierungsstelle Notified Body 0408 IC 2932K-1 Non-executive Board of Directors: KR DI Johann Marihart Management: DI Dr. Stefan Haas Mag. Christoph Wenninger Registered Office: Deutschstrasse 10 1230 Vienna/Austria Branch Offices: www.tuv.at/standorte Company Register Court / - Number: Vienna / FN 288476 f Bank Details: IBAN AT131200052949001066 BIC BKAUATWW VAT ATU63240488 DVR 3002476 www.tuv.at | [email protected] | TÜV ® Test Report Reference: 2022-IN-AT-TICL-E-EX-000328-FG-002 Date: 12.10.2022 Ambient temperature: 23°C Relative humidity: 49% DN: FM-INE-EMV-EMC-0100a_en Page 2 of 19 2022-IN-AT-TICL-E-EX-000328-FG-002.docx Rev04 Contents Designation PAGE 1. Applicant 3 2. Description of EUT 4 3. Standards / Final result 5 4. Test results List of measurements according to 47 CFR 15 and RSS-210 4.1 Test object data 6 4.2 Number of channels and channel spacing 7 4.3 Duty Cycle for averaging 8 4.4 Field strength at 2400 – 2483,5 MHz 9-11 4.5 Emissions outside 2400 – 2483,5 MHz (15.209) 12-16 4.6 RF Exposure 17-19 Appendix Designation PAGES 1 Test equipment used 5 2 Photodocumentation 10 www.tuv.at | [email protected] | TÜV ® Test Report Reference: 2022-IN-AT-TICL-E-EX-000328-FG-002 Date: 12.10.2022 Ambient temperature: 23°C Relative humidity: 49% DN: FM-INE-EMV-EMC-0100a_en Page 3 of 19 2022-IN-AT-TICL-E-EX-000328-FG-002.docx Rev04 1. Applicant Company: SES-imagotag GmbH Department: Product & Project Manager Address: A – 8072 Fernitz-Mellach; Kalsdorfer Strasse 12 Contact person: Mrs. Tamara Risek Gmajnic EUT received on: 04.10.2022 Tests were performed on: 04.10. & 05.10.2022 www.tuv.at | [email protected] | TÜV ® Test Report Reference: 2022-IN-AT-TICL-E-EX-000328-FG-002 Date: 12.10.2022 Ambient temperature: 23°C Relative humidity: 49% DN: FM-INE-EMV-EMC-0100a_en Page 4 of 19 2022-IN-AT-TICL-E-EX-000328-FG-002.docx Rev04 2. Description of EUT EUT: Electronic shelf labelling system Product Name: VUSION 4.2 Model: EDG3-0420-A Serial Number: Prototype Manufacturer: SES-imagotag GmbH A – 8072 Fernitz-Mellach; Kalsdorfer Strasse 12 Description: SES-imagotag GmbH provided the following configuration for the measurements: Prototype with special test-firmware for continuous transmission Operating mode: The measurements were carried out at the following running states: test-firmware running, transmitting continuously Technical data EUT: Rated voltage: 3VDC Rated current: <1A Rated frequency: DC Mains voltage during the tests: 3VDC internal battery Climatic conditions in the emc laboratory: Relative humidity: 49% Temperature: 23°C www.tuv.at | [email protected] | TÜV ® Test Report Reference: 2022-IN-AT-TICL-E-EX-000328-FG-002 Date: 12.10.2022 Ambient temperature: 23°C Relative humidity: 49% DN: FM-INE-EMV-EMC-0100a_en Page 5 of 19 2022-IN-AT-TICL-E-EX-000328-FG-002.docx Rev04 3. Standards / Final result Name Title Deviation Result Title 47 CFR Part 15 eCFR 04.10.2022 RADIO FREQUENCY DEVICES none OK RSS-210 Issue 10, December 2019 Licence-Exempt Radio Apparatus: Category I Equipment none OK Result: Opinions and interpretation of testing laboratory OK: EUT passed NOK: EUT failed www.tuv.at | [email protected] | TÜV ® Test Report Reference: 2022-IN-AT-TICL-E-EX-000328-FG-002 Date: 12.10.2022 Ambient temperature: 23°C Relative humidity: 49% DN: FM-INE-EMV-EMC-0100a_en Page 6 of 19 2022-IN-AT-TICL-E-EX-000328-FG-002.docx Rev04 4.1 TEST OBJECT DATA General EUT Description This transceiver module is working in a network consisting of a controller station, so called Accesspoint, and various displays. The Accesspoint transmits information to the displays and receives acknowledgements. This device is a display operating in the network system. The device is equipped with a passive NFC chip onboard which does not have its own rf generation. It works as tag and can also receive information from the NFC reader station. 2.1033 (c) Technical description 2.1033 (4) Type of emission: Minimum shift keying – declared channel bandwidth 250 kHz – ‘virtual’ channel spacing about 0,35 MHz. Only 11 channels from the channel plan are used, therefore the channel spacing in reality is much higher and varies from 2,45 MHz minimum up to 17,15 MHz. 2.1033 (5) Frequency range: 2404,053 – 2479,285 MHz (channel center frequencies of channel 0 up to ch. 10) 2.1033 (6) Power range and Controls: The maximum field strength measured is 1,82 mV/m average @ 3m distance. There is no power control or regulation. 2.1033 (7) Maximum output power rating: 1,82 mV/m aver…

Text truncated - open the document above for the full version.

www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Test setup emissions below 30 MHz Division: Industry & Energy Test report reference: 2022-IN-AT-TICL-E-EX- 000328-FG-002 Page: 8 of 10 Date: 12.10.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Test setup emissions 30 MHz - 1 GHz Division: Industry & Energy Test report reference: 2022-IN-AT-TICL-E-EX- 000328-FG-002 Page: 9 of 10 Date: 12.10.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_en Rev00 Appendix 2 Photodocumentation Description: Test setup emissions above 1 GHz Division: Industry & Energy Test report reference: 2022-IN-AT-TICL-E-EX- 000328-FG-002 Page: 10 of 10 Date: 12.10.2022 --- END OF TEST REPORT ---
